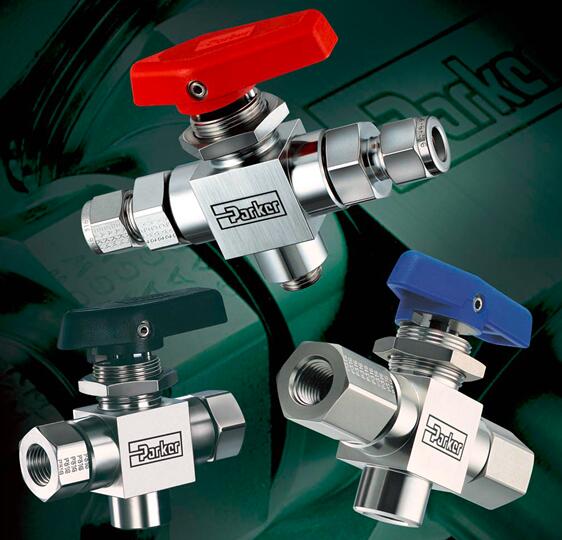

Parker派克 仪表级球阀
Parker派克 Ball Valve, Trunnion Style 10,000 PSI-HB Series
Parker派克 HB 系列耳轴式球阀,承压10,000 PSI

派克的高压球阀,HB系列,可提供良好的关断功能或者切换功能。上下支撑环增强了耳轴式设计阀杆的抗阻力性,也增加了阀门在严苛应用中的使用寿命。Parker's High Pressure HB Series Ball Valves provide reliable shut-off or switching functions. The upper and lower bearings enhance the resistance of the trunnion design stem against seizure, and increase the valve life in extreme applications.



Parker派克 HB 系列耳轴式球阀-承压10,000 PSI 资料下载



派克的高压HB系列球阀,一体式阀体,结构紧凑,为使用者提供稳定的关断或切换功能。上下支撑环增强了耳轴式设计阀杆的抗阻力性,也增加了阀门在严苛应用中的使用寿命。结构紧凑而坚固的弹簧阀座,具有高循环寿命性和低工作扭矩力,耐压可高达 10,000 psig (689 bar)。 Parker's High Pressure HB Series Ball Valves provide reliable shut-off or switching functions in a compact, bar stock design. The upper and lower bearings enhance the resistance of the trunnions against seizure, and increase the valve life in extreme instrumentation applications. The compact and rugged design employs spring-loaded seats for high cycle life and low operating torques at pressures up to 10,000 psig (689 bar).

市场应用Markets:
- 化工Chemical
- 石油和天然气Oil and Gas
- 炼油厂Refineries
- 电力Power

特点/优势Features/Benefits:
- PEEK(聚醚醚酮树脂)材料耳轴支撑环延长了循环使用寿命PEEK trunnion bearings for longer cycle life
- 二通或三通设计Two-way and three-way designs
- 结构紧凑,FNPT(NPT内螺纹)型可用于狭小的工作区域。Compact FNPT version for tight work areas
- 防吹出两片式阀球/阀杆设计Blow-out resistant two-piece ball/stem
- 流路各处工作压力相等Full operating pressure at any port
- 操作扭矩小Low operating torque
- 手动,电动或气动控制Manual, electric or pneumatic actuation
- 面板安装厚度可达 3/8" (9.6mm)Panel mountable to 3/8" (9.6mm) thickness
- 无需调节填料No packing to adjust
- 彩色标识防断裂手柄Color coded fracture resistant handles
- 手柄标识介质流动方向Handle indicates direction of flow
- 手柄限位销Positive handle stops
- 多种US(美国)常用及SI标准接口Wide variety of US customary and SI ports
- 阀杆顶部标注介质流动方向Top of stem marked to indicate flow direction
- 每个产品都经过 出厂检测100% factory tested
- 结构紧凑Compact package
- 可追溯性热代码Heat code traceability

应用Applications:
- 流体方向选择Flow selection
- 流体分配Flow Diversion
- 高压混合系统High pressure Mixing systems



性能特点:

结构材料:316 不锈钢
max.运行压力:10000, 6000 psi,689, 414 barg
max.运行温度:204, 121,149 °C;400, 250, 300 °F
min.运行温度:-26, -40, -54 °C,-15, 40, -65 °F
流速:1.02, 0.62 Cv
连接尺寸:1/8", 1/4", 3/8", 1/2", 6 mm, 8 mm, 10 mm, 12 mm
连接 2 尺寸:1/8", 1/4", 3/8", 1/2", 6 mm, 8 mm, 10 mm, 12 mm;NPT内螺纹,NPT内螺纹(长),双卡套连接,单卡套连接,内嵌式双卡套接头
连接 1 尺寸:NPT内螺纹,NPT内螺纹(长),双卡套连接,单卡套连接,内嵌式双卡套接头
阀门配置:2 路, 3 路
阀座材料:PEEK(聚醚醚酮树脂), PCTFE(聚三氟氯乙烯)
密封材料:氟橡胶,丁腈橡胶,乙丙橡胶

Ball Valve, Trunnion Style 10,000 PSI-HB Series 型号






Part Connection Size Connection Size 2 Connection 1 Style Connection 2 Style Valve Configuration Type Seal Material
2F-HB4LK-BN-SSP 1/8" 1/8" NPT F NPT F 2 Way PCTFE
2F-HB4LK-EPR-SSP 1/8" 1/8" NPT F NPT F 2 Way PCTFE
2F-HB4LK-SSP 1/8" 1/8" NPT F NPT F 2 Way PCTFE
2F-HB4LPKR-BN-SSP 1/8" 1/8" NPT F NPT F 2 Way PEEK
2F-HB4LPKR-EPR-SSP 1/8" 1/8" NPT F NPT F 2 Way PEEK
2F-HB4LPKR-SSP 1/8" 1/8" NPT F NPT F 2 Way PEEK
2F-HB4XK-BN-SSP 1/8" 1/8" NPT F NPT F 3 Way PCTFE
2F-HB4XK-EPR-SSP 1/8" 1/8" NPT F NPT F 3 Way PCTFE
2F-HB4XK-SSP 1/8" 1/8" NPT F NPT F 3 Way PCTFE
2F-HB4XPKR-BN-SSP 1/8" 1/8" NPT F NPT F 3 Way PEEK
2F-HB4XPKR-EPR-SSP 1/8" 1/8" NPT F NPT F 3 Way PEEK
2F-HB4XPKR-SSP 1/8" 1/8" NPT F NPT F 3 Way PEEK
2F4A-HB4LK-BN-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PCTFE
2F4A-HB4LK-EPR-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PCTFE
2F4A-HB4LK-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PCTFE
2F4A-HB4LPKR-BN-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PEEK
2F4A-HB4LPKR-EPR-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PEEK
2F4A-HB4LPKR-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PEEK
2F4A-HB4XK-BN-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PCTFE
2F4A-HB4XK-EPR-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PCTFE
2F4A-HB4XK-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PCTFE
2F4A-HB4XPKR-BN-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PEEK
2F4A-HB4XPKR-EPR-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PEEK
2F4A-HB4XPKR-SSP 1/8" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PEEK
2F4F-HB4LK-BN-SSP 1/8" 1/4" NPT F NPT F 2 Way PCTFE
2F4F-HB4LK-EPR-SSP 1/8" 1/4" NPT F NPT F 2 Way PCTFE
2F4F-HB4LK-SSP 1/8" 1/4" NPT F NPT F 2 Way PCTFE
2F4F-HB4LPKR-BN-SSP 1/8" 1/4" NPT F NPT F 2 Way PEEK
2F4F-HB4LPKR-EPR-SSP 1/8" 1/4" NPT F NPT F 2 Way PEEK
2F4F-HB4LPKR-SSP 1/8" 1/4" NPT F NPT F 2 Way PEEK
2F4F-HB4XK-BN-SSP 1/8" 1/4" NPT F NPT F 3 Way PCTFE
2F4F-HB4XK-EPR-SSP 1/8" 1/4" NPT F NPT F 3 Way PCTFE
2F4F-HB4XK-SSP 1/8" 1/4" NPT F NPT F 3 Way PCTFE
2F4F-HB4XPKR-BN-SSP 1/8" 1/4" NPT F NPT F 3 Way PEEK
2F4F-HB4XPKR-EPR-SSP 1/8" 1/4" NPT F NPT F 3 Way PEEK
2F4F-HB4XPKR-SSP 1/8" 1/4" NPT F NPT F 3 Way PEEK
2F4FL-HB4LK-BN-SSP 1/8" 1/4" NPT F NPT F (Long) 2 Way PCTFE
2F4FL-HB4LK-EPR-SSP 1/8" 1/4" NPT F NPT F (Long) 2 Way PCTFE
2F4FL-HB4LK-SSP 1/8" 1/4" NPT F NPT F (Long) 2 Way PCTFE
2F4FL-HB4LPKR-BN-SSP 1/8" 1/4" NPT F NPT F (Long) 2 Way PEEK
2F4FL-HB4LPKR-EPR-SSP 1/8" 1/4" NPT F NPT F (Long) 2 Way PEEK
2F4FL-HB4LPKR-SSP 1/8" 1/4" NPT F NPT F (Long) 2 Way PEEK
2F4FL-HB4XK-BN-SSP 1/8" 1/4" NPT F NPT F (Long) 3 Way PCTFE
2F4FL-HB4XK-EPR-SSP 1/8" 1/4" NPT F NPT F (Long) 3 Way PCTFE
2F4FL-HB4XK-SSP 1/8" 1/4" NPT F NPT F (Long) 3 Way PCTFE
2F4FL-HB4XPKR-BN-SSP 1/8" 1/4" NPT F NPT F (Long) 3 Way PEEK
2F4FL-HB4XPKR-EPR-SSP 1/8" 1/4" NPT F NPT F (Long) 3 Way PEEK
2F4FL-HB4XPKR-SSP 1/8" 1/4" NPT F NPT F (Long) 3 Way PEEK
2F4MP7-HB4LK-BN-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PCTFE
2F4MP7-HB4LK-EPR-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PCTFE
2F4MP7-HB4LK-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PCTFE
2F4MP7-HB4LPKR-BN-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PEEK
2F4MP7-HB4LPKR-EPR-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PEEK
2F4MP7-HB4LPKR-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PEEK
2F4MP7-HB4XK-BN-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PCTFE
2F4MP7-HB4XK-EPR-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PCTFE
2F4MP7-HB4XK-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PCTFE
2F4MP7-HB4XPKR-BN-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PEEK
2F4MP7-HB4XPKR-EPR-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PEEK
2F4MP7-HB4XPKR-SSP 1/8" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PEEK
2F4Z-HB4LPKR-BN-SSP 1/8" 1/4" NPT F Single Ferrule Compression Fitting 2 Way PEEK
2F4Z-HB4LPKR-EPR-SSP 1/8" 1/4" NPT F Single Ferrule Compression Fitting 2 Way PEEK
2F4Z-HB4LPKR-SSP 1/8" 1/4" NPT F Single Ferrule Compression Fitting 2 Way PEEK
4A-HB4LK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
4A-HB4LK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
4A-HB4LK-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
4A-HB4LPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
4A-HB4LPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
4A-HB4LPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
4A-HB4XK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
4A-HB4XK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
4A-HB4XK-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
4A-HB4XPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
4A-HB4XPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
4A-HB4XPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
4A2F-HB4LK-BN-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
4A2F-HB4LK-EPR-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
4A2F-HB4LK-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
4A2F-HB4LPKR-BN-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PEEK
4A2F-HB4LPKR-EPR-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PEEK
4A2F-HB4LPKR-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PEEK
4A2F-HB4XK-BN-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
4A2F-HB4XK-EPR-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
4A2F-HB4XK-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
4A2F-HB4XPKR-BN-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PEEK
4A2F-HB4XPKR-EPR-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PEEK
4A2F-HB4XPKR-SSP 1/4" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PEEK
4A4F-HB4LK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
4A4F-HB4LK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
4A4F-HB4LK-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
4A4F-HB4LPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PEEK
4A4F-HB4LPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PEEK
4A4F-HB4LPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PEEK
4A4F-HB4XK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
4A4F-HB4XK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
4A4F-HB4XK-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
4A4F-HB4XPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PEEK
4A4F-HB4XPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PEEK
4A4F-HB4XPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PEEK
4A4FL-HB4LK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
4A4FL-HB4LK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
4A4FL-HB4LK-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
4A4FL-HB4LPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
4A4FL-HB4LPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
4A4FL-HB4LPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
4A4FL-HB4XK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
4A4FL-HB4XK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
4A4FL-HB4XK-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
4A4FL-HB4XPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
4A4FL-HB4XPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
4A4FL-HB4XPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
4A4MP7-HB4LK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4A4MP7-HB4LK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4A4MP7-HB4LK-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4A4MP7-HB4LPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
4A4MP7-HB4LPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
4A4MP7-HB4LPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
4A4MP7-HB4XK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4A4MP7-HB4XK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4A4MP7-HB4XK-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4A4MP7-HB4XPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
4A4MP7-HB4XPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
4A4MP7-HB4XPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
4A4Z-HB4LK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
4A4Z-HB4LK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
4A4Z-HB4LK-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
4A4Z-HB4LPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
4A4Z-HB4LPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
4A4Z-HB4LPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
4A4Z-HB4XK-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
4A4Z-HB4XK-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
4A4Z-HB4XK-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
4A4Z-HB4XPKR-BN-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
4A4Z-HB4XPKR-EPR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
4A4Z-HB4XPKR-SSP 1/4" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
4F-HB4LK-BN-SSP 1/4" 1/4" NPT F NPT F 2 Way PCTFE
4F-HB4LK-EPR-SSP 1/4" 1/4" NPT F NPT F 2 Way PCTFE
4F-HB4LK-SSP 1/4" 1/4" NPT F NPT F 2 Way PCTFE
4F-HB4LPKR-BN-SSP 1/4" 1/4" NPT F NPT F 2 Way PEEK
4F-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F NPT F 2 Way PEEK
4F-HB4LPKR-SSP 1/4" 1/4" NPT F NPT F 2 Way PEEK
4F-HB4XK-BN-SSP 1/4" 1/4" NPT F NPT F 3 Way PCTFE
4F-HB4XK-EPR-SSP 1/4" 1/4" NPT F NPT F 3 Way PCTFE
4F-HB4XK-SSP 1/4" 1/4" NPT F NPT F 3 Way PCTFE
4F-HB4XPKR-BN-SSP 1/4" 1/4" NPT F NPT F 3 Way PEEK
4F-HB4XPKR-EPR-SSP 1/4" 1/4" NPT F NPT F 3 Way PEEK
4F-HB4XPKR-SSP 1/4" 1/4" NPT F NPT F 3 Way PEEK
4F2F-HB4LK-BN-SSP 1/4" 1/8" NPT F NPT F 2 Way PCTFE
4F2F-HB4LK-EPR-SSP 1/4" 1/8" NPT F NPT F 2 Way PCTFE
4F2F-HB4LK-SSP 1/4" 1/8" NPT F NPT F 2 Way PCTFE
4F2F-HB4LPKR-BN-SSP 1/4" 1/8" NPT F NPT F 2 Way PEEK
4F2F-HB4LPKR-EPR-SSP 1/4" 1/8" NPT F NPT F 2 Way PEEK
4F2F-HB4LPKR-SSP 1/4" 1/8" NPT F NPT F 2 Way PEEK
4F2F-HB4XK-BN-SSP 1/4" 1/8" NPT F NPT F 3 Way PCTFE
4F2F-HB4XK-EPR-SSP 1/4" 1/8" NPT F NPT F 3 Way PCTFE
4F2F-HB4XK-SSP 1/4" 1/8" NPT F NPT F 3 Way PCTFE
4F2F-HB4XPKR-BN-SSP 1/4" 1/8" NPT F NPT F 3 Way PEEK
4F2F-HB4XPKR-EPR-SSP 1/4" 1/8" NPT F NPT F 3 Way PEEK
4F2F-HB4XPKR-SSP 1/4" 1/8" NPT F NPT F 3 Way PEEK
4F4A-HB4LK-BN-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PCTFE
4F4A-HB4LK-EPR-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PCTFE
4F4A-HB4LK-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PCTFE
4F4A-HB4LPKR-BN-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PEEK
4F4A-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PEEK
4F4A-HB4LPKR-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 2 Way PEEK
4F4A-HB4XK-BN-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PCTFE
4F4A-HB4XK-EPR-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PCTFE
4F4A-HB4XK-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PCTFE
4F4A-HB4XPKR-BN-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PEEK
4F4A-HB4XPKR-EPR-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PEEK
4F4A-HB4XPKR-SSP 1/4" 1/4" NPT F Two Ferrule Compression Fitting 3 Way PEEK
4F4FL-HB4LK-BN-SSP 1/4" 1/4" NPT F NPT F (Long) 2 Way PCTFE
4F4FL-HB4LK-EPR-SSP 1/4" 1/4" NPT F NPT F (Long) 2 Way PCTFE
4F4FL-HB4LK-SSP 1/4" 1/4" NPT F NPT F (Long) 2 Way PCTFE
4F4FL-HB4LPKR-BN-SSP 1/4" 1/4" NPT F NPT F (Long) 2 Way PEEK
4F4FL-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F NPT F (Long) 2 Way PEEK
4F4FL-HB4LPKR-SSP 1/4" 1/4" NPT F NPT F (Long) 2 Way PEEK
4F4FL-HB4XK-BN-SSP 1/4" 1/4" NPT F NPT F (Long) 3 Way PCTFE
4F4FL-HB4XK-EPR-SSP 1/4" 1/4" NPT F NPT F (Long) 3 Way PCTFE
4F4FL-HB4XK-SSP 1/4" 1/4" NPT F NPT F (Long) 3 Way PCTFE
4F4FL-HB4XPKR-BN-SSP 1/4" 1/4" NPT F NPT F (Long) 3 Way PEEK
4F4FL-HB4XPKR-EPR-SSP 1/4" 1/4" NPT F NPT F (Long) 3 Way PEEK
4F4FL-HB4XPKR-SSP 1/4" 1/4" NPT F NPT F (Long) 3 Way PEEK
4F4MP7-HB4LK-BN-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4F4MP7-HB4LK-EPR-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4F4MP7-HB4LK-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4F4MP7-HB4LPKR-BN-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PEEK
4F4MP7-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PEEK
4F4MP7-HB4LPKR-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 2 Way PEEK
4F4MP7-HB4XK-BN-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4F4MP7-HB4XK-EPR-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4F4MP7-HB4XK-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4F4MP7-HB4XPKR-BN-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PEEK
4F4MP7-HB4XPKR-EPR-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PEEK
4F4MP7-HB4XPKR-SSP 1/4" 1/4" NPT F Two Ferrule Inverted Compression Fitting 3 Way PEEK
4F4Z-HB4LPKR-BN-SSP 1/4" 1/4" NPT F Single Ferrule Compression Fitting 2 Way PEEK
4F4Z-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F Single Ferrule Compression Fitting 2 Way PEEK
4F4Z-HB4LPKR-SSP 1/4" 1/4" NPT F Single Ferrule Compression Fitting 2 Way PEEK
4FL-HB4LK-BN-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 2 Way PCTFE
4FL-HB4LK-EPR-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 2 Way PCTFE
4FL-HB4LK-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 2 Way PCTFE
4FL-HB4LPKR-BN-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 2 Way PEEK
4FL-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 2 Way PEEK
4FL-HB4LPKR-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 2 Way PEEK
4FL-HB4XK-BN-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 3 Way PCTFE
4FL-HB4XK-EPR-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 3 Way PCTFE
4FL-HB4XK-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 3 Way PCTFE
4FL-HB4XPKR-BN-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 3 Way PEEK
4FL-HB4XPKR-EPR-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 3 Way PEEK
4FL-HB4XPKR-SSP 1/4" 1/4" NPT F (Long) NPT F (Long) 3 Way PEEK
4FL2F-HB4LK-BN-SSP 1/4" 1/8" NPT F (Long) NPT F 2 Way PCTFE
4FL2F-HB4LK-EPR-SSP 1/4" 1/8" NPT F (Long) NPT F 2 Way PCTFE
4FL2F-HB4LK-SSP 1/4" 1/8" NPT F (Long) NPT F 2 Way PCTFE
4FL2F-HB4LPKR-BN-SSP 1/4" 1/8" NPT F (Long) NPT F 2 Way PEEK
4FL2F-HB4LPKR-EPR-SSP 1/4" 1/8" NPT F (Long) NPT F 2 Way PEEK
4FL2F-HB4LPKR-SSP 1/4" 1/8" NPT F (Long) NPT F 2 Way PEEK
4FL2F-HB4XK-BN-SSP 1/4" 1/8" NPT F (Long) NPT F 3 Way PCTFE
4FL2F-HB4XK-EPR-SSP 1/4" 1/8" NPT F (Long) NPT F 3 Way PCTFE
4FL2F-HB4XK-SSP 1/4" 1/8" NPT F (Long) NPT F 3 Way PCTFE
4FL2F-HB4XPKR-BN-SSP 1/4" 1/8" NPT F (Long) NPT F 3 Way PEEK
4FL2F-HB4XPKR-EPR-SSP 1/4" 1/8" NPT F (Long) NPT F 3 Way PEEK
4FL2F-HB4XPKR-SSP 1/4" 1/8" NPT F (Long) NPT F 3 Way PEEK
4FL4A-HB4LK-BN-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 2 Way PCTFE
4FL4A-HB4LK-EPR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 2 Way PCTFE
4FL4A-HB4LK-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 2 Way PCTFE
4FL4A-HB4LPKR-BN-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 2 Way PEEK
4FL4A-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 2 Way PEEK
4FL4A-HB4LPKR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 2 Way PEEK
4FL4A-HB4XK-BN-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 3 Way PCTFE
4FL4A-HB4XK-EPR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 3 Way PCTFE
4FL4A-HB4XK-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 3 Way PCTFE
4FL4A-HB4XPKR-BN-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 3 Way PEEK
4FL4A-HB4XPKR-EPR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 3 Way PEEK
4FL4A-HB4XPKR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Compression Fitting 3 Way PEEK
4FL4F-HB4LK-BN-SSP 1/4" 1/4" NPT F (Long) NPT F 2 Way PCTFE
4FL4F-HB4LK-EPR-SSP 1/4" 1/4" NPT F (Long) NPT F 2 Way PCTFE
4FL4F-HB4LK-SSP 1/4" 1/4" NPT F (Long) NPT F 2 Way PCTFE
4FL4F-HB4LPKR-BN-SSP 1/4" 1/4" NPT F (Long) NPT F 2 Way PEEK
4FL4F-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F (Long) NPT F 2 Way PEEK
4FL4F-HB4LPKR-SSP 1/4" 1/4" NPT F (Long) NPT F 2 Way PEEK
4FL4F-HB4XK-BN-SSP 1/4" 1/4" NPT F (Long) NPT F 3 Way PCTFE
4FL4F-HB4XK-EPR-SSP 1/4" 1/4" NPT F (Long) NPT F 3 Way PCTFE
4FL4F-HB4XK-SSP 1/4" 1/4" NPT F (Long) NPT F 3 Way PCTFE
4FL4F-HB4XPKR-BN-SSP 1/4" 1/4" NPT F (Long) NPT F 3 Way PEEK
4FL4F-HB4XPKR-EPR-SSP 1/4" 1/4" NPT F (Long) NPT F 3 Way PEEK
4FL4F-HB4XPKR-SSP 1/4" 1/4" NPT F (Long) NPT F 3 Way PEEK
4FL4MP7-HB4LK-BN-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4FL4MP7-HB4LK-EPR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4FL4MP7-HB4LK-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4FL4MP7-HB4LPKR-BN-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 2 Way PEEK
4FL4MP7-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 2 Way PEEK
4FL4MP7-HB4LPKR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 2 Way PEEK
4FL4MP7-HB4XK-BN-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4FL4MP7-HB4XK-EPR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4FL4MP7-HB4XK-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4FL4MP7-HB4XPKR-BN-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 3 Way PEEK
4FL4MP7-HB4XPKR-EPR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 3 Way PEEK
4FL4MP7-HB4XPKR-SSP 1/4" 1/4" NPT F (Long) Two Ferrule Inverted Compression Fitting 3 Way PEEK
4FL4Z-HB4LK-BN-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 3 Way PCTFE
4FL4Z-HB4LK-EPR-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 3 Way PCTFE
4FL4Z-HB4LK-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 3 Way PCTFE
4FL4Z-HB4LPKR-BN-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 3 Way PEEK
4FL4Z-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 3 Way PEEK
4FL4Z-HB4LPKR-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 3 Way PEEK
4FL4ZH-HB4LK-BN-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 2 Way PCTFE
4FL4ZH-HB4LK-EPR-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 2 Way PCTFE
4FL4ZH-HB4LK-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 2 Way PCTFE
4FL4ZH-HB4LPKR-BN-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 2 Way PEEK
4FL4ZH-HB4LPKR-EPR-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 2 Way PEEK
4FL4ZH-HB4LPKR-SSP 1/4" 1/4" NPT F (Long) Single Ferrule Compression Fitting 2 Way PEEK
4MP7-HB4LK-BN-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4MP7-HB4LK-EPR-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4MP7-HB4LK-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
4MP7-HB4LPKR-BN-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
4MP7-HB4LPKR-EPR-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
4MP7-HB4LPKR-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
4MP7-HB4XK-BN-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4MP7-HB4XK-EPR-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4MP7-HB4XK-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
4MP7-HB4XPKR-BN-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
4MP7-HB4XPKR-EPR-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
4MP7-HB4XPKR-SSP 1/4" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
4Z-HB4LK-BN-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
4Z-HB4LK-EPR-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
4Z-HB4LK-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
4Z-HB4LPKR-BN-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
4Z-HB4LPKR-EPR-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
4Z-HB4LPKR-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
4Z-HB4XK-BN-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
4Z-HB4XK-EPR-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
4Z-HB4XK-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
4Z-HB4XPKR-BN-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
4Z-HB4XPKR-EPR-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
4Z-HB4XPKR-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6A-HB4LK-BN-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6A-HB4LK-EPR-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6A-HB4LK-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6A-HB4LPKR-BN-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6A-HB4LPKR-EPR-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6A-HB4LPKR-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6A-HB4XK-BN-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6A-HB4XK-EPR-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6A-HB4XK-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6A-HB4XPKR-EPR-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6A-HB4XPKR-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6A2F-HB4LK-BN-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
6A2F-HB4LK-EPR-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
6A2F-HB4LK-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
6A2F-HB4LPKR-BN-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PEEK
6A2F-HB4LPKR-EPR-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PEEK
6A2F-HB4LPKR-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PEEK
6A2F-HB4XK-BN-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
6A2F-HB4XK-EPR-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
6A2F-HB4XK-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
6A2F-HB4XPKR-BN-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PEEK
6A2F-HB4XPKR-EPR-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PEEK
6A2F-HB4XPKR-SSP 3/8" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PEEK
6A4A-HB4LK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6A4A-HB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6A4A-HB4LK-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6A4A-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6A4A-HB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6A4A-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6A4A-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6A4A-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6A4A-HB4XK-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6A4A-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6A4A-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6A4A-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6A4F-HB4LK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
6A4F-HB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
6A4F-HB4LK-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
6A4F-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PEEK
6A4F-HB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PEEK
6A4F-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PEEK
6A4F-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
6A4F-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
6A4F-HB4XK-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
6A4F-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PEEK
6A4F-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PEEK
6A4F-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PEEK
6A4FL-HB4LK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
6A4FL-HB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
6A4FL-HB4LK-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
6A4FL-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
6A4FL-HB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
6A4FL-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
6A4FL-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
6A4FL-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
6A4FL-HB4XK-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
6A4FL-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
6A4FL-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
6A4FL-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
6A4MP7-HB4LK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6A4MP7-HB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6A4MP7-HB4LK-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6A4MP7-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6A4MP7-HB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6A4MP7-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6A4MP7-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6A4MP7-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6A4MP7-HB4XK-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6A4MP7-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6A4MP7-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6A4MP7-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6A4Z-HB4LK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6A4Z-HB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6A4Z-HB4LK-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6A4Z-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6A4Z-HB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6A4Z-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6A4Z-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6A4Z-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6A4Z-HB4XK-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6A4Z-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6A4Z-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6A4Z-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6AHB-4XPKR-BN-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6MP7-2FHB4LK-EPR-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 2 Way PCTFE
6MP7-2FHB4LPKR-EPR-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 2 Way PEEK
6MP7-4AHB4LK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6MP7-4AHB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6MP7-4AHB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6MP7-4MP7HB4LK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6MP7-4MP7HB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6MP7-4MP7HB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6MP7-4ZHB4LK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6MP7-4ZHB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6MP7-4ZHB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6MP7-A-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6MP7-A-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6MP7-A-HB4XK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6MP7-A-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6MP7-A-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6MP7-A-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6MP7-HB4LK-BN-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6MP7-HB4LK-EPR-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6MP7-HB4LK-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6MP7-HB4LPKR-BN-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6MP7-HB4LPKR-EPR-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6MP7-HB4LPKR-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6MP7-HB4XK-BN-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6MP7-HB4XK-EPR-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6MP7-HB4XK-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6MP7-HB4XPKR-BN-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6MP7-HB4XPKR-EPR-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6MP7-HB4XPKR-SSP 3/8" 3/8" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6MP72F-HB4LK-BN-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 2 Way PCTFE
6MP72F-HB4LK-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 2 Way PCTFE
6MP72F-HB4LPKR-BN-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 2 Way PEEK
6MP72F-HB4LPKR-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 2 Way PEEK
6MP72F-HB4XK-BN-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 3 Way PCTFE
6MP72F-HB4XK-EPR-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 3 Way PCTFE
6MP72F-HB4XK-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 3 Way PCTFE
6MP72F-HB4XPKR-BN-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 3 Way PEEK
6MP72F-HB4XPKR-EPR-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 3 Way PEEK
6MP72F-HB4XPKR-SSP 3/8" 1/8" Two Ferrule Inverted Compression Fitting NPT F 3 Way PEEK
6MP74A-HB4LK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6MP74A-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6MP74A-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6MP74F-HB4LK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 2 Way PCTFE
6MP74F-HB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 2 Way PCTFE
6MP74F-HB4LK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 2 Way PCTFE
6MP74F-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 2 Way PEEK
6MP74F-HB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 2 Way PEEK
6MP74F-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 2 Way PEEK
6MP74F-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 3 Way PCTFE
6MP74F-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 3 Way PCTFE
6MP74F-HB4XK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 3 Way PCTFE
6MP74F-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 3 Way PEEK
6MP74F-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 3 Way PEEK
6MP74F-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F 3 Way PEEK
6MP74FL-HB4LK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 2 Way PCTFE
6MP74FL-HB4LK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 2 Way PCTFE
6MP74FL-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 2 Way PEEK
6MP74FL-HB4LPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 2 Way PEEK
6MP74FL-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 2 Way PEEK
6MP74FL-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 3 Way PCTFE
6MP74FL-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 3 Way PCTFE
6MP74FL-HB4XK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 3 Way PCTFE
6MP74FL-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 3 Way PEEK
6MP74FL-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 3 Way PEEK
6MP74FL-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 3 Way PEEK
6MP74FLHB4LK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting NPT F (Long) 2 Way PCTFE
6MP74MP7-HB4LK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6MP74MP7-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6MP74MP7-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6MP74MP7-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6MP74MP7-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6MP74MP7-HB4XK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6MP74MP7-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6MP74MP7-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6MP74MP7-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6MP74Z-HB4LK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6MP74Z-HB4LPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6MP74Z-HB4LPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6MP74Z-HB4XK-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6MP74Z-HB4XK-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6MP74Z-HB4XK-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6MP74Z-HB4XPKR-BN-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6MP74Z-HB4XPKR-EPR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6MP74Z-HB4XPKR-SSP 3/8" 1/4" Two Ferrule Inverted Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6Z-4AHB4LK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6Z-4FL-HB4LPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
6Z-4MP7HB4LK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6Z-4ZHB4LK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6Z-HB4LK-BN-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6Z-HB4LK-EPR-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6Z-HB4LK-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6Z-HB4LPKR-BN-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6Z-HB4LPKR-EPR-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6Z-HB4LPKR-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6Z-HB4XK-BN-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6Z-HB4XK-EPR-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6Z-HB4XK-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6Z-HB4XPKR-BN-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6Z-HB4XPKR-EPR-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6Z-HB4XPKR-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6Z2F-HB4LK-BN-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
6Z2F-HB4LK-EPR-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
6Z2F-HB4LK-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
6Z2F-HB4LPKR-BN-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PEEK
6Z2F-HB4LPKR-EPR-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PEEK
6Z2F-HB4LPKR-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PEEK
6Z2F-HB4XK-BN-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
6Z2F-HB4XK-EPR-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
6Z2F-HB4XK-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
6Z2F-HB4XPKR-BN-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PEEK
6Z2F-HB4XPKR-EPR-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PEEK
6Z2F-HB4XPKR-SSP 3/8" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PEEK
6Z4A-HB4LK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6Z4A-HB4LK-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
6Z4A-HB4LPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6Z4A-HB4LPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6Z4A-HB4XK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6Z4A-HB4XK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6Z4A-HB4XK-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
6Z4A-HB4XPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6Z4A-HB4XPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6Z4A-HB4XPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
6Z4ALHB4LPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
6Z4F-HB4LK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
6Z4F-HB4LK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
6Z4F-HB4LK-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
6Z4F-HB4LPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PEEK
6Z4F-HB4LPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PEEK
6Z4F-HB4LPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PEEK
6Z4F-HB4XK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
6Z4F-HB4XK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
6Z4F-HB4XK-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
6Z4F-HB4XPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PEEK
6Z4F-HB4XPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PEEK
6Z4F-HB4XPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PEEK
6Z4FL-HB4LK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
6Z4FL-HB4LK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
6Z4FL-HB4LK-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
6Z4FL-HB4LPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
6Z4FL-HB4LPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
6Z4FL-HB4XK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
6Z4FL-HB4XK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
6Z4FL-HB4XK-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
6Z4FL-HB4XPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
6Z4FL-HB4XPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
6Z4FL-HB4XPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
6Z4MP7-HB4LK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6Z4MP7-HB4LK-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
6Z4MP7-HB4LPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6Z4MP7-HB4LPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6Z4MP7-HB4LPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
6Z4MP7-HB4XK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6Z4MP7-HB4XK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6Z4MP7-HB4XK-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
6Z4MP7-HB4XPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6Z4MP7-HB4XPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6Z4MP7-HB4XPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
6Z4Z-HB4LK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6Z4Z-HB4LK-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
6Z4Z-HB4LPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6Z4Z-HB4LPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6Z4Z-HB4LPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
6Z4Z-HB4XK-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6Z4Z-HB4XK-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6Z4Z-HB4XK-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
6Z4Z-HB4XPKR-BN-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6Z4Z-HB4XPKR-EPR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
6Z4Z-HB4XPKR-SSP 3/8" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
8A-HB4LK-BN-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A-HB4LK-EPR-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A-HB4LK-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A-HB4LPKR-BN-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8A-HB4LPKR-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8A-HB4XK-BN-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A-HB4XK-EPR-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A-HB4XK-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A-HB4XPKR-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
8A2F-HB4LK-BN-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
8A2F-HB4LK-EPR-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
8A2F-HB4LK-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
8A2F-HB4LPKR-BN-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PEEK
8A2F-HB4LPKR-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 2 Way PEEK
8A2F-HB4XK-BN-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
8A2F-HB4XK-EPR-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
8A2F-HB4XK-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
8A2F-HB4XPKR-SSP 1/2" 1/8" Two Ferrule Compression Fitting NPT F 3 Way PEEK
8A4A-HB4LK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A4A-HB4LK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A4A-HB4LK-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A4A-HB4LPKR-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8A4A-HB4LPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8A4A-HB4XK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A4A-HB4XK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A4A-HB4XK-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A4A-HB4XPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
8A4F-HB4LK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
8A4F-HB4LK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
8A4F-HB4LK-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PCTFE
8A4F-HB4LPKR-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PEEK
8A4F-HB4LPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 2 Way PEEK
8A4F-HB4XK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
8A4F-HB4XK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
8A4F-HB4XK-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PCTFE
8A4F-HB4XPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F 3 Way PEEK
8A4FL-HB4LK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
8A4FL-HB4LK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
8A4FL-HB4LK-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
8A4FL-HB4LPKR-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
8A4FL-HB4LPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
8A4FL-HB4XK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
8A4FL-HB4XK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
8A4FL-HB4XK-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
8A4FL-HB4XPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
8A4MP7-HB4LK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
8A4MP7-HB4LK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
8A4MP7-HB4LK-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
8A4MP7-HB4LPKR-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
8A4MP7-HB4LPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
8A4MP7-HB4XK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
8A4MP7-HB4XK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
8A4MP7-HB4XK-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
8A4MP7-HB4XPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
8A4Z-HB4LK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A4Z-HB4LK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A4Z-HB4LK-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A4Z-HB4LPKR-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8A4Z-HB4LPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8A4Z-HB4XK-BN-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A4Z-HB4XK-EPR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A4Z-HB4XK-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A4Z-HB4XPKR-SSP 1/2" 1/4" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
8A6A-HB4LK-BN-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A6A-HB4LK-EPR-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A6A-HB4LK-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8A6A-HB4LPKR-BN-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8A6A-HB4LPKR-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8A6A-HB4XK-BN-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A6A-HB4XK-EPR-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A6A-HB4XK-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8A6A-HB4XPKR-SSP 1/2" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
8A6Z-HB4LK-BN-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A6Z-HB4LK-EPR-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A6Z-HB4LK-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A6Z-HB4LPKR-BN-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8A6Z-HB4LPKR-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8A6Z-HB4XK-BN-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A6Z-HB4XK-EPR-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A6Z-HB4XK-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A6Z-HB4XPKR-SSP 1/2" 3/8" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
8A8Z-HB4LK-BN-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A8Z-HB4LK-EPR-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A8Z-HB4LK-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8A8Z-HB4LPKR-BN-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8A8Z-HB4LPKR-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8A8Z-HB4XK-BN-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A8Z-HB4XK-EPR-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A8Z-HB4XK-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8A8Z-HB4XPKR-SSP 1/2" 1/2" Two Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
8Z-HB4LK-BN-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z-HB4LK-EPR-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z-HB4LK-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z-HB4LPKR-BN-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8Z-HB4LPKR-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8Z-HB4XK-BN-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z-HB4XK-EPR-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z-HB4XK-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z-HB4XPKR-SSP 1/2" 1/2" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
8Z2F-HB4LK-BN-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
8Z2F-HB4LK-EPR-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
8Z2F-HB4LK-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
8Z2F-HB4LPKR-BN-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PEEK
8Z2F-HB4LPKR-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 2 Way PEEK
8Z2F-HB4XK-BN-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
8Z2F-HB4XK-EPR-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
8Z2F-HB4XK-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
8Z2F-HB4XPKR-SSP 1/2" 1/8" Single Ferrule Compression Fitting NPT F 3 Way PEEK
8Z4A-HB4LK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z4A-HB4LK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z4A-HB4LK-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z4A-HB4LPKR-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8Z4A-HB4LPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8Z4A-HB4XK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z4A-HB4XK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z4A-HB4XK-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z4A-HB4XPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
8Z4F-HB4LK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
8Z4F-HB4LK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
8Z4F-HB4LK-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PCTFE
8Z4F-HB4LPKR-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PEEK
8Z4F-HB4LPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 2 Way PEEK
8Z4F-HB4XK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
8Z4F-HB4XK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
8Z4F-HB4XK-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PCTFE
8Z4F-HB4XPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F 3 Way PEEK
8Z4FL-HB4LK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
8Z4FL-HB4LK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
8Z4FL-HB4LK-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PCTFE
8Z4FL-HB4LPKR-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
8Z4FL-HB4LPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 2 Way PEEK
8Z4FL-HB4XK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
8Z4FL-HB4XK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
8Z4FL-HB4XK-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PCTFE
8Z4FL-HB4XPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting NPT F (Long) 3 Way PEEK
8Z4MP7-HB4LK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
8Z4MP7-HB4LK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
8Z4MP7-HB4LK-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PCTFE
8Z4MP7-HB4LPKR-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
8Z4MP7-HB4LPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 2 Way PEEK
8Z4MP7-HB4XK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
8Z4MP7-HB4XK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
8Z4MP7-HB4XK-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PCTFE
8Z4MP7-HB4XPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Two Ferrule Inverted Compression Fitting 3 Way PEEK
8Z4Z-HB4LK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8Z4Z-HB4LK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8Z4Z-HB4LK-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8Z4Z-HB4LPKR-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8Z4Z-HB4LPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8Z4Z-HB4XK-BN-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8Z4Z-HB4XK-EPR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8Z4Z-HB4XK-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8Z4Z-HB4XPKR-SSP 1/2" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
8Z6A-HB4LK-BN-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z6A-HB4LK-EPR-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z6A-HB4LK-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
8Z6A-HB4LPKR-BN-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8Z6A-HB4LPKR-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
8Z6A-HB4XK-BN-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z6A-HB4XK-EPR-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z6A-HB4XK-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
8Z6A-HB4XPKR-SSP 1/2" 3/8" Single Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
8Z6Z-HB4LK-BN-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8Z6Z-HB4LK-EPR-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8Z6Z-HB4LK-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
8Z6Z-HB4LPKR-BN-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8Z6Z-HB4LPKR-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
8Z6Z-HB4XK-BN-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8Z6Z-HB4XK-EPR-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8Z6Z-HB4XK-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
8Z6Z-HB4XPKR-SSP 1/2" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10A-HB4LK-BN-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M10A-HB4LK-EPR-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M10A-HB4LK-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M10A-HB4LPKR-BN-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M10A-HB4LPKR-EPR-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M10A-HB4LPKR-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M10A-HB4XK-BN-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M10A-HB4XK-EPR-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M10A-HB4XK-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M10A-HB4XPKR-BN-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M10A-HB4XPKR-EPR-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M10A-HB4XPKR-SSP 10 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M10Z-HB4LK-BN-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10Z-HB4LK-EPR-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10Z-HB4LK-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10Z-HB4LPKR-BN-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10Z-HB4LPKR-EPR-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10Z-HB4LPKR-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10Z-HB4XK-BN-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10Z-HB4XK-EPR-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10Z-HB4XK-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10Z-HB4XPKR-BN-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10Z-HB4XPKR-EPR-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10Z-HB4XPKR-SSP 10 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM12Z-HB4LK-BN-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM12Z-HB4LK-EPR-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM12Z-HB4LK-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM12Z-HB4LPKR-BN-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM12Z-HB4LPKR-EPR-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM12Z-HB4LPKR-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM12Z-HB4XK-BN-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM12Z-HB4XK-EPR-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM12Z-HB4XK-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM12Z-HB4XPKR-BN-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM12Z-HB4XPKR-EPR-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM12Z-HB4XPKR-SSP 10 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM6Z-HB4LK-BN-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM6Z-HB4LK-EPR-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM6Z-HB4LK-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM6Z-HB4LPKR-BN-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM6Z-HB4LPKR-EPR-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM6Z-HB4LPKR-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM6Z-HB4XK-BN-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM6Z-HB4XK-EPR-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM6Z-HB4XK-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM6Z-HB4XPKR-BN-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM6Z-HB4XPKR-EPR-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM6Z-HB4XPKR-SSP 10 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM8Z-HB4LK-BN-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM8Z-HB4LK-EPR-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM8Z-HB4LK-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M10ZM8Z-HB4LPKR-BN-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM8Z-HB4LPKR-EPR-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM8Z-HB4LPKR-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M10ZM8Z-HB4XK-BN-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM8Z-HB4XK-EPR-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM8Z-HB4XK-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M10ZM8Z-HB4XPKR-BN-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM8Z-HB4XPKR-EPR-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M10ZM8Z-HB4XPKR-SSP 10 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12A-HB4LK-BN-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M12A-HB4LK-EPR-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M12A-HB4LK-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M12A-HB4LPKR-BN-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M12A-HB4LPKR-EPR-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M12A-HB4LPKR-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M12A-HB4XK-BN-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M12A-HB4XK-EPR-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M12A-HB4XK-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M12A-HB4XPKR-BN-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M12A-HB4XPKR-EPR-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M12A-HB4XPKR-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M12Z-HB4LK-BN-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12Z-HB4LK-EPR-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12Z-HB4LK-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12Z-HB4LPKR-BN-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12Z-HB4LPKR-EPR-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12Z-HB4LPKR-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12Z-HB4XK-BN-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12Z-HB4XK-EPR-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12Z-HB4XK-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12Z-HB4XPKR-BN-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12Z-HB4XPKR-EPR-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12Z-HB4XPKR-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM10Z-HB4LK-BN-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM10Z-HB4LK-EPR-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM10Z-HB4LK-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM10Z-HB4LPKR-BN-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM10Z-HB4LPKR-EPR-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM10Z-HB4LPKR-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM10Z-HB4XK-BN-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM10Z-HB4XK-EPR-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM10Z-HB4XK-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM10Z-HB4XPKR-BN-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM10Z-HB4XPKR-EPR-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM10Z-HB4XPKR-SSP 12 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM6Z-HB4LK-BN-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM6Z-HB4LK-EPR-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM6Z-HB4LK-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM6Z-HB4LPKR-BN-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM6Z-HB4LPKR-EPR-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM6Z-HB4LPKR-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM6Z-HB4XK-BN-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM6Z-HB4XK-EPR-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM6Z-HB4XK-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM6Z-HB4XPKR-BN-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM6Z-HB4XPKR-EPR-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM6Z-HB4XPKR-SSP 12 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM8Z-HB4LK-BN-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM8Z-HB4LK-EPR-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM8Z-HB4LK-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M12ZM8Z-HB4LPKR-BN-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM8Z-HB4LPKR-EPR-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM8Z-HB4LPKR-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M12ZM8Z-HB4XK-BN-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM8Z-HB4XK-EPR-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM8Z-HB4XK-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M12ZM8Z-HB4XPKR-BN-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM8Z-HB4XPKR-EPR-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M12ZM8Z-HB4XPKR-SSP 12 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6A-HB4LK-BN-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6A-HB4LK-EPR-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6A-HB4LK-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6A-HB4LPKR-BN-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6A-HB4LPKR-EPR-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6A-HB4LPKR-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6A-HB4XK-BN-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6A-HB4XK-EPR-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6A-HB4XK-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6A-HB4XPKR-BN-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6A-HB4XPKR-EPR-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6A-HB4XPKR-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM10A-HB4LK-BN-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM10A-HB4LK-EPR-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM10A-HB4LK-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM10A-HB4LPKR-BN-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM10A-HB4LPKR-EPR-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM10A-HB4LPKR-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM10A-HB4XK-BN-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM10A-HB4XK-EPR-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM10A-HB4XK-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM10A-HB4XPKR-BN-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM10A-HB4XPKR-EPR-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM10A-HB4XPKR-SSP 6 mm 10 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM12A-HB4LK-BN-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM12A-HB4LK-EPR-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM12A-HB4LK-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM12A-HB4LPKR-BN-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM12A-HB4LPKR-EPR-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM12A-HB4LPKR-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM12A-HB4XK-BN-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM12A-HB4XK-EPR-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM12A-HB4XK-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM12A-HB4XPKR-BN-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM12A-HB4XPKR-EPR-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM12A-HB4XPKR-SSP 6 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM8A-HB4LK-BN-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM8A-HB4LK-EPR-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM8A-HB4LK-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M6AM8A-HB4LPKR-BN-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM8A-HB4LPKR-EPR-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM8A-HB4LPKR-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M6AM8A-HB4XK-BN-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM8A-HB4XK-EPR-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM8A-HB4XK-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M6AM8A-HB4XPKR-BN-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM8A-HB4XPKR-EPR-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6AM8A-HB4XPKR-SSP 6 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M6Z-HB4LK-BN-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6Z-HB4LK-EPR-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6Z-HB4LK-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6Z-HB4LPKR-BN-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6Z-HB4LPKR-EPR-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6Z-HB4LPKR-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6Z-HB4XK-BN-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6Z-HB4XK-EPR-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6Z-HB4XK-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6Z-HB4XPKR-BN-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6Z-HB4XPKR-EPR-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6Z-HB4XPKR-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM10Z-HB4LK-BN-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM10Z-HB4LK-EPR-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM10Z-HB4LK-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM10Z-HB4LPKR-BN-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM10Z-HB4LPKR-EPR-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM10Z-HB4LPKR-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM10Z-HB4XK-BN-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6ZM10Z-HB4XK-EPR-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6ZM10Z-HB4XK-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6ZM10Z-HB4XPKR-BN-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM10Z-HB4XPKR-EPR-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM10Z-HB4XPKR-SSP 6 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM12Z-HB4LK-BN-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM12Z-HB4LK-EPR-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM12Z-HB4LK-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM12Z-HB4LPKR-BN-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM12Z-HB4LPKR-EPR-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM12Z-HB4LPKR-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM12Z-HB4XK-BN-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6ZM12Z-HB4XK-EPR-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6ZM12Z-HB4XK-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6ZM12Z-HB4XPKR-BN-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM12Z-HB4XPKR-EPR-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM12Z-HB4XPKR-SSP 6 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM8Z-HB4LK-BN-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM8Z-HB4LK-EPR-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM8Z-HB4LK-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M6ZM8Z-HB4LPKR-BN-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM8Z-HB4LPKR-EPR-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM8Z-HB4LPKR-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M6ZM8Z-HB4XK-BN-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6ZM8Z-HB4XK-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M6ZM8Z-HB4XPKR-BN-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM8Z-HB4XPKR-EPR-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M6ZM8Z-HB4XPKR-SSP 6 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8A-HB4LK-BN-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M8A-HB4LK-EPR-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M8A-HB4LK-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PCTFE
M8A-HB4LPKR-BN-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M8A-HB4LPKR-EPR-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M8A-HB4LPKR-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way PEEK
M8A-HB4XK-BN-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M8A-HB4XK-EPR-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M8A-HB4XK-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PCTFE
M8A-HB4XPKR-BN-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M8A-HB4XPKR-EPR-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M8A-HB4XPKR-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way PEEK
M8Z-HB4LK-BN-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8Z-HB4LK-EPR-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8Z-HB4LK-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8Z-HB4LPKR-BN-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8Z-HB4LPKR-EPR-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8Z-HB4LPKR-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8Z-HB4XK-BN-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8Z-HB4XK-EPR-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8Z-HB4XK-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8Z-HB4XPKR-BN-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8Z-HB4XPKR-EPR-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8Z-HB4XPKR-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM10Z-HB4LK-BN-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM10Z-HB4LK-EPR-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM10Z-HB4LK-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM10Z-HB4LPKR-BN-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM10Z-HB4LPKR-EPR-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM10Z-HB4LPKR-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM10Z-HB4XK-BN-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM10Z-HB4XK-EPR-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM10Z-HB4XK-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM10Z-HB4XPKR-BN-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM10Z-HB4XPKR-EPR-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM10Z-HB4XPKR-SSP 8 mm 10 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM12Z-HB4LK-BN-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM12Z-HB4LK-EPR-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM12Z-HB4LK-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM12Z-HB4LPKR-BN-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM12Z-HB4LPKR-EPR-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM12Z-HB4LPKR-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM12Z-HB4XK-BN-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM12Z-HB4XK-EPR-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM12Z-HB4XK-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM12Z-HB4XPKR-BN-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM12Z-HB4XPKR-EPR-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM12Z-HB4XPKR-SSP 8 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM6Z-HB4LK-BN-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM6Z-HB4LK-EPR-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM6Z-HB4LK-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PCTFE
M8ZM6Z-HB4LPKR-BN-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM6Z-HB4LPKR-EPR-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM6Z-HB4LPKR-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way PEEK
M8ZM6Z-HB4XK-BN-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM6Z-HB4XK-EPR-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM6Z-HB4XK-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PCTFE
M8ZM6Z-HB4XPKR-BN-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM6Z-HB4XPKR-EPR-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK
M8ZM6Z-HB4XPKR-SSP 8 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way PEEK






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694 | 139 1096 2635
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
