Parker派克 仪表级球阀

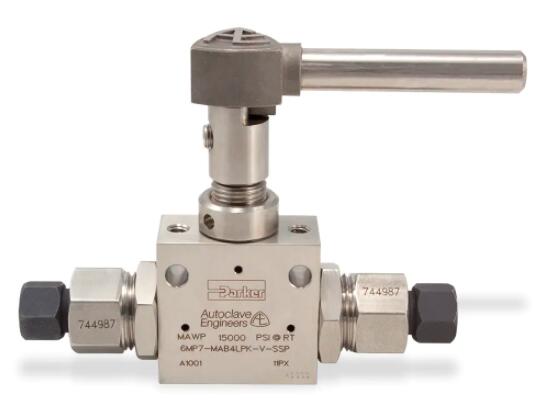

Parker派克 Ball Valve, 15,000 PSI - MAB Series
Parker派克 MAB系列球阀-15,000 PSI

派克的MAB系列MPI球阀有手动，气动和电动两通和三通阀。它们专为高达15,000 psi的1/4和1/2圈介质关闭或切换应用而设计。Parker’s MAB Series MPI Ball Valves are available as manual, pneumatic and electrical actuated two-way and three-way valves. They are designed for 1/4 and 1/2 turn media shutoff or switching applications up to 15,000 psi.

Parker派克 MAB系列球阀-15,000 PSI 资料下载

派克的 MAB 系列 MPI 球阀一体式设计，在重载管道中提供稳定的关断或切换功能。经过验证的耳轴式阀球设计及弹簧加载阀座使MAB系列阀门成苛刻应用中的选择。坚固耐用的设计，并采用弹簧加载阀座形式，大大提高了循环使用寿命，减低了在压力高达15,000 PSI 时的操作扭矩。Parker's MAB Series MPI Ball Valves provide reliable shut-off or switching functions in a heavy duty, bar stock design. The proven trunnion style ball design and spring loaded seats make the MAB series ideal for severe service applications. The rugged design employs spring-loaded seats for high cycle life and low operating torques at pressures up to 15,000 PSI.

市场Markets：

- 化学制药Chemical
- 石油与天然气Oil and Gas
- 炼油Refineries
- 电力Power

特点/优势Features/Benefits：
- 二通或三通阀门形式Two-way and three-way designs
- 防吹出阀球、阀杆Blow-out resistant ball/stem
- 操作力矩小Low operating torque
- 手动，电动或气动执行器可选Manual, electric or pneumatic actuation
- 不锈钢手柄Stainless Steel Handle
- 手柄限位销Positive handle stops
- 每个产品都经过 出厂检测100% factory tested
- MPI 端口连接MPI End Connections
- 可追踪的热代码Heat code traceability

应用Applications：

- 过程控制管线Process Control Lines
- 分流Flow Diversion
- 高压混合系统High Pressure Mixing Systems

性能特点：

MAX.运行压力：12,500 to 15,000 psi
连接 1 尺寸：1/8" 到 1"，NPT内螺纹，MPI卡套接头
连接 2 尺寸：1/8" 到 1"，NPT内螺纹，MPI卡套接头
连接 3 螺纹尺寸：1/8 to 9/16 inch
连接 3 尺寸：不适用，NPT内螺纹，MPI卡套接头
孔口尺寸：0.250, 0.125, 0.375, 0.312, 0.500, 0.750, 0.531, 0.688, 0.188, 0.328 inch
阀门配置：二通，三通
阀座材料：聚醚醚酮树脂
阀门类型：不适用，分流，选择切换
密封材料：氟橡胶，高氟氟橡胶，丁腈橡胶，乙丙橡胶
阀体材料：316 Stainless Steel
选件：N/A

Ball Valve, 15,000 PSI - MAB Series 型号

Part Maximum Working Pressure (psi) Connection 1 Size Connection 2 Size Connection 3 Thread Size (inch) Connection 1 Style Connection 2 Style Connection 3 Style Orifice Size Valve Configuration Type Seat Material Valve Type Seal Material Body Material Options
12F-MAB12LPK-BN-SSP 10,000 3/4" 3/4" N/A NPT F NPT F N/A 0.75 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
12F-MAB12LPK-KZ-SSP 10,000 3/4" 3/4" N/A NPT F NPT F N/A 0.75 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
12F-MAB12LPK-V-SSP 10,000 3/4" 3/4" N/A NPT F NPT F N/A 0.75 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
12F-MAB8LPK-BN-SSP 10,000 3/4" 3/4" N/A NPT F NPT F N/A 0.5 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
12F-MAB8LPK-KZ-SSP 10,000 3/4" 3/4" N/A NPT F NPT F N/A 0.5 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
12F-MAB8LPK-V-SSP 10,000 3/4" 3/4" N/A NPT F NPT F N/A 0.5 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
12F-MAB8XPK-BN-SSP 10,000 3/4" 3/4" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
12F-MAB8XPK-EPR-SSP 10,000 3/4" 3/4" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
12F-MAB8XPK-KZ-SSP 10,000 3/4" 3/4" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
12F-MAB8XPK-V-SSP 10,000 3/4" 3/4" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
12F-MAB8XPKD-BN-SSP 10,000 3/4" 3/4" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
12F-MAB8XPKD-EPR-SSP 10,000 3/4" 3/4" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
12F-MAB8XPKD-KZ-SSP 10,000 3/4" 3/4" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
12F-MAB8XPKD-V-SSP 10,000 3/4" 3/4" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
12MP7-MAB12LPK-BN-SSP 15,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.531 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
12MP7-MAB12LPK-KZ-SSP 15,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.531 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
12MP7-MAB12LPK-V-SSP 15,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.531 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
12MP7-MAB8LPK-BN-SSP 15,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.5 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
12MP7-MAB8LPK-KZ-SSP 15,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.5 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
12MP7-MAB8LPK-V-SSP 15,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.5 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
12MP7-MAB8XPK-BN-SSP 10,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
12MP7-MAB8XPK-EPR-SSP 10,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
12MP7-MAB8XPK-KZ-SSP 10,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
12MP7-MAB8XPK-V-SSP 10,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
12MP7-MAB8XPKD-BN-SSP 10,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
12MP7-MAB8XPKD-EPR-SSP 10,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
12MP7-MAB8XPKD-KZ-SSP 10,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
12MP7-MAB8XPKD-V-SSP 10,000 3/4" 3/4" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
16F-MAB12LPK-BN-SSP 10,000 1" 1" N/A NPT F NPT F N/A 0.75 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
16F-MAB12LPK-KZ-SSP 10,000 1" 1" N/A NPT F NPT F N/A 0.75 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
16F-MAB12LPK-V-SSP 10,000 1" 1" N/A NPT F NPT F N/A 0.75 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
16F-MAB8LPK-BN-SSP 10,000 1" 1" N/A NPT F NPT F N/A 0.5 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
16F-MAB8LPK-KZ-SSP 10,000 1" 1" N/A NPT F NPT F N/A 0.5 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
16F-MAB8LPK-V-SSP 10,000 1" 1" N/A NPT F NPT F N/A 0.5 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
16F-MAB8XPK-BN-SSP 10,000 1" 1" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
16F-MAB8XPK-EPR-SSP 10,000 1" 1" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
16F-MAB8XPK-KZ-SSP 10,000 1" 1" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
16F-MAB8XPK-V-SSP 10,000 1" 1" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
16F-MAB8XPKD-BN-SSP 10,000 1" 1" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
16F-MAB8XPKD-EPR-SSP 10,000 1" 1" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
16F-MAB8XPKD-KZ-SSP 10,000 1" 1" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
16F-MAB8XPKD-V-SSP 10,000 1" 1" N/A NPT F NPT F NPT F 0.5 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
16MP7-MAB12LPK-BN-SSP 12,500 1" 1" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.688 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
16MP7-MAB12LPK-KZ-SSP 12,500 1" 1" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.688 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
16MP7-MAB12LPK-V-SSP 12,500 1" 1" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.688 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
16MP7-MAB8LPK-BN-SSP 12,500 1" 1" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.5 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
16MP7-MAB8LPK-KZ-SSP 12,500 1" 1" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.5 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
16MP7-MAB8LPK-V-SSP 12,500 1" 1" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.5 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
16MP7-MAB8XPK-BN-SSP 10,000 1" 1" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
16MP7-MAB8XPK-EPR-SSP 10,000 1" 1" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
16MP7-MAB8XPK-KZ-SSP 10,000 1" 1" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
16MP7-MAB8XPK-V-SSP 10,000 1" 1" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
16MP7-MAB8XPKD-BN-SSP 10,000 1" 1" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
16MP7-MAB8XPKD-EPR-SSP 10,000 1" 1" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
16MP7-MAB8XPKD-KZ-SSP 10,000 1" 1" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
16MP7-MAB8XPKD-V-SSP 10,000 1" 1" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.5 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
2F-MAB3XPK-BN-SSP 15,000 1/8" 1/8" 1/8" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
2F-MAB3XPK-EPR-SSP 15,000 1/8" 1/8" 1/8" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
2F-MAB3XPK-KZ-SSP 15,000 1/8" 1/8" 1/8" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
2F-MAB3XPK-V-SSP 15,000 1/8" 1/8" 1/8" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
2F-MAB3XPKD-V-SSP 15,000 1/8" 1/8" 1/8" NPT F NPT F NPT F 0.188 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
2F-MAB4LPK-BN-SSP 15,000 1/8" 1/8" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
2F-MAB4LPK-KZ-SSP 15,000 1/8" 1/8" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
2F-MAB4LPK-V-SSP 15,000 1/8" 1/8" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
4F-MAB3XPK-BN-SSP 15,000 1/4" 1/4" 1/4" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
4F-MAB3XPK-EPR-SSP 15,000 1/4" 1/4" 1/4" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
4F-MAB3XPK-KZ-SSP 15,000 1/4" 1/4" 1/4" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
4F-MAB3XPK-V-SSP 15,000 1/4" 1/4" 1/4" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
4F-MAB3XPKD-V-SSP 15,000 1/4" 1/4" 1/4" NPT F NPT F NPT F 0.188 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
4F-MAB4LPK-BN-SSP 15,000 1/4" 1/4" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
4F-MAB4LPK-KZ-SSP 15,000 1/4" 1/4" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
4F-MAB4LPK-V-SSP 15,000 1/4" 1/4" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
4MP7-MAB3XPK-BN-SSP 15,000 1/4" 1/4" 1/4" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.125 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
4MP7-MAB3XPK-EPR-SSP 15,000 1/4" 1/4" 1/4" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.125 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
4MP7-MAB3XPK-KZ-SSP 15,000 1/4" 1/4" 1/4" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.125 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
4MP7-MAB3XPK-V-SSP 15,000 1/4" 1/4" 1/4" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.125 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
4MP7-MAB3XPKD-V-SSP 15,000 1/4" 1/4" 1/4" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.125 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
4MP7-MAB4LPK-BN-SSP 15,000 1/4" 1/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.125 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
4MP7-MAB4LPK-KZ-SSP 15,000 1/4" 1/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.125 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
4MP7-MAB4LPK-V-SSP 15,000 1/4" 1/4" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.125 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
6F-MAB3XPK-BN-SSP 15,000 3/8" 3/8" 3/8" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
6F-MAB3XPK-EPR-SSP 15,000 3/8" 3/8" 3/8" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
6F-MAB3XPK-KZ-SSP 15,000 3/8" 3/8" 3/8" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
6F-MAB3XPK-V-SSP 15,000 3/8" 3/8" 3/8" NPT F NPT F NPT F 0.188 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
6F-MAB3XPKD-BN-SSP 15,000 3/8" 3/8" 3/8" NPT F NPT F NPT F 0.188 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
6F-MAB3XPKD-EPR-SSP 15,000 3/8" 3/8" 3/8" NPT F NPT F NPT F 0.188 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
6F-MAB3XPKD-KZ-SSP 15,000 3/8" 3/8" 3/8" NPT F NPT F NPT F 0.188 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
6F-MAB3XPKD-V-SSP 15,000 3/8" 3/8" 3/8" NPT F NPT F NPT F 0.188 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
6F-MAB4LPK-BN-SSP 15,000 3/8" 3/8" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
6F-MAB4LPK-KZ-SSP 15,000 3/8" 3/8" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
6F-MAB4LPK-V-SSP 15,000 3/8" 3/8" N/A NPT F NPT F N/A 0.25 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB3XPK-BN-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
6MP7-MAB3XPK-EPR-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
6MP7-MAB3XPK-KZ-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB3XPK-V-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB3XPKD-BN-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
6MP7-MAB3XPKD-EPR-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
6MP7-MAB3XPKD-KZ-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB3XPKD-V-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB4LPK-BN-SSP 15,000 3/8" 3/8" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
6MP7-MAB4LPK-KZ-SSP 15,000 3/8" 3/8" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB4LPK-V-SSP 15,000 3/8" 3/8" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB6XPK-BN-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.25 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
6MP7-MAB6XPK-EPR-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.25 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
6MP7-MAB6XPK-KZ-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.25 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB6XPK-V-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.25 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB6XPKD-BN-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.25 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
6MP7-MAB6XPKD-EPR-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.25 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
6MP7-MAB6XPKD-KZ-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.25 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
6MP7-MAB6XPKD-V-SSP 15,000 3/8" 3/8" 3/8" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.25 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
8F-MAB6LPK-BN-SSP 15,000 1/2" 1/2" N/A NPT F NPT F N/A 0.375 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
8F-MAB6LPK-KZ-SSP 15,000 1/2" 1/2" N/A NPT F NPT F N/A 0.375 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8F-MAB6LPK-V-SSP 15,000 1/2" 1/2" N/A NPT F NPT F N/A 0.375 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
8F-MAB6XPK-BN-SSP 15,000 1/2" 1/2" N/A NPT F NPT F NPT F 0.328 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
8F-MAB6XPK-EPR-SSP 15,000 1/2" 1/2" N/A NPT F NPT F NPT F 0.328 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
8F-MAB6XPK-KZ-SSP 15,000 1/2" 1/2" N/A NPT F NPT F NPT F 0.328 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8F-MAB6XPK-V-SSP 15,000 1/2" 1/2" N/A NPT F NPT F NPT F 0.328 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
8F-MAB6XPKD-BN-SSP 15,000 1/2" 1/2" N/A NPT F NPT F NPT F 0.328 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
8F-MAB6XPKD-EPR-SSP 15,000 1/2" 1/2" N/A NPT F NPT F NPT F 0.328 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
8F-MAB6XPKD-KZ-SSP 15,000 1/2" 1/2" N/A NPT F NPT F NPT F 0.328 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8F-MAB6XPKD-V-SSP 15,000 1/2" 1/2" N/A NPT F NPT F NPT F 0.328 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB3XPK-BN-SSP 15,000 1/2" 1/2" 1/2" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
8MP7-MAB3XPK-EPR-SSP 15,000 1/2" 1/2" 1/2" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
8MP7-MAB3XPK-KZ-SSP 15,000 1/2" 1/2" 1/2" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB3XPK-V-SSP 15,000 1/2" 1/2" 1/2" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB3XPKD-BN-SSP 15,000 1/2" 1/2" 1/2" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
8MP7-MAB3XPKD-EPR-SSP 15,000 1/2" 1/2" 1/2" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
8MP7-MAB3XPKD-KZ-SSP 15,000 1/2" 1/2" 1/2" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB3XPKD-V-SSP 15,000 1/2" 1/2" 1/2" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB4LPK-BN-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
8MP7-MAB4LPK-KZ-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB4LPK-V-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB6LPK-BN-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.312 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
8MP7-MAB6LPK-KZ-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.312 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB6LPK-V-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.312 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB6XPK-BN-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.312 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
8MP7-MAB6XPK-EPR-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.312 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
8MP7-MAB6XPK-KZ-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.312 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB6XPK-V-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.312 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB6XPKD-BN-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.312 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
8MP7-MAB6XPKD-EPR-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.312 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
8MP7-MAB6XPKD-KZ-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.312 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
8MP7-MAB6XPKD-V-SSP 15,000 1/2" 1/2" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.312 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB3XPK-BN-SSP 15,000 9/16" 9/16" 9/16" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
9MP7-MAB3XPK-EPR-SSP 15,000 9/16" 9/16" 9/16" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
9MP7-MAB3XPK-KZ-SSP 15,000 9/16" 9/16" 9/16" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB3XPK-V-SSP 15,000 9/16" 9/16" 9/16" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB3XPKD-BN-SSP 15,000 9/16" 9/16" 9/16" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
9MP7-MAB3XPKD-EPR-SSP 15,000 9/16" 9/16" 9/16" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
9MP7-MAB3XPKD-KZ-SSP 15,000 9/16" 9/16" 9/16" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB3XPKD-V-SSP 15,000 9/16" 9/16" 9/16" MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.188 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB4LPK-BN-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
9MP7-MAB4LPK-KZ-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB4LPK-V-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.25 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB6LPK-BN-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.375 Two Way PEEK N/A Nitrile Rubber 316 Stainless Steel N/A
9MP7-MAB6LPK-KZ-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.375 Two Way PEEK N/A Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB6LPK-V-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting N/A 0.375 Two Way PEEK N/A Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB6XPK-BN-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.328 Three Way PEEK Selector Nitrile Rubber 316 Stainless Steel N/A
9MP7-MAB6XPK-EPR-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.328 Three Way PEEK Selector Ethylene Propylene Rubber 316 Stainless Steel N/A
9MP7-MAB6XPK-KZ-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.328 Three Way PEEK Selector Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB6XPK-V-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.328 Three Way PEEK Selector Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB6XPKD-BN-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.328 Three Way PEEK Diverter Nitrile Rubber 316 Stainless Steel N/A
9MP7-MAB6XPKD-EPR-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.328 Three Way PEEK Diverter Ethylene Propylene Rubber 316 Stainless Steel N/A
9MP7-MAB6XPKD-KZ-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.328 Three Way PEEK Diverter Highly Fluorinated Fluorocarbon Rubber 316 Stainless Steel N/A
9MP7-MAB6XPKD-V-SSP 15,000 9/16" 9/16" N/A MPI Compression Fitting MPI Compression Fitting MPI Compression Fitting 0.328 Three Way PEEK Diverter Fluorocarbon Rubber 316 Stainless Steel N/A
