Parkrimp43系列扣压式液压软管接头
Parker派克 Crimp Style Hydraulic Hose Fitting – 43 Series Fittings
1CA43 - 公制24°锥内螺纹带O形圈 - 轻系列 - 直接头 - ISO 12151-2-SWS-L - DKOL
1CE43 - 公制24°锥内螺纹带O形圈 - 轻系列 - 45°接头 - ISO 12151-2-SWE45°-L - DKOL 45°
1CF43 - 公制24°锥内螺纹带O形圈 - 轻系列 - 90°接头 - ISO 12151-2-SWE90°-L - DKOL 90°
1C943 - 公制24°锥内螺纹带O形圈 - 重系列 - 直接头 - ISO 12151-2-SWS-S - DKOS
11C43 - 公制24°锥内螺纹带O形圈 - 重系列 - 90°接头 - ISO 12151-2 - SWE 90°-S - DKOS 90°
1D043 - 公制24°锥外螺纹 - 轻系列 - 直接头 - ISO 12151-2-S-L - CEL
11543 - SAE 61系列 - 直法兰接头 - ISO 12151-3-S-L - SFL / 3000 psi
11743 - SAE 61系列 - 45°法兰 - ISO 12151-3 - E45 - L - SFL 45° / 3000 psi
11943 - SAE 61系列 - 90°法兰接头 - ISO 12151-3 - E90 - L - SFL 90° / 3000 psi
1J043 - ORFS外螺纹带O形圈 - 直接头 - ISO 12151-1 - S

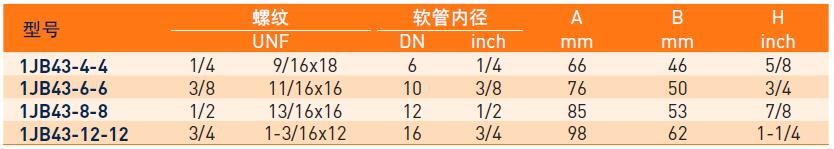

1JB43 - ORFS外螺纹带O形圈 - 隔板式 - 直接头 - 螺纹标准为 ISO 8434-3-BH
1J943 - ORFS内螺纹 - 90°接头 - 短型 - ISO 12151-1 - SWES
1J943 - ORFS内螺纹 - 90°接头 - 短型 - ISO 12151-1 - SWES

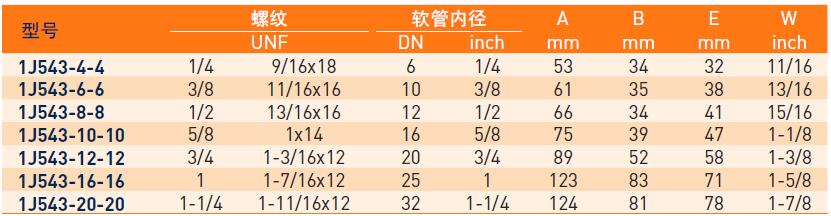

1J543 - ORFS内螺纹 - 90°接头 - 中型 - ISO 12151-1 - SWEM90

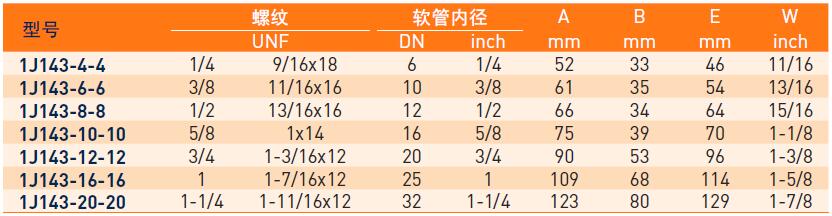

1J143 - ORFS内螺纹 - 90°接头 - 加长型 - ISO 12151-1 - SWEL90

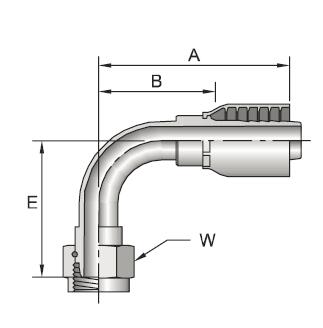

1B243 - BSPP内螺纹 - 60°锥 - 90°接头 - BS5200-D - DKR 90°
10643 - JIC 37°锥内螺纹 - 直接头 - ISO 12151-5
13943 - JIC 37°锥内螺纹 - 90°接头 - 短型 - ISO 12151-5
14143 - JIC 37°锥内螺纹 - 90°接头 - 加长型 - ISO 12151-5
1GU43 - BSPP内螺纹 - 60°锥 - 直接头 - JIS B8363 - GUO
1MU43 - 公制内螺纹 - 30°扩口 - 直接头
派克43系列软管接头，适合于Parkrimp扣压设备家族。它成本低廉、效率高效，属于扣压型接头，并能简单快速地加工成软管总成。Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
材质： 碳钢、不锈钢
适用软管： 387, 487, 722, 787,797,481, 381, 471TC/ST, 811

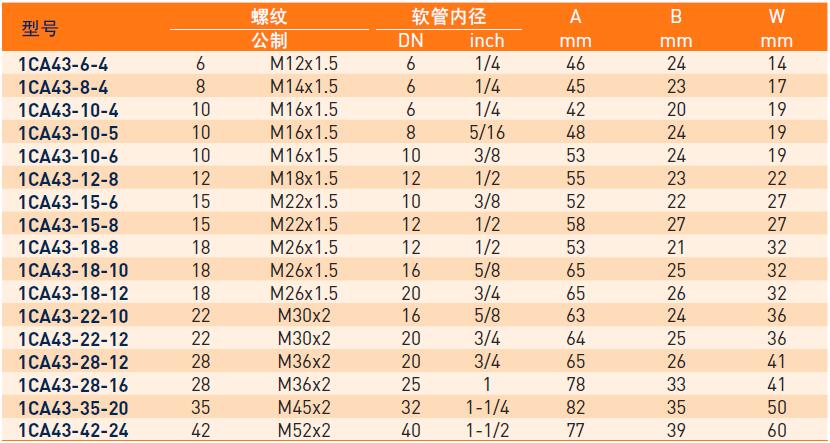

1CA43 - 公制24°锥内螺纹带O形圈 - 轻系列 - 直接头 - ISO 12151-2-SWS-L - DKOL 型号
型号 |
螺纹 |
软管内径 |
A |
B |
W |
公制 |
DN |
inch |
mm |
mm |
mm |
| 1CA43-6-4 |
6 |
M12x1.5 |
6 |
1/4 |
46 |
24 |
14 |
| 1CA43-8-4 |
8 |
M14x1.5 |
6 |
1/4 |
45 |
23 |
17 |
| 1CA43-10-4 |
10 |
M16x1.5 |
6 |
1/4 |
42 |
20 |
19 |
| 1CA43-10-5 |
10 |
M16x1.5 |
8 |
5/16 |
48 |
24 |
19 |
| 1CA43-10-6 |
10 |
M16x1.5 |
10 |
3/8 |
53 |
24 |
19 |
| 1CA43-12-8 |
12 |
M18x1.5 |
12 |
1/2 |
55 |
23 |
22 |
| 1CA43-15-6 |
15 |
M22x1.5 |
10 |
3/8 |
52 |
22 |
27 |
| 1CA43-15-8 |
15 |
M22x1.5 |
12 |
1/2 |
58 |
27 |
27 |
| 1CA43-18-8 |
18 |
M26x1.5 |
12 |
1/2 |
53 |
21 |
32 |
| 1CA43-18-10 |
18 |
M26x1.5 |
16 |
5/8 |
65 |
25 |
32 |
| 1CA43-18-12 |
18 |
M26x1.5 |
20 |
3/4 |
65 |
26 |
32 |
| 1CA43-22-10 |
22 |
M30x2 |
16 |
5/8 |
63 |
24 |
36 |
| 1CA43-22-12 |
22 |
M30x2 |
20 |
3/4 |
64 |
25 |
36 |
| 1CA43-28-12 |
28 |
M36x2 |
20 |
3/4 |
65 |
26 |
41 |
| 1CA43-28-16 |
28 |
M36x2 |
25 |
1 |
78 |
33 |
41 |
| 1CA43-35-20 |
35 |
M45x2 |
32 |
1-1/4 |
82 |
35 |
50 |
| 1CA43-42-24 |
42 |
M52x2 |
40 |
1-1/2 |
77 |
39 |
60 |

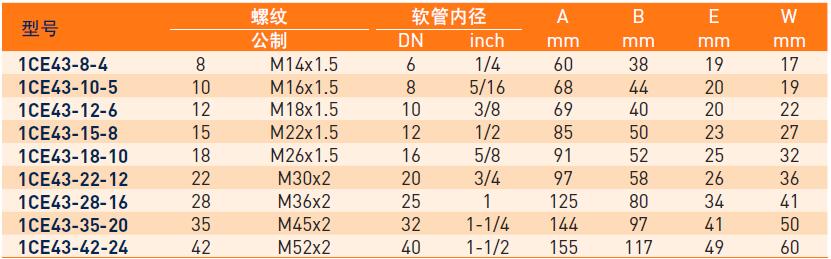

1CE43 - 公制24°锥内螺纹带O形圈 - 轻系列 - 45°接头 - ISO 12151-2-SWE45°-L - DKOL 45° 型号
型号 |
螺纹 |
软管内径 |
A |
B |
E |
W |
公制 |
DN |
inch |
mm |
mm |
mm |
mm |
| 1CE43-8-4 |
8 |
M14x1.5 |
6 |
1/4 |
60 |
38 |
19 |
17 |
| 1CE43-10-5 |
10 |
M16x1.5 |
8 |
5/16 |
68 |
44 |
20 |
19 |
| 1CE43-12-6 |
12 |
M18x1.5 |
10 |
3/8 |
69 |
40 |
20 |
22 |
| 1CE43-15-8 |
15 |
M22x1.5 |
12 |
1/2 |
85 |
50 |
23 |
27 |
| 1CE43-18-10 |
18 |
M26x1.5 |
16 |
5/8 |
91 |
52 |
25 |
32 |
| 1CE43-22-12 |
22 |
M30x2 |
20 |
3/4 |
97 |
58 |
26 |
36 |
| 1CE43-28-16 |
28 |
M36x2 |
25 |
1 |
125 |
80 |
34 |
41 |
| 1CE43-35-20 |
35 |
M45x2 |
32 |
1-1/4 |
144 |
97 |
41 |
50 |
| 1CE43-42-24 |
42 |
M52x2 |
40 |
1-1/2 |
155 |
117 |
49 |
60 |
1CF43 - 公制24°锥内螺纹带O形圈 - 轻系列 - 90°接头 - ISO 12151-2-SWE90°-L - DKOL 90° 型号
型号 |
螺纹 |
软管内径 |
A |
B |
E |
W |
公制 |
DN |
inch |
mm |
mm |
mm |
mm |
| 1CF43-6-4 |
6 |
M12x1.5 |
6 |
1/4 |
55 |
33 |
33 |
14 |
| 1CF43-8-4 |
8 |
M14x1.5 |
6 |
1/4 |
50 |
28 |
29 |
17 |
| 1CF43-10-4 |
10 |
M16x1.5 |
6 |
1/4 |
48 |
26 |
29 |
19 |
| 1CF43-10-5 |
10 |
M16x1.5 |
8 |
5/16 |
55 |
31 |
35 |
19 |
| 1CF43-10-6 |
10 |
M16x1.5 |
10 |
3/8 |
67 |
38 |
38 |
19 |
| 1CF43-12-5 |
12 |
M18x1.5 |
8 |
5/16 |
55 |
31 |
31 |
22 |
| 1CF43-12-6 |
12 |
M18x1.5 |
10 |
3/8 |
67 |
38 |
37 |
22 |
| 1CF43-12-8 |
12 |
M18x1.5 |
12 |
1/2 |
68 |
36 |
43 |
22 |
| 1CF43-15-8 |
15 |
M22x1.5 |
12 |
1/2 |
74 |
39 |
45 |
27 |
| 1CF43-18-8 |
18 |
M26x1.5 |
12 |
1/2 |
71 |
36 |
41 |
32 |
| 1CF43-18-10 |
18 |
M26x1.5 |
16 |
5/8 |
79 |
42 |
49 |
32 |
| 1CF43-22-10 |
22 |
M30x2 |
16 |
5/8 |
81 |
42 |
47 |
36 |
| 1CF43-22-12 |
22 |
M30x2 |
20 |
3/4 |
89 |
49 |
55 |
36 |
| 1CF43-28-16 |
28 |
M36x2 |
25 |
1 |
114 |
69 |
73 |
41 |
| 1CF43-35-20 |
35 |
M45x2 |
32 |
1-1/4 |
129 |
82 |
94 |
50 |
| 1CF43-42-24 |
42 |
M52x2 |
40 |
1-1/2 |
139 |
101 |
101 |
60 |
1C943 - 公制24°锥内螺纹带O形圈 - 重系列 - 直接头 - ISO 12151-2-SWS-S - DKOS 型号
型号 |
螺纹 |
软管内径 |
A |
B |
W |
公制 |
DN |
inch |
mm |
mm |
mm |
| 1C943-8-4 |
8 |
M16x1.5 |
6 |
1/4 |
45 |
23 |
19 |
| 1C943-10-4 |
10 |
M18x1.5 |
6 |
1/4 |
43 |
21 |
22 |
| 1C943-10-6 |
10 |
M18x1.5 |
10 |
3/8 |
50 |
21 |
22 |
| 1C943-12-6 |
12 |
M20x1.5 |
10 |
3/8 |
52 |
19 |
24 |
| 1C943-14-6 |
14 |
M22x1.5 |
10 |
3/8 |
50 |
21 |
27 |
| 1C943-16-8 |
16 |
M24x1.5 |
12 |
1/2 |
56 |
24 |
30 |
| 1C943-20-10 |
20 |
M30x2 |
16 |
5/8 |
66 |
27 |
36 |
| 1C943-20-12 |
20 |
M30x2 |
20 |
3/4 |
66 |
27 |
36 |
| 1C943-25-12 |
25 |
M36x2 |
20 |
3/4 |
67 |
28 |
46 |
| 1C943-30-16 |
30 |
M42x2 |
25 |
1 |
78 |
33 |
50 |
| 1C943-38-20 |
38 |
M52x2 |
32 |
1-1/4 |
80 |
33 |
60 |

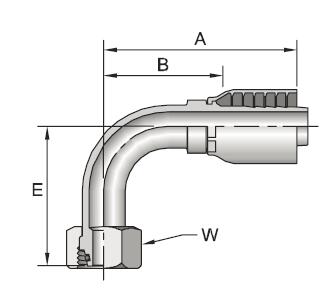

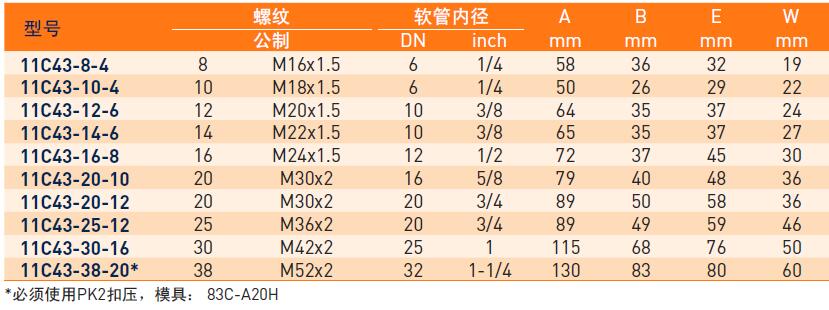

11C43 - 公制24°锥内螺纹带O形圈 - 重系列 - 90°接头 - ISO 12151-2 - SWE 90°-S - DKOS 90° 型号
型号 |
螺纹 |
软管内径 |
A |
B |
E |
W |
公制 |
DN |
inch |
mm |
mm |
mm |
mm |
| 11C43-8-4 |
8 |
M16x1.5 |
6 |
1/4 |
58 |
36 |
32 |
19 |
| 11C43-10-4 |
10 |
M18x1.5 |
6 |
1/4 |
50 |
26 |
29 |
22 |
| 11C43-12-6 |
12 |
M20x1.5 |
10 |
3/8 |
64 |
35 |
37 |
24 |
| 11C43-14-6 |
14 |
M22x1.5 |
10 |
3/8 |
65 |
35 |
37 |
27 |
| 11C43-16-8 |
16 |
M24x1.5 |
12 |
1/2 |
72 |
37 |
45 |
30 |
| 11C43-20-10 |
20 |
M30x2 |
16 |
5/8 |
79 |
40 |
48 |
36 |
| 11C43-20-12 |
20 |
M30x2 |
20 |
3/4 |
89 |
50 |
58 |
36 |
| 11C43-25-12 |
25 |
M36x2 |
20 |
3/4 |
89 |
49 |
59 |
46 |
| 11C43-30-16 |
30 |
M42x2 |
25 |
1 |
115 |
68 |
76 |
50 |
| 11C43-38-20* |
38 |
M52x2 |
32 |
1-1/4 |
130 |
83 |
80 |
60 |
必须使用PK2扣压，模具： 83C-A20H

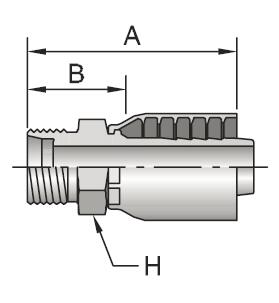

1D043 - 公制24°锥外螺纹 - 轻系列 - 直接头 - ISO 12151-2-S-L - CEL 型号
型号 |
螺纹 |
软管内径 |
A |
B |
H |
公制 |
DN |
inch |
mm |
mm |
mm |
| 1D043-8-4 |
8 |
M14x1.5 |
6 |
1/4 |
41 |
24 |
14 |
| 1D043-10-5 |
10 |
M16x1.5 |
8 |
5/16 |
48 |
23 |
19 |
| 1D043-12-6 |
12 |
M18x1.5 |
10 |
3/8 |
52 |
23 |
19 |
| 1D043-15-8 |
15 |
M22x1.5 |
12 |
1/2 |
57 |
26 |
22 |
| 1D043-18-10 |
18 |
M26x1.5 |
16 |
5/8 |
68 |
29 |
27 |
| 1D043-22-12 |
22 |
M30x2 |
20 |
3/4 |
69 |
31 |
30 |
| 1D043-28-16 |
28 |
M36x2 |
25 |
1 |
79 |
33 |
36 |
| 1D043-35-20 |
35 |
M45x2 |
32 |
1-1/4 |
85 |
38 |
46 |

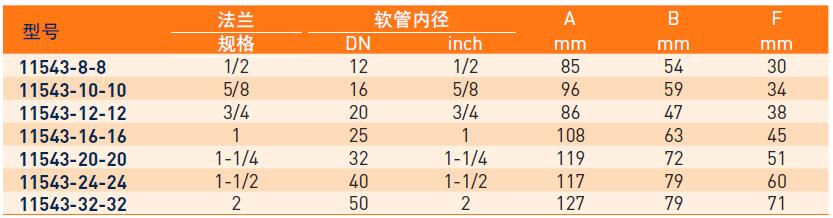

11543 - SAE 61系列 - 直法兰接头 - ISO 12151-3-S-L - SFL / 3000 psi 型号
型号 |
法兰 |
软管内径 |
A |
B |
F |
规格 |
DN |
inch |
mm |
mm |
mm |
| 11543-8-8 |
1/2 |
12 |
1/2 |
85 |
54 |
30 |
| 11543-10-10 |
5/8 |
16 |
5/8 |
96 |
59 |
34 |
| 11543-12-12 |
3/4 |
20 |
3/4 |
86 |
47 |
38 |
| 11543-16-16 |
1 |
25 |
1 |
108 |
63 |
45 |
| 11543-20-20 |
1-1/4 |
32 |
1-1/4 |
119 |
72 |
51 |
| 11543-24-24 |
1-1/2 |
40 |
1-1/2 |
117 |
79 |
60 |
| 11543-32-32 |
2 |
50 |
2 |
127 |
79 |
71 |

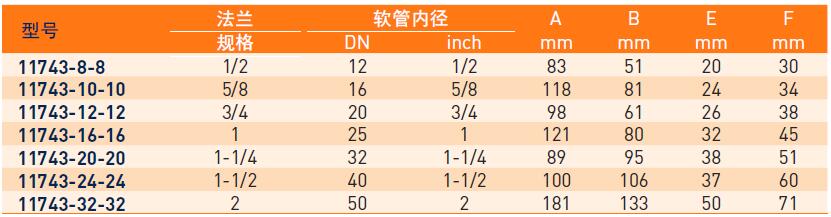

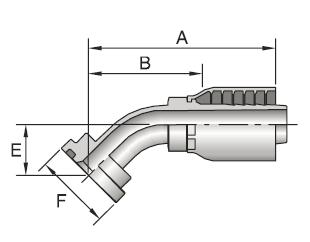

11743 - SAE 61系列 - 45°法兰 - ISO 12151-3 - E45 - L - SFL 45° / 3000 psi 型号
型号 |
法兰 |
软管内径 |
A |
B |
E |
F |
| 规格 |
DN |
inch |
mm |
mm |
mm |
mm |
| 11743-8-8 |
1/2 |
12 |
1/2 |
83 |
51 |
20 |
30 |
| 11743-10-10 |
5/8 |
16 |
5/8 |
118 |
81 |
24 |
34 |
| 11743-12-12 |
3/4 |
20 |
3/4 |
98 |
61 |
26 |
38 |
| 11743-16-16 |
1 |
25 |
1 |
121 |
80 |
32 |
45 |
| 11743-20-20 |
1-1/4 |
32 |
1-1/4 |
89 |
95 |
38 |
51 |
| 11743-24-24 |
1-1/2 |
40 |
1-1/2 |
100 |
106 |
37 |
60 |
| 11743-32-32 |
2 |
50 |
2 |
181 |
133 |
50 |
71 |
11943 - SAE 61系列 - 90°法兰接头 - ISO 12151-3 - E90 - L - SFL 90° / 3000 psi 型号
型号 |
法兰 |
软管内径 |
A |
B |
E |
F |
| 规格 |
DN |
inch |
mm |
mm |
mm |
mm |
| 11943-8-8 |
1/2 |
12 |
1/2 |
75 |
40 |
41 |
30 |
| 11943-10-10 |
5/8 |
16 |
5/8 |
94 |
58 |
53 |
34 |
| 11943-12-12 |
3/4 |
20 |
3/4 |
89 |
50 |
58 |
38 |
| 11943-16-16 |
1 |
25 |
1 |
113 |
68 |
61 |
45 |
| 11943-20-20 |
1-1/4 |
32 |
1-1/4 |
130 |
82 |
90 |
51 |
| 11943-24-24 |
1-1/2 |
40 |
1-1/2 |
141 |
103 |
104 |
60 |
| 11943-32-32 |
2 |
50 |
2 |
172 |
123 |
114 |
71 |
1J043 - ORFS外螺纹带O形圈 - 直接头 - ISO 12151-1 - S 型号
| 型号 |
螺纹 |
软管内径 |
A |
B |
H |
| |
UNF |
DN |
inch |
mm |
mm |
mm |
| 1J043-4-4 |
1/4 |
9/16x18 |
6 |
1/4 |
44 |
25 |
5/8 |
| 1J043-6-6 |
3/8 |
11/16x16 |
10 |
3/8 |
53 |
27 |
3/4 |
| 1J043-8-8 |
1/2 |
13/16x16 |
12 |
1/2 |
61 |
30 |
7/8 |
| 1J043-10-10 |
5/8 |
1x14 |
16 |
5/8 |
69 |
34 |
1-1/16 |
| 1J043-12-12 |
3/4 |
1-3/16x12 |
20 |
3/4 |
74 |
37 |
1-1/4 |
| 1J043-16-16 |
1 |
1-7/16x12 |
25 |
1 |
84 |
42 |
1-1/2 |
| 1J043-20-20 |
1-1/4 |
1-11/16x12 |
32 |
1-1/4 |
84 |
41 |
1-3/4 |
1JB43 - ORFS外螺纹带O形圈 - 隔板式 - 直接头 - 螺纹标准为 ISO 8434-3-BH 型号
型号 |
螺纹 |
软管内径 |
A |
B |
H |
UNF |
DN |
inch |
mm |
mm |
mm |
| 1JB43-4-4 |
1/4 |
9/16x18 |
6 |
1/4 |
66 |
46 |
5/8 |
| 1JB43-6-6 |
3/8 |
11/16x16 |
10 |
3/8 |
76 |
50 |
3/4 |
| 1JB43-8-8 |
1/2 |
13/16x16 |
12 |
1/2 |
85 |
53 |
7/8 |
| 1JB43-12-12 |
3/4 |
1-3/16x12 |
16 |
3/4 |
98 |
62 |
1-1/4 |

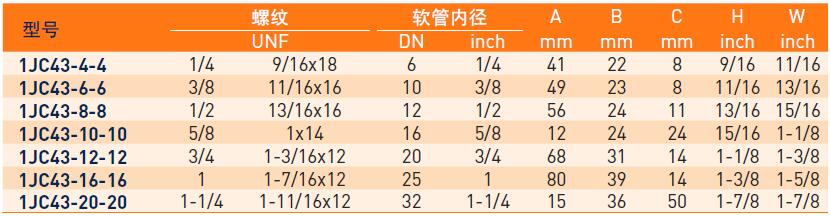

1JC43 - ORFS内螺纹 - 直接头 - 短型 - ISO 12151-1 - SWSA 型号
型号 |
螺纹 |
软管内径 |
A |
B |
C |
H |
W |
UNF |
DN |
inch |
mm |
mm |
mm |
mm |
mm |
| 1JC43-4-4 |
1/4 |
9/16x18 |
6 |
1/4 |
41 |
22 |
8 |
9/16 |
11/16 |
| 1JC43-6-6 |
3/8 |
11/16x16 |
10 |
3/8 |
49 |
23 |
8 |
11/16 |
13/16 |
| 1JC43-8-8 |
1/2 |
13/16x16 |
12 |
1/2 |
56 |
24 |
11 |
13/16 |
15/16 |
| 1JC43-10-10 |
5/8 |
1x14 |
16 |
5/8 |
12 |
24 |
24 |
15/16 |
1-1/8 |
| 1JC43-12-12 |
3/4 |
1-3/16x12 |
20 |
3/4 |
68 |
31 |
14 |
1-1/8 |
1-3/8 |
| 1JC43-16-16 |
1 |
1-7/16x12 |
25 |
1 |
80 |
39 |
14 |
1-3/8 |
1-5/8 |
| 1JC43-20-20 |
1-1/4 |
1-11/16x12 |
32 |
1-1/4 |
15 |
36 |
50 |
1-7/8 |
1-7/8 |
1J943 - ORFS内螺纹 - 90°接头 - 短型 - ISO 12151-1 - SWES 型号
型号 |
螺纹 |
软管内径 |
A |
B |
E |
W |
UNF |
DN |
inch |
mm |
mm |
mm |
mm |
| 1J943-4-4 |
1/4 |
9/16x18 |
6 |
1/4 |
45 |
26 |
21 |
11/16 |
| 1J943-6-6 |
3/8 |
11/16x16 |
10 |
3/8 |
56 |
27 |
23 |
13/16 |
| 1J943-8-8 |
1/2 |
13/16x16 |
12 |
1/2 |
64 |
32 |
29 |
15/16 |
| 1J943-10-10 |
5/8 |
1x14 |
16 |
5/8 |
76 |
39 |
32 |
1-1/8 |
| 1J943-12-12 |
3/4 |
1-3/16x12 |
20 |
3/4 |
90 |
53 |
48 |
1-3/8 |
| 1J943-16-16 |
1 |
1-7/16x12 |
25 |
1 |
109 |
68 |
56 |
1-5/8 |
| 1J943-20-20 |
1-1/4 |
1-11/16x12 |
32 |
1-1/4 |
124 |
81 |
64 |
1-7/8 |
1J543 - ORFS内螺纹 - 90°接头 - 中型 - ISO 12151-1 - SWEM90 型号
型号 |
螺纹 |
软管内径 |
A |
B |
E |
W |
UNF |
DN |
inch |
mm |
mm |
mm |
mm |
| 1J543-4-4 |
1/4 |
9/16x18 |
6 |
1/4 |
53 |
34 |
32 |
11/16 |
| 1J543-6-6 |
3/8 |
11/16x16 |
10 |
3/8 |
61 |
35 |
38 |
13/16 |
| 1J543-8-8 |
1/2 |
13/16x16 |
12 |
1/2 |
66 |
34 |
41 |
15/16 |
| 1J543-10-10 |
5/8 |
1x14 |
16 |
5/8 |
75 |
39 |
47 |
1-1/8 |
| 1J543-12-12 |
3/4 |
1-3/16x12 |
20 |
3/4 |
89 |
52 |
58 |
1-3/8 |
| 1J543-16-16 |
1 |
1-7/16x12 |
25 |
1 |
123 |
83 |
71 |
1-5/8 |
| 1J543-20-20 |
1-1/4 |
1-11/16x12 |
32 |
1-1/4 |
124 |
81 |
78 |
1-7/8 |
1J143 - ORFS内螺纹 - 90°接头 - 加长型 - ISO 12151-1 - SWEL90 型号
型号 |
螺纹 |
软管内径 |
A |
B |
E |
W |
UNF |
DN |
inch |
mm |
mm |
mm |
mm |
| 1J143-4-4 |
1/4 |
9/16x18 |
6 |
1/4 |
52 |
33 |
46 |
11/16 |
| 1J143-6-6 |
3/8 |
11/16x16 |
10 |
3/8 |
61 |
35 |
54 |
13/16 |
| 1J143-8-8 |
1/2 |
13/16x16 |
12 |
1/2 |
66 |
34 |
64 |
15/16 |
| 1J143-10-10 |
5/8 |
1x14 |
16 |
5/8 |
75 |
39 |
70 |
1-1/8 |
| 1J143-12-12 |
3/4 |
1-3/16x12 |
20 |
3/4 |
90 |
53 |
96 |
1-3/8 |
| 1J143-16-16 |
1 |
1-7/16x12 |
25 |
1 |
109 |
68 |
114 |
1-5/8 |
| 1J143-20-20 |
1-1/4 |
1-11/16x12 |
32 |
1-1/4 |
123 |
80 |
129 |
1-7/8 |
1B243 - BSPP内螺纹 - 60°锥 - 90°接头 - BS5200-D - DKR 90° 型号
型号 |
螺纹 |
软管内径 |
A |
B |
E |
W |
| BSPP |
DN |
inch |
mm |
mm |
mm |
mm |
| 1B243-4-4 |
1/4x19 |
6 |
1/4 |
46 |
27 |
28 |
19 |
| 1B243-6-6 |
3/8x19 |
10 |
3/8 |
59 |
34 |
37 |
22 |
| 1B243-8-8 |
1/2x14 |
12 |
1/2 |
75 |
40 |
40 |
27 |
| 1B243-10-10 |
5/8x14 |
16 |
5/8 |
80 |
44 |
40 |
30 |
| 1B243-12-12 |
3/4x14 |
20 |
3/4 |
91 |
51 |
59 |
32 |
| 1B243-16-16 |
1x11 |
25 |
1 |
110 |
65 |
63 |
41 |
| 1B243-20-20 |
1-1/4x11 |
32 |
1-1/4 |
120 |
73 |
76 |
50 |
10643 - JIC 37°锥内螺纹 - 直接头 - ISO 12151-5 型号
型号 |
螺纹 |
软管内径 |
A |
B |
H |
W |
UNF |
DN |
inch |
mm |
mm |
mm |
inch |
| 10643-4-4 |
1/4 |
7/16x20 |
6 |
1/4 |
40 |
18 |
14 |
9/16 |
| 10643-5-5 |
5/16 |
1/2x20 |
8 |
5/16 |
44 |
20 |
17 |
5/8 |
| 10643-6-4 |
3/8 |
9/16x18 |
6 |
1/4 |
45 |
22 |
14 |
11/16 |
| 10643-6-6 |
3/8 |
9/16x18 |
10 |
3/8 |
51 |
22 |
17 |
11/16 |
| 10643-8-8 |
1/2 |
3/4x16 |
12 |
1/2 |
57 |
25 |
22 |
7/8 |
| 10643-10-10 |
5/8 |
7/8x14 |
16 |
5/8 |
62 |
22 |
24 |
1 |
| 10643-12-12 |
3/4 |
1-1/16x12 |
20 |
3/4 |
65 |
26 |
27 |
1-1/4 |
| 10643-16-16 |
1 |
1-5/16x12 |
25 |
1 |
77 |
32 |
1-3/8" |
1-1/2 |
| 10643-20-20 |
1-1/4 |
1-5/8x12 |
32 |
1-1/4 |
84 |
37 |
1-7/8" |
2 |
| 10643-24-24 |
1-1/2 |
1-7/8x12 |
40 |
1-1/2 |
79 |
41 |
55 |
2-1/4 |
13943 - JIC 37°锥内螺纹 - 90°接头 - 短型 - ISO 12151-5 型号
型号 |
螺纹 |
软管内径 |
A |
B |
H |
W |
UNF |
DN |
inch |
mm |
mm |
mm |
inch |
| 13943-4-4 |
1/4 |
7/16x20 |
6 |
1/4 |
45 |
26 |
21 |
9/16 |
| 13943-5-5 |
5/16 |
1/2x20 |
8 |
5/16 |
50 |
31 |
21 |
5/8 |
| 13943-6-6 |
3/8 |
9/16x18 |
10 |
3/8 |
56 |
30 |
23 |
11/16 |
| 13943-8-8 |
1/2 |
3/4x16 |
12 |
1/2 |
64 |
32 |
29 |
7/8 |
| 13943-10-10 |
5/8 |
7/8x14 |
16 |
5/8 |
75 |
39 |
32 |
1 |
| 13943-12-12 |
3/4 |
1-1/16x12 |
20 |
3/4 |
89 |
52 |
48 |
1-1/4 |
| 13943-16-16 |
1 |
1-5/16x12 |
25 |
1 |
109 |
68 |
56 |
1-1/2 |
| 13943-20-20 |
1-1/4 |
1-5/8x12 |
32 |
1-1/4 |
113 |
70 |
66 |
2 |
| 13943-24-24 |
1-1/2 |
1-7/8x12 |
40 |
1-1/2 |
140 |
105 |
81 |
2-1/4 |
| 13943-32-32 |
2 |
2-1/2x12 |
50 |
2 |
171,4 |
126,2 |
117 |
2-7/8 |
14143 - JIC 37°锥内螺纹 - 90°接头 - 加长型 - ISO 12151-5 型号
型号 |
螺纹 |
软管内径 |
A |
B |
H |
W |
UNF |
DN |
inch |
mm |
mm |
mm |
mm |
| 14143-4-4 |
1/4 |
7/16x20 |
6 |
1/4 |
50 |
31 |
46 |
9/16 |
| 14143-6-6 |
3/8 |
9/16x18 |
10 |
3/8 |
58 |
32 |
55 |
11/16 |
| 14143-8-8 |
1/2 |
3/4x16 |
12 |
1/2 |
67 |
35 |
64 |
7/8 |
| 14143-10-10 |
5/8 |
7/8x14 |
16 |
5/8 |
80 |
44 |
66 |
1 |
| 14143-12-12 |
3/4 |
1-1/16x12 |
20 |
3/4 |
89 |
52 |
95 |
1-1/4 |
| 14143-16-16 |
1 |
1-5/16x12 |
25 |
1 |
99 |
59 |
110 |
1-1/2 |
| 14143-20-20 |
1-1/4 |
1-5/8x12 |
32 |
1-1/4 |
112 |
69 |
134 |
2 |
1GU43 - BSPP内螺纹 - 60°锥 - 直接头 - JIS B8363 - GUO 型号
型号 |
螺纹 |
软管内径 |
A |
B |
H |
W |
| BSPP |
DN |
inch |
mm |
mm |
mm |
mm |
| 1GU43-4-4 |
1/4x19 |
6 |
1/4 |
53 |
34 |
19 |
19 |
| 1GU43-6-6 |
3/8x19 |
10 |
3/8 |
62 |
36 |
22 |
22 |
| 1GU43-8-8 |
1/2x14 |
12 |
1/2 |
71 |
40 |
27 |
27 |
| 1GU43-12-12 |
3/4x14 |
20 |
3/4 |
72 |
33 |
36 |
36 |
| 1GU43-16-16 |
1x11 |
25 |
1 |
95 |
54 |
41 |
41 |
| 1GU43-20-20 |
1-1/4x11 |
32 |
1-1/4 |
103 |
60 |
50 |
50 |
1MU43 - 公制内螺纹 - 30°扩口 - 直接头 型号
型号 |
螺纹 |
软管内径 |
A |
B |
H |
W |
| 公制 |
DN |
inch |
mm |
mm |
mm |
mm |
| 1MU43-4-4 |
M14x1.5 |
6 |
1/4 |
53 |
34 |
19 |
19 |
| 1MU43-6-6 |
M18x1.5 |
10 |
3/8 |
62 |
36 |
24 |
24 |
| 1MU43-8-8 |
M22x1.5 |
12 |
1/2 |
72 |
40 |
27 |
27 |
派克43系列软管接头，适合于Parkrimp扣压设备家族。它成本低廉、效率高效，属于扣压型接头，并能简单快速地加工成软管总成。该接头系列匹配派克不剥胶软管，大大地方便了总成的加工操作，并节省了总成的装配时间。43系列接头表面采用无六价铬处理，适用于各种耐高温，耐低温、工业液压标准、恒压、磷酸酯，吸油和回油软管. 43系列软管接头尺寸范围从 ?” 到2“，有多种终端连接形式可选.
The 43 Series of hydraulic hose fittings from Parker Hannifin is renowned for its ease of assembly, wide selection of shape and end formations, hose compatibility, and extensive use across markets. This cost-effective line of permanent crimp-style hydraulic fittings is designed for use with Parkcrimp crimpers to deliver “bite-the-wire” sealing and holding power. When used with Parker’s No-Skive hoses, 43 Series fittings can be assembled without removing the outer hose cover, eliminating premature hose failure caused by skiving too long or too short.
43 Series fittings feature one-piece construction with chromium-6-free plating, and are compatible with petroleum-based hydraulic fluids and lubricating oils and with phosphate-ester-based hydraulic fluids. Applications include hydraulic industry standard, constant working pressure, high temperature, low temperature, suction and return. Available in sizes from ?-inch to 2 inches in a wide variety of end formations, the 43 Series is offered in more than 2,500 configurations and is available around the world. For highly corrosive applications, 43 Series fittings also are available in stainless steel.
市场:
- 交通
- RV & 公交车
- 军工
- 建筑
- 农业机械
- 地面 & 建筑维护
- 林业机械
- 铁路
- 公共设施设备
- 个人举升设备
- 机械工具
- 油田服务
- 市政设备
- 物料处理
- 船舶
- 路面铺设 & 道路维护
- 地面支持设备
- 工业
- 煤矿
Markets:
- Transportation
- RV & Bus
- Military
- Construction
- Agriculture
- Grounds & Building Maintenance
- Forestry
- Railroad
- Utility Equipment
- Personnel Lift Equipment
- Machine Tool
- Oil Field Service
- Waste & Refuse
- Material Handling
- Marine
- Paving & Road Maintenance
- Ground Support Equipment
- Industrial
- Mining
特性/优点:
- 易于插管
- 英制螺母
- 不锈钢接头可供
- 各种终端连接形式可选
- 一件式，减少总成加工的复杂性和泄漏点
- 不剥胶技术使得总成加工便利、高效和安全
Features/Benefits:
- Easy push on force
- Imperial HEX
- Stainless steel option available
- Wide range of end configurations
- One piece reduces complexity and leakage path
- No-Skive technology offers easy, efficient, and safe production processes
应用:
- 石油基液压油和润滑油
- 磷酸酯液压油
Applications:
- Petroleum base hydraulic fluids and lubricating oils
- Phosphate-ester base hydraulic fluids
适用软管:
- 301LT
- 302
- 304
- 351TC, 351ST
- 422
- 424
- 426
- 431
- 436
- 451TC, 451ST
- 471TC, 471ST
- 472TC
- 482TC, 482ST
- 722ST
- 881
Compatible Hoses:
- 301LT
- 302
- 304
- 351TC, 351ST
- 387/TC/ST (-4 through -20 only)
- 422
- 424
- 426
- 431
- 436
- 451TC, 451ST
- 471TC, 471ST
- 472TC
- 482TC, 482ST
- 487/TC/ST (-4 through -16 only)
- 722/TC/ST
- 787/TC/ST (-4 and -6 only)
- 797/TC/ST (-4 and -6 only)
- 881
- GST II Series 7092
Part Hex Type Style Shape Hose I.D. (size) Port Connection Material
0143-40-40 na Male NPTF Pipe - Rigid Straight -40 2-1/2 Steel
0143-48-48 na Male NPTF Pipe - Rigid Straight -48 3 Steel
10043-40 na 43 Series Shell Straight -40 na Steel
10043-48 na 43 Series Shell Straight -48 na Steel
10143-12-10 Inch Male NPTF Pipe - Rigid Straight -10 3/4 Steel
10143-12-12 Inch Male NPTF Pipe - Rigid Straight -12 3/4 Steel
10143-12-12C Inch Male NPTF Pipe - Rigid Straight -12 3/4 Stainless Steel
10143-12-16 Inch Male NPTF Pipe - Rigid Straight -16 3/4 Steel
10143-12-8 Inch Male NPTF Pipe - Rigid Straight -8 3/4 Steel
10143-16-12 Inch Male NPTF Pipe - Rigid Straight -12 1 Steel
10143-16-16 Inch Male NPTF Pipe - Rigid Straight -16 1 Steel
10143-16-16C Inch Male NPTF Pipe - Rigid Straight -16 1 Stainless Steel
10143-2-4 Inch Male NPTF Pipe - Rigid Straight -4 1/8 Steel
10143-20-20 Inch Male NPTF Pipe - Rigid Straight -20 1-1/4 Steel
10143-20-20C Inch Male NPTF Pipe - Rigid Straight -20 1-1/4 Stainless Steel
10143-24-24 Inch Male NPTF Pipe - Rigid Straight -24 1-1/2 Steel
10143-24-24C Inch Male NPTF Pipe - Rigid Straight -24 1-1/2 Stainless Steel
10143-32-32 Inch Male NPTF Pipe - Rigid Straight -32 2 Steel
10143-32-32C Inch Male NPTF Pipe - Rigid Straight -32 2 Stainless Steel
10143-4-4 Inch Male NPTF Pipe - Rigid Straight -4 1/4 Steel
10143-4-4C Inch Male NPTF Pipe - Rigid Straight -4 1/4 Stainless Steel
10143-4-5 Inch Male NPTF Pipe - Rigid Straight -5 1/4 Steel
10143-4-6 Inch Male NPTF Pipe - Rigid Straight -6 1/4 Steel
10143-6-10 Inch Male NPTF Pipe - Rigid Straight -10 3/8 Steel
10143-6-4 Inch Male NPTF Pipe - Rigid Straight -4 3/8 Steel
10143-6-5 Inch Male NPTF Pipe - Rigid Straight -5 3/8 Steel
10143-6-6 Inch Male NPTF Pipe - Rigid Straight -6 3/8 Steel
10143-6-6C Inch Male NPTF Pipe - Rigid Straight -6 3/8 Stainless Steel
10143-6-8 Inch Male NPTF Pipe - Rigid Straight -8 3/8 Steel
10143-8-10 Inch Male NPTF Pipe - Rigid Straight -10 1/2 Steel
10143-8-12 Inch Male NPTF Pipe - Rigid Straight -12 1/2 Steel
10143-8-4 Inch Male NPTF Pipe - Rigid Straight -4 1/2 Steel
10143-8-6 Inch Male NPTF Pipe - Rigid Straight -6 1/2 Steel
10143-8-8 Inch Male NPTF Pipe - Rigid Straight -8 1/2 Steel
10143-8-8C Inch Male NPTF Pipe - Rigid Straight -8 1/2 Stainless Steel
10243-12-12 Inch Female NPTF Pipe - Rigid Straight -12 3/4 Steel
10243-2-4 Inch Female NPTF Pipe - Rigid Straight -4 1/8 Steel
10243-4-4 Inch Female NPTF Pipe - Rigid Straight -4 1/4 Steel
10243-4-6 Inch Female NPTF Pipe - Rigid Straight -6 1/4 Steel
10243-6-4 Inch Female NPTF Pipe - Rigid Straight -4 3/8 Steel
10243-6-6 Inch Female NPTF Pipe - Rigid Straight -6 3/8 Steel
10243-8-6 Inch Female NPTF Pipe - Rigid Straight -6 1/2 Steel
10243-8-8 Inch Female NPTF Pipe - Rigid Straight -8 1/2 Steel
10343-10-10 Inch Male JIC 37° - Rigid Straight -10 5/8 Steel
10343-10-6 Inch Male JIC 37° - Rigid Straight -6 5/8 Steel
10343-10-8 Inch Male JIC 37° - Rigid Straight -8 5/8 Steel
10343-12-10 Inch Male JIC 37° - Rigid Straight -10 3/4 Steel
10343-12-12 Inch Male JIC 37° - Rigid Straight -12 3/4 Steel
10343-12-8 Inch Male JIC 37° - Rigid Straight -8 3/4 Steel
10343-14-12 Inch Male JIC 37° - Rigid Straight -12 7/8 Steel
10343-16-12 Inch Male JIC 37° - Rigid Straight -12 1 Steel
10343-16-16 Inch Male JIC 37° - Rigid Straight -16 1 Steel
10343-20-20 Inch Male JIC 37° - Rigid Straight -20 1-1/4 Steel
10343-24-20 Inch Male JIC 37° - Rigid Straight -20 1-1/2 Steel
10343-4-4 Inch Male JIC 37° - Rigid Straight -4 1/4 Steel
10343-5-4 Inch Male JIC 37° - Rigid Straight -4 5/16 Steel
10343-5-6 Inch Male JIC 37° - Rigid Straight -6 5/16 Steel
10343-6-4 Inch Male JIC 37° - Rigid Straight -4 3/8 Steel
10343-6-6 Inch Male JIC 37° - Rigid Straight -6 3/8 Steel
10343-8-10 Inch Male JIC 37° - Rigid Straight -10 1/2 Steel
10343-8-6 Inch Male JIC 37° - Rigid Straight -6 1/2 Steel
10343-8-8 Inch Male JIC 37° - Rigid Straight -8 1/2 Stainless Steel
10443-12-12 Inch Male SAE 45° - Rigid Straight -12 3/4 Steel
10443-6-6 Inch Male SAE 45° - Rigid Straight -6 3/8 Steel
10543-10-10 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -10 5/8 Steel
10543-10-6 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -6 5/8 Steel
10543-10-8 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -8 5/8 Steel
10543-12-10 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -10 3/4 Steel
10543-12-12 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -12 3/4 Steel
10543-12-8 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -8 3/4 Steel
10543-16-12 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -12 1 Steel
10543-16-16 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -16 1 Steel
10543-20-20 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -20 1-1/4 Steel
10543-4-4 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -4 1/4 Steel
10543-5-4 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -4 5/16 Steel
10543-6-4 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -4 3/8 Steel
10543-6-6 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -6 3/8 Steel
10543-6-8 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -8 3/8 Steel
10543-8-6 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -6 1/2 Steel
10543-8-8 Inch Male SAE Straight Thread with O-Ring - Rigid Straight -8 1/2 Steel
10643-10-10 Inch Female JIC 37° - Swivel Straight -10 5/8 Steel
10643-10-10C Inch Female JIC 37° - Swivel Straight -10 5/8 Stainless Steel
10643-10-12 Inch Female JIC 37° - Swivel Straight -12 5/8 Steel
10643-10-6 Inch Female JIC 37° - Swivel Straight -6 5/8 Steel
10643-10-8 Inch Female JIC 37° - Swivel Straight -8 5/8 Steel
10643-12-10 Inch Female JIC 37° - Swivel Straight -10 3/4 Steel
10643-12-12 Inch Female JIC 37° - Swivel Straight -12 3/4 Steel
10643-12-12C Inch Female JIC 37° - Swivel Straight -12 3/4 Stainless Steel
10643-12-16 Inch Female JIC 37° - Swivel Straight -16 3/4 Steel
10643-12-8 Inch Female JIC 37° - Swivel Straight -8 3/4 Steel
10643-14-12 Inch Female JIC 37° - Swivel Straight -12 7/8 Steel
10643-16-12 Inch Female JIC 37° - Swivel Straight -12 1 Steel
10643-16-16 Inch Female JIC 37° - Swivel Straight -16 1 Steel
10643-16-16C Inch Female JIC 37° - Swivel Straight -16 1 Stainless Steel
10643-20-16 Inch Female JIC 37° - Swivel Straight -16 1-1/4 Steel
10643-20-20 Inch Female JIC 37° - Swivel Straight -20 1-1/4 Steel
10643-20-20C Inch Female JIC 37° - Swivel Straight -20 1-1/4 Stainless Steel
10643-24-24 Inch Female JIC 37° - Swivel Straight -24 1-1/2 Steel
10643-24-24C Inch Female JIC 37° - Swivel Straight -24 1-1/2 Stainless Steel
10643-32-32 Inch Female JIC 37° - Swivel Straight -32 2 Steel
10643-32-32C Inch Female JIC 37° - Swivel Straight -32 2 Stainless Steel
10643-4-4 Inch Female JIC 37° - Swivel Straight -4 1/4 Steel
10643-4-4C Inch Female JIC 37° - Swivel Straight -4 1/4 Stainless Steel
10643-4-6 Inch Female JIC 37° - Swivel Straight -6 1/4 Steel
10643-5-4 Inch Female JIC 37° - Swivel Straight -4 5/16 Steel
10643-5-5 Inch Female JIC 37° - Swivel Straight -5 5/16 Steel
10643-5-6 Inch Female JIC 37° - Swivel Straight -6 5/16 Steel
10643-6-4 Inch Female JIC 37° - Swivel Straight -4 3/8 Steel
10643-6-4C Inch Female JIC 37° - Swivel Straight -4 3/8 Stainless Steel
10643-6-5 Inch Female JIC 37° - Swivel Straight -5 3/8 Steel
10643-6-6 Inch Female JIC 37° - Swivel Straight -6 3/8 Steel
10643-6-6C Inch Female JIC 37° - Swivel Straight -6 3/8 Stainless Steel
10643-6-8 Inch Female JIC 37° - Swivel Straight -8 3/8 Steel
10643-8-10 Inch Female JIC 37° - Swivel Straight -10 1/2 Steel
10643-8-12 Inch Female JIC 37° - Swivel Straight -12 1/2 Steel
10643-8-6 Inch Female JIC 37° - Swivel Straight -6 1/2 Steel
10643-8-6C Inch Female JIC 37° - Swivel Straight -6 1/2 Stainless Steel
10643-8-8 Inch Female JIC 37° - Swivel Straight -8 1/2 Steel
10643-8-8C Inch Female JIC 37° - Swivel Straight -8 1/2 Stainless Steel
10743-12-12 Inch Female NPSM Pipe - Swivel - (60° Cone) Straight -12 3/4 Steel
10743-16-16 Inch Female NPSM Pipe - Swivel - (60° Cone) Straight -16 1 Steel
10743-2-4 Inch Female NPSM Pipe - Swivel - (60° Cone) Straight -4 1/8 Steel
10743-20-20 Inch Female NPSM Pipe - Swivel - (60° Cone) Straight -20 1-1/4 Steel
10743-4-4 Inch Female NPSM Pipe - Swivel - (60° Cone) Straight -4 1/4 Steel
10743-6-6 Inch Female NPSM Pipe - Swivel - (60° Cone) Straight -6 3/8 Steel
10743-8-8 Inch Female NPSM Pipe - Swivel - (60° Cone) Straight -8 1/2 Steel
10843-12-12 Inch Female SAE 45° - Swivel Straight -12 3/4 Steel
10843-6-4 Inch Female SAE 45° - Swivel Straight -4 3/8 Steel
10843-6-6 Inch Female SAE 45° - Swivel Straight -6 3/8 Steel
10C43-12-6 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -6 M20x1,5 Steel
10C43-14-6 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -6 M22x1,5 Steel
10C43-16-8 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -8 M24x1,5 Steel
10C43-20-10 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -10 M30x2 Steel
10C43-20-12 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -12 M30x2 Steel
10C43-25-12 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -12 M36x2 Steel
10C43-30-16 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -16 M42x2 Steel
10C43-38-20 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -20 M52x2 Steel
10C43-8-4 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 45° Elbow -4 M16x1,5 Steel
10G43-10-6 Inch Male SAE Straight Thread with O-Ring - Swivel Straight -6 5/8 Steel
10G43-10-8 Inch Male SAE Straight Thread with O-Ring - Swivel Straight -8 5/8 Steel
10G43-12-12 Inch Male SAE Straight Thread with O-Ring - Swivel Straight -12 3/4 Steel
10G43-5-4 Inch Male SAE Straight Thread with O-Ring - Swivel Straight -4 5/16 Steel
10G43-6-4 Inch Male SAE Straight Thread with O-Ring - Swivel Straight -4 3/8 Steel
10G43-6-6 Inch Male SAE Straight Thread with O-Ring - Swivel Straight -6 3/8 Steel
10G43-8-6 Inch Male SAE Straight Thread with O-Ring - Swivel Straight -6 1/2 Steel
10G43-8-8 Inch Male SAE Straight Thread with O-Ring - Swivel Straight -8 1/2 Steel
10L43-10-8 Inch Male SAE Straight Thread with O-Ring - Swivel 90° Elbow -8 5/8 Steel
10L43-12-12 Inch Male SAE Straight Thread with O-Ring - Swivel 90° Elbow -12 3/4 Steel
10L43-6-6 Inch Male SAE Straight Thread with O-Ring - Swivel 90° Elbow -6 3/8 Steel
10L43-8-6 Inch Male SAE Straight Thread with O-Ring - Swivel 90° Elbow -6 1/2 Steel
10L43-8-8 Inch Male SAE Straight Thread with O-Ring - Swivel 90° Elbow -8 1/2 Steel
11143-10-8 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -8 5/8 Steel
11143-12-12 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -12 3/4 Steel
11143-16-16 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -16 1 Steel
11143-4-4 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -4 1/4 Steel
11143-4-6 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -6 1/4 Steel
11143-5-4 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -4 5/16 Steel
11143-5-6 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -6 5/16 Steel
11143-6-6 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -6 3/8 Steel
11143-8-8 Inch Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) Straight -8 1/2 Steel
11243-6-6 Inch Female Ferulok Flareless - Swivel - (24° Cone) Straight -6 3/8 Steel
11243-8-6 Inch Female Ferulok Flareless - Swivel - (24° Cone) Straight -6 1/2 Steel
11243-8-8 Inch Female Ferulok Flareless - Swivel - (24° Cone) Straight -8 1/2 Steel
11343-12-12 Inch Male NPTF Pipe - Swivel Straight -12 3/4 Steel
11343-16-16 Inch Male NPTF Pipe - Swivel Straight -16 1 Steel
11343-2-4 Inch Male NPTF Pipe - Swivel Straight -4 1/8 Steel
11343-4-4 Inch Male NPTF Pipe - Swivel Straight -4 1/4 Steel
11343-4-4C Inch Male NPTF Pipe - Swivel Straight -4 1/4 Stainless Steel
11343-4-6 Inch Male NPTF Pipe - Swivel Straight -6 1/4 Steel
11343-6-4 Inch Male NPTF Pipe - Swivel Straight -4 3/8 Steel
11343-6-6 Inch Male NPTF Pipe - Swivel Straight -6 3/8 Steel
11343-6-6C Inch Male NPTF Pipe - Swivel Straight -6 3/8 Stainless Steel
11343-6-8 Inch Male NPTF Pipe - Swivel Straight -8 3/8 Steel
11343-8-6 Inch Male NPTF Pipe - Swivel Straight -6 1/2 Steel
11343-8-8 Inch Male NPTF Pipe - Swivel Straight -8 1/2 Steel
11343-8-8C Inch Male NPTF Pipe - Swivel Straight -8 1/2 Stainless Steel
11543-10-10 na SAE Code 61 Flange Head Straight -10 5/8 Steel
11543-12-12 na SAE Code 61 Flange Head Straight -12 3/4 Steel
11543-12-8 na SAE Code 61 Flange Head Straight -8 3/4 Steel
11543-16-12 na SAE Code 61 Flange Head Straight -12 1 Steel
11543-16-16 na SAE Code 61 Flange Head Straight -16 1 Steel
11543-20-16 na SAE Code 61 Flange Head Straight -16 1-1/4 Steel
11543-20-20 na SAE Code 61 Flange Head Straight -20 1-1/4 Steel
11543-24-20 na SAE Code 61 Flange Head Straight -20 1-1/2 Steel
11543-24-24 na SAE Code 61 Flange Head Straight -24 1-1/2 Steel
11543-24-32 na SAE Code 61 Flange Head Straight -32 1-1/2 Steel
11543-32-20 na SAE Code 61 Flange Head Straight -20 2 Steel
11543-32-24 na SAE Code 61 Flange Head Straight -24 2 Steel
11543-32-32 na SAE Code 61 Flange Head Straight -32 2 Steel
11543-8-8 na SAE Code 61 Flange Head Straight -8 1/2 Steel
11643-12-12 na SAE Code 61 Flange Head 22-1/2° Elbow -12 3/4 Steel
11643-16-12 na SAE Code 61 Flange Head 22-1/2° Elbow -12 1 Steel
11643-16-16 na SAE Code 61 Flange Head 22-1/2° Elbow -16 1 Steel
11643-20-16 na SAE Code 61 Flange Head 22-1/2° Elbow -16 1-1/4 Steel
11643-20-20 na SAE Code 61 Flange Head 22-1/2° Elbow -20 1-1/4 Steel
11643-24-20 na SAE Code 61 Flange Head 22-1/2° Elbow -20 1-1/2 Steel
11743-10-10 na SAE Code 61 Flange Head 45° Elbow -10 5/8 Steel
11743-12-12 na SAE Code 61 Flange Head 45° Elbow -12 3/4 Steel
11743-12-8 na SAE Code 61 Flange Head 45° Elbow -8 3/4 Steel
11743-16-12 na SAE Code 61 Flange Head 45° Elbow -12 1 Steel
11743-16-16 na SAE Code 61 Flange Head 45° Elbow -16 1 Steel
11743-20-16 na SAE Code 61 Flange Head 45° Elbow -16 1-1/4 Steel
11743-20-20 na SAE Code 61 Flange Head 45° Elbow -20 1-1/4 Steel
11743-20-24 na SAE Code 61 Flange Head 45° Elbow -24 1-1/4 Steel
11743-24-20 na SAE Code 61 Flange Head 45° Elbow -20 1-1/2 Steel
11743-24-24 na SAE Code 61 Flange Head 45° Elbow -24 1-1/2 Steel
11743-32-32 na SAE Code 61 Flange Head 45° Elbow -32 2 Steel
11743-8-8 na SAE Code 61 Flange Head 45° Elbow -8 1/2 Steel
11843-12-12 na SAE Code 61 Flange Head 67-1/2° Elbow -12 3/4 Steel
11843-16-16 na SAE Code 61 Flange Head 67-1/2° Elbow -16 1 Steel
11843-20-20 na SAE Code 61 Flange Head 67-1/2° Elbow -20 1-1/4 Steel
11943-10-10 na SAE Code 61 Flange Head 90° Elbow -10 5/8 Steel
11943-12-10 na SAE Code 61 Flange Head 90° Elbow -10 3/4 Steel
11943-12-12 na SAE Code 61 Flange Head 90° Elbow -12 3/4 Steel
11943-12-8 na SAE Code 61 Flange Head 90° Elbow -8 3/4 Steel
11943-16-12 na SAE Code 61 Flange Head 90° Elbow -12 1 Steel
11943-16-16 na SAE Code 61 Flange Head 90° Elbow -16 1 Steel
11943-20-16 na SAE Code 61 Flange Head 90° Elbow -16 1-1/4 Steel
11943-20-20 na SAE Code 61 Flange Head 90° Elbow -20 1-1/4 Steel
11943-20-24 na SAE Code 61 Flange Head 90° Elbow -24 1-1/4 Steel
11943-24-20 na SAE Code 61 Flange Head 90° Elbow -20 1-1/2 Steel
11943-24-24 na SAE Code 61 Flange Head 90° Elbow -24 1-1/2 Steel
11943-32-24 na SAE Code 61 Flange Head 90° Elbow -24 2 Steel
11943-32-32 na SAE Code 61 Flange Head 90° Elbow -32 2 Steel
11943-8-8 na SAE Code 61 Flange Head 90° Elbow -8 1/2 Steel
11C43-10-4 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -4 M18x1,5 Steel
11C43-12-5 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -5 M20x1,5 Steel
11C43-12-6 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -6 M20x1,5 Steel
11C43-14-6 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -6 M22x1,5 Steel
11C43-16-8 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -8 M24x1,5 Steel
11C43-20-10 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -10 M30x2 Steel
11C43-20-12 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -12 M30x2 Steel
11C43-25-12 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -12 M36x2 Steel
11C43-25-16 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -16 M36x2 Steel
11C43-30-16 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -16 M42x2 Steel
11C43-38-20 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -20 M52x2 Steel
11C43-8-4 Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -4 M16x1,5 Steel
11C43-8-4C Metric Female Metric S - Swivel - (24° Cone with O-Ring) 90° Elbow -4 M16x1,5 Stainless Steel
11D43-10-5 na Male Standpipe Metric L - Rigid Straight -5 10mm Steel
11D43-10-6 na Male Standpipe Metric L - Rigid Straight -6 10mm Steel
11D43-15-8 na Male Standpipe Metric L - Rigid Straight -8 15mm Steel
11D43-18-10 na Male Standpipe Metric L - Rigid Straight -10 18mm Steel
11D43-18-12 na Male Standpipe Metric L - Rigid Straight -12 18mm Steel
11D43-22-12 na Male Standpipe Metric L - Rigid Straight -12 22mm Steel
11D43-28-16 na Male Standpipe Metric L - Rigid Straight -16 28mm Steel
11D43-6-4 na Male Standpipe Metric L - Rigid Straight -4 6mm Steel
11L43-12-12 Inch Male NPTF Pipe - Swivel 90° Elbow -12 3/4 Steel
11L43-4-4 Inch Male NPTF Pipe - Swivel 90° Elbow -4 1/4 Steel
11L43-4-6 Inch Male NPTF Pipe - Swivel 90° Elbow -6 1/4 Steel
11L43-6-6 Inch Male NPTF Pipe - Swivel 90° Elbow -6 3/8 Steel
11L43-8-6 Inch Male NPTF Pipe - Swivel 90° Elbow -6 1/2 Steel
11L43-8-8 Inch Male NPTF Pipe - Swivel 90° Elbow -8 1/2 Steel
12643-12-12 na SAE Code 61 Flange Head 30° Elbow -12 3/4 Steel
12643-16-16 na SAE Code 61 Flange Head 30° Elbow -16 1 Steel
12643-20-16 na SAE Code 61 Flange Head 30° Elbow -16 1-1/4 Steel
12643-20-20 na SAE Code 61 Flange Head 30° Elbow -20 1-1/4 Steel
12743-12-12 na SAE Code 61 Flange Head 60° Elbow -12 3/4 Steel
12743-16-12 na SAE Code 61 Flange Head 60° Elbow -12 1 Steel
12743-16-16 na SAE Code 61 Flange Head 60° Elbow -16 1 Steel
12743-20-20 na SAE Code 61 Flange Head 60° Elbow -20 1-1/4 Steel
12843-10-10 Inch Male Inverted SAE 45° - Swivel Straight -10 5/8 Steel
12843-4-4 Inch Male Inverted SAE 45° - Swivel Straight -4 1/4 Steel
12843-4-6 Inch Male Inverted SAE 45° - Swivel Straight -6 1/4 Steel
12843-5-4 Inch Male Inverted SAE 45° - Swivel Straight -4 5/16 Steel
12843-5-6 Inch Male Inverted SAE 45° - Swivel Straight -6 5/16 Steel
12843-6-6 Inch Male Inverted SAE 45° - Swivel Straight -6 3/8 Steel
12843-7-6 Inch Male Inverted SAE 45° - Swivel Straight -6 7/16 Steel
12843-8-8 Inch Male Inverted SAE 45° - Swivel Straight -8 1/2 Steel
13743-10-10 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -10 5/8 Steel
13743-10-8 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -8 5/8 Steel
13743-12-10 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -10 3/4 Steel
13743-12-12 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -12 3/4 Steel
13743-12-12C Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -12 3/4 Stainless Steel
13743-16-16 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -16 1 Steel
13743-16-16C Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -16 1 Stainless Steel
13743-20-20 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -20 1-1/4 Steel
13743-24-24 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -24 1-1/2 Steel
13743-4-4 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -4 1/4 Steel
13743-4-4C Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -4 1/4 Stainless Steel
13743-5-4 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -4 5/16 Steel
13743-6-4 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -4 3/8 Steel
13743-6-6 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -6 3/8 Steel
13743-6-6C Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -6 3/8 Stainless Steel
13743-8-6 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -6 1/2 Steel
13743-8-8 Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -8 1/2 Steel
13743-8-8C Inch Female JIC 37° - Swivel 45° Elbow - Short Drop -8 1/2 Stainless Steel
13943-10-10 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -10 5/8 Steel
13943-10-10C Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -10 5/8 Stainless Steel
13943-10-8 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -8 5/8 Steel
13943-12-10 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -10 3/4 Steel
13943-12-12 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -12 3/4 Steel
13943-12-12C Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -12 3/4 Stainless Steel
13943-12-8 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -8 3/4 Steel
13943-16-12 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -12 1 Steel
13943-16-16 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -16 1 Steel
13943-16-16C Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -16 1 Stainless Steel
13943-20-20 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -20 1-1/4 Steel
13943-24-24 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -24 1-1/2 Steel
13943-4-4 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -4 1/4 Steel
13943-4-4C Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -4 1/4 Stainless Steel
13943-4-6 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -6 1/4 Steel
13943-5-4 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -4 5/16 Steel
13943-5-5 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -5 5/16 Steel
13943-6-4 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -4 3/8 Steel
13943-6-6 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -6 3/8 Steel
13943-6-6C Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -6 3/8 Stainless Steel
13943-6-8 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -8 3/8 Steel
13943-8-6 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -6 1/2 Steel
13943-8-8 Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -8 1/2 Steel
13943-8-8C Inch Female JIC 37° - Swivel 90° Elbow - Short Drop -8 1/2 Stainless Steel
13D43-10-4 na Male Standpipe Metric S - Rigid Straight -4 10mm Steel
13D43-16-8 na Male Standpipe Metric S - Rigid Straight -8 16mm Steel
13D43-20-10 na Male Standpipe Metric S - Rigid Straight -10 20mm Steel
13D43-20-12 na Male Standpipe Metric S - Rigid Straight -12 20mm Steel
13D43-25-12 na Male Standpipe Metric S - Rigid Straight -12 25mm Steel
14143-10-10 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -10 5/8 Steel
14143-10-8 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -8 5/8 Steel
14143-12-12 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -12 3/4 Steel
14143-14-12 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -12 7/8 Steel
14143-16-16 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -16 1 Steel
14143-20-20 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -20 1-1/4 Steel
14143-4-4 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -4 1/4 Steel
14143-5-4 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -4 5/16 Steel
14143-6-6 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -6 3/8 Steel
14143-8-6 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -6 1/2 Steel
14143-8-8 Inch Female JIC 37° - Swivel 90° Elbow - Long Drop -8 1/2 Steel
14943-10-4 na DIN Metric Banjo Straight -4 10mm Steel
14943-12-4 na DIN Metric Banjo Straight -4 12mm Steel
14943-14-5 na DIN Metric Banjo Straight -5 14mm Steel
14943-16-6 na DIN Metric Banjo Straight -6 16mm Steel
14943-18-8 na DIN Metric Banjo Straight -8 18mm Steel
14943-22-10 na DIN Metric Banjo Straight -10 22mm Steel
14943-26-12 na DIN Metric Banjo Straight -12 26mm Steel
1543-40-40 na SAE Code 61 Flange Head Straight -40 2-1/2 Steel
1543-48-48 na SAE Code 61 Flange Head Straight -48 3 Steel
16743-4-4 Inch Male Inverted SAE 45° - Swivel 45° Elbow -4 1/4 Steel
16743-5-4 Inch Male Inverted SAE 45° - Swivel 45° Elbow -4 5/16 Steel
16743-5-6 Inch Male Inverted SAE 45° - Swivel 45° Elbow -6 5/16 Steel
16743-6-6 Inch Male Inverted SAE 45° - Swivel 45° Elbow -6 3/8 Steel
16743-8-8 Inch Male Inverted SAE 45° - Swivel 45° Elbow -8 1/2 Steel
16943-4-4 Inch Male Inverted SAE 45° - Swivel 90° Elbow -4 1/4 Steel
16943-4-6 Inch Male Inverted SAE 45° - Swivel 90° Elbow -6 1/4 Steel
16943-5-4 Inch Male Inverted SAE 45° - Swivel 90° Elbow -4 5/16 Steel
16943-5-6 Inch Male Inverted SAE 45° - Swivel 90° Elbow -6 5/16 Steel
16943-6-6 Inch Male Inverted SAE 45° - Swivel 90° Elbow -6 3/8 Steel
16943-7-6 Inch Male Inverted SAE 45° - Swivel 90° Elbow -6 7/16 Steel
16943-8-8 Inch Male Inverted SAE 45° - Swivel 90° Elbow -8 1/2 Steel
16A43-12-12 na SAE Code 62 Flange Head Straight -12 3/4 Steel
16A43-16-12 na SAE Code 62 Flange Head Straight -12 1 Steel
16A43-16-16 na SAE Code 62 Flange Head Straight -16 1 Steel
16A43-20-16 na SAE Code 62 Flange Head Straight -16 1-1/4 Steel
16A43-20-20 na SAE Code 62 Flange Head Straight -20 1-1/4 Steel
16F43-12-12 na SAE Code 62 Flange Head 45° Elbow -12 3/4 Steel
16F43-16-16 na SAE Code 62 Flange Head 45° Elbow -16 1 Steel
16F43-20-16 na SAE Code 62 Flange Head 45° Elbow -16 1-1/4 Steel
16N43-12-12 na SAE Code 62 Flange Head 90° Elbow -12 3/4 Steel
16N43-16-12 na SAE Code 62 Flange Head 90° Elbow -12 1 Steel
16N43-16-16 na SAE Code 62 Flange Head 90° Elbow -16 1 Steel
16N43-20-16 na SAE Code 62 Flange Head 90° Elbow -16 1-1/4 Steel
16N43-20-20 na SAE Code 62 Flange Head 90° Elbow -20 1-1/4 Steel
17743-4-6 Inch Female SAE 45° - Swivel 45° Elbow -6 1/4 Steel
17943-6-6 Inch Female SAE 45° - Swivel 90° Elbow -6 3/8 Steel
19243-10-10 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -10 5/8 Steel
19243-10-8 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -8 5/8 Steel
19243-12-10 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -10 3/4 Steel
19243-12-12 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -12 3/4 Steel
19243-16-16 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -16 1 Steel
19243-2-4 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -4 1/8 Steel
19243-20-20 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -20 1-1/4 Steel
19243-4-4 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -4 1/4 Steel
19243-6-4 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -4 3/8 Steel
19243-6-6 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -6 3/8 Steel
19243-6-8 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -8 3/8 Steel
19243-8-6 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -6 1/2 Steel
19243-8-8 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -8 1/2 Steel
1B143-10-10 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 45° Elbow -10 5/8 Steel
1B143-12-10 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 45° Elbow -10 3/4 Steel
1B143-12-12 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 45° Elbow -12 3/4 Steel
1B143-16-16 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 45° Elbow -16 1 Steel
1B143-4-4 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 45° Elbow -4 1/4 Steel
1B143-6-6 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 45° Elbow -6 3/8 Steel
1B143-8-8 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 45° Elbow -8 1/2 Steel
1B243-10-10 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -10 5/8 Steel
1B243-10-8 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -8 5/8 Steel
1B243-12-10 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -10 3/4 Steel
1B243-12-12 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -12 3/4 Steel
1B243-16-16 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -16 1 Steel
1B243-2-4 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -4 1/8 Steel
1B243-20-20 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -20 1-1/4 Steel
1B243-4-4 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -4 1/4 Steel
1B243-6-6 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -6 3/8 Steel
1B243-8-8 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow -8 1/2 Steel
1B443-4-4 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow - Block Type -4 1/4 Steel
1B443-6-6 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow - Block Type -6 3/8 Steel
1B443-8-8 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) 90° Elbow - Block Type -8 1/2 Steel
1B543-8-6 Metric Female BSP Parallel Pipe - Swivel - (Flat Seat) Straight -6 1/2 Steel
1B543-8-8 Metric Female BSP Parallel Pipe - Swivel - (Flat Seat) Straight -8 1/2 Steel
1C043-20-12 Metric Female Metric - Swivel - (Ball Nose) Straight -12 M30x1,5 Steel
1C043-25-16 Metric Female Metric - Swivel - (Ball Nose) Straight -16 M38X1,5 Steel
1C343-10-5 Metric Female Metric L - Swivel - (Ball Nose) Straight -5 M16x1,5 Steel
1C343-10-6 Metric Female Metric L - Swivel - (Ball Nose) Straight -6 M16x1,5 Steel
1C343-12-5 Metric Female Metric L - Swivel - (Ball Nose) Straight -5 M18x1,5 Steel
1C343-12-6 Metric Female Metric L - Swivel - (Ball Nose) Straight -6 M18x1,5 Steel
1C343-15-6 Metric Female Metric L - Swivel - (Ball Nose) Straight -6 M22x1,5 Steel
1C343-15-8 Metric Female Metric L - Swivel - (Ball Nose) Straight -8 M22x1,5 Steel
1C343-18-10 Metric Female Metric L - Swivel - (Ball Nose) Straight -10 M26x1,5 Steel
1C343-18-12 Metric Female Metric L - Swivel - (Ball Nose) Straight -12 M26x1,5 Steel
1C343-22-12 Metric Female Metric L - Swivel - (Ball Nose) Straight -12 M30x2 Steel
1C343-28-16 Metric Female Metric L - Swivel - (Ball Nose) Straight -16 M36x2 Steel
1C343-6-4 Metric Female Metric L - Swivel - (Ball Nose) Straight -4 M12x1,5 Steel
1C343-8-4 Metric Female Metric L - Swivel - (Ball Nose) Straight -4 M14x1,5 Steel
1C443-10-5 Metric Female Metric L - Swivel - (Ball Nose) 45° Elbow -5 M16x1,5 Steel
1C443-10-6 Metric Female Metric L - Swivel - (Ball Nose) 45° Elbow -6 M16x1,5 Steel
1C443-12-6 Metric Female Metric L - Swivel - (Ball Nose) 45° Elbow -6 M18x1,5 Steel
1C443-15-8 Metric Female Metric L - Swivel - (Ball Nose) 45° Elbow -8 M22x1,5 Steel
1C443-18-10 Metric Female Metric L - Swivel - (Ball Nose) 45° Elbow -10 M26x1,5 Steel
1C443-22-12 Metric Female Metric L - Swivel - (Ball Nose) 45° Elbow -12 M30x2 Steel
1C443-28-16 Metric Female Metric L - Swivel - (Ball Nose) 45° Elbow -16 M36x2 Steel
1C443-8-4 Metric Female Metric L - Swivel - (Ball Nose) 45° Elbow -4 M14x1,5 Steel
1C543-10-5 Metric Female Metric L - Swivel - (Ball Nose) 90° Elbow -5 M16x1,5 Steel
1C543-10-6 Metric Female Metric L - Swivel - (Ball Nose) 90° Elbow -6 M16x1,5 Steel
1C543-12-6 Metric Female Metric L - Swivel - (Ball Nose) 90° Elbow -6 M18x1,5 Steel
1C543-15-8 Metric Female Metric L - Swivel - (Ball Nose) 90° Elbow -8 M22x1,5 Steel
1C543-18-10 Metric Female Metric L - Swivel - (Ball Nose) 90° Elbow -10 M26x1,5 Steel
1C543-22-12 Metric Female Metric L - Swivel - (Ball Nose) 90° Elbow -12 M30x2 Steel
1C543-28-16 Metric Female Metric L - Swivel - (Ball Nose) 90° Elbow -16 M36x2 Steel
1C543-8-4 Metric Female Metric L - Swivel - (Ball Nose) 90° Elbow -4 M14x1,5 Steel
1C643-10-4 Metric Female Metric S - Swivel - (Ball Nose) Straight -4 M18x1,5 Steel
1C643-12-6 Metric Female Metric S - Swivel - (Ball Nose) Straight -6 M20x1,5 Steel
1C643-12-8 Metric Female Metric S - Swivel - (Ball Nose) Straight -8 M20x1,5 Steel
1C643-14-6 Metric Female Metric S - Swivel - (Ball Nose) Straight -6 M22x1,5 Steel
1C643-16-8 Metric Female Metric S - Swivel - (Ball Nose) Straight -8 M24x1,5 Steel
1C643-20-10 Metric Female Metric S - Swivel - (Ball Nose) Straight -10 M30x2 Steel
1C643-20-12 Metric Female Metric S - Swivel - (Ball Nose) Straight -12 M30x2 Steel
1C643-25-12 Metric Female Metric S - Swivel - (Ball Nose) Straight -12 M36x2 Steel
1C643-30-16 Metric Female Metric S - Swivel - (Ball Nose) Straight -16 M42x2 Steel
1C643-8-4 Metric Female Metric S - Swivel - (Ball Nose) Straight -4 M16x1,5 Steel
1C943-10-4 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -4 M18x1,5 Steel
1C943-10-6 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -6 M18x1,5 Steel
1C943-12-5 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -5 M20x1,5 Steel
1C943-12-6 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -6 M20x1,5 Steel
1C943-14-6 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -6 M22x1,5 Steel
1C943-16-8 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -8 M24x1,5 Steel
1C943-16-8C Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -8 M24x1,5 Stainless Steel
1C943-20-10 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -10 M30x2 Steel
1C943-20-12 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -12 M30x2 Steel
1C943-25-12 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -12 M36x2 Steel
1C943-25-16 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -16 M36x2 Steel
1C943-30-16 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -16 M42x2 Steel
1C943-38-20 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -20 M52x2 Steel
1C943-6-4 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -4 M14x1,5 Steel
1C943-8-4 Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -4 M16x1,5 Steel
1C943-8-4C Metric Female Metric S - Swivel - (24° Cone with O-Ring) Straight -4 M16x1,5 Stainless Steel
1CA43-10-4 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -4 M16x1,5 Steel
1CA43-10-5 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -5 M16x1,5 Steel
1CA43-10-6 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -6 M18x1,5 Steel
1CA43-12-5 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -5 M18x1,5 Steel
1CA43-12-6 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -6 M18x1,5 Steel
1CA43-15-8 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -8 M22x1,5 Steel
1CA43-18-10 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -10 M26x1,5 Steel
1CA43-18-12 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -12 M26x1,5 Steel
1CA43-22-12 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -12 M30x2 Steel
1CA43-28-16 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -16 M36x2 Steel
1CA43-35-20 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -20 M45x2 Steel
1CA43-42-24 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -24 M52x2 Steel
1CA43-6-4 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -4 M12x1,5 Steel
1CA43-8-4 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -4 M14x1,5 Steel
1CA43-8-5 Metric Female Metric L - Swivel - (24° Cone with O-Ring) Straight -5 M14x1,5 Steel
1CE43-10-5 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -5 M16x1,5 Steel
1CE43-10-6 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -6 M16x1,5 Steel
1CE43-12-6 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -6 M18x1,5 Steel
1CE43-15-8 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -8 M22x1,5 Steel
1CE43-18-10 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -10 M26x1,5 Steel
1CE43-22-12 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -12 M30x2 Steel
1CE43-28-16 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -16 M36x2 Steel
1CE43-6-4 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -4 M12x1,5 Steel
1CE43-8-4 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 45° Elbow -4 M14x1,5 Steel
1CF43-10-5 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -5 M16x1,5 Steel
1CF43-10-6 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -6 M16x1,5 Steel
1CF43-12-6 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -6 M18x1,5 Steel
1CF43-15-8 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -8 M22x1,5 Steel
1CF43-18-10 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -10 M26x1,5 Steel
1CF43-22-12 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -12 M30x2 Steel
1CF43-28-16 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -16 M36x2 Steel
1CF43-35-20 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -20 M45x2 Steel
1CF43-8-4 Metric Female Metric L - Swivel - (24° Cone with O-Ring) 90° Elbow -4 M14x1,5 Steel
1D043-10-5 Metric Male Metric L - Rigid - (24° Cone) Straight -5 M16x1,5 Steel
1D043-10-6 Metric Male Metric L - Rigid - (24° Cone) Straight -6 M16x1,5 Steel
1D043-12-6 Metric Male Metric L - Rigid - (24° Cone) Straight -6 M18x1,5 Steel
1D043-15-6 Metric Male Metric L - Rigid - (24° Cone) Straight -6 M22x1,5 Steel
1D043-15-8 Metric Male Metric L - Rigid - (24° Cone) Straight -8 M22x1,5 Steel
1D043-18-10 Metric Male Metric L - Rigid - (24° Cone) Straight -10 M26x1,5 Steel
1D043-18-12 Metric Male Metric L - Rigid - (24° Cone) Straight -12 M26x1,5 Steel
1D043-22-12 Metric Male Metric L - Rigid - (24° Cone) Straight -12 M30x2 Steel
1D043-28-16 Metric Male Metric L - Rigid - (24° Cone) Straight -16 M36x2 Steel
1D043-35-20 Metric Male Metric L - Rigid - (24° Cone) Straight -20 M45x2 Steel
1D043-6-4 Metric Male Metric L - Rigid - (24° Cone) Straight -4 M12x1,5 Steel
1D043-8-4 Metric Male Metric L - Rigid - (24° Cone) Straight -4 M14x1,5 Steel
1D243-10-4 Metric Male Metric S - Rigid - (24° Cone) Straight -4 M18x1,5 Steel
1D243-12-5 Metric Male Metric S - Rigid - (24° Cone) Straight -5 M20x1,5 Steel
1D243-12-6 Metric Male Metric S - Rigid - (24° Cone) Straight -6 M20x1,5 Steel
1D243-14-6 Metric Male Metric S - Rigid - (24° Cone) Straight -6 M22x1,5 Steel
1D243-16-8 Metric Male Metric S - Rigid - (24° Cone) Straight -8 M24x1,5 Steel
1D243-20-10 Metric Male Metric S - Rigid - (24° Cone) Straight -10 M30x2 Steel
1D243-25-12 Metric Male Metric S - Rigid - (24° Cone) Straight -12 M36x2 Steel
1D243-30-16 Metric Male Metric S - Rigid - (24° Cone) Straight -16 M42x2 Steel
1D243-8-4 Metric Male Metric S - Rigid - (24° Cone) Straight -4 M16x1,5 Steel
1D943-12-12 Metric Male BSP Parallel Pipe - Rigid - (60° Cone) Straight -12 3/4 Steel
1D943-16-16 Metric Male BSP Parallel Pipe - Rigid - (60° Cone) Straight -16 1 Steel
1D943-4-4 Metric Male BSP Parallel Pipe - Rigid - (60° Cone) Straight -4 1/4 Steel
1D943-6-5 Metric Male BSP Parallel Pipe - Rigid - (60° Cone) Straight -5 3/8 Steel
1D943-6-6 Metric Male BSP Parallel Pipe - Rigid - (60° Cone) Straight -6 3/8 Steel
1D943-8-6 Metric Male BSP Parallel Pipe - Rigid - (60° Cone) Straight -6 1/2 Steel
1D943-8-8 Metric Male BSP Parallel Pipe - Rigid - (60° Cone) Straight -8 1/2 Steel
1EA43-8-8 Metric Female BSP Parallel Pipe - Swivel - DKOR (60° Cone) Straight -8 1/2 Steel
1EC43-4-4 Metric Female BSP Parallel Pipe - Swivel - DKOR (60° Cone) 90° Elbow -4 1/4 Steel
1EN43-12-6 na UPTC Male Straight -6 12mm Steel
1EN43-15-8 na UPTC Male Straight -8 15mm Steel
1EN43-18-10 na UPTC Male Straight -10 18mm Steel
1EN43-22-12 na UPTC Male Straight -12 22mm Steel
1EN43-8-4 na UPTC Male Straight -4 8mm Steel
1ET43-12-6 na UPTC Male 90° Elbow -6 12mm Steel
1ET43-15-8 na UPTC Male 90° Elbow -8 15mm Steel
1ET43-18-10 na UPTC Male 90° Elbow -10 18mm Steel
1ET43-22-12 na UPTC Male 90° Elbow -12 22mm Steel
1ET43-8-4 na UPTC Male 90° Elbow -4 8mm Steel
1EU43-12-6 na UPTC Male 45° Elbow -6 12mm Steel
1EU43-15-8 na UPTC Male 45° Elbow -8 15mm Steel
1EU43-18-10 na UPTC Male 45° Elbow -10 18mm Steel
1EU43-22-12 na UPTC Male 45° Elbow -12 22mm Steel
1EU43-8-4 na UPTC Male 45° Elbow -4 8mm Steel
1FU43-12-12 Metric Female BSP Parallel Pipe - Swivel - (30° Flare) Straight -12 3/4 Steel
1FU43-16-16 Metric Female BSP Parallel Pipe - Swivel - (30° Flare) Straight -16 1 Steel
1FU43-20-20 Metric Female BSP Parallel Pipe - Swivel - (30° Flare) Straight -20 1-1/4 Steel
1FU43-4-4 Metric Female BSP Parallel Pipe - Swivel - (30° Flare) Straight -4 1/4 Steel
1FU43-6-6 Metric Female BSP Parallel Pipe - Swivel - (30° Flare) Straight -6 3/8 Steel
1FU43-8-8 Metric Female BSP Parallel Pipe - Swivel - (30° Flare) Straight -8 1/2 Steel
1GJ43-4-4 Inch Female Grease Connection - SPL - PTF Taper Thread - Rigid Straight -4 1/4 Steel
1GU43-12-12 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -12 3/4 Steel
1GU43-16-16 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -16 1 Steel
1GU43-20-20 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -20 1-1/4 Steel
1GU43-4-4 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -4 1/4 Steel
1GU43-6-6 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -6 3/8 Steel
1GU43-8-8 Metric Female BSP Parallel Pipe - Swivel - (60° Cone) Straight -8 1/2 Steel
1J043-10-10 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -10 5/8 Steel
1J043-10-8 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -8 5/8 Steel
1J043-12-10 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -10 3/4 Steel
1J043-12-12 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -12 3/4 Steel
1J043-16-12 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -12 1 Steel
1J043-16-16 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -16 1 Steel
1J043-20-20 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -20 1-1/4 Steel
1J043-4-4 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -4 1/4 Steel
1J043-6-6 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -6 3/8 Steel
1J043-8-6 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -6 1/2 Steel
1J043-8-8 Inch Male Seal-Lok? - Rigid - (with O-Ring) Straight -8 1/2 Steel
1J143-10-10 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -10 5/8 Steel
1J143-10-12 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -12 5/8 Steel
1J143-10-8 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -8 5/8 Steel
1J143-12-12 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -12 3/4 Steel
1J143-16-16 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -16 1 Steel
1J143-20-20 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -20 1-1/4 Steel
1J143-24-20 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -20 1-1/2 Steel
1J143-4-4 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -4 1/4 Steel
1J143-6-4 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -4 3/8 Steel
1J143-6-6 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -6 3/8 Steel
1J143-8-6 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -6 1/2 Steel
1J143-8-8 Inch Female Seal-Lok? - Swivel 90° Elbow - Long Drop -8 1/2 Steel
1J543-10-10 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -10 5/8 Steel
1J543-10-12 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -12 5/8 Steel
1J543-10-8 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -8 5/8 Steel
1J543-12-12 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -12 3/4 Steel
1J543-16-16 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -16 1 Steel
1J543-20-20 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -20 1-1/4 Steel
1J543-4-4 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -4 1/4 Steel
1J543-6-4 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -4 3/8 Steel
1J543-6-6 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -6 3/8 Steel
1J543-8-6 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -6 1/2 Steel
1J543-8-8 Inch Female Seal-Lok? - Swivel 90° Elbow - Medium Drop -8 1/2 Steel
1J643-8-8 Inch Female Seal-Lok? - Swivel 22-1/2° Elbow -8 1/2 Steel
1J743-10-10 Inch Female Seal-Lok? - Swivel 45° Elbow -10 5/8 Steel
1J743-10-12 Inch Female Seal-Lok? - Swivel 45° Elbow -12 5/8 Steel
1J743-10-8 Inch Female Seal-Lok? - Swivel 45° Elbow -8 5/8 Steel
1J743-12-10 Inch Female Seal-Lok? - Swivel 45° Elbow -10 3/4 Steel
1J743-12-12 Inch Female Seal-Lok? - Swivel 45° Elbow -12 3/4 Steel
1J743-12-12C Inch Female Seal-Lok? - Swivel 45° Elbow -12 3/4 Stainless Steel
1J743-12-16 Inch Female Seal-Lok? - Swivel 45° Elbow -16 3/4 Steel
1J743-12-8 Inch Female Seal-Lok? - Swivel 45° Elbow -8 3/4 Steel
1J743-16-12 Inch Female Seal-Lok? - Swivel 45° Elbow -12 1 Steel
1J743-16-16 Inch Female Seal-Lok? - Swivel 45° Elbow -16 1 Steel
1J743-16-16-SM Metric Female Seal-Lok?/ORFS - Swivel 45° Elbow -16 1 Steel
1J743-16-16C Inch Female Seal-Lok? - Swivel 45° Elbow -16 1 Stainless Steel
1J743-16-20 Inch Female Seal-Lok? - Swivel 45° Elbow -20 1 Steel
1J743-20-16 Inch Female Seal-Lok? - Swivel 45° Elbow -16 1-1/4 Steel
1J743-20-20 Inch Female Seal-Lok? - Swivel 45° Elbow -20 1-1/4 Steel
1J743-20-20C Inch Female Seal-Lok? - Swivel 45° Elbow -20 1-1/4 Stainless Steel
1J743-24-20 Inch Female Seal-Lok? - Swivel 45° Elbow -20 1-1/2 Steel
1J743-24-24 Inch Female Seal-Lok? - Swivel 45° Elbow -24 1-1/2 Steel
1J743-24-24C Inch Female Seal-Lok? - Swivel 45° Elbow -24 1-1/2 Stainless Steel
1J743-4-4 Inch Female Seal-Lok? - Swivel 45° Elbow -4 1/4 Steel
1J743-4-4-SM Metric Female Seal-Lok? - Swivel 45° Elbow -4 1/4 Steel
1J743-4-4C Inch Female Seal-Lok? - Swivel 45° Elbow -4 1/4 Stainless Steel
1J743-4-6 Inch Female Seal-Lok? - Swivel 45° Elbow -6 1/4 Steel
1J743-6-4 Inch Female Seal-Lok? - Swivel 45° Elbow -4 3/8 Steel
1J743-6-4-SM Metric Female Seal-Lok? - Swivel 45° Elbow -4 3/8 Steel
1J743-6-5 Inch Female Seal-Lok? - Swivel 45° Elbow -5 3/8 Steel
1J743-6-6 Inch Female Seal-Lok? - Swivel 45° Elbow -6 3/8 Steel
1J743-6-6C Inch Female Seal-Lok? - Swivel 45° Elbow -6 3/8 Stainless Steel
1J743-6-8 Inch Female Seal-Lok? - Swivel 45° Elbow -8 3/8 Steel
1J743-8-10 Inch Female Seal-Lok? - Swivel 45° Elbow -10 1/2 Steel
1J743-8-4 Inch Female Seal-Lok? - Swivel 45° Elbow -4 1/2 Steel
1J743-8-6 Inch Female Seal-Lok? - Swivel 45° Elbow -6 1/2 Steel
1J743-8-6-SM Metric Female Seal-Lok? - Swivel 45° Elbow -6 1/2 Steel
1J743-8-8 Inch Female Seal-Lok? - Swivel 45° Elbow -8 1/2 Steel
1J743-8-8-SM Metric Female Seal-Lok? - Swivel 45° Elbow -8 1/2 Steel
1J743-8-8C Inch Female Seal-Lok? - Swivel 45° Elbow -8 1/2 Stainless Steel
1J943-10-10 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -10 5/8 Steel
1J943-10-10-SM Metric Female Seal-Lok? - Swivel 90° Elbow - Short Drop -10 5/8 Steel
1J943-10-12 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -12 5/8 Steel
1J943-10-8 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -8 5/8 Steel
1J943-12-10 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -10 3/4 Steel
1J943-12-10-SM Metric Female Seal-Lok?/ORFS - Swivel 90° Elbow - Short Drop -10 3/4 Steel
1J943-12-12 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -12 3/4 Steel
1J943-12-12-SM Metric Female Seal-Lok?/ORFS - Swivel 90° Elbow - Short Drop -12 3/4 Steel
1J943-12-12C Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -12 3/4 Stainless Steel
1J943-12-16 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -16 3/4 Steel
1J943-12-8 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -8 3/4 Steel
1J943-16-12 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -12 1 Steel
1J943-16-16 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -16 1 Steel
1J943-16-16C Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -16 1 Stainless Steel
1J943-16-20 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -20 1 Steel
1J943-20-16 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -16 1-1/4 Steel
1J943-20-20 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -20 1-1/4 Steel
1J943-20-20C Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -20 1-1/4 Stainless Steel
1J943-24-24 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -24 1-1/2 Steel
1J943-24-24C Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -24 1-1/2 Stainless Steel
1J943-4-4 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -4 1/4 Steel
1J943-4-4C Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -4 1/4 Stainless Steel
1J943-4-6 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -6 1/4 Steel
1J943-6-4 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -4 3/8 Steel
1J943-6-6 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -6 3/8 Steel
1J943-6-6-SM Metric Female Seal-Lok?/ORFS - Swivel 90° Elbow - Short Drop -6 3/8 Steel
1J943-6-6C Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -6 3/8 Stainless Steel
1J943-6-8 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -8 3/8 Steel
1J943-8-10 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -10 1/2 Steel
1J943-8-4 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -4 1/2 Steel
1J943-8-6 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -6 1/2 Steel
1J943-8-6-SM Metric Female Seal-Lok?/ORFS - Swivel 90° Elbow - Short Drop -6 1/2 Steel
1J943-8-8 Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -8 1/2 Steel
1J943-8-8-SM Metric Female Seal-Lok? - Swivel 90° Elbow - Short Drop -8 1/2 Steel
1J943-8-8C Inch Female Seal-Lok? - Swivel 90° Elbow - Short Drop -8 1/2 Stainless Steel
1JB43-10-10 Metric Male Seal-Lok? - Bulkhead without Locknut - (with O-Ring) Straight -10 5/8 Steel
1JB43-10-8 Metric Male Seal-Lok? - Bulkhead without Locknut - (with O-Ring) Straight -8 5/8 Steel
1JB43-12-12 Metric Male Seal-Lok? - Bulkhead without Locknut - (with O-Ring) Straight -12 3/4 Steel
1JB43-4-4 Metric Male Seal-Lok? - Bulkhead without Locknut - (with O-Ring) Straight -4 1/4 Steel
1JB43-6-6 Metric Male Seal-Lok? - Bulkhead without Locknut - (with O-Ring) Straight -6 3/8 Steel
1JB43-8-8 Metric Male Seal-Lok? - Bulkhead without Locknut - (with O-Ring) Straight -8 1/2 Steel
1JC43-10-10 Inch Female Seal-Lok? - Swivel Straight - Short -10 5/8 Steel
1JC43-10-10-SM Metric Female Seal-Lok? - Swivel Straight - Short -10 5/8 Steel
1JC43-10-10C Inch Female Seal-Lok? - Swivel Straight - Short -10 5/8 Stainless Steel
1JC43-10-8 Inch Female Seal-Lok? - Swivel Straight - Short -8 5/8 Steel
1JC43-12-10 Inch Female Seal-Lok? - Swivel Straight - Short -10 3/4 Steel
1JC43-12-12 Inch Female Seal-Lok? - Swivel Straight - Short -12 3/4 Steel
1JC43-12-12-SM Metric Female Seal-Lok? - Swivel Straight - Short -12 3/4 Steel
1JC43-12-12C Inch Female Seal-Lok? - Swivel Straight - Short -12 3/4 Stainless Steel
1JC43-12-16 Inch Female Seal-Lok? - Swivel Straight - Short -16 3/4 Steel
1JC43-12-8 Inch Female Seal-Lok? - Swivel Straight - Short -8 3/4 Steel
1JC43-16-12 Inch Female Seal-Lok? - Swivel Straight - Short -12 1 Steel
1JC43-16-16 Inch Female Seal-Lok? - Swivel Straight - Short -16 1 Steel
1JC43-16-16-SM Metric Female Seal-Lok?/ORFS - Swivel Straight - Short -16 1 Steel
1JC43-16-16C Inch Female Seal-Lok? - Swivel Straight - Short -16 1 Stainless Steel
1JC43-20-20 Inch Female Seal-Lok? - Swivel Straight - Short -20 1-1/4 Steel
1JC43-20-20C Inch Female Seal-Lok? - Swivel Straight - Short -20 1-1/4 Stainless Steel
1JC43-4-4 Inch Female Seal-Lok? - Swivel Straight - Short -4 1/4 Steel
1JC43-4-4-SM Metric Female Seal-Lok? - Swivel Straight - Short -4 1/4 Steel
1JC43-4-4C Inch Female Seal-Lok? - Swivel Straight - Short -4 1/4 Stainless Steel
1JC43-4-6 Inch Female Seal-Lok? - Swivel Straight - Short -6 1/4 Steel
1JC43-6-4 Inch Female Seal-Lok? - Swivel Straight - Short -4 3/8 Steel
1JC43-6-4-SM Metric Female Seal-Lok? - Swivel Straight - Short -4 3/8 Steel
1JC43-6-4C Inch Female Seal-Lok? - Swivel Straight - Short -4 3/8 Stainless Steel
1JC43-6-5 Inch Female Seal-Lok? - Swivel Straight - Short -5 3/8 Steel
1JC43-6-6 Inch Female Seal-Lok? - Swivel Straight - Short -6 3/8 Steel
1JC43-6-6-SM Metric Female Seal-Lok? - Swivel Straight - Short -6 3/8 Steel
1JC43-6-6C Inch Female Seal-Lok? - Swivel Straight - Short -6 3/8 Stainless Steel
1JC43-8-6 Inch Female Seal-Lok? - Swivel Straight - Short -6 1/2 Steel
1JC43-8-6-SM Metric Female Seal-Lok? - Swivel Straight - Short -6 1/2 Steel
1JC43-8-8 Inch Female Seal-Lok? - Swivel Straight - Short -8 1/2 Steel
1JC43-8-8-SM Metric Female Seal-Lok? - Swivel Straight - Short -8 1/2 Steel
1JC43-8-8C Inch Female Seal-Lok? - Swivel Straight - Short -8 1/2 Stainless Steel
1JS43-10-10 Inch Female Seal-Lok? - Swivel Straight - Long -10 5/8 Steel
1JS43-10-10-SM Metric Female Seal-Lok?/ORFS - Swivel Straight - Long -10 3/4 Steel
1JS43-10-12 Inch Female Seal-Lok? - Swivel Straight - Long -12 5/8 Steel
1JS43-10-6 Inch Female Seal-Lok? - Swivel Straight - Long -6 5/8 Steel
1JS43-10-8 Inch Female Seal-Lok? - Swivel Straight - Long -8 5/8 Steel
1JS43-12-10 Inch Female Seal-Lok? - Swivel Straight - Long -10 3/4 Steel
1JS43-12-12 Inch Female Seal-Lok? - Swivel Straight - Long -12 3/4 Steel
1JS43-12-16 Inch Female Seal-Lok? - Swivel Straight - Long -16 3/4 Steel
1JS43-12-8 Inch Female Seal-Lok? - Swivel Straight - Long -8 3/4 Steel
1JS43-16-12 Inch Female Seal-Lok? - Swivel Straight - Long -12 1 Steel
1JS43-16-16 Inch Female Seal-Lok? - Swivel Straight - Long -16 1 Steel
1JS43-16-20 Inch Female Seal-Lok? - Swivel Straight - Long -20 1 Steel
1JS43-20-16 Inch Female Seal-Lok? - Swivel Straight - Long -16 1-1/4 Steel
1JS43-20-20 Inch Female Seal-Lok? - Swivel Straight - Long -20 1-1/4 Steel
1JS43-24-20 Inch Female Seal-Lok? - Swivel Straight - Long -20 1-1/2 Steel
1JS43-24-24 Inch Female Seal-Lok? - Swivel Straight - Long -24 1-1/2 Steel
1JS43-4-4 Inch Female Seal-Lok? - Swivel Straight - Long -4 1/4 Steel
1JS43-4-6 Inch Female Seal-Lok? - Swivel Straight - Long -6 1/4 Steel
1JS43-6-4 Inch Female Seal-Lok? - Swivel Straight - Long -4 3/8 Steel
1JS43-6-6 Inch Female Seal-Lok? - Swivel Straight - Long -6 3/8 Steel
1JS43-6-8 Inch Female Seal-Lok? - Swivel Straight - Long -8 3/8 Steel
1JS43-8-10 Inch Female Seal-Lok? - Swivel Straight - Long -10 1/2 Steel
1JS43-8-4 Inch Female Seal-Lok? - Swivel Straight - Long -4 1/2 Steel
1JS43-8-6 Inch Female Seal-Lok? - Swivel Straight - Long -6 1/2 Steel
1JS43-8-8 Inch Female Seal-Lok? - Swivel Straight - Long -8 1/2 Steel
1L743-12-12 Inch Female JIC 37° - Swivel 45° Elbow - Medium Drop -12 3/4 Steel
1L743-16-16 Inch Female JIC 37° - Swivel 45° Elbow - Medium Drop -16 1 Steel
1L743-6-6 Inch Female JIC 37° - Swivel 45° Elbow - Medium Drop -6 3/8 Steel
1L743-8-8 Inch Female JIC 37° - Swivel 45° Elbow - Medium Drop -8 1/2 Steel
1L943-10-8 Inch Female JIC 37° - Swivel 90° Elbow - Medium Drop -8 5/8 Steel
1L943-12-12 Inch Female JIC 37° - Swivel 90° Elbow - Medium Drop -12 3/4 Steel
1L943-16-16 Inch Female JIC 37° - Swivel 90° Elbow - Medium Drop -16 1 Steel
1L943-4-4 Inch Female JIC 37° - Swivel 90° Elbow - Medium Drop -4 1/4 Steel
1L943-6-4 Inch Female JIC 37° - Swivel 90° Elbow - Medium Drop -4 3/8 Steel
1L943-6-6 Inch Female JIC 37° - Swivel 90° Elbow - Medium Drop -6 3/8 Steel
1L943-8-6 Inch Female JIC 37° - Swivel 90° Elbow - Medium Drop -6 1/2 Steel
1L943-8-8 Inch Female JIC 37° - Swivel 90° Elbow - Medium Drop -8 1/2 Steel
1LB43-4-4 Inch Male JIC 37° - Bulkhead without Locknut Straight -4 1/4 Steel
1LB43-6-6 Inch Male JIC 37° - Bulkhead without Locknut Straight -6 3/8 Steel
1LB43-8-8 Inch Male JIC 37° - Bulkhead without Locknut Straight -8 1/2 Steel
1MU43-4-4 Metric Female Metric Swivel - (30° Flare) Straight -4 M14x1,5 Steel
1MU43-6-4 Metric Female Metric Swivel - (30° Flare) Straight -4 M18x1,5 Steel
1MU43-6-6 Metric Female Metric Swivel - (30° Flare) Straight -6 M18x1,5 Steel
1MU43-8-8 Metric Female Metric Swivel - (30° Flare) Straight -8 M22x1,5 Steel
1S243-4-4 Inch Female NPTF Pipe - Swivel Straight -4 1/4 Steel
1UT43-12-12 Metric Male BSP Taper Pipe - Rigid - (60° Cone) Straight -12 3/4 Steel
1UT43-16-16 Metric Male BSP Taper Pipe - Rigid - (60° Cone) Straight -16 1 Steel
1UT43-20-20 Metric Male BSP Taper Pipe - Rigid - (60° Cone) Straight -20 1-1/4 Steel
1UT43-4-4 Metric Male BSP Taper Pipe - Rigid - (60° Cone) Straight -4 1/4 Steel
1UT43-6-6 Metric Male BSP Taper Pipe - Rigid - (60° Cone) Straight -6 3/8 Steel
1UT43-8-8 Metric Male BSP Taper Pipe - Rigid - (60° Cone) Straight -8 1/2 Steel
1XU43-10-10 Metric Female Metric Swivel - (30° Flare) Straight -10 M24x1,5 Steel
1XU43-12-12 Metric Female Metric Swivel - (30° Flare) Straight -12 M30x1,5 Steel
1XU43-16-16 Metric Female Metric Swivel - (30° Flare) Straight -16 M33x1,5 Steel
|
fcg.cnmec@parkerdistribution.com.cn
