Parker派克 仪表管阀件-流体控制阀
Parker派克 7000系列通用高压阀

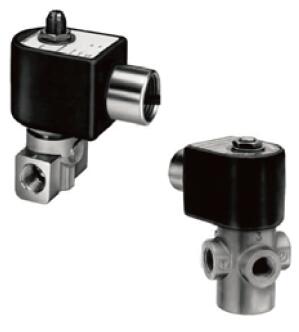

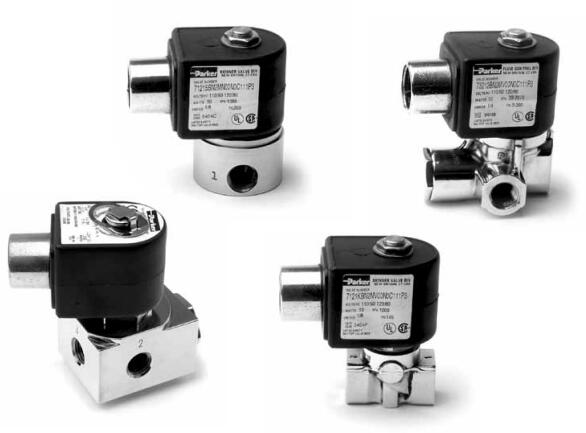

Parker派克 7000系列通用高压电磁阀 - 2通直动式&先导式



Parker派克 7000系列通用高压阀 资料下载



General Purpose Solenoid Valves
Skinner and Gold Ring Valves

2-Way
Direct Acting & Pilot Operated
High Pressure
1/8" - 3/4" NPT

一般说明General Description:
2-Way Direct Acting and Pilot Operated High Pressure valves are generally installed where high pressure and large flow requirements dictate the use of piston valves and/or valves with more robust seals such as PTFE and Ruby discs*. Pilot Operated valves require the minimum pressure differential specified
for proper valve operation.双向直动和先导操作高压阀通常安装在高压和大型流量要求要求使用活塞阀和/或坚固的密封,如聚四氟乙烯和红宝石光盘。先导阀需要规定的小压差确保阀门正常工作。

安装Installation
Pilot Operated Valves should be mounted with solenoid coils vertical and upright. Direct Acting valves can be mounted in any position. The preferred orientation is with the coil vertical and upright.先导阀应垂直安装电磁线圈而且笔直。直接作用阀可安装在任何位置。这个首选方向为线圈垂直和垂直。

相容液体Compatible Fluids
Lubricated Air, Inert Gases, Water, Light Oil (300 SSU) and other non-compressible media.润滑空气、惰性气体、水,轻油(300 SSU)和其他不可压缩介质。
Use of non-lubricated gaseous media can affect valve life.使用无润滑气体介质会影响阀门寿命。

电气特点Electrical Characteristics:

Standard Voltages:
AC –24/60
120/60–110/50
240/60–220/50
DC –12, 24 & 120
For other voltages – consult factory

Coil Classification:
Class F standard
Class H available

Agency Approvals:
Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified.
For additional details, consult factory.

Maximum Ambient Temperature
150°F

应用Applications:
-Blow molding吹塑
-Compressors压缩机
-Car washing equipment洗车设备
-Pumps泵

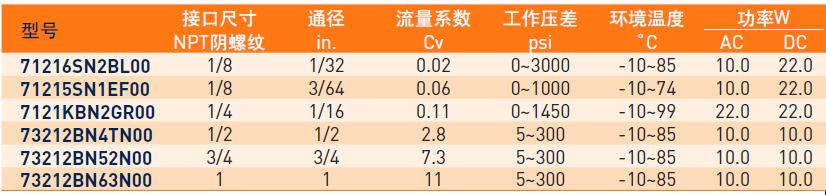

Parker派克 7000系列通用高压电磁阀 - 2通直动式&先导式 型号:







型号 接口尺寸
NPT阴螺纹
通径in. 流量系数CV 工作压差psi 环境温度℃ 功率W
AC DC
71216SN2BL00 1/8 1/32 0.02 0~3000 -10~85 10 22
71215SN1EF00 1/8 3/64 0.06 0~1000 -10~74 10 22
7121KBN2GR00 1/4 1/16 0.11 0~1450 -10~99 22 22
73212BN4TN00 1/2 1/2 2.8 5~300 -10~85 10 10
73212BN52N00 3/4 3/4 7.3 5~300 -10~85 10 10
73212BN63N00 1 1 11 5~300 -10~85 10 10
