Parker派克液压软管Parker hose

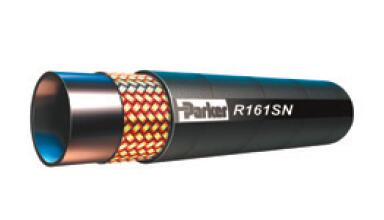

Parker派克一层钢丝编织软管R161SN
R161SN - DIN20022 1SN/EN853
Parker派克流体连接件Parker fluid connectors
R161SN液压软管 - DIN20022 1SN/EN853
构成材料： |
内胶层：合成橡胶
增强层：一层钢丝编织层
外胶层：合成橡胶 |
适用介质： |
适于输送液压流体如醇、液压油、燃油、润滑油、乳化液、烃等 |
温度范围： |
-40°C至+100°C |
优势与优点： |
ISR软管产品
一层钢丝编织增强层 |

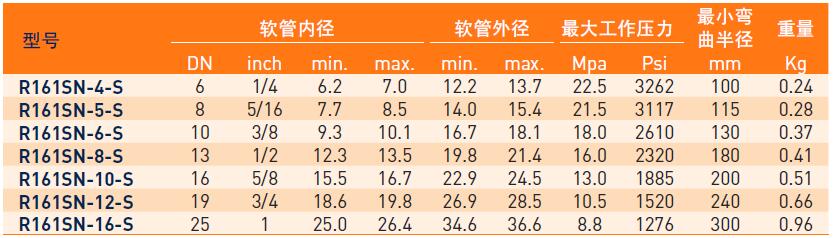

R161SN - DIN20022 1SN/EN853
| 型号 |
软管内径 |
软管外径 |
MAX.工作压力 |
MIN.弯曲半径 |
重量 |
| DN |
inch |
min. |
max. |
min. |
max. |
Mpa |
Psi |
mm |
Kg |
| R161SN-4-S |
6 |
1/4 |
6.2 |
7 |
12.2 |
13.7 |
22.5 |
3262 |
100 |
0.24 |
| R161SN-5-S |
8 |
5/16 |
7.7 |
8.5 |
14 |
15.4 |
21.5 |
3117 |
115 |
0.28 |
| R161SN-6-S |
10 |
3/8 |
9.3 |
10.1 |
16.7 |
18.1 |
18 |
2610 |
130 |
0.37 |
| R161SN-8-S |
13 |
1/2 |
12.3 |
13.5 |
19.8 |
21.4 |
16 |
2320 |
180 |
0.41 |
| R161SN-10-S |
16 |
5/8 |
15.5 |
16.7 |
22.9 |
24.5 |
13 |
1885 |
200 |
0.51 |
| R161SN-12-S |
19 |
3/4 |
18.6 |
19.8 |
26.9 |
28.5 |
10.5 |
1520 |
240 |
0.66 |
| R161SN-16-S |
25 |
1 |
25 |
26.4 |
34.6 |
36.6 |
8.8 |
1276 |
300 |
0.96 |
|
