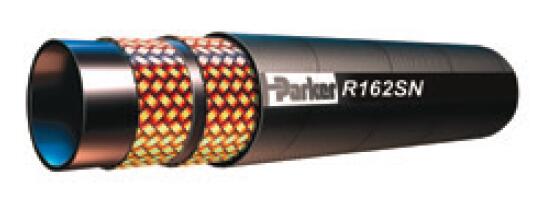

Parker派克两层钢丝编织软管R162SN
R162SN - DIN20022 2SN/EN853
Parker派克流体连接件Parker fluid connectors
R162SN液压软管 - DIN20022 1SN/EN853
构成材料： |
内胶层：合成橡胶
增强层：两层钢丝编织层
外胶层：合成橡胶 |
适用介质： |
适于输送液压流体如醇、液压油、燃油、润滑油、乳化液、烃等 |
温度范围： |
-40°C至+100°C |
优势与优点： |
ISR软管产品 |

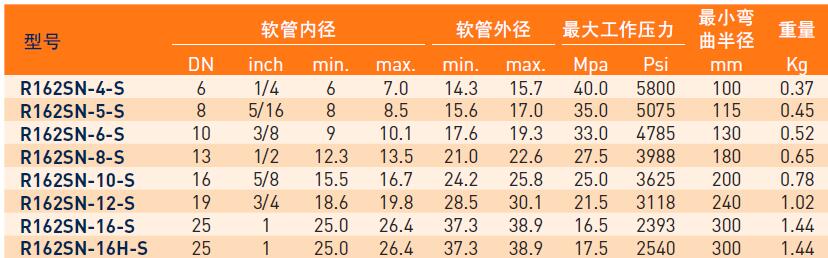

R162SN - DIN20022 2SN/EN853
| 型号 |
软管内径 |
软管外径 |
MAX.工作压力 |
MIN.弯曲半径 |
重量 |
| DN |
inch |
min. |
max. |
min. |
max. |
Mpa |
Psi |
mm |
Kg |
| R162SN-4-S |
6 |
1/4 |
6 |
7.0 |
14.3 |
15.7 |
40.0 |
5800 |
100 |
0.37 |
| R162SN-5-S |
8 |
5/16 |
8 |
8.5 |
15.6 |
17.0 |
35.0 |
5075 |
115 |
0.45 |
| R162SN-6-S |
10 |
3/8 |
9 |
10.1 |
17.6 |
19.3 |
33.0 |
4785 |
130 |
0.52 |
| R162SN-8-S |
13 |
1/2 |
12.3 |
13.5 |
21.0 |
22.6 |
27.5 |
3988 |
180 |
0.65 |
| R162SN-10-S |
16 |
5/8 |
15.5 |
16.7 |
24.2 |
25.8 |
25.0 |
3625 |
200 |
0.78 |
| R162SN-12-S |
19 |
3/4 |
18.6 |
19.8 |
28.5 |
30.1 |
21.5 |
3118 |
240 |
1.02 |
| R162SN-16-S |
25 |
1 |
25.0 |
26.4 |
37.3 |
38.9 |
16.5 |
2393 |
300 |
1.44 |
| R162SN-16H-S |
25 |
1 |
25.0 |
26.4 |
37.3 |
38.9 |
17.5 |
2540 |
300 |
1.44 |
|
