Parker派克 SCLTSD LevelTempController

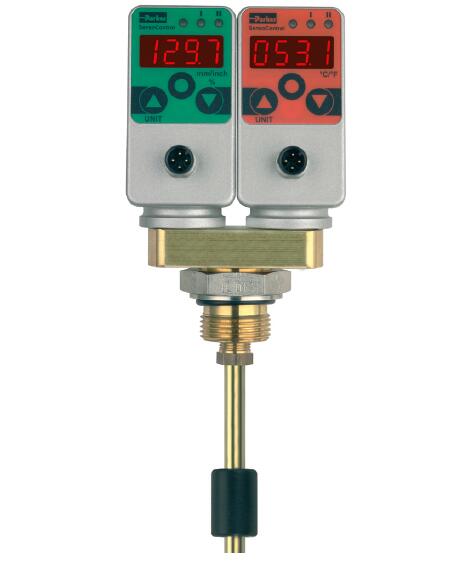

Parker派克 SCLTSD液位温度控制器

使用液位温度控制器，可以使用公共平台分别设置和显示温度和液位。当监控油箱时，液位和温度功能的集成打开了许多可能性。液位温度控制器结合了液位和温度开关、液位和温度开关的功能With the LevelTempController,you can set up and display the temperature and the level individually using a common platform. When monitoring the tank, this integration of level and temperature functionality opens up many possibilities.The LevelTempController combines the functions of a level and temperature switch, a level and temperature

Parker派克 SCLTSD液位温度控制器 资料下载

优势与优点
- 液位温度控制器集液位/温度开关、液位/温度传感器和液位/温度显示的功能于一身,测量系统通过认证
- 可旋转，液位/温度显示，mm / inch / % 显示，高液位和低液位显示
- 模拟/开关量输出, 一体式， 不需要缓冲管
- 可替换多个机械开关

传感器和液位和温度指示器sensor and a level and temperature indicator:
-液位和温度显示（温度计/观察镜）Level and temperature display(thermometer / inspection glass)
-开关输出Switching outputs
-模拟信号Analogue signal

Level
浮子的位置精确（≥5 mm），并以mm或in连续记录和显示在显示器上。由于液位是连续记录的，单个机械触点“卡住”的危险不再存在。从而大大提高了被监测装置的运行可靠性。The position of the float is finely (≥ 5 mm) and continuously recorded and shown in the display in mm or inch. Because the level is continuously recorded, the danger of individual mechanical contacts "sticking" no longer exists. Therefore the operational reliability of the monitored plant is greatly increased.

使用可选择的百分比显示，满液位为用户统一显示，与油箱形状无关。也可以输入一个偏移量（从传感器到罐底的差值），以给出从罐底到液位的真实指示。Using the selectable percent display, the full level is uniformly displayed for the users, independent of the tank shape. An offset can also be entered (difference from the sensor to the tank bottom) to give a realistic indication of the level from the tank bottom.

不同的用途可以很容易地实现或更正，在以后的日期使用菜单驱动的水平切换点。由于订购时不再需要指定开关点，因此所需的机械液位开关版本减少。Different uses can easily be implemented or corrected at a later date using the menu-driven level switching points. As the switching point no longer needs to be specified at the time of order, the versions of mechanical level switches required is reduced.

Temperature
连续记录和显示物质中的温度。开关输出可以像电平控制器一样单独设置。当然，所有方便的开关功能都是可用的：窗口，滞后功能和打开/关闭以及温度模拟输出。The temperature in the substance is continuously recorded and displayed. The switching outputs can be individually set up just like the LevelController. Naturally all the convenient switching functions are available: window, hysteresis function and open / close as well as an analogue output for temperature.

Reliable and safe
可以对参数进行密码保护，以避免未经授权的更改。Parameters can be password protected to avoid unauthorised changes.

Universal
由于这些简单的开关功能（滞后和窗口功能，NC或无功能），可以在LevelTemp控制器上设置智能调整，这通常是无法使用机械液位开关的。Thanks to these easy switching functions (hysteresis and window functions, NC or NO functions), intelligent adjustments can be set on the LevelTempController which arenormally not possible using a mechanical level switch.

因此，许多开关可以用一个控制器代替。通过可选的模拟输出，液位和温度可以通过控制器轻松监控。Therefore, many switches can be replaced with one controller. With the optional analogue outputs, the level and temperature can be monitored easily with a controller.

Level: e.g. for leakage monitoring
Temperature: e.g. coolers, heating, alarm, shutdown

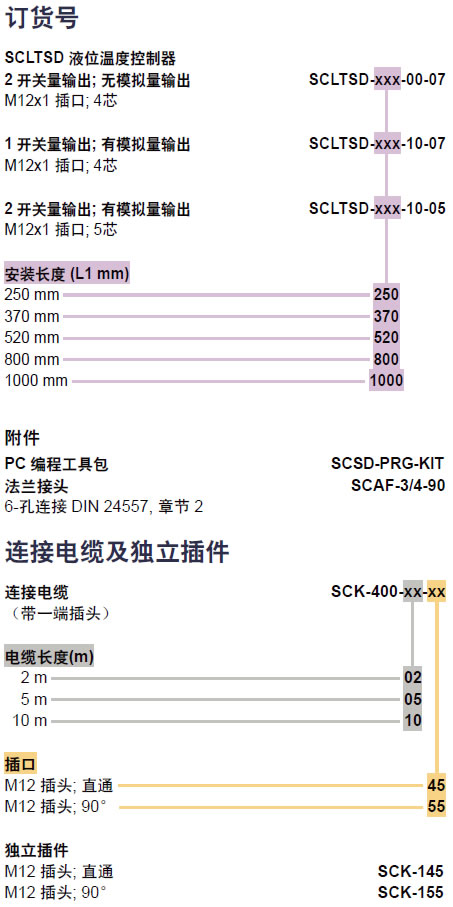

SCLTSD-xxx-10-05 温度/液位
2 开关输出, 1 模拟输出; M12x1; 5-芯

针定义
1 V+
2 S2 输出
3 0 V / GND
4 S1 输出
5 模拟输出
