Parker派克 SensoControl传感器和控制器

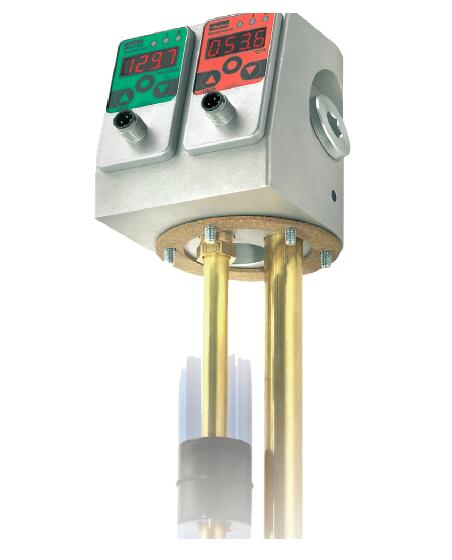

Parker派克 SCOTC OilTankController
Parker派克 SCOTC油箱控制器

除液位温度控制器外，油箱控制器还为空气滤清器和加注管接头提供标准化连接。当监测油罐系列使用时，这种液位和温度功能与空气过滤器和加注适配器端口的集成打开了许多可能性。四个功能需要额外的连接孔。In addition to the LevelTempController, the OilTankController also offers standardised connections for an air filter and a fill coupling.When monitoring the tank for series use, this integration of level and temperature functionality together with air filter and fill adapter port opens up many possibilities. An additional connecting hole is required for the four functions.

Parker派克 SCOTC油箱控制器 资料下载

油箱控制器结合了液位和温度开关、液位和温度传感器以及液位和温度显示器的功能：The OilTankController combines the functions of a level and temperature switch, a level and temperature sensor and a level and temperature display:
-液位和温度显示（温度计/观察镜）Level and temperature display(thermometer / inspection glass)
-开关输出Switching outputs
-模拟信号Analogue signal

Device features
-Proven measuring system
-Level and temperature display
-mm / inch / % display
-High and low display
-Only one hole
-Continuous level measurement
-Connection
-Filling coupling
-Air filter
-Low pressure
-No surge pipe necessary

设备功能
-成熟的测量系统
-液位和温度显示
-毫米/英寸/%显示
-高低显示器
-只有一个洞
-连续液位测量
-连接
-填料联轴器
-空气过滤器
-低压
-不需要缓冲管

附件
PC 编程工具包 SCSD-PRG-KIT

独立插件
M12 插头; 直通 SCK-145
M12 插头; 90° SCK-155
