DIN标准EO液压硬管接头附件的主要作用是对整个EO系列内各种接头类型的完善补充。The function of accessories for Ermeto DIN hydraulic tube fittings is the completion of fitting types within the fitting series.

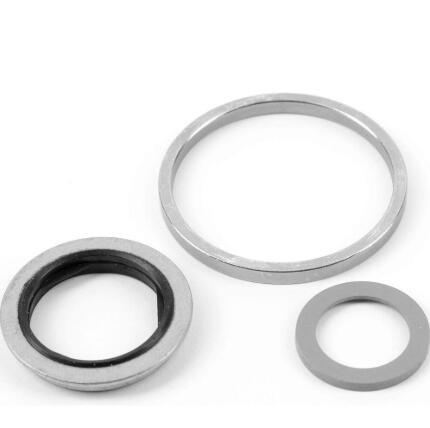

DIN标准EO液压硬管接头附件是对整个EO系列接头类型的补充。大部分零件，比如ED系列弹性密封圈以及OR系列外螺纹用O形圈，都是密封圈。这些零件使整个接头连接系统无泄漏。
连接 1 尺寸：无，公制外螺纹带O形圈(ISO 6149)，UN/UNF外螺纹带O形圈(ISO 11926)，BSPP螺纹各种类型，内螺纹，公制外直螺纹/BSPP外直螺纹
形状：Locknut for bulk heads, Support sleeve for thin-walled metal tubing, Tube/hose insert for plastic tubing, EO-2 soft sealing ring, Eolastic soft seal for BSPP and metric parallel threads, O-ring for fittings with EO 24° DKO swivel, O-ring for male stud e
连接尺寸：04 至 42
连接 2 螺纹尺寸：G 1/8 至 G 1 1/2; M 10x1.0 至 M 48x2.0; 7/16-20 UNF 至 1 5/8-12 UN
连接管道内径：2.0 至 39.0 mm
连接 2 尺寸：无，BSPP直螺纹，公制螺纹，公制直螺纹，公制外直螺纹
结构材料：碳钢带无六价铬镀锌，不锈钢，黄铜，碳钢/NBR，碳钢/FKM，不锈钢/FKM，不锈钢/NBR，NBR, FKM
产品序列：轻系列，重系列，无，超轻系列，轻/重，LM/LR, LM/LR / SM/SR, LM / SM, LR / SM/SR, LLR/LLM / LR/LM, LM/SM, LR/LM / SR, LR / SR, LR/LM / SR/SM, LM, SM/SR, SM, LR, LR/SR
应用：Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
管道外径：6-42 mm
MAX.运行温度：+250 Steel, +400 Stainless Steel °C，+482 Steel, +752 Stainless Steel °F
MIN.运行温度：-40 (Steel); -60 (Stainless Steel) °C，-40 Steel, -76 Stainless Steel °F
符合规格：DIN ISO 8434
| Part |
Series |
Connection 1 Style |
Connection 2 Style |
Connection Size |
Shape |
Material |
Connection 2 Thread Size (metric) |
Connection Tube I.D. (mm) |
| 8207SS1/2 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1/2 A |
na |
| 8207SS1/4A |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1/4 A |
na |
| 8207SS1/8 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1/8 A |
na |
| 8207SS11/2 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1 1/2 A |
na |
| 8207SS11/4 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1 1/4 A |
na |
| 8207SS1A |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 1 A |
na |
| 8207SS3/4 |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 3/4 A |
na |
| 8207SS3/8A |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Stainless steel |
G 3/8 A |
na |
| DKA08CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 08x1.0 |
na |
| DKA1/2X4.571X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 1/2 A |
na |
| DKA1/2X4.5CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 1/2 A |
na |
| DKA1/471X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 1/4 A |
na |
| DKA1/4CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 1/4 A |
na |
| DKA1/871X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 1/8 A |
na |
| DKA1/8CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 1/8 A |
na |
| DKA1071X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 10x1.0 |
na |
| DKA10CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 10x1.0 |
na |
| DKA11/271X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 48x2.0 |
na |
| DKA11/2CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 48x2.0 |
na |
| DKA11/471X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 42x2.0 |
na |
| DKA11/4CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 42x2.0 |
na |
| DKA1271X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 12x1.5 |
na |
| DKA12CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 12x1.5 |
na |
| DKA1471X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 14x1.5 |
na |
| DKA14CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 14x1.5 |
na |
| DKA1671X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 16x1.5 |
na |
| DKA16CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 16x1.5 |
na |
| DKA171X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 1 A |
na |
| DKA1871X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 18x1.5 |
na |
| DKA18CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 18x1.5 |
na |
| DKA1CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 1 A |
na |
| DKA2071X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 20x1.5 |
na |
| DKA20CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 20x1.5 |
na |
| DKA22X4.571X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 22x1.5 |
na |
| DKA22X4.5CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 22x1.5 |
na |
| DKA26X3.571X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 26x1.5 |
na |
| DKA26X3.5CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 26x1.5 |
na |
| DKA2771X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 27x2.0 |
na |
| DKA27CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 27x2.0 |
na |
| DKA3/471X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 3/4 A |
na |
| DKA3/4CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 3/4 A |
na |
| DKA3/871X |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Stainless steel |
G 3/8 A |
na |
| DKA3/8CFX |
na |
na |
BSPP thread parallel |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
G 3/8 A |
na |
| DKA3371X |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Stainless steel |
M 33x2.0 |
na |
| DKA33CFX |
na |
na |
Male stud metric thread |
na |
Sealing ring for banjo fittings |
Steel, Chromium-6 Free |
M 33x2.0 |
na |
| DKAZ1/2CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 1/2 A |
na |
| DKAZ1/4CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 1/4 A |
na |
| DKAZ1/8CFX |
LR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 1/8 A |
na |
| DKAZ10CFX |
LM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 10x1.0 |
na |
| DKAZ11/2CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 48x2.0 |
na |
| DKAZ11/4CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 42x2.0 |
na |
| DKAZ12CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 12x1.5 |
na |
| DKAZ14CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 14x1.5 |
na |
| DKAZ16CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 16x1.5 |
na |
| DKAZ18CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 18x1.5 |
na |
| DKAZ1CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 1 A |
na |
| DKAZ20CFX |
SM/SR |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 20x1.5 |
na |
| DKAZ22CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 22x1.5 |
na |
| DKAZ26CFX |
LM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 26x1.5 |
na |
| DKAZ27CFX |
SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 27x2.0 |
na |
| DKAZ3/4CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 3/4 A |
na |
| DKAZ3/8CFX |
LR/SR |
na |
BSPP thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
G 3/8 A |
na |
| DKAZ33CFX |
LM / SM |
na |
Metric thread parallel |
na |
Sealing ring for low pressure banjos |
Steel, Chromium-6 Free |
M 33x2.0 |
na |
| DKI1/2CFX |
na |
Female thread |
na |
na |
Sealing ring for pressure gauge connectors |
Steel |
G 1/2 |
na |
| DKI1/4CFX |
na |
Female thread |
na |
na |
Sealing ring for pressure gauge connectors |
Steel |
G 1/4 |
na |

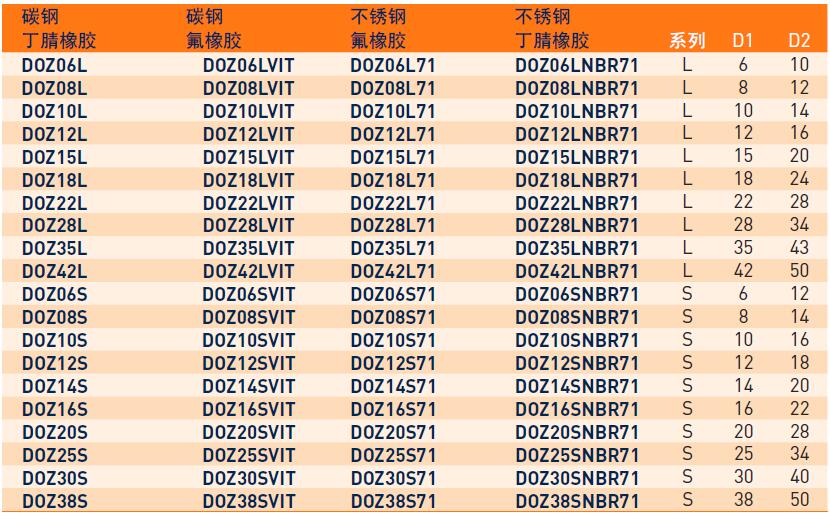

| DOZ04LL |
Very light |
na |
na |
4 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ06L |
Light |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ06L71 |
Light |
na |
na |
6 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ06LL |
Very light |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ06LNBR71 |
Light |
na |
na |
6 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ06LVIT |
Light |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ06S |
Heavy |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ06S71 |
Heavy |
na |
na |
6 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ06SNBR71 |
Heavy |
na |
na |
6 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ06SVIT |
Heavy |
na |
na |
6 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ08L |
Light |
na |
na |
8 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ08L71 |
Light |
na |
na |
8 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ08LNBR71 |
Light |
na |
na |
8 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ08LVIT |
Light |
na |
na |
8 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ08S |
Heavy |
na |
na |
8 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ08S71 |
Heavy |
na |
na |
8 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ08SNBR71 |
Heavy |
na |
na |
8 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ08SVIT |
Heavy |
na |
na |
8 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ10L |
Light |
na |
na |
10 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ10L71 |
Light |
na |
na |
10 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ10LNBR71 |
Light |
na |
na |
10 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ10LVIT |
Light |
na |
na |
10 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ10S |
Heavy |
na |
na |
10 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ10S71 |
Heavy |
na |
na |
10 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ10SNBR71 |
Heavy |
na |
na |
10 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ10SVIT |
Heavy |
na |
na |
10 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ12L |
Light |
na |
na |
12 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ12L71 |
Light |
na |
na |
12 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ12LNBR71 |
Light |
na |
na |
12 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ12LVIT |
Light |
na |
na |
12 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ12S |
Heavy |
na |
na |
12 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ12S71 |
Heavy |
na |
na |
12 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ12SNBR71 |
Heavy |
na |
na |
12 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ12SVIT |
Heavy |
na |
na |
12 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ14S |
Heavy |
na |
na |
14 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ14S71 |
Heavy |
na |
na |
14 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ14SNBR71 |
Heavy |
na |
na |
14 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ14SVIT |
Heavy |
na |
na |
14 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ15L |
Light |
na |
na |
15 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ15L71 |
Light |
na |
na |
15 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ15LNBR71 |
Light |
na |
na |
15 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ15LVIT |
Light |
na |
na |
15 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ16S |
Heavy |
na |
na |
16 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ16S71 |
Heavy |
na |
na |
16 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ16SNBR71 |
Heavy |
na |
na |
16 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ16SVIT |
Heavy |
na |
na |
16 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ18L |
Light |
na |
na |
18 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ18L71 |
Light |
na |
na |
18 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ18LNBR71 |
Light |
na |
na |
18 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ18LVIT |
Light |
na |
na |
18 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ20S |
Heavy |
na |
na |
20 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ20S71 |
Heavy |
na |
na |
20 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ20SNBR71 |
Heavy |
na |
na |
20 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ20SVIT |
Heavy |
na |
na |
20 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ22L |
Light |
na |
na |
22 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ22L71 |
Light |
na |
na |
22 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ22LNBR71 |
Light |
na |
na |
22 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ22LVIT |
Light |
na |
na |
22 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ25S |
Heavy |
na |
na |
25 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ25S71 |
Heavy |
na |
na |
25 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ25SNBR71 |
Heavy |
na |
na |
25 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ25SVIT |
Heavy |
na |
na |
25 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ28L |
Light |
na |
na |
28 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ28L71 |
Light |
na |
na |
28 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ28LNBR71 |
Light |
na |
na |
28 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ28LVIT |
Light |
na |
na |
28 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ30S |
Heavy |
na |
na |
30 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ30S71 |
Heavy |
na |
na |
30 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ30SNBR71 |
Heavy |
na |
na |
30 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ30SVIT |
Heavy |
na |
na |
30 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ35L |
Light |
na |
na |
35 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ35L71 |
Light |
na |
na |
35 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ35LNBR71 |
Light |
na |
na |
35 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ35LVIT |
Light |
na |
na |
35 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ38S |
Heavy |
na |
na |
38 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ38S71 |
Heavy |
na |
na |
38 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ38SNBR71 |
Heavy |
na |
na |
38 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ38SVIT |
Heavy |
na |
na |
38 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| DOZ42L |
Light |
na |
na |
42 |
EO-2 soft sealing ring |
Steel/NBR |
na |
na |
| DOZ42L71 |
Light |
na |
na |
42 |
EO-2 soft sealing ring |
Stainless steel/FKM |
na |
na |
| DOZ42LNBR71 |
Light |
na |
na |
42 |
EO-2 soft sealing ring |
Stainless steel/NBR |
na |
na |
| DOZ42LVIT |
Light |
na |
na |
42 |
EO-2 soft sealing ring |
Steel/FKM |
na |
na |
| E04/02X |
na |
na |
na |
4 |
Tube/hose insert for plastic tubing |
Brass |
na |
2 |
| E04/2.5X |
na |
na |
na |
4 |
Tube/hose insert for plastic tubing |
Brass |
na |
2.5 |
| E0506/03X |
na |
na |
na |
05/06 |
Tube/hose insert for plastic tubing |
Brass |
na |
3 |
| E0506/04X |
na |
na |
na |
05/06 |
Tube/hose insert for plastic tubing |
Brass |
na |
4 |
| E06/05X |
na |
na |
na |
6 |
Tube/hose insert for plastic tubing |
Brass |
na |
5 |
| E08/04X |
na |
na |
na |
8 |
Tube/hose insert for plastic tubing |
Brass |
na |
4 |
| E08/05X |
na |
na |
na |
8 |
Tube/hose insert for plastic tubing |
Brass |
na |
5 |
| E0810/06X |
na |
na |
na |
08/10 |
Tube/hose insert for plastic tubing |
Brass |
na |
6 |
| E10/08X |
na |
na |
na |
10 |
Tube/hose insert for plastic tubing |
Brass |
na |
8 |
| E12/08X |
na |
na |
na |
12 |
Tube/hose insert for plastic tubing |
Brass |
na |
8 |
| E12/09X |
na |
na |
na |
12 |
Tube/hose insert for plastic tubing |
Brass |
na |
9 |
| E1215/10X |
na |
na |
na |
12 |
Tube/hose insert for plastic tubing |
Brass |
na |
10 |
| E15/12X |
na |
na |
na |
15 |
Tube/hose insert for plastic tubing |
Brass |
na |
12 |
| E1516/12.5X |
na |
na |
na |
15/16 |
Tube/hose insert for plastic tubing |
Brass |
na |
12.5 |
| E18/14X |
na |
na |
na |
18 |
Tube/hose insert for plastic tubing |
Brass |
na |
14 |
| E1820/16X |
na |
na |
na |
18/20 |
Tube/hose insert for plastic tubing |
Brass |
na |
16 |
| E22/18X |
na |
na |
na |
22 |
Tube/hose insert for plastic tubing |
Brass |
na |
18 |
| GM06L71X |
Light |
na |
na |
6 |
Locknut for bulk heads |
Stainless steel |
M 12x1.5 |
na |
| GM06LCFX |
Light |
na |
na |
6 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 12x1.5 |
na |
| GM08L71X |
Light |
na |
na |
8 |
Locknut for bulk heads |
Stainless steel |
M 14x1.5 |
na |
| GM08LCFX |
Light |
na |
na |
8 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 14x1.5 |
na |
| GM10L71X |
Light |
na |
na |
10 |
Locknut for bulk heads |
Stainless steel |
M 16x1.5 |
na |
| GM10LCFX |
Light |
na |
na |
10 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 16x1.5 |
na |
| GM12L71X |
Light |
na |
na |
12 |
Locknut for bulk heads |
Stainless steel |
M 18x1.5 |
na |
| GM12LCFX |
Light |
na |
na |
12 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 18x1.5 |
na |
| GM12S71X |
Heavy |
na |
na |
12 |
Locknut for bulk heads |
Stainless steel |
M 20x1.5 |
na |
| GM12SCFX |
Heavy |
na |
na |
12 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 20x1.5 |
na |
| GM15L71X |
Light |
na |
na |
15 |
Locknut for bulk heads |
Stainless steel |
M 22x1.5 |
na |
| GM15LCFX |
Light |
na |
na |
15 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 22x1.5 |
na |
| GM16S71X |
Heavy |
na |
na |
16 |
Locknut for bulk heads |
Stainless steel |
M 24x1.5 |
na |
| GM16SCFX |
Heavy |
na |
na |
16 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 24x1.5 |
na |
| GM18L71X |
Light |
na |
na |
18 |
Locknut for bulk heads |
Stainless steel |
M 26x1.5 |
na |
| GM18LCFX |
Light |
na |
na |
18 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 26x1.5 |
na |
| GM22L71X |
Light |
na |
na |
22 |
Locknut for bulk heads |
Stainless steel |
M 30x2.0 |
na |
| GM22LCFX |
Light |
na |
na |
22 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 30x2.0 |
na |
| GM28L71X |
Light |
na |
na |
28 |
Locknut for bulk heads |
Stainless steel |
M 36x2.0 |
na |
| GM28LCFX |
Light |
na |
na |
28 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 36x2.0 |
na |
| GM30S71X |
Heavy |
na |
na |
30 |
Locknut for bulk heads |
Stainless steel |
M 42x2.0 |
na |
| GM30SCFX |
Heavy |
na |
na |
30 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 42x2.0 |
na |
| GM35L71X |
Light |
na |
na |
35 |
Locknut for bulk heads |
Stainless steel |
M 45x2.0 |
na |
| GM35LCFX |
Light |
na |
na |
35 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 45x2.0 |
na |
| GM42L71X |
Light |
na |
na |
42 |
Locknut for bulk heads |
Stainless steel |
M 52x2.0 |
na |
| GM42LCFX |
Light |
na |
na |
42 |
Locknut for bulk heads |
Steel, Chromium-6 Free |
M 52x2.0 |
na |
| KD1/271 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1/2 A |
na |
| KD1/471 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1/4 A |
na |
| KD1/871 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1/8 A |
na |
| KD1071 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 10x1.0 |
na |
| KD11/271 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1 1/2 A |
na |
| KD11/471 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1 1/4 A |
na |
| KD1271 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 12x1.5 |
na |
| KD1471 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 14x1.5 |
na |
| KD1671 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 16x1.5 |
na |
| KD171 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 1 A |
na |
| KD1871 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 18x1.5 |
na |
| KD2071 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 20x1.5 |
na |
| KD2271 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 22x1.5 |
na |
| KD2671 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 26x1.5 |
na |
| KD2771 |
na |
na |
Metric thread |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
M 27x2.0 |
na |
| KD3/471 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 3/4 A |
na |
| KD3/871 |
na |
na |
BSPP thread parallel |
na |
Soft sealing ring for banjo fittings WH/TH from stainless steel |
Stainless steel |
G 3/8 A |
na |
| KDS10VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 10x1.0 / G 1/8 A |
na |
| KDS10X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 10x1.0 / G 1/8 A |
na |
| KDS12VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 12x1.5 |
na |
| KDS12X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 12x1.5 |
na |
| KDS14VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 14x1.5 / G 1/4 A |
na |
| KDS14X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 14x1.5 / G 1/4 A |
na |
| KDS16VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 16x1.5 / G 3/8 A |
na |
| KDS16X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 16x1.5 / G 3/8 A |
na |
| KDS18VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 18x1.5 |
na |
| KDS18X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 18x1.5 |
na |
| KDS22VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 22x1.5 / G 1/2 A |
na |
| KDS22X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 22x1.5 / G 1/2 A |
na |
| KDS26VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 26x1.5 |
na |
| KDS26X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 26x1.5 |
na |
| KDS27VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 27x2.0 / G 3/4 A |
na |
| KDS27X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 27x2.0 / G 3/4 A |
na |
| KDS33VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 33x2.0 / G 1 A |
na |
| KDS33X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 33x2.0 / G 1 A |
na |
| KDS42VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 42x2.0 / G 1 1/4 A |
na |
| KDS42X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 42x2.0 / G 1 1/4 A |
na |
| KDS48VITX |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/FKM |
M 48x2.0 / G 1 1/2 A |
na |
| KDS48X |
na |
Male stud metric thread / Male stud BSPP thread |
na |
na |
Soft sealing ring for banjo fittings SWVE, WH and TH from steel |
Steel/NBR |
M 48x2.0 / G 1 1/2 A |
na |
| OR10.5X1.5X |
Light/Heavy |
na |
na |
12 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR10.77X2.62VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1/4 A |
na |
| OR10.77X2.62X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1/4 A |
na |
| OR10X1.5VITX |
Light/Heavy |
na |
na |
12 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR10X1.5X |
LM/SM |
na |
na |
08L/06S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR11.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 14x1.5 |
na |
| OR11.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 14x1.5 |
na |
| OR11.89X1.98 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
9/16-18 UNF |
na |
| OR11.89X1.98VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
9/16-18 UNF |
na |
| OR12.5X1.5VITX |
LM/LR / SM/SR |
na |
na |
06L/08L/10L/06S/08S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR12.5X1.5X |
LM/LR / SM/SR |
na |
na |
08L/10L/06S/08S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR12.5X2X |
Light |
na |
na |
15 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR12X2VITX |
Light/Heavy |
na |
na |
15 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR12X2X |
Heavy |
na |
na |
14 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR13.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 16x1.5 |
na |
| OR13.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 16x1.5 |
na |
| OR13.94X2.62VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 3/8 A |
na |
| OR13.94X2.62X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 3/8 A |
na |
| OR13X2VITX |
Heavy |
na |
na |
16 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR14X2 |
Heavy |
na |
na |
16 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR15.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 18x1.5 |
na |
| OR15.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 18x1.5 |
na |
| OR15X1.5X |
LR/LM / SR |
na |
na |
12L/10S/12S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR15X2VITX |
Light |
na |
na |
18 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR16.36X2.21 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
3/4-16 UNF |
na |
| OR16.36X2.21VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
3/4-16 UNF |
na |
| OR16.3X2.4VITX |
Heavy |
na |
na |
20 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR16X1.5VITX |
LM/LR / SM/SR |
na |
na |
12L/10S/12S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR16X1.5X |
LM/LR / SM/SR |
na |
na |
12L/15L/10S/12S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR16X2X |
Light |
na |
na |
18 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR17.96X2.62VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1/2 A |
na |
| OR17X2.5 |
Heavy |
na |
na |
20 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR18X1.5VITX |
LM / SM |
na |
na |
15L/12S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR18X1.5X |
LM / SM |
na |
na |
15L/12S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR18X3.15X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1/2 A |
na |
| OR19.18X2.46 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
7/8-14 UNF |
na |
| OR19.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 22x1.5 |
na |
| OR19.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 22x1.5 |
na |
| OR19X1.5X |
LR / SR |
na |
na |
15L/14S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR19X2.5VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
7/8-14 UNF |
na |
| OR20.3X2.4VITX |
Heavy |
na |
na |
25 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR20X1.5VITX |
LR / SM/SR |
na |
na |
18L/14S/16S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR20X1.5X |
LM/LR / SM/SR |
na |
na |
18L/14S/16S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR20X2VITX |
Light |
na |
na |
22 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR20X2X |
Light |
na |
na |
22 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR22X2.5X |
Heavy |
na |
na |
25 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR23.47X2.62VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 3/4 A |
na |
| OR23.47X2.95 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
1 1/16-12 UN |
na |
| OR23.47X2.95VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
1 1/16-12 UN |
na |
| OR23.6X2.9 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 27x2.0 |
na |
| OR23.6X2.9VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 27x2.0 |
na |
| OR23X3X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 3/4 A |
na |
| OR25.12X1.78X |
LR/LM / SR/SM |
na |
na |
22L/20S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR25.3X2.4VITX |
Heavy |
na |
na |
30 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR25X2VITX |
LM/LR / SM/SR |
na |
na |
22L/20S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR25X2X |
LM/LR / SM/SR |
na |
na |
22L/20S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR26X2VITX |
Light |
na |
na |
28 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR26X2X |
Light |
na |
na |
28 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR27X2.5 |
Heavy |
na |
na |
30 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR29.6X2.9 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 33x2.0 |
na |
| OR29.6X2.9VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 33x2.0 |
na |
| OR29.74X2.95 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
1 5/16-12 UN |
na |
| OR29.74X2.95VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
1 5/16-12 UN |
na |
| OR29.74X3.53VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1 A |
na |
| OR29.74X3.53X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1 A |
na |
| OR32X2.5VITX |
Light |
na |
na |
35 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR32X2.5X |
Light |
na |
na |
35 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR33.3X2.4VITX |
Heavy |
na |
na |
38 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR33X2.5VITX |
LM/LR / SM/SR |
na |
na |
28L/25S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR33X2.5X |
LM/LR / SM/SR |
na |
na |
28L/25S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR35X2.5X |
Heavy |
na |
na |
38 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR37.46X3 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
1 5/8-12 UN |
na |
| OR37.46X3VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
1 5/8-12 UN |
na |
| OR37.69X3.53VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1 1/4 A |
na |
| OR37.69X3.53X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1 1/4 A |
na |
| OR38.6X2.9 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 42x2.0 |
na |
| OR38.6X2.9VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 42x2.0 |
na |
| OR38X2.5VITX |
Light |
na |
na |
42 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR39X2.5X |
Light |
na |
na |
42 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR4.5X1.5VITX |
Light/Heavy |
na |
na |
6 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR4.5X1.5X |
Light/Heavy |
na |
na |
6 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR41X2.5VITX |
LM/LR / SM/SR |
na |
na |
35L/30S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR41X2.5X |
LM/LR / SM/SR |
na |
na |
35L/30S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR43.69X3 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
1 7/8-12 UN |
na |
| OR43.69X3VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
1 7/8-12 UN |
na |
| OR44.04X3.53VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1 1/2 A |
na |
| OR44.04X3.53X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1 1/2 A |
na |
| OR44.6X2.9 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 48x2.0 |
na |
| OR44.6X2.9VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 48x2.0 |
na |
| OR46X3.0X |
LR/LM / SR/SM |
na |
na |
42L/38S |
O-ring for banjo elbows |
NBR |
na |
na |
| OR46X3VITX |
LM/LR / SM/SR |
na |
na |
42L/38S |
O-ring for banjo fittings |
FKM |
na |
na |
| OR46X3X |
LM/LR / SM/SR |
na |
na |
42L/38S |
O-ring for banjo fittings |
NBR |
na |
na |
| OR6.1X1.6 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 08x1.0 |
na |
| OR6.1X1.6VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 08x1.0 |
na |
| OR6.5X1.5VITX |
Light/Heavy |
na |
na |
8 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR6.5X1.5X |
Light/Heavy |
na |
na |
8 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR8.1X1.6 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 10x1.0 |
na |
| OR8.1X1.6VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 10x1.0 |
na |
| OR8.5X1.5X |
Light/Heavy |
na |
na |
10 |
O-ring for fittings with EO 24° DKO swivel |
NBR |
na |
na |
| OR8.92X1.83 |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
NBR |
7/16-20 UNF |
na |
| OR8.92X1.83VITX |
na |
Male UN/UNF thread - O-ring (ISO 11926) |
na |
na |
O-ring for male stud ends |
FKM |
7/16-20 UNF |
na |
| OR8X1.5VITX |
Light/Heavy |
na |
na |
10 |
O-ring for fittings with EO 24° DKO swivel |
FKM |
na |
na |
| OR8X1.88VITX |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
FKM |
G 1/8 A |
na |
| OR8X1.88X |
na |
For types with BSPP thread |
na |
na |
O-ring for male stud ends |
NBR |
G 1/8 A |
na |
| OR9.3X1.5VITX |
LM/LR |
na |
na |
06L |
O-ring for banjo fittings |
FKM |
na |
na |
| OR9.3X1.5X |
LM/LR |
na |
na |
06L |
O-ring for banjo fittings |
NBR |
na |
na |
| OR9.3X2.2 |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
NBR |
M 12x1.5 |
na |
| OR9.3X2.2VITX |
na |
Male metric thread - O-ring (ISO 6149) |
na |
na |
O-ring for male stud ends |
FKM |
M 12x1.5 |
na |
| OR9X1.2X |
LLR/LLM / LR/LM |
na |
na |
04LL/06LL/08LL/06L |
O-ring for banjo elbows |
NBR |
na |
na |
| RRS1/2CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1/2 A |
na |
| RRS1/4CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1/4 A |
na |
| RRS1/8CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1/8 A |
na |
| RRS11/2CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1 1/2 A |
na |
| RRS11/4CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1 1/4 A |
na |
| RRS1CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 1 A |
na |
| RRS3/4CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 3/4 A |
na |
| RRS3/8CF |
na |
For types with BSPP thread |
na |
na |
Retaining ring (ISO 1179) |
Steel |
G 3/8 A |
na |
| VH0471X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
4 |
| VH04CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
4 |
| VH0571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
5 |
| VH05CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
5 |
| VH06.571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
6.5 |
| VH06.5CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
6.5 |
| VH0671X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
6 |
| VH06CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
6 |
| VH0771X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
7 |
| VH07CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
7 |
| VH0871X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
8 |
| VH08CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
8 |
| VH0971X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
9 |
| VH09CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
9 |
| VH10.0571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
10.05 |
| VH10.05CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
10.05 |
| VH10.571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
10.5 |
| VH10.5CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
10.5 |
| VH1071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
10 |
| VH10CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
10 |
| VH1171X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
11 |
| VH11CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
11 |
| VH12.9571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
12.95 |
| VH12.95CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
12.95 |
| VH1271X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
12 |
| VH12CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
12 |
| VH1371X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
13 |
| VH13CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
13 |
| VH1471X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
14 |
| VH14CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
14 |
| VH1571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
15 |
| VH15CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
15 |
| VH16.0071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
16 |
| VH16.00CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
16 |
| VH1671X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
16.2 |
| VH16CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
16.2 |
| VH1771X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
17 |
| VH17CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
17 |
| VH1871X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
18 |
| VH18CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
18 |
| VH19.9071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
19.9 |
| VH19.90CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
19.9 |
| VH1971X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
19 |
| VH19CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
19 |
| VH2071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
20 |
| VH20CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
20 |
| VH2171X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
21 |
| VH21CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
21 |
| VH2271X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
22 |
| VH22CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
22 |
| VH2371X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
23 |
| VH23CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
23 |
| VH24.9071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
24.9 |
| VH24.90CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
24.9 |
| VH2471X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
24 |
| VH24CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
24 |
| VH2571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
25 |
| VH25CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
25 |
| VH2671X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
26 |
| VH26CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
26 |
| VH2771X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
27 |
| VH27CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
27 |
| VH3071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
30 |
| VH30CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
30 |
| VH32.1071X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
32.1 |
| VH32.10CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
32.1 |
| VH3271X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
32 |
| VH32CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
32 |
| VH3371X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
33 |
| VH33CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
33 |
| VH3471X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
34 |
| VH34CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
34 |
| VH37.871X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
37.8 |
| VH37.8CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
37.8 |
| VH3871X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
38 |
| VH38CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
38 |
| VH3971X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
39 |
| VH39CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
39 |
| VH4.571X |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Stainless steel |
na |
4.5 |
| VH4.5CFX |
na |
na |
na |
na |
Support sleeve for thin-walled metal tubing |
Steel, Chromium-6 Free |
na |
4.5 |
