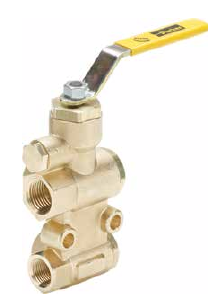

Brass Series 600 6-Way Diversion Industrial Ball Valves | Parker
黄铜600系列6通分流工业球阀 | 派克


派克工业球阀旨在用于一般用途。球阀可在完全打开或关闭位置使用。阀门的节流可能导致密封件过早失效和/或无法旋转阀门手柄。Parker Industrial Ball Valves are intended for general purpose use. Ball valves may be used in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.





黄铜600系列6通分流工业球阀具有以下样式:Brass Series 600 6-Way Diversion Industrial Ball Valves are available in the following styles:
V阀V-Valve

该阀可用于需要回油或回油的应用场合。适用于建筑设备,化学加工,柴油发动机,滤清器组,泵和专用工业机械。This valve can be used on applications where a fluid return or spillback is required. For use on construction equipment, chemical processing, diesel engines, filter banks, pumps and specialized industrial machinery.

NOTE: 转换阀没有关闭位置;因此,中心端口不能用于关闭目的。Diversion valves do not have off positions; therefore, the center ports can not be used for shut-off purposes.

黄铜600系列特点Brass Series 600 Features
锻造黄铜主体Forged brass body
镀铬黄铜球Chrome plated brass ball
PTFE阀座/密封PTFE seats/seals
氟碳O型圈Fluorocarbon O-rings
钢柄Steel handle
600 6路分流600 6-Way Diversion
工作压力:高达150 psiWorking Pressure: Up to 150 psi
温度范围:0F至250FTemperature Range: 0F to 250F
真空服务达到29英寸汞柱Vacuum service to 29 inches Hg





可用配置Available Configurations
Six Port Diversion Brass Valve
V600P
Six Port Diversion Brass Valve
V633P





Parker V600P | Six Port Diversion Ball Valve | Ball Valves - Brass Series 600
Six Port Diversion Ball Valve
Part #: V600P-8-6
Top Port: 1/2" Pipe Thread
Bottom Port: 3/8" PTF Thread
Manufacturer: Parker

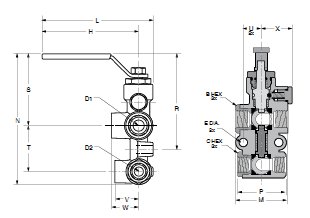

B HEX C HEX D1 FLW D2 FLW E H L M N P R S T U V W X
1 1/16 15/16 0.5 0.375 0.34 3.96 4.56 2.2 5.43 2.03 3.98 2.99 1.91 0.73 0.98 1.12 1.31





Parker V633P | Six Port Diversion Brass Ball Valves | Parker Series 600
Ball Valve - Six Port Diversion Ball Valve
Part #: V633P-8-6
Top Port: 1/2" Pipe Thread
Bottom Port: 3/8" PTF
Manufacturer: Parker
B HEX C HEX D1 FLW D2 FLW E H L M N P R S T U V W X
1 1/16 15/16 0.5 0.375 0.34 3.96 4.56 2.2 5.43 2.03 3.98 2.99 1.91 0.73 0.98 1.12 1.31
