派克工业球阀旨在用于一般用途。球阀可在完全打开或关闭位置使用。阀门的节流可能导致密封件过早失效和/或无法旋转阀门手柄。Parker Industrial Ball Valves are intended for general purpose use. Ball valves may be used in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
碳钢系列500CS / 502CS工业球阀具有以下样式Carbon Steel Series 500CS/502CS Industrial Ball Valves are available in the following styles:
V阀V-Valve
VP阀（挂锁手柄）VP-Valve (padlocking handle)
Carbon Steel Series 500CS/502CS Features：
碳钢磷酸盐涂层体Carbon steel phosphate coated body
钢球Steel ball
PTFE阀座/密封PTFE seats/seals
钢柄Steel handle
500-Female/Female & 502-Female/Female ports
工作压力：1/4“至1”为2000 psi，1-1 / 4“至2”为1500 psi。饱和蒸汽可高达150 psi。Working Pressure: 2000 psi for 1/4" to 1", 1500 psi for 1-1/4" to 2". Up to 150 psi for saturated steam.
温度范围Temperature Range: -20F to 425F
可用配置Available Configurations |
|
|
|
Female-Female Pipe Ends
V500CS |
Female-Female Pipe Ends, Panel Mount
V502CS
|
Locking Handle, Female Pipe Ends
VP500CS |
|
|
|
Locking Handle, Female Pipe Ends, Panel Mount
VP502CS |
Tee Handle, Female Pipe Ends
V500CS-X-04 |
Oval Handle, Female Pipe Ends
V500CS-X-21 |
|
|
Oval Handle, Female Pipe Ends, Panel Mount
V502CS-X-21 |
Parker V500CS Series Ball Valves | Steel Bodies, Female Pipe Ports |
|
Ball Valve - Female-Female Pipe Ends
Part #: V500CS
Working Pressure Rating: 2,000 PSI
Manufacturer: Parker |
| PART # |
PIPE THREAD |
B HEX |
C HEX |
H |
L |
M |
N |
D FLOW |
| V500CS-4 |
1/4 |
1-1/16 |
15/16 |
3.78 |
1.00 |
2.00 |
1.63 |
.400 |
| V500CS-6 |
3/8 |
1-1/16 |
15/16 |
3.78 |
1.00 |
2.00 |
1.63 |
.400 |
| V500CS-8 |
1/2 |
1-1/4 |
1-1/16 |
3.78 |
1.25 |
2.37 |
1.73 |
.540 |
| V500CS-12 |
3/4 |
1-5/8 |
1-5/16 |
5.10 |
1.50 |
2.90 |
2.08 |
.680 |
| V500CS-16 |
1 |
2 |
1-5/8 |
5.10 |
1.76 |
3.41 |
2.30 |
.880 |
Parker V502CS Series Ball Valves | Carbon Steel Body, Panel Mount, Female Pipe Ports |
|
Ball Valve - Panel Mount, Female-Female Pipe Ends
Part #: V502CS
Working Pressure Rating: 1500 PSI
Manufacturer: Parker |
| PART # |
PIPE THREAD |
B HEX |
C HEX |
F |
G |
H |
L |
M |
N |
FLOW DIA D. |
| V502CS-20 |
1-1/4 |
2 |
2-1/4 |
.94 |
1.50 |
6.10 |
1.87 |
3.80 |
2.76 |
1.000 |
| V502CS-24 |
1-1/2 |
2-5/16 |
2-1/2 |
.94 |
1.50 |
6.10 |
2.27 |
4.55 |
2.98 |
1.250 |
| V502CS-32 |
2 |
2-3/4 |
3 |
1.03 |
2.00 |
8.60 |
2.42 |
4.83 |
3.54 |
1.500 |
Parker VP500CS Series Ball Valves | Locking Handle, Female Pipe Ports |
|
Ball Valve - Locking Handle, Female Pipe Ends
Part #: VP500CS
Manufacturer: Parker |
| PART # |
PIPE THREAD |
B HEX |
C HEX |
H |
L |
M |
N |
D FLOW |
| VP500CS-4 |
1/4 |
1-1/16 |
15/16 |
4.13 |
1.00 |
2.00 |
2.23 |
.400 |
| VP500CS-6 |
3/8 |
1-1/16 |
15/16 |
4.13 |
1.00 |
2.00 |
2.23 |
.400 |
| VP500CS-8 |
1/2 |
1-1/4 |
1-1/16 |
4.13 |
1.25 |
2.37 |
2.33 |
.540 |
| VP500CS-12 |
3/4 |
1-5/8 |
1-5/16 |
5.00 |
1.50 |
2.90 |
2.80 |
.680 |
| VP500CS-16 |
1 |
2 |
1-5/8 |
5.00 |
1.76 |
3.41 |
2.97 |
.880 |
Parker V500CS-X-04 Series Ball Valves | Tee Handle, Female Pipe Ends |
|
Ball Valve -Tee Handle Female Pipe Ends
Part #: V500CS-X-04
Manufacturer: Parker |
| PART # |
PIPE THREAD |
B HEX |
C HEX |
H |
L |
M |
N |
D FLOW |
| V500CS-4-04 |
1/4 |
1-1/16 |
15/16 |
2.16 |
1.08 |
2.00 |
1.41 |
.400 |
| V500CS-6-04 |
3/8 |
1-1/16 |
15/16 |
2.16 |
1.08 |
2.00 |
1.41 |
.400 |
| V500CS-8-04 |
1/2 |
1-1/4 |
1-1/16 |
2.90 |
1.45 |
2.37 |
1.66 |
.540 |
| V500CS-12-04 |
3/4 |
1-5/8 |
1-5/16 |
3.63 |
1.81 |
2.90 |
2.06 |
.680 |
| V500CS-16-04 |
1 |
2 |
1-5/8 |
3.63 |
1.81 |
3.41 |
2.23 |
.880 |
Parker V500CS-X-21 Series Ball Valves | Oval Handle, Female Pipe Ends |
|
Ball Valve - Oval Handle Female Pipe Ends
Part #: V500CS-X-21
Manufacturer: Parker |
| PART # |
PIPE THREAD |
B HEX |
C HEX |
H |
L |
M |
N |
D FLOW |
| V500CS-4-21 |
1/4 |
1-1/16 |
15/16 |
3.50 |
1.00 |
2.00 |
1.66 |
.400 |
| V500CS-6-21 |
3/8 |
1-1/16 |
15/16 |
3.50 |
1.00 |
2.00 |
1.66 |
.400 |
| V500CS-8-21 |
1/2 |
1-1/4 |
1-1/16 |
3.50 |
1.13 |
2.37 |
1.76 |
.540 |
| V500CS-12-21 |
3/4 |
1-5/8 |
1-5/16 |
5.00 |
1.46 |
2.90 |
2.13 |
.680 |
| V500CS-16-21 |
1 |
2 |
1-5/8 |
5.00 |
1.58 |
3.41 |
2.29 |
.880 |

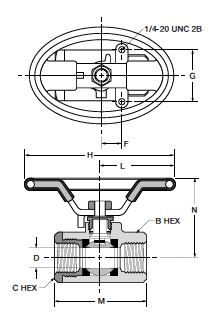

Parker V502CS-X-21 Series Ball Valves | Carbon Steel Body, Oval Handle, Panel Mount, Female Pipe Ports |
|
Ball Valve - Oval Handle, Panel Mount, Female Pipe Ends
Part #: V502CS-X-21
Working Pressure Rating: 1500 PSI
Manufacturer: Parker |
| PART # |
PIPE THREAD |
B HEX |
C HEX |
F |
G |
H |
L |
M |
N |
FLOW DIA D. |
| V502CS-20-21 |
1-1/4 |
2 |
2-1/4 |
.94 |
1.50 |
5.07 |
2.53 |
3.80 |
3.04 |
1.000 |
| V502CS-24-21 |
1-1/2 |
2-5/16 |
2-1/2 |
.94 |
1.50 |
5.07 |
2.53 |
4.55 |
3.26 |
1.250 |
| V502CS-32-21 |
2 |
2-3/4 |
3 |
1.03 |
2.00 |
6.50 |
3.25 |
4.83 |
3.57 |
1.500 |
|
