Parker Ermeto DIN banjo fittings

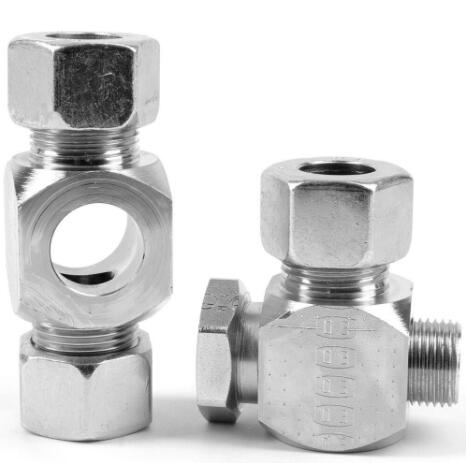

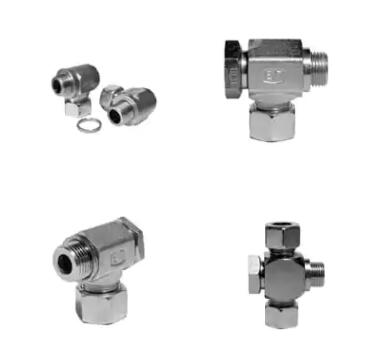

Parker派克EO DIN 标准铰接连接式管接头
Parker DIN标准接头
EO DIN 标准铰接连接式管接头的主要功能是可以连接不同数量的硬管或软管。EO DIN标准管接头的广泛范围包括采用新一代无六价铬镀锌表面处理方式的碳钢和不锈钢材质可选。The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN fittings is available in steel with Cr(VI)-free surfaces and in stainless steel.
Parker派克EO DIN 标准铰接连接式管接头
EO DIN标准铰接连接式管接头的主要功能是可以连接不同数量的硬管或软管。EO DIN标准铰接连接式管接头的广泛范围，包括WH-M-KDS，TH-R，以及DSVW-R，都可选择采用新一代无六价铬镀锌表面处理方式的碳钢和不锈钢材质。这些管接头可以选择带渐进式卡套(EO-PSR 或者 DPR) 或者弹性密封卡套(EO-2) ，具体选择取决于应用。
适用市场：
- 汽车行业
- 安防系统
- 能源行业
- 环境控制
- 工业领域
- 基础建设
- 机床
- 物料搬运
- 行走机械
- 石油和天然气
- 电力行业
- 过程控制
- 交通运输
- 水处理
应用领域：
适用于一般的液压系统领域。
特征/优势：
- 优良的耐腐蚀性能：一般而言，新一代无六价铬镀锌表面处理方式针对依照德国工业标准DIN50021/ISO9227 盐雾试验，提供产品超过500个小时而不产生白锈的耐腐蚀性能。这种特质大大地延长了管接头的使用寿命。
- 不锈钢材质表面：相比碳钢而言，针对腐蚀性介质和环境影响，不锈钢管接头有着优良的耐腐蚀性能，同时有着更好的高温耐腐蚀性能。这些产品特征大大地扩展了管接头的应用范围。
- 耐压性能：因为EO DIN标准铰接连接式管接头有着压力等级高达400 bar 的重型 (S系列) 和压力等级高达315 bar 的轻型 (L系列) 可选，所以这种接头可以被应用于广泛的应用领域。
性能特点：
连接 1 管道外径：06-42 mm
连接 2 管道外径：06-42 mm
连接 1 尺寸：EO 24° 锥
连接 2 尺寸：BSPP外螺纹带金属密封圈，BSPP外螺纹带弹性密封，公制外螺纹带金属密封圈，公制外螺纹带弹性密封圈，EO24°锥，BSPP外螺纹带金属密封圈，BSPP外螺纹带弹性密封圈
形状：铰接弯头，铰接三通，铰接弯头带BSPP外螺纹，铰接弯头带公制外螺纹，低压铰接弯头
连接尺寸：G 1/8 至 G 1 1/2; M 08x1.0 至 M48x2.0
产品序列：特轻系列，轻系列，重系列
连接 3 尺寸：BSPP外螺纹带金属密封圈，BSPP外螺纹带弹性密封圈，公制外螺纹带金属密封圈，公制外螺纹带弹性密封圈
可选配件：na,预装EO-PSR卡套及螺母，预装EO-2功能螺母，预装EO-DPR卡套及螺母
管道外径：6-42 mm
MAX.运行温度：+250 Steel, +400 Stainless Steel °C，+482 Steel, +752 Stainless Steel °F
MAX.运行压力：160-400 bar，16-40 MPa，2321-5802 psi
MIN.运行温度：-40 (Steel); -60 (Stainless Steel) °C，-40 Steel, -76 Stainless Steel °F
应用：Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
连接类型：Bite Type, Soft Seal Bite Type
符合规格：DIN ISO 8434
结构材料：Steel zinc plated (CrVI-free), Stainless steel

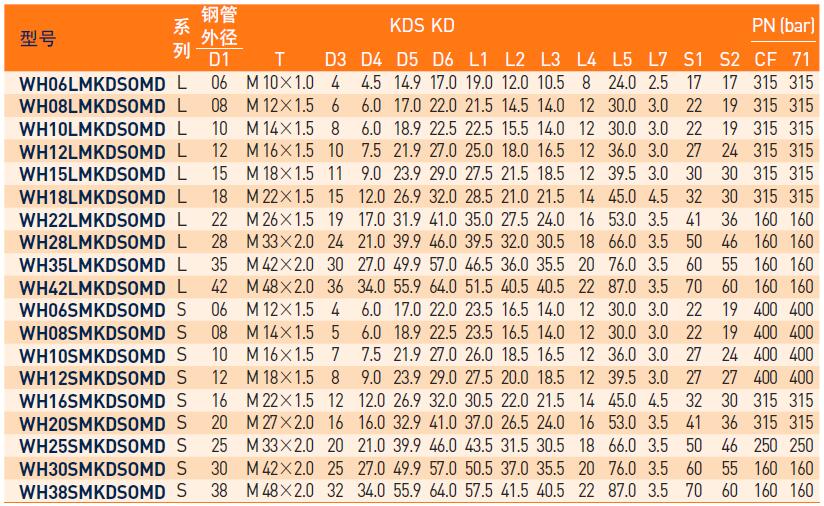

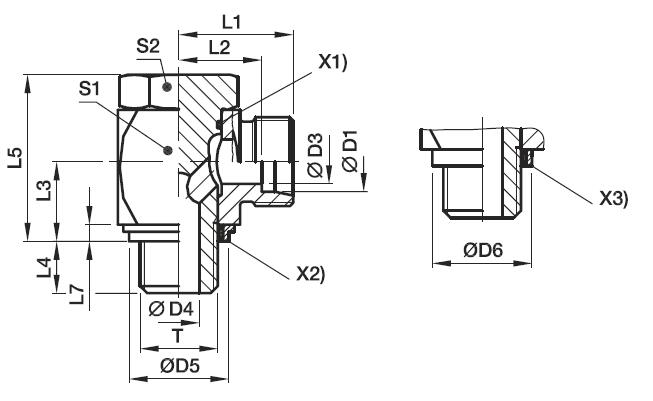

WH-M-KDS/KD 高压铰接式接头 - EO 24°锥 / 公制外螺纹带弹性密封圈
X1) O形圈 OR
X2) 密封圈 KDS
（用于小端面油口，ISO 9974）
X3) 密封圈KD
（用于广口端面，ISO 9974）
| 型号 |
系列 |
钢管外径
D1 |
T |
D3 |
D4 |
D5 |
D6 |
L1 |
L2 |
L3 |
L4 |
L5 |
L7 |
S1 |
S2 |
PN(bar)
CF |
PN(bar)
71 |
| WH06LMKDSOMD |
L |
06 |
M10×1.0 |
4 |
4.5 |
14.9 |
17.0 |
19.0 |
12.0 |
10.5 |
8 |
24.0 |
2.5 |
17 |
17 |
315 |
315 |
| WH08LMKDSOMD |
L |
08 |
M12×1.5 |
6 |
6.0 |
17.0 |
22.0 |
21.5 |
14.5 |
14.0 |
12 |
30.0 |
3.0 |
22 |
19 |
315 |
315 |
| WH10LMKDSOMD |
L |
10 |
M14×1.5 |
8 |
6.0 |
18.9 |
22.5 |
22.5 |
15.5 |
14.0 |
12 |
30.0 |
3.0 |
22 |
19 |
315 |
315 |
| WH12LMKDSOMD |
L |
12 |
M16×1.5 |
10 |
7.5 |
21.9 |
27.0 |
25.0 |
18.0 |
16.5 |
12 |
36.0 |
3.0 |
27 |
24 |
315 |
315 |
| WH15LMKDSOMD |
L |
15 |
M18×1.5 |
11 |
9.0 |
23.9 |
29.0 |
27.5 |
21.5 |
18.5 |
12 |
39.5 |
3.0 |
30 |
30 |
315 |
315 |
| WH18LMKDSOMD |
L |
18 |
M22×1.5 |
15 |
12.0 |
26.9 |
32.0 |
28.5 |
21.0 |
21.5 |
14 |
45.0 |
4.5 |
32 |
30 |
315 |
315 |
| WH22LMKDSOMD |
L |
22 |
M26×1.5 |
19 |
17.0 |
31.9 |
41.0 |
35.0 |
27.5 |
24.0 |
16 |
53.0 |
3.5 |
41 |
36 |
160 |
160 |
| WH28LMKDSOMD |
L |
28 |
M33×2.0 |
24 |
21.0 |
39.9 |
46.0 |
39.5 |
32.0 |
30.5 |
18 |
66.0 |
3.5 |
50 |
46 |
160 |
160 |
| WH35LMKDSOMD |
L |
35 |
M42×2.0 |
30 |
27.0 |
49.9 |
57.0 |
46.5 |
36.0 |
35.5 |
20 |
76.0 |
3.5 |
60 |
55 |
160 |
160 |
| WH42LMKDSOMD |
L |
42 |
M48×2.0 |
36 |
34.0 |
55.9 |
64.0 |
51.5 |
40.5 |
40.5 |
22 |
87.0 |
3.5 |
70 |
60 |
160 |
160 |
| WH06SMKDSOMD |
S |
06 |
M12×1.5 |
4 |
6.0 |
17.0 |
22.0 |
23.5 |
16.5 |
14.0 |
12 |
30.0 |
3.0 |
22 |
19 |
400 |
400 |
| WH08SMKDSOMD |
S |
08 |
M14×1.5 |
5 |
6.0 |
18.9 |
22.5 |
23.5 |
16.5 |
14.0 |
12 |
30.0 |
3.0 |
22 |
19 |
400 |
400 |
| WH10SMKDSOMD |
S |
10 |
M16×1.5 |
7 |
7.5 |
21.9 |
27.0 |
26.0 |
18.5 |
16.5 |
12 |
36.0 |
3.0 |
27 |
24 |
400 |
400 |
| WH12SMKDSOMD |
S |
12 |
M18×1.5 |
8 |
9.0 |
23.9 |
29.0 |
27.5 |
20.0 |
18.5 |
12 |
39.5 |
3.0 |
27 |
27 |
400 |
400 |
| WH16SMKDSOMD |
S |
16 |
M22×1.5 |
12 |
12.0 |
26.9 |
32.0 |
30.5 |
22.0 |
21.5 |
14 |
45.0 |
4.5 |
32 |
30 |
315 |
315 |
| WH20SMKDSOMD |
S |
20 |
M27×2.0 |
16 |
16.0 |
32.9 |
41.0 |
37.0 |
26.5 |
24.0 |
16 |
53.0 |
3.5 |
41 |
36 |
315 |
315 |
| WH25SMKDSOMD |
S |
25 |
M33×2.0 |
20 |
21.0 |
39.9 |
46.0 |
43.5 |
31.5 |
30.5 |
18 |
66.0 |
3.5 |
50 |
46 |
250 |
250 |
| WH30SMKDSOMD |
S |
30 |
M42×2.0 |
25 |
27.0 |
49.9 |
57.0 |
50.5 |
37.0 |
35.5 |
20 |
76.0 |
3.5 |
60 |
55 |
160 |
160 |
| WH38SMKDSOMD |
S |
38 |
M48×2.0 |
32 |
34.0 |
55.9 |
64.0 |
57.5 |
41.5 |
40.5 |
22 |
87.0 |
3.5 |
70 |
60 |
160 |
160 |
订货示例：
碳钢，无六价铬镀锌：WH12LMKDSOMDCF
316Ti不锈钢：WH12LMKDOMD71
注：型号不含螺母卡套

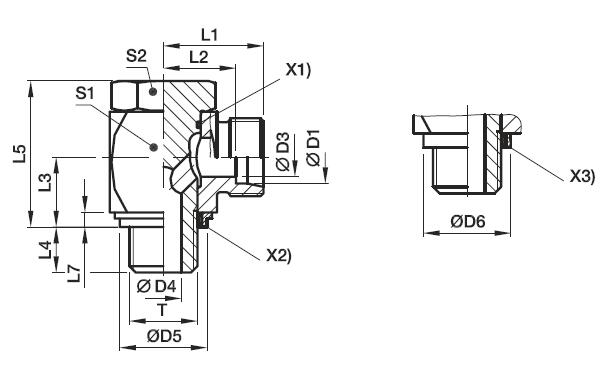

WH-R-KDS/KD 高压铰接式接头 - EO 24°锥 / BSPP 外螺纹带弹性密封圈
X1) O形圈 OR
X2) 密封圈 KDS
（用于小端面油口，ISO 9974）
X3) 密封圈KD
（用于广口端面，ISO 9974）
| 型号 |
系列 |
钢管外径
D1 |
T |
D3 |
D4 |
D5 |
D6 |
L1 |
L2 |
L3 |
L4 |
L5 |
L7 |
S1 |
S2 |
PN(bar)
CF |
PN(bar)
71 |
| WH06LRKDSOMD |
L |
06 |
G1/8A |
4 |
4.5 |
14.9 |
17 |
19.0 |
12.0 |
10.5 |
8 |
24 |
2.5 |
17 |
17 |
315 |
315 |
| WH08LRKDSOMD |
L |
08 |
G1/4A |
6 |
6.0 |
18.9 |
22 |
21.5 |
14.5 |
14.0 |
12 |
30 |
3.0 |
22 |
19 |
315 |
315 |
| WH10LRKDSOMD |
L |
10 |
G1/4A |
8 |
6.0 |
18.9 |
22 |
22.5 |
15.5 |
14.0 |
12 |
30 |
3.0 |
22 |
19 |
315 |
315 |
| WH12LRKDSOMD |
L |
12 |
G3/8A |
10 |
7.5 |
21.9 |
27 |
25.0 |
18.0 |
16.5 |
12 |
36 |
3.0 |
27 |
24 |
315 |
315 |
| WH15LRKDSOMD |
L |
15 |
G1/2A |
12 |
11.0 |
26.9 |
32 |
28.5 |
21.5 |
21.5 |
14 |
45 |
4.5 |
32 |
30 |
315 |
315 |
| WH18LRKDSOMD |
L |
18 |
G1/2A |
15 |
11.0 |
26.9 |
32 |
28.5 |
21.0 |
21.5 |
14 |
45 |
4.5 |
32 |
30 |
315 |
315 |
| WH22LRKDSOMD |
L |
22 |
G3/4A |
19 |
17.0 |
32.9 |
41 |
35.0 |
27.5 |
24.0 |
16 |
53 |
3.5 |
41 |
36 |
160 |
160 |
| WH28LRKDSOMD |
L |
28 |
G1A |
24 |
21.0 |
39.9 |
46 |
39.5 |
32.0 |
30.5 |
18 |
66 |
3.5 |
50 |
46 |
160 |
160 |
| WH35LRKDSOMD |
L |
35 |
G1 1/4A |
30 |
27.0 |
49.9 |
57 |
46.5 |
36.0 |
35.5 |
20 |
76 |
3.5 |
60 |
55 |
160 |
160 |
| WH42LRKDSOMD |
L |
42 |
G1 1/2A |
36 |
34.0 |
55.9 |
64 |
51.5 |
40.5 |
40.5 |
22 |
87 |
3.5 |
70 |
60 |
160 |
160 |
| WH06SRKDSOMD |
S |
06 |
G1/4A |
4 |
6.0 |
18.9 |
22 |
23.5 |
16.5 |
14.0 |
12 |
30 |
3.0 |
22 |
19 |
400 |
400 |
| WH08SRKDSOMD |
S |
08 |
G1/4A |
5 |
6.0 |
18.9 |
22 |
23.5 |
16.5 |
14.0 |
12 |
30 |
3.0 |
22 |
19 |
400 |
400 |
| WH10SRKDSOMD |
S |
10 |
G3/8A |
7 |
7.5 |
21.9 |
27 |
26.0 |
18.5 |
16.5 |
12 |
36 |
3.0 |
27 |
24 |
400 |
400 |
| WH12SRKDSOMD |
S |
12 |
G3/8A |
8 |
7.5 |
21.9 |
27 |
26.0 |
18.5 |
16.5 |
12 |
36 |
3.0 |
27 |
24 |
400 |
400 |
| WH16SRKDSOMD |
S |
16 |
G1/2A |
12 |
11.0 |
26.9 |
32 |
30.5 |
22.0 |
21.5 |
14 |
45 |
4.5 |
32 |
30 |
315 |
315 |
| WH20SRKDSOMD |
S |
20 |
G3/4A |
16 |
17.0 |
32.9 |
41 |
37.0 |
26.5 |
24.0 |
16 |
53 |
3.5 |
41 |
36 |
315 |
315 |
| WH25SRKDSOMD |
S |
25 |
G1A |
20 |
21.0 |
39.9 |
46 |
43.5 |
31.5 |
30.5 |
18 |
66 |
3.5 |
50 |
46 |
250 |
250 |
| WH30SRKDSOMD |
S |
30 |
G1 1/4A |
25 |
27.0 |
49.9 |
57 |
50.5 |
37.0 |
35.5 |
20 |
76 |
3.5 |
60 |
55 |
160 |
160 |
| WH38SRKDSOMD |
S |
38 |
G1 1/2A |
32 |
34.0 |
55.9 |
64 |
57.5 |
41.5 |
40.5 |
22 |
87 |
3.5 |
70 |
60 |
160 |
160 |
订货示例：
碳钢，无六价铬镀锌：WH12LRKDSOMDCF
316Ti不锈钢：WH12LRKDOMD71
注：型号不含螺母卡套

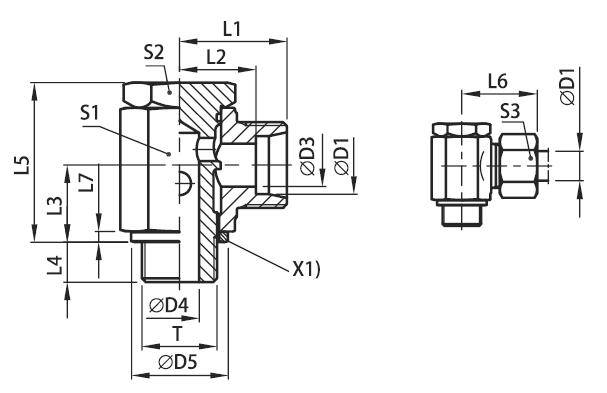

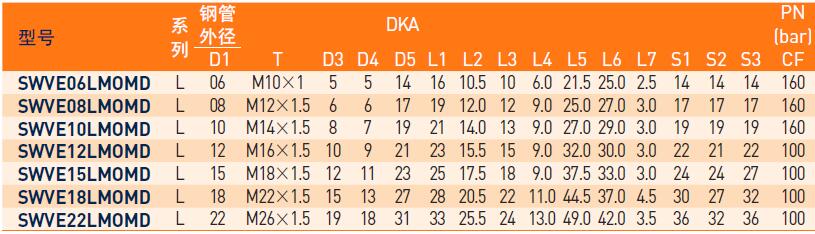

SWVE-M 铰接式接头-公制螺纹 - EO 24°锥
| 型号 |
系列 |
钢管外径
D1 |
T |
D3 |
D4 |
D5 |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
S1 |
S2 |
S3 |
PN(bar)
CF |
| SWVE06LMOMD |
L |
06 |
M10×1 |
5 |
5 |
14 |
16 |
10.5 |
10 |
6.0 |
21.5 |
25.0 |
2.5 |
14 |
14 |
14 |
160 |
| SWVE08LMOMD |
L |
08 |
M12×1.5 |
6 |
6 |
17 |
19 |
12.0 |
12 |
9.0 |
25.0 |
27.0 |
3.0 |
17 |
17 |
17 |
160 |
| SWVE10LMOMD |
L |
10 |
M14×1.5 |
8 |
7 |
19 |
21 |
14.0 |
13 |
9.0 |
27.0 |
29.0 |
3.0 |
19 |
19 |
19 |
160 |
| SWVE12LMOMD |
L |
12 |
M16×1.5 |
10 |
9 |
21 |
23 |
15.5 |
15 |
9.0 |
32.0 |
30.0 |
3.0 |
22 |
21 |
22 |
100 |
| SWVE15LMOMD |
L |
15 |
M18×1.5 |
12 |
11 |
23 |
25 |
17.5 |
18 |
9.0 |
37.5 |
33.0 |
3.0 |
24 |
24 |
27 |
100 |
| SWVE18LMOMD |
L |
18 |
M22×1.5 |
15 |
13 |
27 |
28 |
20.5 |
22 |
11.0 |
44.5 |
37.0 |
4.5 |
30 |
27 |
32 |
100 |
| SWVE22LMOMD |
L |
22 |
M26×1.5 |
19 |
18 |
31 |
33 |
25.5 |
24 |
13.0 |
49.0 |
42.0 |
3.5 |
36 |
32 |
36 |
100 |
订货示例：
碳钢，无六价铬镀锌：SWVE16SMOMDCF, SWVE16SMKDSOMDCF
注：型号不含螺母卡套

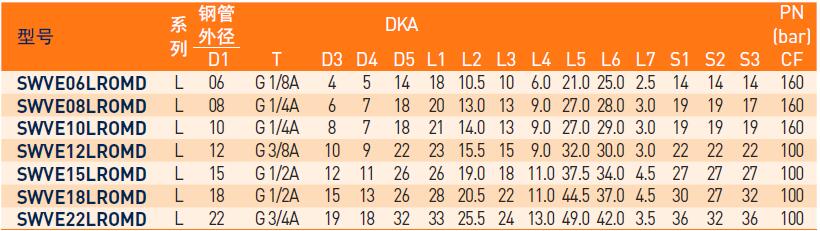

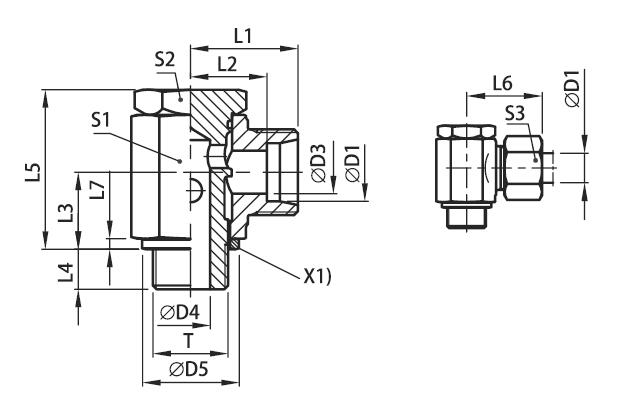

SWVE-R 铰接式接头-英制螺纹 - EO 24°锥
| 型号 |
系列 |
钢管外径
D1 |
T |
D3 |
D4 |
D5 |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
S1 |
S2 |
S3 |
PN(bar)
CF |
| SWVE06LROMD |
L |
06 |
G1/8A |
4 |
5 |
14 |
18 |
10.5 |
10 |
6.0 |
21.0 |
25.0 |
2.5 |
14 |
14 |
14 |
160 |
| SWVE08LROMD |
L |
08 |
G1/4A |
6 |
7 |
18 |
20 |
13.0 |
13 |
9.0 |
27.0 |
28.0 |
3.0 |
19 |
19 |
17 |
160 |
| SWVE10LROMD |
L |
10 |
G1/4A |
8 |
7 |
18 |
21 |
14.0 |
13 |
9.0 |
27.0 |
29.0 |
3.0 |
19 |
19 |
19 |
160 |
| SWVE12LROMD |
L |
12 |
G3/8A |
10 |
9 |
22 |
23 |
15.5 |
15 |
9.0 |
32.0 |
30.0 |
3.0 |
22 |
22 |
22 |
100 |
| SWVE15LROMD |
L |
15 |
G1/2A |
12 |
11 |
26 |
26 |
19.0 |
18 |
11.0 |
37.5 |
34.0 |
4.5 |
27 |
27 |
27 |
100 |
| SWVE18LROMD |
L |
18 |
G1/2A |
15 |
13 |
26 |
28 |
20.5 |
22 |
11.0 |
44.5 |
37.0 |
4.5 |
30 |
27 |
32 |
100 |
| SWVE22LROMD |
L |
22 |
G3/4A |
19 |
18 |
32 |
33 |
25.5 |
24 |
13.0 |
49.0 |
42.0 |
3.5 |
36 |
32 |
36 |
100 |
订货示例：
碳钢，无六价铬镀锌：SWVE16SROMDCF, SWVE16SRKDSOMDCF
注：型号不含螺母卡套
Ermeto DIN banjo fittings 型号
Part Series Connection 1 Style Connection 2 Style Connection 3 Style Connection 1 Tube O.D. (mm) Shape Fitting Material Connection 2 Tube O.D. (mm) Connection Size Pre-Installed Optional Accessories
DSVW06LMCF Light 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW06LMOMDCF Light 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
DSVW06LRCF Light 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
DSVW06LROMDCF Light 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/8 A na
DSVW06SMCF Heavy 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW06SMOMDCF Heavy 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
DSVW06SRCF Heavy 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW06SROMDCF Heavy 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A na
DSVW06ZLMCF Light 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
DSVW06ZLRCF Light 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
DSVW06ZSMCF Heavy 24° cone end Male metric thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
DSVW06ZSRCF Heavy 24° cone end Male BSPP thread na 6 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
DSVW08LMCF Light 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW08LMOMDCF Light 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
DSVW08LRCF Light 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW08LROMDCF Light 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A na
DSVW08SMCF Heavy 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW08SMOMDCF Heavy 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
DSVW08SRCF Heavy 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW08SROMDCF Heavy 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A na
DSVW08ZLMCF Light 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
DSVW08ZLRCF Light 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
DSVW08ZSMCF Heavy 24° cone end Male metric thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
DSVW08ZSRCF Heavy 24° cone end Male BSPP thread na 8 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
DSVW10LMCF Light 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW10LMOMDCF Light 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
DSVW10LRCF Light 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW10LROMDCF Light 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A na
DSVW10SMCF Heavy 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW10SMOMDCF Heavy 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
DSVW10SRCF Heavy 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
DSVW10SROMDCF Heavy 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A na
DSVW10ZLMCF Light 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
DSVW10ZLRCF Light 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
DSVW10ZSMCF Heavy 24° cone end Male metric thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
DSVW10ZSRCF Heavy 24° cone end Male BSPP thread na 10 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
DSVW12LMCF Light 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW12LMOMDCF Light 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
DSVW12LRCF Light 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
DSVW12LROMDCF Light 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A na
DSVW12SMCF Heavy 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW12SMOMDCF Heavy 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
DSVW12SRCF Heavy 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
DSVW12SROMDCF Heavy 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A na
DSVW12ZLMCF Light 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
DSVW12ZLRCF Light 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
DSVW12ZSMCF Heavy 24° cone end Male metric thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
DSVW12ZSRCF Heavy 24° cone end Male BSPP thread na 12 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
DSVW14SMCF Heavy 24° cone end Male metric thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW14SMOMDCF Heavy 24° cone end Male metric thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na M 20x1.5 na
DSVW14SRCF Heavy 24° cone end Male BSPP thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW14SROMDCF Heavy 24° cone end Male BSPP thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A na
DSVW14ZSMCF Heavy 24° cone end Male metric thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with EO-2 functional nut
DSVW14ZSRCF Heavy 24° cone end Male BSPP thread na 14 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
DSVW15LMCF Light 24° cone end Male metric thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW15LMOMDCF Light 24° cone end Male metric thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
DSVW15LRCF Light 24° cone end Male BSPP thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW15LROMDCF Light 24° cone end Male BSPP thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A na
DSVW15ZLMCF Light 24° cone end Male metric thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
DSVW15ZLRCF Light 24° cone end Male BSPP thread na 15 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
DSVW16SMCF Heavy 24° cone end Male metric thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW16SMOMDCF Heavy 24° cone end Male metric thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
DSVW16SRCF Heavy 24° cone end Male BSPP thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW16SROMDCF Heavy 24° cone end Male BSPP thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A na
DSVW16ZSMCF Heavy 24° cone end Male metric thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
DSVW16ZSRCF Heavy 24° cone end Male BSPP thread na 16 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
DSVW18LMCF Light 24° cone end Male metric thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW18LMOMDCF Light 24° cone end Male metric thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
DSVW18LRCF Light 24° cone end Male BSPP thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW18LROMDCF Light 24° cone end Male BSPP thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A na
DSVW18ZLMCF Light 24° cone end Male metric thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
DSVW18ZLRCF Light 24° cone end Male BSPP thread na 18 Low pressure banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
DSVW20SMCF Heavy 24° cone end Male metric thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW20SMOMDCF Heavy 24° cone end Male metric thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na M 27x2.0 na
DSVW20SRCF Heavy 24° cone end Male BSPP thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW20SROMDCF Heavy 24° cone end Male BSPP thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A na
DSVW20ZSMCF Heavy 24° cone end Male metric thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with EO-2 functional nut
DSVW20ZSRCF Heavy 24° cone end Male BSPP thread na 20 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
DSVW22LMCF Light 24° cone end Male metric thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
DSVW22LMOMDCF Light 24° cone end Male metric thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na M 26x1.5 na
DSVW22LRCF Light 24° cone end Male BSPP thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW22LROMDCF Light 24° cone end Male BSPP thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A na
DSVW22ZLMCF Light 24° cone end Male metric thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with EO-2 functional nut
DSVW22ZLRCF Light 24° cone end Male BSPP thread na 22 Low pressure banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
DSVW25SMCF Heavy 24° cone end Male metric thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW25SMOMDCF Heavy 24° cone end Male metric thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
DSVW25SRCF Heavy 24° cone end Male BSPP thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
DSVW25SROMDCF Heavy 24° cone end Male BSPP thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A na
DSVW25ZSMCF Heavy 24° cone end Male metric thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
DSVW25ZSRCF Heavy 24° cone end Male BSPP thread na 25 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
DSVW28LMCF Light 24° cone end Male metric thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW28LMOMDCF Light 24° cone end Male metric thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
DSVW28LRCF Light 24° cone end Male BSPP thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
DSVW28LROMDCF Light 24° cone end Male BSPP thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A na
DSVW28ZLMCF Light 24° cone end Male metric thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
DSVW28ZLRCF Light 24° cone end Male BSPP thread na 28 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
DSVW30SMCF Heavy 24° cone end Male metric thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW30SMOMDCF Heavy 24° cone end Male metric thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
DSVW30SRCF Heavy 24° cone end Male BSPP thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW30SROMDCF Heavy 24° cone end Male BSPP thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
DSVW30ZSMCF Heavy 24° cone end Male metric thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
DSVW30ZSRCF Heavy 24° cone end Male BSPP thread na 30 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
DSVW35LMCF Light 24° cone end Male metric thread na 35 Low pressure banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW35LMOMDCF Light 24° cone end Male metric thread na 35 Low pressure banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
DSVW35LRCF Light 24° cone end Male BSPP thread na 35 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
DSVW35LROMDCF Light 24° cone end Male BSPP thread na 35 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
DSVW35ZLMCF Light 24° cone end Male metric thread na 35 Low pressure banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
DSVW35ZLRCF Light 24° cone end Male BSPP thread na 35 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
DSVW38SMCF Heavy 24° cone end Male metric thread na 38 Low pressure banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW38SMOMDCF Heavy 24° cone end Male metric thread na 38 Low pressure banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
DSVW38SRCF Heavy 24° cone end Male BSPP thread na 38 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW38SROMDCF Heavy 24° cone end Male BSPP thread na 38 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
DSVW38ZSMCF Heavy 24° cone end Male metric thread na 38 Low pressure banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
DSVW38ZSRCF Heavy 24° cone end Male BSPP thread na 38 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
DSVW42LMCF Light 24° cone end Male metric thread na 42 Low pressure banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
DSVW42LMOMDCF Light 24° cone end Male metric thread na 42 Low pressure banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
DSVW42LRCF Light 24° cone end Male BSPP thread na 42 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
DSVW42LROMDCF Light 24° cone end Male BSPP thread na 42 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
DSVW42ZLMCF Light 24° cone end Male metric thread na 42 Low pressure banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
DSVW42ZLRCF Light 24° cone end Male BSPP thread na 42 Low pressure banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
SWVE04LLMCF Very light 24° cone end Metric male stud with metal seal ring na 4 Metric male stud banjo elbow Steel, Chromium-6 Free na M 08x1.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE04LLMOMDCF Very light 24° cone end Metric male stud with metal seal ring na 4 Metric male stud banjo elbow Steel, Chromium-6 Free na M 08x1.0 na
SWVE04LLRCF Very light 24° cone end BSPP male stud with metal seal ring na 4 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE04LLRKDSCF Very light 24° cone end BSPP mal stud with soft seal ring na 4 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE04LLRKDSOMDCF Very light 24° cone end BSPP mal stud with soft seal ring na 4 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A na
SWVE04LLROMDCF Very light 24° cone end BSPP male stud with metal seal ring na 4 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A na
SWVE04ZLLMCF Very light 24° cone end Metric male stud with metal seal ring na 4 Metric male stud banjo elbow Steel, Chromium-6 Free na M 08x1.0 Pre-assembled with EO-2 functional nut
SWVE04ZLLRCF Very light 24° cone end BSPP male stud with metal seal ring na 4 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
SWVE04ZLLRKDSCF Very light 24° cone end BSPP mal stud with soft seal ring na 4 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
SWVE06LLMCF Very light 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE06LLMKDSCF Very light 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE06LLMKDSOMDCF Very light 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
SWVE06LLMOMDCF Very light 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
SWVE06LLRCF Very light 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE06LLRKDSCF Very light 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE06LLRKDSOMDCF Very light 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A na
SWVE06LLROMDCF Very light 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A na
SWVE06LMCF Light 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE06LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE06LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
SWVE06LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
SWVE06LRCF Light 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE06LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE06LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A na
SWVE06LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A na
SWVE06SMCF Heavy 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE06SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE06SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
SWVE06SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
SWVE06SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE06SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE06SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A na
SWVE06SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A na
SWVE06ZLLMCF Very light 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
SWVE06ZLLMKDSCF Very light 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
SWVE06ZLLRCF Very light 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
SWVE06ZLLRKDSCF Very light 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
SWVE06ZLMCF Light 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
SWVE06ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
SWVE06ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
SWVE06ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
SWVE06ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
SWVE06ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 6 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
SWVE06ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
SWVE06ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 6 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
SWVE08LLMCF Very light 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE08LLMKDSCF Very light 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE08LLMKDSOMDCF Very light 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
SWVE08LLMOMDCF Very light 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
SWVE08LLRCF Very light 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE08LLRKDSCF Very light 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE08LLRKDSOMDCF Very light 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A na
SWVE08LLROMDCF Very light 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A na
SWVE08LMCF Light 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE08LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE08LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
SWVE08LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
SWVE08LRCF Light 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE08LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE08LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A na
SWVE08LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A na
SWVE08SMCF Heavy 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE08SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE08SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
SWVE08SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
SWVE08SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE08SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE08SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A na
SWVE08SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A na
SWVE08ZLLMCF Very light 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
SWVE08ZLLMKDSCF Very light 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
SWVE08ZLLRCF Very light 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
SWVE08ZLLRKDSCF Very light 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
SWVE08ZLMCF Light 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
SWVE08ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
SWVE08ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
SWVE08ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
SWVE08ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
SWVE08ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 8 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
SWVE08ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
SWVE08ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 8 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
SWVE10LMCF Light 24° cone end Metric male stud with metal seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE10LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE10LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
SWVE10LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
SWVE10LRCF Light 24° cone end BSPP male stud with metal seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE10LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE10LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A na
SWVE10LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A na
SWVE10SMCF Heavy 24° cone end Metric male stud with metal seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE10SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE10SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
SWVE10SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
SWVE10SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE10SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE10SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A na
SWVE10SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A na
SWVE10ZLMCF Light 24° cone end Metric male stud with metal seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
SWVE10ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
SWVE10ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
SWVE10ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
SWVE10ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
SWVE10ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 10 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
SWVE10ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
SWVE10ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 10 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
SWVE12LMCF Light 24° cone end Metric male stud with metal seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE12LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE12LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
SWVE12LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
SWVE12LRCF Light 24° cone end BSPP male stud with metal seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE12LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE12LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A na
SWVE12LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A na
SWVE12SMCF Heavy 24° cone end Metric male stud with metal seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE12SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE12SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
SWVE12SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
SWVE12SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE12SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
SWVE12SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A na
SWVE12SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A na
SWVE12ZLMCF Light 24° cone end Metric male stud with metal seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
SWVE12ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
SWVE12ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
SWVE12ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
SWVE12ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
SWVE12ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 12 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
SWVE12ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
SWVE12ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 12 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
SWVE14SMCF Heavy 24° cone end Metric male stud with metal seal ring na 14 Metric male stud banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE14SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 14 Metric male stud banjo elbow Steel, Chromium-6 Free na M 20x1.5 na
SWVE14SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 14 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE14SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 14 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE14SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 14 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A na
SWVE14SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 14 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A na
SWVE14ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 14 Metric male stud banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with EO-2 functional nut
SWVE14ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 14 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
SWVE14ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 14 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
SWVE15LMCF Light 24° cone end Metric male stud with metal seal ring na 15 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE15LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 15 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE15LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 15 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
SWVE15LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 15 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
SWVE15LRCF Light 24° cone end BSPP male stud with metal seal ring na 15 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE15LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 15 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE15LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 15 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A na
SWVE15LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 15 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A na
SWVE15ZLMCF Light 24° cone end Metric male stud with metal seal ring na 15 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
SWVE15ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 15 Metric male stud banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
SWVE15ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 15 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
SWVE15ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 15 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
SWVE16SMCF Heavy 24° cone end Metric male stud with metal seal ring na 16 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE16SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 16 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE16SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 16 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
SWVE16SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 16 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
SWVE16SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 16 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE16SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 16 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE16SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 16 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A na
SWVE16SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 16 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A na
SWVE16ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 16 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
SWVE16ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 16 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
SWVE16ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 16 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
SWVE16ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 16 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
SWVE18LMCF Light 24° cone end Metric male stud with metal seal ring na 18 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE18LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 18 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE18LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 18 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
SWVE18LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 18 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
SWVE18LRCF Light 24° cone end BSPP male stud with metal seal ring na 18 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE18LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 18 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE18LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 18 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A na
SWVE18LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 18 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A na
SWVE18ZLMCF Light 24° cone end Metric male stud with metal seal ring na 18 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
SWVE18ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 18 Metric male stud banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
SWVE18ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 18 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
SWVE18ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 18 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
SWVE20SMCF Heavy 24° cone end Metric male stud with metal seal ring na 20 Metric male stud banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE20SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 20 Metric male stud banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE20SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 20 Metric male stud banjo elbow Steel, Chromium-6 Free na M 27x2.0 na
SWVE20SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 20 Metric male stud banjo elbow Steel, Chromium-6 Free na M 27x2.0 na
SWVE20SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 20 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE20SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 20 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE20SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 20 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A na
SWVE20SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 20 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A na
SWVE20ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 20 Metric male stud banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with EO-2 functional nut
SWVE20ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 20 Metric male stud banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with EO-2 functional nut
SWVE20ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 20 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
SWVE20ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 20 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
SWVE22LMCF Light 24° cone end Metric male stud with metal seal ring na 22 Metric male stud banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE22LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 22 Metric male stud banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
SWVE22LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 22 Metric male stud banjo elbow Steel, Chromium-6 Free na M 26x1.5 na
SWVE22LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 22 Metric male stud banjo elbow Steel, Chromium-6 Free na M 26x1.5 na
SWVE22LRCF Light 24° cone end BSPP male stud with metal seal ring na 22 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE22LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 22 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE22LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 22 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A na
SWVE22LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 22 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A na
SWVE22ZLMCF Light 24° cone end Metric male stud with metal seal ring na 22 Metric male stud banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with EO-2 functional nut
SWVE22ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 22 Metric male stud banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with EO-2 functional nut
SWVE22ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 22 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
SWVE22ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 22 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
SWVE25SMCF Heavy 24° cone end Metric male stud with metal seal ring na 25 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE25SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 25 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE25SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 25 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
SWVE25SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 25 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
SWVE25SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 25 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
SWVE25SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 25 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
SWVE25SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 25 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A na
SWVE25SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 25 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A na
SWVE25ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 25 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
SWVE25ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 25 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
SWVE25ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 25 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
SWVE25ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 25 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
SWVE28LMCF Light 24° cone end Metric male stud with metal seal ring na 28 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE28LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 28 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE28LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 28 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
SWVE28LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 28 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
SWVE28LRCF Light 24° cone end BSPP male stud with metal seal ring na 28 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
SWVE28LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 28 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
SWVE28LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 28 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A na
SWVE28LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 28 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A na
SWVE28ZLMCF Light 24° cone end Metric male stud with metal seal ring na 28 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
SWVE28ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 28 Metric male stud banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
SWVE28ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 28 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
SWVE28ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 28 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
SWVE30SMCF Heavy 24° cone end Metric male stud with metal seal ring na 30 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE30SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 30 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE30SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 30 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
SWVE30SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 30 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
SWVE30SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 30 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE30SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 30 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE30SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 30 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
SWVE30SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 30 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
SWVE30ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 30 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
SWVE30ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 30 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
SWVE30ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 30 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
SWVE30ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 30 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
SWVE35LMCF Light 24° cone end Metric male stud with metal seal ring na 35 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE35LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 35 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE35LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 35 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
SWVE35LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 35 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
SWVE35LRCF Light 24° cone end BSPP male stud with metal seal ring na 35 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE35LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 35 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
SWVE35LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 35 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
SWVE35LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 35 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
SWVE35ZLMCF Light 24° cone end Metric male stud with metal seal ring na 35 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
SWVE35ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 35 Metric male stud banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
SWVE35ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 35 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
SWVE35ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 35 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
SWVE38SMCF Heavy 24° cone end Metric male stud with metal seal ring na 38 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE38SMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 38 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE38SMKDSOMDCF Heavy 24° cone end Metric male stud with soft seal ring na 38 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
SWVE38SMOMDCF Heavy 24° cone end Metric male stud with metal seal ring na 38 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
SWVE38SRCF Heavy 24° cone end BSPP male stud with metal seal ring na 38 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE38SRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 38 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE38SRKDSOMDCF Heavy 24° cone end BSPP mal stud with soft seal ring na 38 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
SWVE38SROMDCF Heavy 24° cone end BSPP male stud with metal seal ring na 38 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
SWVE38ZSMCF Heavy 24° cone end Metric male stud with metal seal ring na 38 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
SWVE38ZSMKDSCF Heavy 24° cone end Metric male stud with soft seal ring na 38 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
SWVE38ZSRCF Heavy 24° cone end BSPP male stud with metal seal ring na 38 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
SWVE38ZSRKDSCF Heavy 24° cone end BSPP mal stud with soft seal ring na 38 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
SWVE42LMCF Light 24° cone end Metric male stud with metal seal ring na 42 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE42LMKDSCF Light 24° cone end Metric male stud with soft seal ring na 42 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
SWVE42LMKDSOMDCF Light 24° cone end Metric male stud with soft seal ring na 42 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
SWVE42LMOMDCF Light 24° cone end Metric male stud with metal seal ring na 42 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
SWVE42LRCF Light 24° cone end BSPP male stud with metal seal ring na 42 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE42LRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 42 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
SWVE42LRKDSOMDCF Light 24° cone end BSPP mal stud with soft seal ring na 42 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
SWVE42LROMDCF Light 24° cone end BSPP male stud with metal seal ring na 42 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
SWVE42ZLMCF Light 24° cone end Metric male stud with metal seal ring na 42 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
SWVE42ZLMKDSCF Light 24° cone end Metric male stud with soft seal ring na 42 Metric male stud banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
SWVE42ZLRCF Light 24° cone end BSPP male stud with metal seal ring na 42 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
SWVE42ZLRKDSCF Light 24° cone end BSPP mal stud with soft seal ring na 42 BSPP male stud banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
TH06LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Stainless steel 6 M 10x1.0 Pre-assembled with nut and EO-DPR cutting ring
TH06LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
TH06LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Stainless steel 6 M 10x1.0 Pre-assembled with nut and EO-DPR cutting ring
TH06LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Stainless steel 6 M 10x1.0 na
TH06LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
TH06LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 M 10x1.0 na
TH06LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Stainless steel 6 M 10x1.0 na
TH06LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 M 10x1.0 na
TH06LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Stainless steel 6 G 1/8 A Pre-assembled with nut and EO-DPR cutting ring
TH06LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
TH06LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Stainless steel 6 G 1/8 A Pre-assembled with nut and EO-DPR cutting ring
TH06LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Stainless steel 6 G 1/8 A na
TH06LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
TH06LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/8 A na
TH06LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Stainless steel 6 G 1/8 A na
TH06LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/8 A na
TH06SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Stainless steel 6 M 12x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH06SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH06SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Stainless steel 6 M 12x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH06SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Stainless steel 6 M 12x1.5 na
TH06SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH06SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 M 12x1.5 na
TH06SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Stainless steel 6 M 12x1.5 na
TH06SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 M 12x1.5 na
TH06SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Stainless steel 6 G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH06SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH06SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Stainless steel 6 G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH06SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Stainless steel 6 G 1/4 A na
TH06SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH06SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/4 A na
TH06SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Stainless steel 6 G 1/4 A na
TH06SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/4 A na
TH06ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Stainless steel 6 M 10x1.0 Pre-assembled with EO-2 functional nut
TH06ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 M 10x1.0 Pre-assembled with EO-2 functional nut
TH06ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Stainless steel 6 M 10x1.0 Pre-assembled with EO-2 functional nut
TH06ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 M 10x1.0 Pre-assembled with EO-2 functional nut
TH06ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Stainless steel 6 G 1/8 A Pre-assembled with EO-2 functional nut
TH06ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/8 A Pre-assembled with EO-2 functional nut
TH06ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Stainless steel 6 G 1/8 A Pre-assembled with EO-2 functional nut
TH06ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/8 A Pre-assembled with EO-2 functional nut
TH06ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Stainless steel 6 M 12x1.5 Pre-assembled with EO-2 functional nut
TH06ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 M 12x1.5 Pre-assembled with EO-2 functional nut
TH06ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Stainless steel 6 M 12x1.5 Pre-assembled with EO-2 functional nut
TH06ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 M 12x1.5 Pre-assembled with EO-2 functional nut
TH06ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Stainless steel 6 G 1/4 A Pre-assembled with EO-2 functional nut
TH06ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/4 A Pre-assembled with EO-2 functional nut
TH06ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Stainless steel 6 G 1/4 A Pre-assembled with EO-2 functional nut
TH06ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 6 Banjo tee Steel, Chromium-6 Free 6 G 1/4 A Pre-assembled with EO-2 functional nut
TH08LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Stainless steel 8 M 12x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH08LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH08LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Stainless steel 8 M 12x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH08LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Stainless steel 8 M 12x1.5 na
TH08LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH08LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 M 12x1.5 na
TH08LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Stainless steel 8 M 12x1.5 na
TH08LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 M 12x1.5 na
TH08LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Stainless steel 8 G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH08LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH08LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Stainless steel 8 G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH08LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Stainless steel 8 G 1/4 A na
TH08LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH08LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A na
TH08LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Stainless steel 8 G 1/4 A na
TH08LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A na
TH08SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Stainless steel 8 M 14x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH08SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH08SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Stainless steel 8 M 14x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH08SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Stainless steel 8 M 14x1.5 na
TH08SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH08SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 M 14x1.5 na
TH08SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Stainless steel 8 M 14x1.5 na
TH08SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 M 14x1.5 na
TH08SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Stainless steel 8 G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH08SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH08SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Stainless steel 8 G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH08SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Stainless steel 8 G 1/4 A na
TH08SRKDOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A na
TH08SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH08SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Stainless steel 8 G 1/4 A na
TH08SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A na
TH08ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Stainless steel 8 M 12x1.5 Pre-assembled with EO-2 functional nut
TH08ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 M 12x1.5 Pre-assembled with EO-2 functional nut
TH08ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Stainless steel 8 M 12x1.5 Pre-assembled with EO-2 functional nut
TH08ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 M 12x1.5 Pre-assembled with EO-2 functional nut
TH08ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Stainless steel 8 G 1/4 A Pre-assembled with EO-2 functional nut
TH08ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A Pre-assembled with EO-2 functional nut
TH08ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Stainless steel 8 G 1/4 A Pre-assembled with EO-2 functional nut
TH08ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A Pre-assembled with EO-2 functional nut
TH08ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Stainless steel 8 M 14x1.5 Pre-assembled with EO-2 functional nut
TH08ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 M 14x1.5 Pre-assembled with EO-2 functional nut
TH08ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Stainless steel 8 M 14x1.5 Pre-assembled with EO-2 functional nut
TH08ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 M 14x1.5 Pre-assembled with EO-2 functional nut
TH08ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Stainless steel 8 G 1/4 A Pre-assembled with EO-2 functional nut
TH08ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A Pre-assembled with EO-2 functional nut
TH08ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Stainless steel 8 G 1/4 A Pre-assembled with EO-2 functional nut
TH08ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 8 Banjo tee Steel, Chromium-6 Free 8 G 1/4 A Pre-assembled with EO-2 functional nut
TH10LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Stainless steel 10 M 14x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH10LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH10LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Stainless steel 10 M 14x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH10LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Stainless steel 10 M 14x1.5 na
TH10LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH10LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 M 14x1.5 na
TH10LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Stainless steel 10 M 14x1.5 na
TH10LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 M 14x1.5 na
TH10LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Stainless steel 10 G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH10LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH10LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Stainless steel 10 G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH10LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Stainless steel 10 G 1/4 A na
TH10LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH10LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 G 1/4 A na
TH10LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Stainless steel 10 G 1/4 A na
TH10LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 G 1/4 A na
TH10SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Stainless steel 10 M 16x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH10SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH10SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Stainless steel 10 M 16x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH10SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Stainless steel 10 M 16x1.5 na
TH10SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH10SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 M 16x1.5 na
TH10SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Stainless steel 10 M 16x1.5 na
TH10SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 M 16x1.5 na
TH10SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Stainless steel 10 G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
TH10SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
TH10SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Stainless steel 10 G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
TH10SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Stainless steel 10 G 3/8 A na
TH10SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
TH10SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 G 3/8 A na
TH10SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Stainless steel 10 G 3/8 A na
TH10SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 G 3/8 A na
TH10ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Stainless steel 10 M 14x1.5 Pre-assembled with EO-2 functional nut
TH10ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 M 14x1.5 Pre-assembled with EO-2 functional nut
TH10ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Stainless steel 10 M 14x1.5 Pre-assembled with EO-2 functional nut
TH10ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 M 14x1.5 Pre-assembled with EO-2 functional nut
TH10ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Stainless steel 10 G 1/4 A Pre-assembled with EO-2 functional nut
TH10ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 G 1/4 A Pre-assembled with EO-2 functional nut
TH10ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Stainless steel 10 G 1/4 A Pre-assembled with EO-2 functional nut
TH10ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 G 1/4 A Pre-assembled with EO-2 functional nut
TH10ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Stainless steel 10 M 16x1.5 Pre-assembled with EO-2 functional nut
TH10ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 M 16x1.5 Pre-assembled with EO-2 functional nut
TH10ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Stainless steel 10 M 16x1.5 Pre-assembled with EO-2 functional nut
TH10ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 M 16x1.5 Pre-assembled with EO-2 functional nut
TH10ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Stainless steel 10 G 3/8 A Pre-assembled with EO-2 functional nut
TH10ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 10 Banjo tee Steel, Chromium-6 Free 10 G 3/8 A Pre-assembled with EO-2 functional nut
TH10ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Stainless steel 10 G 3/8 A Pre-assembled with EO-2 functional nut
TH10ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 10 Banjo tee Steel, Chromium-6 Free 10 G 3/8 A Pre-assembled with EO-2 functional nut
TH12LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Stainless steel 12 M 16x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH12LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH12LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Stainless steel 12 M 16x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH12LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Stainless steel 12 M 16x1.5 na
TH12LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH12LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 M 16x1.5 na
TH12LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Stainless steel 12 M 16x1.5 na
TH12LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 M 16x1.5 na
TH12LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Stainless steel 12 G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
TH12LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
TH12LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Stainless steel 12 G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
TH12LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Stainless steel 12 G 3/8 A na
TH12LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
TH12LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A na
TH12LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Stainless steel 12 G 3/8 A na
TH12LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A na
TH12SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Stainless steel 12 M 18x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH12SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH12SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Stainless steel 12 M 18x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH12SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Stainless steel 12 M 18x1.5 na
TH12SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH12SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 M 18x1.5 na
TH12SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Stainless steel 12 M 18x1.5 na
TH12SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 M 18x1.5 na
TH12SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Stainless steel 12 G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
TH12SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
TH12SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Stainless steel 12 G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
TH12SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Stainless steel 12 G 3/8 A na
TH12SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
TH12SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A na
TH12SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Stainless steel 12 G 3/8 A na
TH12SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A na
TH12ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Stainless steel 12 M 16x1.5 Pre-assembled with EO-2 functional nut
TH12ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 M 16x1.5 Pre-assembled with EO-2 functional nut
TH12ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Stainless steel 12 M 16x1.5 Pre-assembled with EO-2 functional nut
TH12ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 M 16x1.5 Pre-assembled with EO-2 functional nut
TH12ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Stainless steel 12 G 3/8 A Pre-assembled with EO-2 functional nut
TH12ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A Pre-assembled with EO-2 functional nut
TH12ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Stainless steel 12 G 3/8 A Pre-assembled with EO-2 functional nut
TH12ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A Pre-assembled with EO-2 functional nut
TH12ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Stainless steel 12 M 18x1.5 Pre-assembled with EO-2 functional nut
TH12ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 M 18x1.5 Pre-assembled with EO-2 functional nut
TH12ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Stainless steel 12 M 18x1.5 Pre-assembled with EO-2 functional nut
TH12ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 M 18x1.5 Pre-assembled with EO-2 functional nut
TH12ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Stainless steel 12 G 3/8 A Pre-assembled with EO-2 functional nut
TH12ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A Pre-assembled with EO-2 functional nut
TH12ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Stainless steel 12 G 3/8 A Pre-assembled with EO-2 functional nut
TH12ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 12 Banjo tee Steel, Chromium-6 Free 12 G 3/8 A Pre-assembled with EO-2 functional nut
TH14SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 14 Banjo tee Stainless steel 14 M 20x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH14SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 14 Banjo tee Steel, Chromium-6 Free 14 M 20x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH14SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 14 Banjo tee Stainless steel 14 M 20x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH14SMKDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 14 Banjo tee Steel, Chromium-6 Free 14 M 20x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH14SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 14 Banjo tee Stainless steel 14 M 20x1.5 na
TH14SMKDOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 14 Banjo tee Steel, Chromium-6 Free 14 M 20x1.5 na
TH14SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 14 Banjo tee Stainless steel 14 M 20x1.5 na
TH14SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 14 Banjo tee Steel, Chromium-6 Free 14 M 20x1.5 na
TH14SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 14 Banjo tee Stainless steel 14 G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH14SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 14 Banjo tee Steel, Chromium-6 Free 14 G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH14SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 14 Banjo tee Stainless steel 14 G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH14SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 14 Banjo tee Stainless steel 14 G 1/2 A na
TH14SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 14 Banjo tee Steel, Chromium-6 Free 14 G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH14SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 14 Banjo tee Steel, Chromium-6 Free 14 G 1/2 A na
TH14SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 14 Banjo tee Stainless steel 14 G 1/2 A na
TH14SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 14 Banjo tee Steel, Chromium-6 Free 14 G 1/2 A na
TH14ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 14 Banjo tee Stainless steel 14 M 20x1.5 Pre-assembled with EO-2 functional nut
TH14ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 14 Banjo tee Steel, Chromium-6 Free 14 M 20x1.5 Pre-assembled with EO-2 functional nut
TH14ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 14 Banjo tee Stainless steel 14 M 20x1.5 Pre-assembled with EO-2 functional nut
TH14ZSMKDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 14 Banjo tee Steel, Chromium-6 Free 14 M 20x1.5 Pre-assembled with EO-2 functional nut
TH14ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 14 Banjo tee Stainless steel 14 G 1/2 A Pre-assembled with EO-2 functional nut
TH14ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 14 Banjo tee Steel, Chromium-6 Free 14 G 1/2 A Pre-assembled with EO-2 functional nut
TH14ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 14 Banjo tee Stainless steel 14 G 1/2 A Pre-assembled with EO-2 functional nut
TH14ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 14 Banjo tee Steel, Chromium-6 Free 14 G 1/2 A Pre-assembled with EO-2 functional nut
TH15LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 15 Banjo tee Stainless steel 15 M 18x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH15LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 15 Banjo tee Steel, Chromium-6 Free 15 M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH15LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 15 Banjo tee Stainless steel 15 M 18x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH15LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 15 Banjo tee Stainless steel 15 M 18x1.5 na
TH15LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 15 Banjo tee Steel, Chromium-6 Free 15 M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH15LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 15 Banjo tee Steel, Chromium-6 Free 15 M 18x1.5 na
TH15LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 15 Banjo tee Stainless steel 15 M 18x1.5 na
TH15LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 15 Banjo tee Steel, Chromium-6 Free 15 M 18x1.5 na
TH15LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 15 Banjo tee Stainless steel 15 G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH15LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 15 Banjo tee Steel, Chromium-6 Free 15 G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH15LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 15 Banjo tee Stainless steel 15 G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH15LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 15 Banjo tee Stainless steel 15 G 1/2 A na
TH15LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 15 Banjo tee Steel, Chromium-6 Free 15 G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH15LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 15 Banjo tee Steel, Chromium-6 Free 15 G 1/2 A na
TH15LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 15 Banjo tee Stainless steel 15 G 1/2 A na
TH15LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 15 Banjo tee Steel, Chromium-6 Free 15 G 1/2 A na
TH15ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 15 Banjo tee Stainless steel 15 M 18x1.5 Pre-assembled with EO-2 functional nut
TH15ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 15 Banjo tee Steel, Chromium-6 Free 15 M 18x1.5 Pre-assembled with EO-2 functional nut
TH15ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 15 Banjo tee Stainless steel 15 M 18x1.5 Pre-assembled with EO-2 functional nut
TH15ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 15 Banjo tee Steel, Chromium-6 Free 15 M 18x1.5 Pre-assembled with EO-2 functional nut
TH15ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 15 Banjo tee Stainless steel 15 G 1/2 A Pre-assembled with EO-2 functional nut
TH15ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 15 Banjo tee Steel, Chromium-6 Free 15 G 1/2 A Pre-assembled with EO-2 functional nut
TH15ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 15 Banjo tee Stainless steel 15 G 1/2 A Pre-assembled with EO-2 functional nut
TH15ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 15 Banjo tee Steel, Chromium-6 Free 15 G 1/2 A Pre-assembled with EO-2 functional nut
TH16SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 16 Banjo tee Stainless steel 16 M 22x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH16SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 16 Banjo tee Steel, Chromium-6 Free 16 M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH16SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 16 Banjo tee Stainless steel 16 M 22x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH16SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 16 Banjo tee Stainless steel 16 M 22x1.5 na
TH16SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 16 Banjo tee Steel, Chromium-6 Free 16 M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH16SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 16 Banjo tee Steel, Chromium-6 Free 16 M 22x1.5 na
TH16SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 16 Banjo tee Stainless steel 16 M 22x1.5 na
TH16SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 16 Banjo tee Steel, Chromium-6 Free 16 M 22x1.5 na
TH16SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 16 Banjo tee Stainless steel 16 G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH16SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 16 Banjo tee Steel, Chromium-6 Free 16 G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH16SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 16 Banjo tee Stainless steel 16 G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH16SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 16 Banjo tee Stainless steel 16 G 1/2 A na
TH16SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 16 Banjo tee Steel, Chromium-6 Free 16 G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH16SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 16 Banjo tee Steel, Chromium-6 Free 16 G 1/2 A na
TH16SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 16 Banjo tee Stainless steel 16 G 1/2 A na
TH16SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 16 Banjo tee Steel, Chromium-6 Free 16 G 1/2 A na
TH16ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 16 Banjo tee Stainless steel 16 M 22x1.5 Pre-assembled with EO-2 functional nut
TH16ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 16 Banjo tee Steel, Chromium-6 Free 16 M 22x1.5 Pre-assembled with EO-2 functional nut
TH16ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 16 Banjo tee Stainless steel 16 M 22x1.5 Pre-assembled with EO-2 functional nut
TH16ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 16 Banjo tee Steel, Chromium-6 Free 16 M 22x1.5 Pre-assembled with EO-2 functional nut
TH16ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 16 Banjo tee Stainless steel 16 G 1/2 A Pre-assembled with EO-2 functional nut
TH16ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 16 Banjo tee Steel, Chromium-6 Free 16 G 1/2 A Pre-assembled with EO-2 functional nut
TH16ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 16 Banjo tee Stainless steel 16 G 1/2 A Pre-assembled with EO-2 functional nut
TH16ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 16 Banjo tee Steel, Chromium-6 Free 16 G 1/2 A Pre-assembled with EO-2 functional nut
TH18LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 18 Banjo tee Stainless steel 18 M 22x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH18LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 18 Banjo tee Steel, Chromium-6 Free 18 M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH18LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 18 Banjo tee Stainless steel 18 M 22x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH18LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 18 Banjo tee Stainless steel 18 M 22x1.5 na
TH18LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 18 Banjo tee Steel, Chromium-6 Free 18 M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH18LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 18 Banjo tee Steel, Chromium-6 Free 18 M 22x1.5 na
TH18LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 18 Banjo tee Stainless steel 18 M 22x1.5 na
TH18LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 18 Banjo tee Steel, Chromium-6 Free 18 M 22x1.5 na
TH18LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 18 Banjo tee Stainless steel 18 G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH18LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 18 Banjo tee Steel, Chromium-6 Free 18 G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH18LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 18 Banjo tee Stainless steel 18 G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH18LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 18 Banjo tee Stainless steel 18 G 1/2 A na
TH18LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 18 Banjo tee Steel, Chromium-6 Free 18 G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH18LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 18 Banjo tee Steel, Chromium-6 Free 18 G 1/2 A na
TH18LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 18 Banjo tee Stainless steel 18 G 1/2 A na
TH18LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 18 Banjo tee Steel, Chromium-6 Free 18 G 1/2 A na
TH18ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 18 Banjo tee Stainless steel 18 M 22x1.5 Pre-assembled with EO-2 functional nut
TH18ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 18 Banjo tee Steel, Chromium-6 Free 18 M 22x1.5 Pre-assembled with EO-2 functional nut
TH18ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 18 Banjo tee Stainless steel 18 M 22x1.5 Pre-assembled with EO-2 functional nut
TH18ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 18 Banjo tee Steel, Chromium-6 Free 18 M 22x1.5 Pre-assembled with EO-2 functional nut
TH18ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 18 Banjo tee Stainless steel 18 G 1/2 A Pre-assembled with EO-2 functional nut
TH18ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 18 Banjo tee Steel, Chromium-6 Free 18 G 1/2 A Pre-assembled with EO-2 functional nut
TH18ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 18 Banjo tee Stainless steel 18 G 1/2 A Pre-assembled with EO-2 functional nut
TH18ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 18 Banjo tee Steel, Chromium-6 Free 18 G 1/2 A Pre-assembled with EO-2 functional nut
TH20SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 20 Banjo tee Stainless steel 20 M 27x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH20SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 20 Banjo tee Steel, Chromium-6 Free 20 M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH20SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 20 Banjo tee Stainless steel 20 M 27x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH20SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 20 Banjo tee Stainless steel 20 M 27x2.0 na
TH20SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 20 Banjo tee Steel, Chromium-6 Free 20 M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH20SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 20 Banjo tee Steel, Chromium-6 Free 20 M 27x2.0 na
TH20SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 20 Banjo tee Stainless steel 20 M 27x2.0 na
TH20SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 20 Banjo tee Steel, Chromium-6 Free 20 M 27x2.0 na
TH20SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 20 Banjo tee Stainless steel 20 G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
TH20SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 20 Banjo tee Steel, Chromium-6 Free 20 G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
TH20SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 20 Banjo tee Stainless steel 20 G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
TH20SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 20 Banjo tee Stainless steel 20 G 3/4 A na
TH20SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 20 Banjo tee Steel, Chromium-6 Free 20 G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
TH20SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 20 Banjo tee Steel, Chromium-6 Free 20 G 3/4 A na
TH20SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 20 Banjo tee Stainless steel 20 G 3/4 A na
TH20SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 20 Banjo tee Steel, Chromium-6 Free 20 G 3/4 A na
TH20ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 20 Banjo tee Stainless steel 20 M 27x2.0 Pre-assembled with EO-2 functional nut
TH20ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 20 Banjo tee Steel, Chromium-6 Free 20 M 27x2.0 Pre-assembled with EO-2 functional nut
TH20ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 20 Banjo tee Stainless steel 20 M 27x2.0 Pre-assembled with EO-2 functional nut
TH20ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 20 Banjo tee Steel, Chromium-6 Free 20 M 27x2.0 Pre-assembled with EO-2 functional nut
TH20ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 20 Banjo tee Stainless steel 20 G 3/4 A Pre-assembled with EO-2 functional nut
TH20ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 20 Banjo tee Steel, Chromium-6 Free 20 G 3/4 A Pre-assembled with EO-2 functional nut
TH20ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 20 Banjo tee Stainless steel 20 G 3/4 A Pre-assembled with EO-2 functional nut
TH20ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 20 Banjo tee Steel, Chromium-6 Free 20 G 3/4 A Pre-assembled with EO-2 functional nut
TH22LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 22 Banjo tee Stainless steel 22 M 26x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH22LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 22 Banjo tee Steel, Chromium-6 Free 22 M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH22LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 22 Banjo tee Stainless steel 22 M 26x1.5 Pre-assembled with nut and EO-DPR cutting ring
TH22LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 22 Banjo tee Stainless steel 22 M 26x1.5 na
TH22LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 22 Banjo tee Steel, Chromium-6 Free 22 M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
TH22LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 22 Banjo tee Steel, Chromium-6 Free 22 M 26x1.5 na
TH22LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 22 Banjo tee Stainless steel 22 M 26x1.5 na
TH22LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 22 Banjo tee Steel, Chromium-6 Free 22 M 26x1.5 na
TH22LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 22 Banjo tee Stainless steel 22 G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
TH22LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 22 Banjo tee Steel, Chromium-6 Free 22 G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
TH22LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 22 Banjo tee Stainless steel 22 G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
TH22LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 22 Banjo tee Stainless steel 22 G 3/4 A na
TH22LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 22 Banjo tee Steel, Chromium-6 Free 22 G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
TH22LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 22 Banjo tee Steel, Chromium-6 Free 22 G 3/4 A na
TH22LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 22 Banjo tee Stainless steel 22 G 3/4 A na
TH22LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 22 Banjo tee Steel, Chromium-6 Free 22 G 3/4 A na
TH22ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 22 Banjo tee Stainless steel 22 M 26x1.5 Pre-assembled with EO-2 functional nut
TH22ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 22 Banjo tee Steel, Chromium-6 Free 22 M 26x1.5 Pre-assembled with EO-2 functional nut
TH22ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 22 Banjo tee Stainless steel 22 M 26x1.5 Pre-assembled with EO-2 functional nut
TH22ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 22 Banjo tee Steel, Chromium-6 Free 22 M 26x1.5 Pre-assembled with EO-2 functional nut
TH22ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 22 Banjo tee Stainless steel 22 G 3/4 A Pre-assembled with EO-2 functional nut
TH22ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 22 Banjo tee Steel, Chromium-6 Free 22 G 3/4 A Pre-assembled with EO-2 functional nut
TH22ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 22 Banjo tee Stainless steel 22 G 3/4 A Pre-assembled with EO-2 functional nut
TH22ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 22 Banjo tee Steel, Chromium-6 Free 22 G 3/4 A Pre-assembled with EO-2 functional nut
TH25SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 25 Banjo tee Stainless steel 25 M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH25SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 25 Banjo tee Steel, Chromium-6 Free 25 M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH25SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 25 Banjo tee Stainless steel 25 M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH25SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 25 Banjo tee Stainless steel 25 M 33x2.0 na
TH25SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 25 Banjo tee Steel, Chromium-6 Free 25 M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH25SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 25 Banjo tee Steel, Chromium-6 Free 25 M 33x2.0 na
TH25SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 25 Banjo tee Stainless steel 25 M 33x2.0 na
TH25SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 25 Banjo tee Steel, Chromium-6 Free 25 M 33x2.0 na
TH25SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 25 Banjo tee Stainless steel 25 G 1 A Pre-assembled with nut and EO-DPR cutting ring
TH25SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 25 Banjo tee Steel, Chromium-6 Free 25 G 1 A Pre-assembled with nut and EO-PSR cutting ring
TH25SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 25 Banjo tee Stainless steel 25 G 1 A Pre-assembled with nut and EO-DPR cutting ring
TH25SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 25 Banjo tee Stainless steel 25 G 1 A na
TH25SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 25 Banjo tee Steel, Chromium-6 Free 25 G 1 A Pre-assembled with nut and EO-PSR cutting ring
TH25SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 25 Banjo tee Steel, Chromium-6 Free 25 G 1 A na
TH25SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 25 Banjo tee Stainless steel 25 G 1 A na
TH25SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 25 Banjo tee Steel, Chromium-6 Free 25 G 1 A na
TH25ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 25 Banjo tee Stainless steel 25 M 33x2.0 Pre-assembled with EO-2 functional nut
TH25ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 25 Banjo tee Steel, Chromium-6 Free 25 M 33x2.0 Pre-assembled with EO-2 functional nut
TH25ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 25 Banjo tee Stainless steel 25 M 33x2.0 Pre-assembled with EO-2 functional nut
TH25ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 25 Banjo tee Steel, Chromium-6 Free 25 M 33x2.0 Pre-assembled with EO-2 functional nut
TH25ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 25 Banjo tee Stainless steel 25 G 1 A Pre-assembled with EO-2 functional nut
TH25ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 25 Banjo tee Steel, Chromium-6 Free 25 G 1 A Pre-assembled with EO-2 functional nut
TH25ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 25 Banjo tee Stainless steel 25 G 1 A Pre-assembled with EO-2 functional nut
TH25ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 25 Banjo tee Steel, Chromium-6 Free 25 G 1 A Pre-assembled with EO-2 functional nut
TH28LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 28 Banjo tee Stainless steel 28 M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH28LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 28 Banjo tee Steel, Chromium-6 Free 28 M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH28LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 28 Banjo tee Stainless steel 28 M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH28LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 28 Banjo tee Stainless steel 28 M 33x2.0 na
TH28LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 28 Banjo tee Steel, Chromium-6 Free 28 M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH28LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 28 Banjo tee Steel, Chromium-6 Free 28 M 33x2.0 na
TH28LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 28 Banjo tee Stainless steel 28 M 33x2.0 na
TH28LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 28 Banjo tee Steel, Chromium-6 Free 28 M 33x2.0 na
TH28LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 28 Banjo tee Stainless steel 28 G 1 A Pre-assembled with nut and EO-DPR cutting ring
TH28LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 28 Banjo tee Steel, Chromium-6 Free 28 G 1 A Pre-assembled with nut and EO-PSR cutting ring
TH28LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 28 Banjo tee Stainless steel 28 G 1 A Pre-assembled with nut and EO-DPR cutting ring
TH28LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 28 Banjo tee Stainless steel 28 G 1 A na
TH28LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 28 Banjo tee Steel, Chromium-6 Free 28 G 1 A Pre-assembled with nut and EO-PSR cutting ring
TH28LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 28 Banjo tee Steel, Chromium-6 Free 28 G 1 A na
TH28LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 28 Banjo tee Stainless steel 28 G 1 A na
TH28LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 28 Banjo tee Steel, Chromium-6 Free 28 G 1 A na
TH28ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 28 Banjo tee Stainless steel 28 M 33x2.0 Pre-assembled with EO-2 functional nut
TH28ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 28 Banjo tee Steel, Chromium-6 Free 28 M 33x2.0 Pre-assembled with EO-2 functional nut
TH28ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 28 Banjo tee Stainless steel 28 M 33x2.0 Pre-assembled with EO-2 functional nut
TH28ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 28 Banjo tee Steel, Chromium-6 Free 28 M 33x2.0 Pre-assembled with EO-2 functional nut
TH28ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 28 Banjo tee Stainless steel 28 G 1 A Pre-assembled with EO-2 functional nut
TH28ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 28 Banjo tee Steel, Chromium-6 Free 28 G 1 A Pre-assembled with EO-2 functional nut
TH28ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 28 Banjo tee Stainless steel 28 G 1 A Pre-assembled with EO-2 functional nut
TH28ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 28 Banjo tee Steel, Chromium-6 Free 28 G 1 A Pre-assembled with EO-2 functional nut
TH30SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 30 Banjo tee Stainless steel 30 M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH30SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 30 Banjo tee Steel, Chromium-6 Free 30 M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH30SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 30 Banjo tee Stainless steel 30 M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH30SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 30 Banjo tee Stainless steel 30 M 42x2.0 na
TH30SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 30 Banjo tee Steel, Chromium-6 Free 30 M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH30SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 30 Banjo tee Steel, Chromium-6 Free 30 M 42x2.0 na
TH30SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 30 Banjo tee Stainless steel 30 M 42x2.0 na
TH30SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 30 Banjo tee Steel, Chromium-6 Free 30 M 42x2.0 na
TH30SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 30 Banjo tee Stainless steel 30 G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH30SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 30 Banjo tee Steel, Chromium-6 Free 30 G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH30SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 30 Banjo tee Stainless steel 30 G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH30SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 30 Banjo tee Stainless steel 30 G 1 1/4 A na
TH30SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 30 Banjo tee Steel, Chromium-6 Free 30 G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH30SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 30 Banjo tee Steel, Chromium-6 Free 30 G 1 1/4 A na
TH30SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 30 Banjo tee Stainless steel 30 G 1 1/4 A na
TH30SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 30 Banjo tee Steel, Chromium-6 Free 30 G 1 1/4 A na
TH30ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 30 Banjo tee Stainless steel 30 M 42x2.0 Pre-assembled with EO-2 functional nut
TH30ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 30 Banjo tee Steel, Chromium-6 Free 30 M 42x2.0 Pre-assembled with EO-2 functional nut
TH30ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 30 Banjo tee Stainless steel 30 M 42x2.0 Pre-assembled with EO-2 functional nut
TH30ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 30 Banjo tee Steel, Chromium-6 Free 30 M 42x2.0 Pre-assembled with EO-2 functional nut
TH30ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 30 Banjo tee Stainless steel 30 G 1 1/4 A Pre-assembled with EO-2 functional nut
TH30ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 30 Banjo tee Steel, Chromium-6 Free 30 G 1 1/4 A Pre-assembled with EO-2 functional nut
TH30ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 30 Banjo tee Stainless steel 30 G 1 1/4 A Pre-assembled with EO-2 functional nut
TH30ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 30 Banjo tee Steel, Chromium-6 Free 30 G 1 1/4 A Pre-assembled with EO-2 functional nut
TH35LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 35 Banjo tee Stainless steel 35 M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH35LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 35 Banjo tee Steel, Chromium-6 Free 35 M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH35LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 35 Banjo tee Stainless steel 35 M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH35LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 35 Banjo tee Stainless steel 35 M 42x2.0 na
TH35LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 35 Banjo tee Steel, Chromium-6 Free 35 M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH35LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 35 Banjo tee Steel, Chromium-6 Free 35 M 42x2.0 na
TH35LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 35 Banjo tee Stainless steel 35 M 42x2.0 na
TH35LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 35 Banjo tee Steel, Chromium-6 Free 35 M 42x2.0 na
TH35LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 35 Banjo tee Stainless steel 35 G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH35LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 35 Banjo tee Steel, Chromium-6 Free 35 G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH35LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 35 Banjo tee Stainless steel 35 G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TH35LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 35 Banjo tee Stainless steel 35 G 1 1/4 A na
TH35LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 35 Banjo tee Steel, Chromium-6 Free 35 G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TH35LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 35 Banjo tee Steel, Chromium-6 Free 35 G 1 1/4 A na
TH35LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 35 Banjo tee Stainless steel 35 G 1 1/4 A na
TH35LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 35 Banjo tee Steel, Chromium-6 Free 35 G 1 1/4 A na
TH35ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 35 Banjo tee Stainless steel 35 M 42x2.0 Pre-assembled with EO-2 functional nut
TH35ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 35 Banjo tee Steel, Chromium-6 Free 35 M 42x2.0 Pre-assembled with EO-2 functional nut
TH35ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 35 Banjo tee Stainless steel 35 M 42x2.0 Pre-assembled with EO-2 functional nut
TH35ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 35 Banjo tee Steel, Chromium-6 Free 35 M 42x2.0 Pre-assembled with EO-2 functional nut
TH35ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 35 Banjo tee Stainless steel 35 G 1 1/4 A Pre-assembled with EO-2 functional nut
TH35ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 35 Banjo tee Steel, Chromium-6 Free 35 G 1 1/4 A Pre-assembled with EO-2 functional nut
TH35ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 35 Banjo tee Stainless steel 35 G 1 1/4 A Pre-assembled with EO-2 functional nut
TH35ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 35 Banjo tee Steel, Chromium-6 Free 35 G 1 1/4 A Pre-assembled with EO-2 functional nut
TH38SM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 38 Banjo tee Stainless steel 38 M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH38SMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 38 Banjo tee Steel, Chromium-6 Free 38 M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH38SMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 38 Banjo tee Stainless steel 38 M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH38SMKDOMD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 38 Banjo tee Stainless steel 38 M 48x2.0 na
TH38SMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 38 Banjo tee Steel, Chromium-6 Free 38 M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH38SMKDSOMDCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 38 Banjo tee Steel, Chromium-6 Free 38 M 48x2.0 na
TH38SMOMD71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 38 Banjo tee Stainless steel 38 M 48x2.0 na
TH38SMOMDCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 38 Banjo tee Steel, Chromium-6 Free 38 M 48x2.0 na
TH38SR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 38 Banjo tee Stainless steel 38 G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH38SRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 38 Banjo tee Steel, Chromium-6 Free 38 G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH38SRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 38 Banjo tee Stainless steel 38 G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH38SRKDOMD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 38 Banjo tee Stainless steel 38 G 1 1/2 A na
TH38SRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 38 Banjo tee Steel, Chromium-6 Free 38 G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH38SRKDSOMDCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 38 Banjo tee Steel, Chromium-6 Free 38 G 1 1/2 A na
TH38SROMD71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 38 Banjo tee Stainless steel 38 G 1 1/2 A na
TH38SROMDCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 38 Banjo tee Steel, Chromium-6 Free 38 G 1 1/2 A na
TH38ZSM71 Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 38 Banjo tee Stainless steel 38 M 48x2.0 Pre-assembled with EO-2 functional nut
TH38ZSMCF Heavy 24° cone end 24° cone end Male metric thread with metal sealing ring 38 Banjo tee Steel, Chromium-6 Free 38 M 48x2.0 Pre-assembled with EO-2 functional nut
TH38ZSMKD71 Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 38 Banjo tee Stainless steel 38 M 48x2.0 Pre-assembled with EO-2 functional nut
TH38ZSMKDSCF Heavy 24° cone end 24° cone end Male metric thread with soft seal ring 38 Banjo tee Steel, Chromium-6 Free 38 M 48x2.0 Pre-assembled with EO-2 functional nut
TH38ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 38 Banjo tee Stainless steel 38 G 1 1/2 A Pre-assembled with EO-2 functional nut
TH38ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread with metal sealing ring 38 Banjo tee Steel, Chromium-6 Free 38 G 1 1/2 A Pre-assembled with EO-2 functional nut
TH38ZSRKD71 Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 38 Banjo tee Stainless steel 38 G 1 1/2 A Pre-assembled with EO-2 functional nut
TH38ZSRKDSCF Heavy 24° cone end 24° cone end Male BSPP thread with soft seal ring 38 Banjo tee Steel, Chromium-6 Free 38 G 1 1/2 A Pre-assembled with EO-2 functional nut
TH42LM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 42 Banjo tee Stainless steel 42 M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH42LMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 42 Banjo tee Steel, Chromium-6 Free 42 M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH42LMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 42 Banjo tee Stainless steel 42 M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
TH42LMKDOMD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 42 Banjo tee Stainless steel 42 M 48x2.0 na
TH42LMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 42 Banjo tee Steel, Chromium-6 Free 42 M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
TH42LMKDSOMDCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 42 Banjo tee Steel, Chromium-6 Free 42 M 48x2.0 na
TH42LMOMD71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 42 Banjo tee Stainless steel 42 M 48x2.0 na
TH42LMOMDCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 42 Banjo tee Steel, Chromium-6 Free 42 M 48x2.0 na
TH42LR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 42 Banjo tee Stainless steel 42 G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH42LRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 42 Banjo tee Steel, Chromium-6 Free 42 G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH42LRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 42 Banjo tee Stainless steel 42 G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TH42LRKDOMD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 42 Banjo tee Stainless steel 42 G 1 1/2 A na
TH42LRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 42 Banjo tee Steel, Chromium-6 Free 42 G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TH42LRKDSOMDCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 42 Banjo tee Steel, Chromium-6 Free 42 G 1 1/2 A na
TH42LROMD71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 42 Banjo tee Stainless steel 42 G 1 1/2 A na
TH42LROMDCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 42 Banjo tee Steel, Chromium-6 Free 42 G 1 1/2 A na
TH42ZLM71 Light 24° cone end 24° cone end Male metric thread with metal sealing ring 42 Banjo tee Stainless steel 42 M 48x2.0 Pre-assembled with EO-2 functional nut
TH42ZLMCF Light 24° cone end 24° cone end Male metric thread with metal sealing ring 42 Banjo tee Steel, Chromium-6 Free 42 M 48x2.0 Pre-assembled with EO-2 functional nut
TH42ZLMKD71 Light 24° cone end 24° cone end Male metric thread with soft seal ring 42 Banjo tee Stainless steel 42 M 48x2.0 Pre-assembled with EO-2 functional nut
TH42ZLMKDSCF Light 24° cone end 24° cone end Male metric thread with soft seal ring 42 Banjo tee Steel, Chromium-6 Free 42 M 48x2.0 Pre-assembled with EO-2 functional nut
TH42ZLR71 Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 42 Banjo tee Stainless steel 42 G 1 1/2 A Pre-assembled with EO-2 functional nut
TH42ZLRCF Light 24° cone end 24° cone end Male BSPP thread with metal sealing ring 42 Banjo tee Steel, Chromium-6 Free 42 G 1 1/2 A Pre-assembled with EO-2 functional nut
TH42ZLRKD71 Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 42 Banjo tee Stainless steel 42 G 1 1/2 A Pre-assembled with EO-2 functional nut
TH42ZLRKDSCF Light 24° cone end 24° cone end Male BSPP thread with soft seal ring 42 Banjo tee Steel, Chromium-6 Free 42 G 1 1/2 A Pre-assembled with EO-2 functional nut
WH06LM71 Light 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Stainless steel na M 10x1.0 Pre-assembled with nut and EO-DPR cutting ring
WH06LMCF Light 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
WH06LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Stainless steel na M 10x1.0 Pre-assembled with nut and EO-DPR cutting ring
WH06LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with nut and EO-PSR cutting ring
WH06LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Stainless steel na M 10x1.0 na
WH06LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
WH06LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Stainless steel na M 10x1.0 na
WH06LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
WH06LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Stainless steel na G 1/8 A Pre-assembled with nut and EO-DPR cutting ring
WH06LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
WH06LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Stainless steel na G 1/8 A Pre-assembled with nut and EO-DPR cutting ring
WH06LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with nut and EO-PSR cutting ring
WH06LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Stainless steel na G 1/8 A na
WH06LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/8 A na
WH06LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Stainless steel na G 1/8 A na
WH06LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/8 A na
WH06SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Stainless steel na M 12x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH06SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH06SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Stainless steel na M 12x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH06SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH06SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Stainless steel na M 12x1.5 na
WH06SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
WH06SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Stainless steel na M 12x1.5 na
WH06SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na M 10x1.0 na
WH06SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH06SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH06SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH06SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH06SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Stainless steel na G 1/4 A na
WH06SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH06SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Stainless steel na G 1/4 A na
WH06SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH06ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Stainless steel na M 10x1.0 Pre-assembled with EO-2 functional nut
WH06ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
WH06ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Stainless steel na M 10x1.0 Pre-assembled with EO-2 functional nut
WH06ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na M 10x1.0 Pre-assembled with EO-2 functional nut
WH06ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Stainless steel na G 1/8 A Pre-assembled with EO-2 functional nut
WH06ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
WH06ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Stainless steel na G 1/8 A Pre-assembled with EO-2 functional nut
WH06ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/8 A Pre-assembled with EO-2 functional nut
WH06ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Stainless steel na M 12x1.5 Pre-assembled with EO-2 functional nut
WH06ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
WH06ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Stainless steel na M 12x1.5 Pre-assembled with EO-2 functional nut
WH06ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
WH06ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH06ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH06ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH06ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 6 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH08LM71 Light 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Stainless steel na M 12x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH08LMCF Light 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH08LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Stainless steel na M 12x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH08LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH08LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Stainless steel na M 12x1.5 na
WH08LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
WH08LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Stainless steel na M 12x1.5 na
WH08LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 na
WH08LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH08LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH08LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH08LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH08LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Stainless steel na G 1/4 A na
WH08LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH08LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Stainless steel na G 1/4 A na
WH08LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH08SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Stainless steel na M 14x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH08SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH08SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Stainless steel na M 14x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH08SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH08SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Stainless steel na M 14x1.5 na
WH08SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
WH08SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Stainless steel na M 14x1.5 na
WH08SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
WH08SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH08SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH08SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH08SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH08SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Stainless steel na G 1/4 A na
WH08SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH08SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Stainless steel na G 1/4 A na
WH08SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH08ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Stainless steel na M 12x1.5 Pre-assembled with EO-2 functional nut
WH08ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
WH08ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Stainless steel na M 12x1.5 Pre-assembled with EO-2 functional nut
WH08ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na M 12x1.5 Pre-assembled with EO-2 functional nut
WH08ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH08ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH08ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH08ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH08ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Stainless steel na M 14x1.5 Pre-assembled with EO-2 functional nut
WH08ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
WH08ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Stainless steel na M 14x1.5 Pre-assembled with EO-2 functional nut
WH08ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
WH08ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH08ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH08ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH08ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 8 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH10LM71 Light 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Stainless steel na M 14x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH10LMCF Light 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH10LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Stainless steel na M 14x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH10LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH10LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Stainless steel na M 14x1.5 na
WH10LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
WH10LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Stainless steel na M 14x1.5 na
WH10LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 na
WH10LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH10LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH10LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH10LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH10LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Stainless steel na G 1/4 A na
WH10LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH10LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Stainless steel na G 1/4 A na
WH10LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH10SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Stainless steel na M 16x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH10SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH10SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Stainless steel na M 16x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH10SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH10SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Stainless steel na M 16x1.5 na
WH10SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
WH10SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Stainless steel na M 16x1.5 na
WH10SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
WH10SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
WH10SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
WH10SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
WH10SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
WH10SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Stainless steel na G 3/8 A na
WH10SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na G 3/8 A na
WH10SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Stainless steel na G 3/8 A na
WH10SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na G 3/8 A na
WH10ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Stainless steel na M 14x1.5 Pre-assembled with EO-2 functional nut
WH10ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
WH10ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Stainless steel na M 14x1.5 Pre-assembled with EO-2 functional nut
WH10ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na M 14x1.5 Pre-assembled with EO-2 functional nut
WH10ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH10ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH10ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH10ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH10ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Stainless steel na M 16x1.5 Pre-assembled with EO-2 functional nut
WH10ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
WH10ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Stainless steel na M 16x1.5 Pre-assembled with EO-2 functional nut
WH10ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
WH10ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with EO-2 functional nut
WH10ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 10 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
WH10ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with EO-2 functional nut
WH10ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 10 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
WH12LM71 Light 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Stainless steel na M 16x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH12LMCF Light 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH12LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Stainless steel na M 16x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH12LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH12LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Stainless steel na M 16x1.5 na
WH12LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
WH12LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Stainless steel na M 16x1.5 na
WH12LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 na
WH12LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
WH12LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
WH12LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH12LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH12LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Stainless steel na G 1/4 A na
WH12LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na G 1/4 A na
WH12LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Stainless steel na G 3/8 A na
WH12LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A na
WH12SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Stainless steel na M 18x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH12SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH12SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Stainless steel na M 18x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH12SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH12SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Stainless steel na M 18x1.5 na
WH12SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
WH12SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Stainless steel na M 18x1.5 na
WH12SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
WH12SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
WH12SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
WH12SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with nut and EO-DPR cutting ring
WH12SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with nut and EO-PSR cutting ring
WH12SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Stainless steel na G 3/8 A na
WH12SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A na
WH12SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Stainless steel na G 3/8 A na
WH12SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A na
WH12ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Stainless steel na M 16x1.5 Pre-assembled with EO-2 functional nut
WH12ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
WH12ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Stainless steel na M 16x1.5 Pre-assembled with EO-2 functional nut
WH12ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na M 16x1.5 Pre-assembled with EO-2 functional nut
WH12ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with EO-2 functional nut
WH12ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
WH12ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Stainless steel na G 1/4 A Pre-assembled with EO-2 functional nut
WH12ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na G 1/4 A Pre-assembled with EO-2 functional nut
WH12ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Stainless steel na M 18x1.5 Pre-assembled with EO-2 functional nut
WH12ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
WH12ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Stainless steel na M 18x1.5 Pre-assembled with EO-2 functional nut
WH12ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
WH12ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with EO-2 functional nut
WH12ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
WH12ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Stainless steel na G 3/8 A Pre-assembled with EO-2 functional nut
WH12ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 12 Banjo elbow Steel, Chromium-6 Free na G 3/8 A Pre-assembled with EO-2 functional nut
WH14SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 14 Banjo elbow Stainless steel na M 20x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH14SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 14 Banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH14SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 14 Banjo elbow Stainless steel na M 20x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH14SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 14 Banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH14SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 14 Banjo elbow Stainless steel na M 20x1.5 na
WH14SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 14 Banjo elbow Steel, Chromium-6 Free na M 20x1.5 na
WH14SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 14 Banjo elbow Stainless steel na M 20x1.5 na
WH14SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 14 Banjo elbow Steel, Chromium-6 Free na M 20x1.5 na
WH14SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 14 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH14SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 14 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH14SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 14 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH14SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 14 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH14SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 14 Banjo elbow Stainless steel na G 1/2 A na
WH14SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 14 Banjo elbow Steel, Chromium-6 Free na G 1/2 A na
WH14SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 14 Banjo elbow Stainless steel na G 1/2 A na
WH14SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 14 Banjo elbow Steel, Chromium-6 Free na G 1/2 A na
WH14ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 14 Banjo elbow Stainless steel na M 20x1.5 Pre-assembled with EO-2 functional nut
WH14ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 14 Banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with EO-2 functional nut
WH14ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 14 Banjo elbow Stainless steel na M 20x1.5 Pre-assembled with EO-2 functional nut
WH14ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 14 Banjo elbow Steel, Chromium-6 Free na M 20x1.5 Pre-assembled with EO-2 functional nut
WH14ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 14 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with EO-2 functional nut
WH14ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 14 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
WH14ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 14 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with EO-2 functional nut
WH14ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 14 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
WH15LM71 Light 24° cone end Male metric thread with metal sealing ring na 15 Banjo elbow Stainless steel na M 18x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH15LMCF Light 24° cone end Male metric thread with metal sealing ring na 15 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH15LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 15 Banjo elbow Stainless steel na M 18x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH15LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 15 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH15LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 15 Banjo elbow Stainless steel na M 18x1.5 na
WH15LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 15 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
WH15LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 15 Banjo elbow Stainless steel na M 18x1.5 na
WH15LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 15 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 na
WH15LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 15 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH15LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 15 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH15LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 15 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH15LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 15 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH15LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 15 Banjo elbow Stainless steel na G 1/2 A na
WH15LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 15 Banjo elbow Steel, Chromium-6 Free na G 1/2 A na
WH15LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 15 Banjo elbow Stainless steel na G 1/2 A na
WH15LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 15 Banjo elbow Steel, Chromium-6 Free na G 1/2 A na
WH15ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 15 Banjo elbow Stainless steel na M 18x1.5 Pre-assembled with EO-2 functional nut
WH15ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 15 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
WH15ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 15 Banjo elbow Steel, Chromium-6 Free na M 18x1.5 Pre-assembled with EO-2 functional nut
WH15ZLMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 15 Banjo elbow Stainless steel na M 18x1.5 Pre-assembled with EO-2 functional nut
WH15ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 15 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with EO-2 functional nut
WH15ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 15 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
WH15ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 15 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with EO-2 functional nut
WH15ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 15 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
WH16SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 16 Banjo elbow Stainless steel na M 22x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH16SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 16 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH16SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 16 Banjo elbow Stainless steel na M 22x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH16SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 16 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH16SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 16 Banjo elbow Stainless steel na M 22x1.5 na
WH16SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 16 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
WH16SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 16 Banjo elbow Stainless steel na M 22x1.5 na
WH16SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 16 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
WH16SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 16 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH16SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 16 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH16SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 16 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH16SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 16 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH16SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 16 Banjo elbow Stainless steel na G 1/2 A na
WH16SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 16 Banjo elbow Steel, Chromium-6 Free na G 1/2 A na
WH16SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 16 Banjo elbow Stainless steel na G 1/2 A na
WH16SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 16 Banjo elbow Steel, Chromium-6 Free na G 1/2 A na
WH16ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 16 Banjo elbow Stainless steel na M 22x1.5 Pre-assembled with EO-2 functional nut
WH16ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 16 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
WH16ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 16 Banjo elbow Stainless steel na M 22x1.5 Pre-assembled with EO-2 functional nut
WH16ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 16 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
WH16ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 16 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with EO-2 functional nut
WH16ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 16 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
WH16ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 16 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with EO-2 functional nut
WH16ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 16 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
WH18LM71 Light 24° cone end Male metric thread with metal sealing ring na 18 Banjo elbow Stainless steel na M 22x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH18LMCF Light 24° cone end Male metric thread with metal sealing ring na 18 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH18LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 18 Banjo elbow Stainless steel na M 22x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH18LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 18 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH18LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 18 Banjo elbow Stainless steel na M 22x1.5 na
WH18LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 18 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
WH18LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 18 Banjo elbow Stainless steel na M 22x1.5 na
WH18LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 18 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 na
WH18LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 18 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH18LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 18 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH18LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 18 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH18LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 18 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH18LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 18 Banjo elbow Stainless steel na G 1/2 A na
WH18LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 18 Banjo elbow Steel, Chromium-6 Free na G 1/2 A na
WH18LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 18 Banjo elbow Stainless steel na G 1/2 A na
WH18LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 18 Banjo elbow Steel, Chromium-6 Free na G 1/2 A na
WH18ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 18 Banjo elbow Stainless steel na M 22x1.5 Pre-assembled with EO-2 functional nut
WH18ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 18 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
WH18ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 18 Banjo elbow Stainless steel na M 22x1.5 Pre-assembled with EO-2 functional nut
WH18ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 18 Banjo elbow Steel, Chromium-6 Free na M 22x1.5 Pre-assembled with EO-2 functional nut
WH18ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 18 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with EO-2 functional nut
WH18ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 18 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
WH18ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 18 Banjo elbow Stainless steel na G 1/2 A Pre-assembled with EO-2 functional nut
WH18ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 18 Banjo elbow Steel, Chromium-6 Free na G 1/2 A Pre-assembled with EO-2 functional nut
WH20SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 20 Banjo elbow Stainless steel na M 27x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH20SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 20 Banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH20SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 20 Banjo elbow Stainless steel na M 27x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH20SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 20 Banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH20SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 20 Banjo elbow Stainless steel na M 27x2.0 na
WH20SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 20 Banjo elbow Steel, Chromium-6 Free na M 27x2.0 na
WH20SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 20 Banjo elbow Stainless steel na M 27x2.0 na
WH20SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 20 Banjo elbow Steel, Chromium-6 Free na M 27x2.0 na
WH20SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 20 Banjo elbow Stainless steel na G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
WH20SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 20 Banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
WH20SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 20 Banjo elbow Stainless steel na G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
WH20SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 20 Banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
WH20SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 20 Banjo elbow Stainless steel na G 3/4 A na
WH20SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 20 Banjo elbow Steel, Chromium-6 Free na G 3/4 A na
WH20SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 20 Banjo elbow Stainless steel na G 3/4 A na
WH20SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 20 Banjo elbow Steel, Chromium-6 Free na G 3/4 A na
WH20ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 20 Banjo elbow Stainless steel na M 27x2.0 Pre-assembled with EO-2 functional nut
WH20ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 20 Banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with EO-2 functional nut
WH20ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 20 Banjo elbow Stainless steel na M 27x2.0 Pre-assembled with EO-2 functional nut
WH20ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 20 Banjo elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with EO-2 functional nut
WH20ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 20 Banjo elbow Stainless steel na G 3/4 A Pre-assembled with EO-2 functional nut
WH20ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 20 Banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
WH20ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 20 Banjo elbow Stainless steel na G 3/4 A Pre-assembled with EO-2 functional nut
WH20ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 20 Banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
WH22LM71 Light 24° cone end Male metric thread with metal sealing ring na 22 Banjo elbow Stainless steel na M 26x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH22LMCF Light 24° cone end Male metric thread with metal sealing ring na 22 Banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH22LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 22 Banjo elbow Stainless steel na M 26x1.5 Pre-assembled with nut and EO-DPR cutting ring
WH22LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 22 Banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
WH22LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 22 Banjo elbow Stainless steel na M 26x1.5 na
WH22LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 22 Banjo elbow Steel, Chromium-6 Free na M 26x1.5 na
WH22LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 22 Banjo elbow Stainless steel na M 26x1.5 na
WH22LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 22 Banjo elbow Steel, Chromium-6 Free na M 26x1.5 na
WH22LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 22 Banjo elbow Stainless steel na G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
WH22LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 22 Banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
WH22LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 22 Banjo elbow Stainless steel na G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
WH22LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 22 Banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
WH22LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 22 Banjo elbow Stainless steel na G 3/4 A na
WH22LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 22 Banjo elbow Steel, Chromium-6 Free na G 3/4 A na
WH22LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 22 Banjo elbow Stainless steel na G 3/4 A na
WH22LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 22 Banjo elbow Steel, Chromium-6 Free na G 3/4 A na
WH22ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 22 Banjo elbow Stainless steel na M 26x1.5 Pre-assembled with EO-2 functional nut
WH22ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 22 Banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with EO-2 functional nut
WH22ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 22 Banjo elbow Stainless steel na M 26x1.5 Pre-assembled with EO-2 functional nut
WH22ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 22 Banjo elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with EO-2 functional nut
WH22ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 22 Banjo elbow Stainless steel na G 3/4 A Pre-assembled with EO-2 functional nut
WH22ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 22 Banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
WH22ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 22 Banjo elbow Stainless steel na G 3/4 A Pre-assembled with EO-2 functional nut
WH22ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 22 Banjo elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
WH25SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 25 Banjo elbow Stainless steel na M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH25SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 25 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH25SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 25 Banjo elbow Stainless steel na M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH25SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 25 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH25SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 25 Banjo elbow Stainless steel na M 33x2.0 na
WH25SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 25 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
WH25SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 25 Banjo elbow Stainless steel na M 33x2.0 na
WH25SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 25 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
WH25SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 25 Banjo elbow Stainless steel na G 1 A Pre-assembled with nut and EO-DPR cutting ring
WH25SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 25 Banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
WH25SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 25 Banjo elbow Stainless steel na G 1 A Pre-assembled with nut and EO-DPR cutting ring
WH25SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 25 Banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
WH25SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 25 Banjo elbow Stainless steel na G 1 A na
WH25SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 25 Banjo elbow Steel, Chromium-6 Free na G 1 A na
WH25SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 25 Banjo elbow Stainless steel na G 1 A na
WH25SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 25 Banjo elbow Steel, Chromium-6 Free na G 1 A na
WH25ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 25 Banjo elbow Stainless steel na M 33x2.0 Pre-assembled with EO-2 functional nut
WH25ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 25 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
WH25ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 25 Banjo elbow Stainless steel na M 33x2.0 Pre-assembled with EO-2 functional nut
WH25ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 25 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
WH25ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 25 Banjo elbow Stainless steel na G 1 A Pre-assembled with EO-2 functional nut
WH25ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 25 Banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
WH25ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 25 Banjo elbow Stainless steel na G 1 A Pre-assembled with EO-2 functional nut
WH25ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 25 Banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
WH28LM71 Light 24° cone end Male metric thread with metal sealing ring na 28 Banjo elbow Stainless steel na M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH28LMCF Light 24° cone end Male metric thread with metal sealing ring na 28 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH28LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 28 Banjo elbow Stainless steel na M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH28LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 28 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH28LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 28 Banjo elbow Stainless steel na M 33x2.0 na
WH28LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 28 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
WH28LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 28 Banjo elbow Stainless steel na M 33x2.0 na
WH28LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 28 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 na
WH28LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 28 Banjo elbow Stainless steel na G 1 A Pre-assembled with nut and EO-DPR cutting ring
WH28LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 28 Banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
WH28LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 28 Banjo elbow Stainless steel na G 1 A Pre-assembled with nut and EO-DPR cutting ring
WH28LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 28 Banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
WH28LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 28 Banjo elbow Stainless steel na G 1 A na
WH28LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 28 Banjo elbow Steel, Chromium-6 Free na G 1 A na
WH28LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 28 Banjo elbow Stainless steel na G 1 A na
WH28LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 28 Banjo elbow Steel, Chromium-6 Free na G 1 A na
WH28ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 28 Banjo elbow Stainless steel na M 33x2.0 Pre-assembled with EO-2 functional nut
WH28ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 28 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
WH28ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 28 Banjo elbow Stainless steel na M 33x2.0 Pre-assembled with EO-2 functional nut
WH28ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 28 Banjo elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
WH28ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 28 Banjo elbow Stainless steel na G 1 A Pre-assembled with EO-2 functional nut
WH28ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 28 Banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
WH28ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 28 Banjo elbow Stainless steel na G 1 A Pre-assembled with EO-2 functional nut
WH28ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 28 Banjo elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
WH30SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 30 Banjo elbow Stainless steel na M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH30SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 30 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH30SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 30 Banjo elbow Stainless steel na M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH30SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 30 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH30SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 30 Banjo elbow Stainless steel na M 42x2.0 na
WH30SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 30 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
WH30SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 30 Banjo elbow Stainless steel na M 42x2.0 na
WH30SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 30 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
WH30SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 30 Banjo elbow Stainless steel na G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH30SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 30 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH30SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 30 Banjo elbow Stainless steel na G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH30SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 30 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH30SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 30 Banjo elbow Stainless steel na G 1 1/4 A na
WH30SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 30 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
WH30SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 30 Banjo elbow Stainless steel na G 1 1/4 A na
WH30SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 30 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
WH30ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 30 Banjo elbow Stainless steel na M 42x2.0 Pre-assembled with EO-2 functional nut
WH30ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 30 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
WH30ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 30 Banjo elbow Stainless steel na M 42x2.0 Pre-assembled with EO-2 functional nut
WH30ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 30 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
WH30ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 30 Banjo elbow Stainless steel na G 1 1/4 A Pre-assembled with EO-2 functional nut
WH30ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 30 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
WH30ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 30 Banjo elbow Stainless steel na G 1 1/4 A Pre-assembled with EO-2 functional nut
WH30ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 30 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
WH35LM71 Light 24° cone end Male metric thread with metal sealing ring na 35 Banjo elbow Stainless steel na M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH35LMCF Light 24° cone end Male metric thread with metal sealing ring na 35 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH35LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 35 Banjo elbow Stainless steel na M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH35LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 35 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH35LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 35 Banjo elbow Stainless steel na M 42x2.0 na
WH35LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 35 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
WH35LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 35 Banjo elbow Stainless steel na M 42x2.0 na
WH35LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 35 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 na
WH35LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 35 Banjo elbow Stainless steel na G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH35LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 35 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH35LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 35 Banjo elbow Stainless steel na G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WH35LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 35 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WH35LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 35 Banjo elbow Stainless steel na G 1 1/4 A na
WH35LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 35 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
WH35LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 35 Banjo elbow Stainless steel na G 1 1/4 A na
WH35LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 35 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A na
WH35ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 35 Banjo elbow Stainless steel na M 42x2.0 Pre-assembled with EO-2 functional nut
WH35ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 35 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
WH35ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 35 Banjo elbow Stainless steel na M 42x2.0 Pre-assembled with EO-2 functional nut
WH35ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 35 Banjo elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
WH35ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 35 Banjo elbow Stainless steel na G 1 1/4 A Pre-assembled with EO-2 functional nut
WH35ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 35 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
WH35ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 35 Banjo elbow Stainless steel na G 1 1/4 A Pre-assembled with EO-2 functional nut
WH35ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 35 Banjo elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
WH38SM71 Heavy 24° cone end Male metric thread with metal sealing ring na 38 Banjo elbow Stainless steel na M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH38SMCF Heavy 24° cone end Male metric thread with metal sealing ring na 38 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH38SMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 38 Banjo elbow Stainless steel na M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH38SMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 38 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH38SMKDSOMD71 Heavy 24° cone end Male metrich thread with soft seal ring na 38 Banjo elbow Stainless steel na M 48x2.0 na
WH38SMKDSOMDCF Heavy 24° cone end Male metrich thread with soft seal ring na 38 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
WH38SMOMD71 Heavy 24° cone end Male metric thread with metal sealing ring na 38 Banjo elbow Stainless steel na M 48x2.0 na
WH38SMOMDCF Heavy 24° cone end Male metric thread with metal sealing ring na 38 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
WH38SR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 38 Banjo elbow Stainless steel na G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH38SRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 38 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH38SRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 38 Banjo elbow Stainless steel na G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH38SRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 38 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH38SRKDSOMD71 Heavy 24° cone end Male BSPP thread with soft seal ring na 38 Banjo elbow Stainless steel na G 1 1/2 A na
WH38SRKDSOMDCF Heavy 24° cone end Male BSPP thread with soft seal ring na 38 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
WH38SROMD71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 38 Banjo elbow Stainless steel na G 1 1/2 A na
WH38SROMDCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 38 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
WH38ZSM71 Heavy 24° cone end Male metric thread with metal sealing ring na 38 Banjo elbow Stainless steel na M 48x2.0 Pre-assembled with EO-2 functional nut
WH38ZSMCF Heavy 24° cone end Male metric thread with metal sealing ring na 38 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
WH38ZSMKDS71 Heavy 24° cone end Male metrich thread with soft seal ring na 38 Banjo elbow Stainless steel na M 48x2.0 Pre-assembled with EO-2 functional nut
WH38ZSMKDSCF Heavy 24° cone end Male metrich thread with soft seal ring na 38 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
WH38ZSR71 Heavy 24° cone end Male BSPP thread with metal sealing ring na 38 Banjo elbow Stainless steel na G 1 1/2 A Pre-assembled with EO-2 functional nut
WH38ZSRCF Heavy 24° cone end Male BSPP thread with metal sealing ring na 38 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
WH38ZSRKDS71 Heavy 24° cone end Male BSPP thread with soft seal ring na 38 Banjo elbow Stainless steel na G 1 1/2 A Pre-assembled with EO-2 functional nut
WH38ZSRKDSCF Heavy 24° cone end Male BSPP thread with soft seal ring na 38 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
WH42LM71 Light 24° cone end Male metric thread with metal sealing ring na 42 Banjo elbow Stainless steel na M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH42LMCF Light 24° cone end Male metric thread with metal sealing ring na 42 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH42LMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 42 Banjo elbow Stainless steel na M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
WH42LMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 42 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
WH42LMKDSOMD71 Light 24° cone end Male metrich thread with soft seal ring na 42 Banjo elbow Stainless steel na M 48x2.0 na
WH42LMKDSOMDCF Light 24° cone end Male metrich thread with soft seal ring na 42 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
WH42LMOMD71 Light 24° cone end Male metric thread with metal sealing ring na 42 Banjo elbow Stainless steel na M 48x2.0 na
WH42LMOMDCF Light 24° cone end Male metric thread with metal sealing ring na 42 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 na
WH42LR71 Light 24° cone end Male BSPP thread with metal sealing ring na 42 Banjo elbow Stainless steel na G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH42LRCF Light 24° cone end Male BSPP thread with metal sealing ring na 42 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH42LRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 42 Banjo elbow Stainless steel na G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WH42LRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 42 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WH42LRKDSOMD71 Light 24° cone end Male BSPP thread with soft seal ring na 42 Banjo elbow Stainless steel na G 1 1/2 A na
WH42LRKDSOMDCF Light 24° cone end Male BSPP thread with soft seal ring na 42 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
WH42LROMD71 Light 24° cone end Male BSPP thread with metal sealing ring na 42 Banjo elbow Stainless steel na G 1 1/2 A na
WH42LROMDCF Light 24° cone end Male BSPP thread with metal sealing ring na 42 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A na
WH42ZLM71 Light 24° cone end Male metric thread with metal sealing ring na 42 Banjo elbow Stainless steel na M 48x2.0 Pre-assembled with EO-2 functional nut
WH42ZLMCF Light 24° cone end Male metric thread with metal sealing ring na 42 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
WH42ZLMKDS71 Light 24° cone end Male metrich thread with soft seal ring na 42 Banjo elbow Stainless steel na M 48x2.0 Pre-assembled with EO-2 functional nut
WH42ZLMKDSCF Light 24° cone end Male metrich thread with soft seal ring na 42 Banjo elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
WH42ZLR71 Light 24° cone end Male BSPP thread with metal sealing ring na 42 Banjo elbow Stainless steel na G 1 1/2 A Pre-assembled with EO-2 functional nut
WH42ZLRCF Light 24° cone end Male BSPP thread with metal sealing ring na 42 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
WH42ZLRKDS71 Light 24° cone end Male BSPP thread with soft seal ring na 42 Banjo elbow Stainless steel na G 1 1/2 A Pre-assembled with EO-2 functional nut
WH42ZLRKDSCF Light 24° cone end Male BSPP thread with soft seal ring na 42 Banjo elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
|
fcg.cnmec@parkerdistribution.com.cn
