Parker派克 仪表管阀件

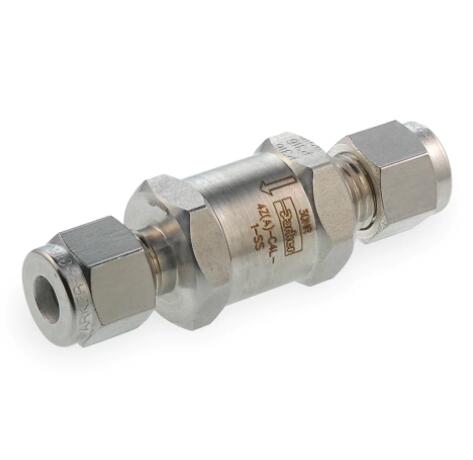

Parker派克 Filter Valve, Sintered Metal Filter - F Series
Parker派克 过滤器,金属烧结滤芯 - F系列过滤阀门
Parker派克 过滤器,金属烧结滤芯 - F系列过滤阀门 Filter Valve, Sintered Metal Filter - F Series

派克F系列在线式过滤器是为仪表系统过滤固体颗粒物,过滤精度可达1微米,承压可达6,000 PSI (414 BAR).,该阀门可有效保护系统正常运作。Parker’s F Series Filter valves are designed for protection of instrumentation systems from undesirable materials down to 1 micron and up to 6,000 PSI (414 BAR).

Parker派克 过滤器,金属烧结滤芯 - F系列过滤阀门 资料下载



派克F系列在线式过滤器是为仪表系统过滤固体颗粒物,保护系统正常运作。当介质成分发生变化或维修和维护系统时,可能容纳污垢,铁屑,或其他污染物并存留在小口径钢管中。这个紧凑的过滤器提供安装者一个宽泛密封件尺寸以符合仪表系统要求。箭头标记是的标记在过滤体的阀体上,以帮助正确安装阀体方向。Parker F Series Inline Filters are designed for protection of instrumentation systems from undesirable materials. Component changes or repair and maintenance can admit dirt, chips, scale, or other contaminants to the small bore tubing. These compact filters offer the installer a wide range of seals and sizes to meet any instrumentation system requirements. A flow arrow is permanently marked on the filter body to help in proper installation.

市场Markets:
? 化学应用市场Chemical
? 石油和天然气市场Oil and Gas
? 造纸应用Pulp and Paper

特点/优势Features/ Benefits:
? 紧凑的内嵌式大面积过滤面设计Compact inline design with large filtration area
? 不锈钢和黄铜结构可选Stainless steel and brass construction
? 可置换烧结316不锈钢滤芯Replaceable sintered 316 stainless steel filter element
? 标准烧结金属微米级有:1, 5, 10,50,100 微米Standard sintered metal micron ratings: 1, 5, 10, 50, and 100
? 可选250 和 450 微米金属丝布过滤滤芯Optional 250 and 450 micron wire cloth filter elements
? 端口连接包括内螺纹和外螺纹NPT接口,CPI?卡套接口,?A-LOK卡套接口,UltraSeal面密封接口,VacuSeal面密封接口,BSP,SAE,Seal-Lok?
Port connections include male and female NPT, CPI?, A-LOK?, UltraSeal, VacuSeal, BSP, SAE, and Seal-Lok?
? 原材料炉号代码可追溯性Heat code traceability

应用Applications:
? 测试面板安装Test panels
? 仪表保护系统Instrument Protection
? 混合搅拌罐Mixing tanks



技术规格:

连接 1 尺寸: 3/4"
过滤器网格尺寸: 1 Micron
入口连接: Two Ferrule Compression
连接 2 尺寸: 3/4"
密封材料: Fluorocarbon Rubber
max.工作压力(psi): 3, 000
出口连接: Two Ferrule Compression
max.工作压力(Bar): 207
阀体材料: Brass
连接 1 尺寸: 3/4"
连接 2 尺寸: 3/4"
过滤器尺寸额定值: 1微米
入口连接尺寸: 双卡套接头
出口连接尺寸: 双卡套接头
密封材料: 氟橡胶
阀体材料:
max.运行压力: 3,000 psi, 207 bar



型号 连接 1 尺寸 连接 2 尺寸 过滤器网格尺寸 入口连接 出口连接 密封材料 阀体材料 max.工作压力(psi) max.工作压力(Bar)
12A-F12L-1-B 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
12A-F12L-1-BN-B 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
12A-F12L-1-BN-SS 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12A-F12L-1-EPR-B 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12A-F12L-1-EPR-SS 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12A-F12L-1-KZ-B 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12A-F12L-1-KZ-SS 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-1-NE-B 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
12A-F12L-1-NE-SS 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12A-F12L-1-SS 3/4" 3/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-10-B 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
12A-F12L-10-BN-B 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
12A-F12L-10-BN-SS 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12A-F12L-10-EPR-B 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12A-F12L-10-EPR-SS 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12A-F12L-10-KZ-B 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12A-F12L-10-KZ-SS 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-10-NE-B 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
12A-F12L-10-NE-SS 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12A-F12L-10-SS 3/4" 3/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-100-B 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
12A-F12L-100-BN-B 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
12A-F12L-100-BN-SS 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12A-F12L-100-EPR-B 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12A-F12L-100-EPR-SS 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12A-F12L-100-KZ-B 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12A-F12L-100-KZ-SS 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-100-NE-B 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
12A-F12L-100-NE-SS 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12A-F12L-100-SS 3/4" 3/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-5-B 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
12A-F12L-5-BN-B 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
12A-F12L-5-BN-SS 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12A-F12L-5-EPR-B 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12A-F12L-5-EPR-SS 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12A-F12L-5-KZ-B 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12A-F12L-5-KZ-SS 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-5-NE-B 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
12A-F12L-5-NE-SS 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12A-F12L-5-SS 3/4" 3/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-50-B 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
12A-F12L-50-BN-B 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
12A-F12L-50-BN-SS 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12A-F12L-50-EPR-B 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12A-F12L-50-EPR-SS 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12A-F12L-50-KZ-B 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12A-F12L-50-KZ-SS 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12A-F12L-50-NE-B 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
12A-F12L-50-NE-SS 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12A-F12L-50-SS 3/4" 3/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-1-B 3/4" 3/4" 1 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
12F-F12L-1-BN-B 3/4" 3/4" 1 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
12F-F12L-1-BN-SS 3/4" 3/4" 1 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
12F-F12L-1-EPR-B 3/4" 3/4" 1 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
12F-F12L-1-EPR-SS 3/4" 3/4" 1 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12F-F12L-1-KZ-B 3/4" 3/4" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12F-F12L-1-KZ-SS 3/4" 3/4" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-1-NE-B 3/4" 3/4" 1 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
12F-F12L-1-NE-SS 3/4" 3/4" 1 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
12F-F12L-1-SS 3/4" 3/4" 1 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-10-B 3/4" 3/4" 10 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
12F-F12L-10-BN-B 3/4" 3/4" 10 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
12F-F12L-10-BN-SS 3/4" 3/4" 10 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
12F-F12L-10-EPR-B 3/4" 3/4" 10 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
12F-F12L-10-EPR-SS 3/4" 3/4" 10 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12F-F12L-10-KZ-B 3/4" 3/4" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12F-F12L-10-KZ-SS 3/4" 3/4" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-10-NE-B 3/4" 3/4" 10 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
12F-F12L-10-NE-SS 3/4" 3/4" 10 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
12F-F12L-10-SS 3/4" 3/4" 10 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-100-B 3/4" 3/4" 100 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
12F-F12L-100-BN-B 3/4" 3/4" 100 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
12F-F12L-100-BN-SS 3/4" 3/4" 100 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
12F-F12L-100-EPR-B 3/4" 3/4" 100 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
12F-F12L-100-EPR-SS 3/4" 3/4" 100 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12F-F12L-100-KZ-B 3/4" 3/4" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12F-F12L-100-KZ-SS 3/4" 3/4" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-100-NE-B 3/4" 3/4" 100 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
12F-F12L-100-NE-SS 3/4" 3/4" 100 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
12F-F12L-100-SS 3/4" 3/4" 100 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-5-B 3/4" 3/4" 5 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
12F-F12L-5-BN-B 3/4" 3/4" 5 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
12F-F12L-5-BN-SS 3/4" 3/4" 5 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
12F-F12L-5-EPR-B 3/4" 3/4" 5 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
12F-F12L-5-EPR-SS 3/4" 3/4" 5 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12F-F12L-5-KZ-B 3/4" 3/4" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12F-F12L-5-KZ-SS 3/4" 3/4" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-5-NE-B 3/4" 3/4" 5 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
12F-F12L-5-NE-SS 3/4" 3/4" 5 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
12F-F12L-5-SS 3/4" 3/4" 5 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-50-B 3/4" 3/4" 50 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
12F-F12L-50-BN-B 3/4" 3/4" 50 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
12F-F12L-50-BN-SS 3/4" 3/4" 50 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
12F-F12L-50-EPR-B 3/4" 3/4" 50 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
12F-F12L-50-EPR-SS 3/4" 3/4" 50 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12F-F12L-50-KZ-B 3/4" 3/4" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12F-F12L-50-KZ-SS 3/4" 3/4" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12F-F12L-50-NE-B 3/4" 3/4" 50 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
12F-F12L-50-NE-SS 3/4" 3/4" 50 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
12F-F12L-50-SS 3/4" 3/4" 50 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-1-B 3/4" 3/4" 1 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
12M-F12L-1-BN-B 3/4" 3/4" 1 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
12M-F12L-1-BN-SS 3/4" 3/4" 1 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
12M-F12L-1-EPR-B 3/4" 3/4" 1 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
12M-F12L-1-EPR-SS 3/4" 3/4" 1 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12M-F12L-1-KZ-B 3/4" 3/4" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12M-F12L-1-KZ-SS 3/4" 3/4" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-1-NE-B 3/4" 3/4" 1 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
12M-F12L-1-NE-SS 3/4" 3/4" 1 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
12M-F12L-1-SS 3/4" 3/4" 1 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-10-B 3/4" 3/4" 10 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
12M-F12L-10-BN-B 3/4" 3/4" 10 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
12M-F12L-10-BN-SS 3/4" 3/4" 10 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
12M-F12L-10-EPR-B 3/4" 3/4" 10 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
12M-F12L-10-EPR-SS 3/4" 3/4" 10 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12M-F12L-10-KZ-B 3/4" 3/4" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12M-F12L-10-KZ-SS 3/4" 3/4" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-10-NE-B 3/4" 3/4" 10 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
12M-F12L-10-NE-SS 3/4" 3/4" 10 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
12M-F12L-10-SS 3/4" 3/4" 10 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-100-B 3/4" 3/4" 100 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
12M-F12L-100-BN-B 3/4" 3/4" 100 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
12M-F12L-100-BN-SS 3/4" 3/4" 100 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
12M-F12L-100-EPR-B 3/4" 3/4" 100 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
12M-F12L-100-EPR-SS 3/4" 3/4" 100 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12M-F12L-100-KZ-B 3/4" 3/4" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12M-F12L-100-KZ-SS 3/4" 3/4" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-100-NE-B 3/4" 3/4" 100 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
12M-F12L-100-NE-SS 3/4" 3/4" 100 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
12M-F12L-100-SS 3/4" 3/4" 100 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-5-B 3/4" 3/4" 5 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
12M-F12L-5-BN-B 3/4" 3/4" 5 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
12M-F12L-5-BN-SS 3/4" 3/4" 5 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
12M-F12L-5-EPR-B 3/4" 3/4" 5 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
12M-F12L-5-EPR-SS 3/4" 3/4" 5 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12M-F12L-5-KZ-B 3/4" 3/4" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12M-F12L-5-KZ-SS 3/4" 3/4" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-5-NE-B 3/4" 3/4" 5 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
12M-F12L-5-NE-SS 3/4" 3/4" 5 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
12M-F12L-5-SS 3/4" 3/4" 5 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-50-B 3/4" 3/4" 50 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
12M-F12L-50-BN-B 3/4" 3/4" 50 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
12M-F12L-50-BN-SS 3/4" 3/4" 50 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
12M-F12L-50-EPR-B 3/4" 3/4" 50 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
12M-F12L-50-EPR-SS 3/4" 3/4" 50 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12M-F12L-50-KZ-B 3/4" 3/4" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12M-F12L-50-KZ-SS 3/4" 3/4" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12M-F12L-50-NE-B 3/4" 3/4" 50 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
12M-F12L-50-NE-SS 3/4" 3/4" 50 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
12M-F12L-50-SS 3/4" 3/4" 50 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-1-B 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
12Z-F12L-1-BN-B 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
12Z-F12L-1-BN-SS 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12Z-F12L-1-EPR-B 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12Z-F12L-1-EPR-SS 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-1-KZ-B 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12Z-F12L-1-KZ-SS 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-1-NE-B 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
12Z-F12L-1-NE-SS 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-1-SS 3/4" 3/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-10-B 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
12Z-F12L-10-BN-B 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
12Z-F12L-10-BN-SS 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12Z-F12L-10-EPR-B 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12Z-F12L-10-EPR-SS 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-10-KZ-B 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12Z-F12L-10-KZ-SS 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-10-NE-B 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
12Z-F12L-10-NE-SS 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-10-SS 3/4" 3/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-100-B 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
12Z-F12L-100-BN-B 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
12Z-F12L-100-BN-SS 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12Z-F12L-100-EPR-B 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12Z-F12L-100-EPR-SS 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-100-KZ-B 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12Z-F12L-100-KZ-SS 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-100-NE-B 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
12Z-F12L-100-NE-SS 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-100-SS 3/4" 3/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-5-B 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
12Z-F12L-5-BN-B 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
12Z-F12L-5-BN-SS 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12Z-F12L-5-EPR-B 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12Z-F12L-5-EPR-SS 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-5-KZ-B 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12Z-F12L-5-KZ-SS 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-5-NE-B 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
12Z-F12L-5-NE-SS 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-5-SS 3/4" 3/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-50-B 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
12Z-F12L-50-BN-B 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
12Z-F12L-50-BN-SS 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
12Z-F12L-50-EPR-B 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
12Z-F12L-50-EPR-SS 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-50-KZ-B 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
12Z-F12L-50-KZ-SS 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
12Z-F12L-50-NE-B 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
12Z-F12L-50-NE-SS 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
12Z-F12L-50-SS 3/4" 3/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
16A-F16L-1-B 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
16A-F16L-1-BN-B 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
16A-F16L-1-BN-SS 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 5,000 345
16A-F16L-1-EPR-B 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16A-F16L-1-EPR-SS 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16A-F16L-1-KZ-B 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16A-F16L-1-KZ-SS 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16A-F16L-1-NE-B 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
16A-F16L-1-NE-SS 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 5,000 345
16A-F16L-1-SS 1" 1" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 5,000 345
16A-F16L-10-B 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
16A-F16L-10-BN-B 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
16A-F16L-10-BN-SS 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 5,000 345
16A-F16L-10-EPR-B 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16A-F16L-10-EPR-SS 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16A-F16L-10-KZ-B 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16A-F16L-10-KZ-SS 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16A-F16L-10-NE-B 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
16A-F16L-10-NE-SS 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 5,000 345
16A-F16L-10-SS 1" 1" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 5,000 345
16A-F16L-100-B 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
16A-F16L-100-BN-B 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
16A-F16L-100-BN-SS 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 5,000 345
16A-F16L-100-EPR-B 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16A-F16L-100-EPR-SS 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16A-F16L-100-KZ-B 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16A-F16L-100-KZ-SS 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16A-F16L-100-NE-B 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
16A-F16L-100-NE-SS 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 5,000 345
16A-F16L-100-SS 1" 1" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 5,000 345
16A-F16L-5-B 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
16A-F16L-5-BN-B 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
16A-F16L-5-BN-SS 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 5,000 345
16A-F16L-5-EPR-B 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16A-F16L-5-EPR-SS 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16A-F16L-5-KZ-B 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16A-F16L-5-KZ-SS 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16A-F16L-5-NE-B 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
16A-F16L-5-NE-SS 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 5,000 345
16A-F16L-5-SS 1" 1" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 5,000 345
16A-F16L-50-B 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
16A-F16L-50-BN-B 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
16A-F16L-50-BN-SS 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 5,000 345
16A-F16L-50-EPR-B 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16A-F16L-50-EPR-SS 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16A-F16L-50-KZ-B 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16A-F16L-50-KZ-SS 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16A-F16L-50-NE-B 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
16A-F16L-50-NE-SS 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 5,000 345
16A-F16L-50-SS 1" 1" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 5,000 345
16F-F16L-1-B 1" 1" 1 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
16F-F16L-1-BN-B 1" 1" 1 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
16F-F16L-1-BN-SS 1" 1" 1 Micron NPT F NPT F Nitrile Rubber Brass 5,000 345
16F-F16L-1-EPR-B 1" 1" 1 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
16F-F16L-1-EPR-SS 1" 1" 1 Micron NPT F NPT F Ethylene Propylene Rubber Brass 5,000 345
16F-F16L-1-KZ-B 1" 1" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16F-F16L-1-KZ-SS 1" 1" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16F-F16L-1-NE-B 1" 1" 1 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
16F-F16L-1-NE-SS 1" 1" 1 Micron NPT F NPT F Neoprene Rubber Brass 5,000 345
16F-F16L-1-SS 1" 1" 1 Micron NPT F NPT F Fluorocarbon Rubber Brass 5,000 345
16F-F16L-10-B 1" 1" 10 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
16F-F16L-10-BN-B 1" 1" 10 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
16F-F16L-10-BN-SS 1" 1" 10 Micron NPT F NPT F Nitrile Rubber Brass 5,000 345
16F-F16L-10-EPR-B 1" 1" 10 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
16F-F16L-10-EPR-SS 1" 1" 10 Micron NPT F NPT F Ethylene Propylene Rubber Brass 5,000 345
16F-F16L-10-KZ-B 1" 1" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16F-F16L-10-KZ-SS 1" 1" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16F-F16L-10-NE-B 1" 1" 10 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
16F-F16L-10-NE-SS 1" 1" 10 Micron NPT F NPT F Neoprene Rubber Brass 5,000 345
16F-F16L-10-SS 1" 1" 10 Micron NPT F NPT F Fluorocarbon Rubber Brass 5,000 345
16F-F16L-100-B 1" 1" 100 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
16F-F16L-100-BN-B 1" 1" 100 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
16F-F16L-100-BN-SS 1" 1" 100 Micron NPT F NPT F Nitrile Rubber Brass 5,000 345
16F-F16L-100-EPR-B 1" 1" 100 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
16F-F16L-100-EPR-SS 1" 1" 100 Micron NPT F NPT F Ethylene Propylene Rubber Brass 5,000 345
16F-F16L-100-KZ-B 1" 1" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16F-F16L-100-KZ-SS 1" 1" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16F-F16L-100-NE-B 1" 1" 100 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
16F-F16L-100-NE-SS 1" 1" 100 Micron NPT F NPT F Neoprene Rubber Brass 5,000 345
16F-F16L-100-SS 1" 1" 100 Micron NPT F NPT F Fluorocarbon Rubber Brass 5,000 345
16F-F16L-5-B 1" 1" 5 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
16F-F16L-5-BN-B 1" 1" 5 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
16F-F16L-5-BN-SS 1" 1" 5 Micron NPT F NPT F Nitrile Rubber Brass 5,000 345
16F-F16L-5-EPR-B 1" 1" 5 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
16F-F16L-5-EPR-SS 1" 1" 5 Micron NPT F NPT F Ethylene Propylene Rubber Brass 5,000 345
16F-F16L-5-KZ-B 1" 1" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16F-F16L-5-KZ-SS 1" 1" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16F-F16L-5-NE-B 1" 1" 5 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
16F-F16L-5-NE-SS 1" 1" 5 Micron NPT F NPT F Neoprene Rubber Brass 5,000 345
16F-F16L-5-SS 1" 1" 5 Micron NPT F NPT F Fluorocarbon Rubber Brass 5,000 345
16F-F16L-50-B 1" 1" 50 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
16F-F16L-50-BN-B 1" 1" 50 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
16F-F16L-50-BN-SS 1" 1" 50 Micron NPT F NPT F Nitrile Rubber Brass 5,000 345
16F-F16L-50-EPR-B 1" 1" 50 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
16F-F16L-50-EPR-SS 1" 1" 50 Micron NPT F NPT F Ethylene Propylene Rubber Brass 5,000 345
16F-F16L-50-KZ-B 1" 1" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16F-F16L-50-KZ-SS 1" 1" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16F-F16L-50-NE-B 1" 1" 50 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
16F-F16L-50-NE-SS 1" 1" 50 Micron NPT F NPT F Neoprene Rubber Brass 5,000 345
16F-F16L-50-SS 1" 1" 50 Micron NPT F NPT F Fluorocarbon Rubber Brass 5,000 345
16M-F16L-1-B 1" 1" 1 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
16M-F16L-1-BN-B 1" 1" 1 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
16M-F16L-1-BN-SS 1" 1" 1 Micron NPT M NPT M Nitrile Rubber Brass 5,000 345
16M-F16L-1-EPR-B 1" 1" 1 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
16M-F16L-1-EPR-SS 1" 1" 1 Micron NPT M NPT M Ethylene Propylene Rubber Brass 5,000 345
16M-F16L-1-KZ-B 1" 1" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16M-F16L-1-KZ-SS 1" 1" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16M-F16L-1-NE-B 1" 1" 1 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
16M-F16L-1-NE-SS 1" 1" 1 Micron NPT M NPT M Neoprene Rubber Brass 5,000 345
16M-F16L-1-SS 1" 1" 1 Micron NPT M NPT M Fluorocarbon Rubber Brass 5,000 345
16M-F16L-10-B 1" 1" 10 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
16M-F16L-10-BN-B 1" 1" 10 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
16M-F16L-10-BN-SS 1" 1" 10 Micron NPT M NPT M Nitrile Rubber Brass 5,000 345
16M-F16L-10-EPR-B 1" 1" 10 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
16M-F16L-10-EPR-SS 1" 1" 10 Micron NPT M NPT M Ethylene Propylene Rubber Brass 5,000 345
16M-F16L-10-KZ-B 1" 1" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16M-F16L-10-KZ-SS 1" 1" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16M-F16L-10-NE-B 1" 1" 10 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
16M-F16L-10-NE-SS 1" 1" 10 Micron NPT M NPT M Neoprene Rubber Brass 5,000 345
16M-F16L-10-SS 1" 1" 10 Micron NPT M NPT M Fluorocarbon Rubber Brass 5,000 345
16M-F16L-100-B 1" 1" 100 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
16M-F16L-100-BN-B 1" 1" 100 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
16M-F16L-100-BN-SS 1" 1" 100 Micron NPT M NPT M Nitrile Rubber Brass 5,000 345
16M-F16L-100-EPR-B 1" 1" 100 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
16M-F16L-100-EPR-SS 1" 1" 100 Micron NPT M NPT M Ethylene Propylene Rubber Brass 5,000 345
16M-F16L-100-KZ-B 1" 1" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16M-F16L-100-KZ-SS 1" 1" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16M-F16L-100-NE-B 1" 1" 100 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
16M-F16L-100-NE-SS 1" 1" 100 Micron NPT M NPT M Neoprene Rubber Brass 5,000 345
16M-F16L-100-SS 1" 1" 100 Micron NPT M NPT M Fluorocarbon Rubber Brass 5,000 345
16M-F16L-5-B 1" 1" 5 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
16M-F16L-5-BN-B 1" 1" 5 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
16M-F16L-5-BN-SS 1" 1" 5 Micron NPT M NPT M Nitrile Rubber Brass 5,000 345
16M-F16L-5-EPR-B 1" 1" 5 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
16M-F16L-5-EPR-SS 1" 1" 5 Micron NPT M NPT M Ethylene Propylene Rubber Brass 5,000 345
16M-F16L-5-KZ-B 1" 1" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16M-F16L-5-KZ-SS 1" 1" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16M-F16L-5-NE-B 1" 1" 5 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
16M-F16L-5-NE-SS 1" 1" 5 Micron NPT M NPT M Neoprene Rubber Brass 5,000 345
16M-F16L-5-SS 1" 1" 5 Micron NPT M NPT M Fluorocarbon Rubber Brass 5,000 345
16M-F16L-50-B 1" 1" 50 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
16M-F16L-50-BN-B 1" 1" 50 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
16M-F16L-50-BN-SS 1" 1" 50 Micron NPT M NPT M Nitrile Rubber Brass 5,000 345
16M-F16L-50-EPR-B 1" 1" 50 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
16M-F16L-50-EPR-SS 1" 1" 50 Micron NPT M NPT M Ethylene Propylene Rubber Brass 5,000 345
16M-F16L-50-KZ-B 1" 1" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16M-F16L-50-KZ-SS 1" 1" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16M-F16L-50-NE-B 1" 1" 50 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
16M-F16L-50-NE-SS 1" 1" 50 Micron NPT M NPT M Neoprene Rubber Brass 5,000 345
16M-F16L-50-SS 1" 1" 50 Micron NPT M NPT M Fluorocarbon Rubber Brass 5,000 345
16Z-F16L-1-B 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
16Z-F16L-1-BN-B 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
16Z-F16L-1-BN-SS 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 5,000 345
16Z-F16L-1-EPR-B 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16Z-F16L-1-EPR-SS 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16Z-F16L-1-KZ-B 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16Z-F16L-1-KZ-SS 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16Z-F16L-1-NE-B 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
16Z-F16L-1-NE-SS 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 5,000 345
16Z-F16L-1-SS 1" 1" 1 Micron Single Ferrule Compression Single Ferrule Compression Brass 5,000 345
16Z-F16L-10-B 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
16Z-F16L-10-BN-B 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
16Z-F16L-10-BN-SS 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 5,000 345
16Z-F16L-10-EPR-B 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16Z-F16L-10-EPR-SS 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16Z-F16L-10-KZ-B 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16Z-F16L-10-KZ-SS 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16Z-F16L-10-NE-B 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
16Z-F16L-10-NE-SS 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 5,000 345
16Z-F16L-10-SS 1" 1" 10 Micron Single Ferrule Compression Single Ferrule Compression Brass 5,000 345
16Z-F16L-100-B 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
16Z-F16L-100-BN-B 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
16Z-F16L-100-BN-SS 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 5,000 345
16Z-F16L-100-EPR-B 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16Z-F16L-100-EPR-SS 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16Z-F16L-100-KZ-B 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16Z-F16L-100-KZ-SS 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16Z-F16L-100-NE-B 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
16Z-F16L-100-NE-SS 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 5,000 345
16Z-F16L-100-SS 1" 1" 100 Micron Single Ferrule Compression Single Ferrule Compression Brass 5,000 345
16Z-F16L-5-B 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
16Z-F16L-5-BN-B 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
16Z-F16L-5-BN-SS 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 5,000 345
16Z-F16L-5-EPR-B 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16Z-F16L-5-EPR-SS 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16Z-F16L-5-KZ-B 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16Z-F16L-5-KZ-SS 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16Z-F16L-5-NE-B 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
16Z-F16L-5-NE-SS 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 5,000 345
16Z-F16L-5-SS 1" 1" 5 Micron Single Ferrule Compression Single Ferrule Compression Brass 5,000 345
16Z-F16L-50-B 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Brass 3,000 207
16Z-F16L-50-BN-B 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
16Z-F16L-50-BN-SS 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 5,000 345
16Z-F16L-50-EPR-B 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
16Z-F16L-50-EPR-SS 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 5,000 345
16Z-F16L-50-KZ-B 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
16Z-F16L-50-KZ-SS 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 5,000 345
16Z-F16L-50-NE-B 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
16Z-F16L-50-NE-SS 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 5,000 345
16Z-F16L-50-SS 1" 1" 50 Micron Single Ferrule Compression Single Ferrule Compression Brass 5,000 345
4A-F4L-1-B 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4A-F4L-1-BN-B 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
4A-F4L-1-BN-SS 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4A-F4L-1-EPR-B 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4A-F4L-1-EPR-SS 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4A-F4L-1-KZ-B 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4A-F4L-1-KZ-SS 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-1-NE-B 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
4A-F4L-1-NE-SS 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4A-F4L-1-SS 1/4" 1/4" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-10-B 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4A-F4L-10-BN-B 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
4A-F4L-10-BN-SS 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4A-F4L-10-EPR-B 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4A-F4L-10-EPR-SS 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4A-F4L-10-KZ-B 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4A-F4L-10-KZ-SS 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-10-NE-B 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
4A-F4L-10-NE-SS 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4A-F4L-10-SS 1/4" 1/4" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-100-B 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4A-F4L-100-BN-B 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
4A-F4L-100-BN-SS 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4A-F4L-100-EPR-B 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4A-F4L-100-EPR-SS 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4A-F4L-100-KZ-B 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4A-F4L-100-KZ-SS 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-100-NE-B 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
4A-F4L-100-NE-SS 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4A-F4L-100-SS 1/4" 1/4" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-5-B 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4A-F4L-5-BN-B 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
4A-F4L-5-BN-SS 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4A-F4L-5-EPR-B 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4A-F4L-5-EPR-SS 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4A-F4L-5-KZ-B 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4A-F4L-5-KZ-SS 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-5-NE-B 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
4A-F4L-5-NE-SS 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4A-F4L-5-SS 1/4" 1/4" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-50-B 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4A-F4L-50-BN-B 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
4A-F4L-50-BN-SS 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4A-F4L-50-EPR-B 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4A-F4L-50-EPR-SS 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4A-F4L-50-KZ-B 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4A-F4L-50-KZ-SS 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4A-F4L-50-NE-B 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
4A-F4L-50-NE-SS 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4A-F4L-50-SS 1/4" 1/4" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-1-B 1/4" 1/4" 1 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
4F-F4L-1-BN-B 1/4" 1/4" 1 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
4F-F4L-1-BN-SS 1/4" 1/4" 1 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
4F-F4L-1-EPR-B 1/4" 1/4" 1 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
4F-F4L-1-EPR-SS 1/4" 1/4" 1 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4F-F4L-1-KZ-B 1/4" 1/4" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4F-F4L-1-KZ-SS 1/4" 1/4" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-1-NE-B 1/4" 1/4" 1 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
4F-F4L-1-NE-SS 1/4" 1/4" 1 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
4F-F4L-1-SS 1/4" 1/4" 1 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-10-B 1/4" 1/4" 10 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
4F-F4L-10-BN-B 1/4" 1/4" 10 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
4F-F4L-10-BN-SS 1/4" 1/4" 10 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
4F-F4L-10-EPR-B 1/4" 1/4" 10 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
4F-F4L-10-EPR-SS 1/4" 1/4" 10 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4F-F4L-10-KZ-B 1/4" 1/4" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4F-F4L-10-KZ-SS 1/4" 1/4" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-10-NE-B 1/4" 1/4" 10 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
4F-F4L-10-NE-SS 1/4" 1/4" 10 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
4F-F4L-10-SS 1/4" 1/4" 10 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-100-B 1/4" 1/4" 100 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
4F-F4L-100-BN-B 1/4" 1/4" 100 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
4F-F4L-100-BN-SS 1/4" 1/4" 100 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
4F-F4L-100-EPR-B 1/4" 1/4" 100 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
4F-F4L-100-EPR-SS 1/4" 1/4" 100 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4F-F4L-100-KZ-B 1/4" 1/4" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4F-F4L-100-KZ-SS 1/4" 1/4" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-100-NE-B 1/4" 1/4" 100 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
4F-F4L-100-NE-SS 1/4" 1/4" 100 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
4F-F4L-100-SS 1/4" 1/4" 100 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-5-B 1/4" 1/4" 5 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
4F-F4L-5-BN-B 1/4" 1/4" 5 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
4F-F4L-5-BN-SS 1/4" 1/4" 5 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
4F-F4L-5-EPR-B 1/4" 1/4" 5 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
4F-F4L-5-EPR-SS 1/4" 1/4" 5 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4F-F4L-5-KZ-B 1/4" 1/4" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4F-F4L-5-KZ-SS 1/4" 1/4" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-5-NE-B 1/4" 1/4" 5 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
4F-F4L-5-NE-SS 1/4" 1/4" 5 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
4F-F4L-5-SS 1/4" 1/4" 5 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-50-B 1/4" 1/4" 50 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
4F-F4L-50-BN-B 1/4" 1/4" 50 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
4F-F4L-50-BN-SS 1/4" 1/4" 50 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
4F-F4L-50-EPR-B 1/4" 1/4" 50 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
4F-F4L-50-EPR-SS 1/4" 1/4" 50 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4F-F4L-50-KZ-B 1/4" 1/4" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4F-F4L-50-KZ-SS 1/4" 1/4" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4F-F4L-50-NE-B 1/4" 1/4" 50 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
4F-F4L-50-NE-SS 1/4" 1/4" 50 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
4F-F4L-50-SS 1/4" 1/4" 50 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-1-B 1/4" 1/4" 1 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
4M-F4L-1-BN-B 1/4" 1/4" 1 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
4M-F4L-1-BN-SS 1/4" 1/4" 1 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
4M-F4L-1-EPR-B 1/4" 1/4" 1 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
4M-F4L-1-EPR-SS 1/4" 1/4" 1 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4M-F4L-1-KZ-B 1/4" 1/4" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4M-F4L-1-KZ-SS 1/4" 1/4" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-1-NE-B 1/4" 1/4" 1 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
4M-F4L-1-NE-SS 1/4" 1/4" 1 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
4M-F4L-1-SS 1/4" 1/4" 1 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-10-B 1/4" 1/4" 10 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
4M-F4L-10-BN-B 1/4" 1/4" 10 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
4M-F4L-10-BN-SS 1/4" 1/4" 10 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
4M-F4L-10-EPR-B 1/4" 1/4" 10 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
4M-F4L-10-EPR-SS 1/4" 1/4" 10 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4M-F4L-10-KZ-B 1/4" 1/4" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4M-F4L-10-KZ-SS 1/4" 1/4" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-10-NE-B 1/4" 1/4" 10 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
4M-F4L-10-NE-SS 1/4" 1/4" 10 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
4M-F4L-10-SS 1/4" 1/4" 10 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-100-B 1/4" 1/4" 100 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
4M-F4L-100-BN-B 1/4" 1/4" 100 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
4M-F4L-100-BN-SS 1/4" 1/4" 100 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
4M-F4L-100-EPR-B 1/4" 1/4" 100 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
4M-F4L-100-EPR-SS 1/4" 1/4" 100 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4M-F4L-100-KZ-B 1/4" 1/4" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4M-F4L-100-KZ-SS 1/4" 1/4" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-100-NE-B 1/4" 1/4" 100 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
4M-F4L-100-NE-SS 1/4" 1/4" 100 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
4M-F4L-100-SS 1/4" 1/4" 100 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-5-B 1/4" 1/4" 5 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
4M-F4L-5-BN-B 1/4" 1/4" 5 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
4M-F4L-5-BN-SS 1/4" 1/4" 5 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
4M-F4L-5-EPR-B 1/4" 1/4" 5 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
4M-F4L-5-EPR-SS 1/4" 1/4" 5 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4M-F4L-5-KZ-B 1/4" 1/4" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4M-F4L-5-KZ-SS 1/4" 1/4" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-5-NE-B 1/4" 1/4" 5 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
4M-F4L-5-NE-SS 1/4" 1/4" 5 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
4M-F4L-5-SS 1/4" 1/4" 5 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-50-B 1/4" 1/4" 50 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
4M-F4L-50-BN-B 1/4" 1/4" 50 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
4M-F4L-50-BN-SS 1/4" 1/4" 50 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
4M-F4L-50-EPR-B 1/4" 1/4" 50 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
4M-F4L-50-EPR-SS 1/4" 1/4" 50 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4M-F4L-50-KZ-B 1/4" 1/4" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4M-F4L-50-KZ-SS 1/4" 1/4" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4M-F4L-50-NE-B 1/4" 1/4" 50 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
4M-F4L-50-NE-SS 1/4" 1/4" 50 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
4M-F4L-50-SS 1/4" 1/4" 50 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-1-B 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-1-BN-B 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
4Z-F4L-1-BN-SS 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4Z-F4L-1-EPR-B 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4Z-F4L-1-EPR-SS 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-1-KZ-B 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-1-KZ-SS 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-1-NE-B 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
4Z-F4L-1-NE-SS 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-1-SS 1/4" 1/4" 1 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-10-B 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-10-BN-B 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
4Z-F4L-10-BN-SS 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4Z-F4L-10-EPR-B 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4Z-F4L-10-EPR-SS 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-10-KZ-B 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-10-KZ-SS 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-10-NE-B 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
4Z-F4L-10-NE-SS 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-10-SS 1/4" 1/4" 10 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-100-B 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-100-BN-B 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
4Z-F4L-100-BN-SS 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4Z-F4L-100-EPR-B 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4Z-F4L-100-EPR-SS 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-100-KZ-B 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-100-KZ-SS 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-100-NE-B 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
4Z-F4L-100-NE-SS 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-100-SS 1/4" 1/4" 100 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-5-B 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-5-BN-B 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
4Z-F4L-5-BN-SS 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4Z-F4L-5-EPR-B 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4Z-F4L-5-EPR-SS 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-5-KZ-B 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-5-KZ-SS 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-5-NE-B 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
4Z-F4L-5-NE-SS 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-5-SS 1/4" 1/4" 5 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-50-B 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-50-BN-B 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
4Z-F4L-50-BN-SS 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
4Z-F4L-50-EPR-B 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
4Z-F4L-50-EPR-SS 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-50-KZ-B 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
4Z-F4L-50-KZ-SS 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
4Z-F4L-50-NE-B 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
4Z-F4L-50-NE-SS 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
4Z-F4L-50-SS 1/4" 1/4" 50 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-1-B 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6A-F6L-1-BN-B 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
6A-F6L-1-BN-SS 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6A-F6L-1-EPR-B 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6A-F6L-1-EPR-SS 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6A-F6L-1-KZ-B 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6A-F6L-1-KZ-SS 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-1-NE-B 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
6A-F6L-1-NE-SS 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6A-F6L-1-SS 3/8" 3/8" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-10-B 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6A-F6L-10-BN-B 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
6A-F6L-10-BN-SS 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6A-F6L-10-EPR-B 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6A-F6L-10-EPR-SS 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6A-F6L-10-KZ-B 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6A-F6L-10-KZ-SS 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-10-NE-B 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
6A-F6L-10-NE-SS 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6A-F6L-10-SS 3/8" 3/8" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-100-B 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6A-F6L-100-BN-B 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
6A-F6L-100-BN-SS 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6A-F6L-100-EPR-B 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6A-F6L-100-EPR-SS 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6A-F6L-100-KZ-B 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6A-F6L-100-KZ-SS 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-100-NE-B 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
6A-F6L-100-NE-SS 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6A-F6L-100-SS 3/8" 3/8" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-5-B 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6A-F6L-5-BN-B 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
6A-F6L-5-BN-SS 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6A-F6L-5-EPR-B 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6A-F6L-5-EPR-SS 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6A-F6L-5-KZ-B 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6A-F6L-5-KZ-SS 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-5-NE-B 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
6A-F6L-5-NE-SS 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6A-F6L-5-SS 3/8" 3/8" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-50-B 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6A-F6L-50-BN-B 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
6A-F6L-50-BN-SS 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6A-F6L-50-EPR-B 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6A-F6L-50-EPR-SS 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6A-F6L-50-KZ-B 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6A-F6L-50-KZ-SS 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6A-F6L-50-NE-B 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
6A-F6L-50-NE-SS 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6A-F6L-50-SS 3/8" 3/8" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-1-B 3/8" 3/8" 1 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
6F-F6L-1-BN-B 3/8" 3/8" 1 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
6F-F6L-1-BN-SS 3/8" 3/8" 1 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
6F-F6L-1-EPR-B 3/8" 3/8" 1 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
6F-F6L-1-EPR-SS 3/8" 3/8" 1 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6F-F6L-1-KZ-B 3/8" 3/8" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6F-F6L-1-KZ-SS 3/8" 3/8" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-1-NE-B 3/8" 3/8" 1 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
6F-F6L-1-NE-SS 3/8" 3/8" 1 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
6F-F6L-1-SS 3/8" 3/8" 1 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-10-B 3/8" 3/8" 10 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
6F-F6L-10-BN-B 3/8" 3/8" 10 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
6F-F6L-10-BN-SS 3/8" 3/8" 10 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
6F-F6L-10-EPR-B 3/8" 3/8" 10 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
6F-F6L-10-EPR-SS 3/8" 3/8" 10 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6F-F6L-10-KZ-B 3/8" 3/8" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6F-F6L-10-KZ-SS 3/8" 3/8" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-10-NE-B 3/8" 3/8" 10 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
6F-F6L-10-NE-SS 3/8" 3/8" 10 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
6F-F6L-10-SS 3/8" 3/8" 10 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-100-B 3/8" 3/8" 100 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
6F-F6L-100-BN-B 3/8" 3/8" 100 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
6F-F6L-100-BN-SS 3/8" 3/8" 100 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
6F-F6L-100-EPR-B 3/8" 3/8" 100 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
6F-F6L-100-EPR-SS 3/8" 3/8" 100 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6F-F6L-100-KZ-B 3/8" 3/8" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6F-F6L-100-KZ-SS 3/8" 3/8" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-100-NE-B 3/8" 3/8" 100 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
6F-F6L-100-NE-SS 3/8" 3/8" 100 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
6F-F6L-100-SS 3/8" 3/8" 100 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-5-B 3/8" 3/8" 5 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
6F-F6L-5-BN-B 3/8" 3/8" 5 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
6F-F6L-5-BN-SS 3/8" 3/8" 5 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
6F-F6L-5-EPR-B 3/8" 3/8" 5 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
6F-F6L-5-EPR-SS 3/8" 3/8" 5 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6F-F6L-5-KZ-B 3/8" 3/8" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6F-F6L-5-KZ-SS 3/8" 3/8" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-5-NE-B 3/8" 3/8" 5 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
6F-F6L-5-NE-SS 3/8" 3/8" 5 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
6F-F6L-5-SS 3/8" 3/8" 5 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-50-B 3/8" 3/8" 50 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
6F-F6L-50-BN-B 3/8" 3/8" 50 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
6F-F6L-50-BN-SS 3/8" 3/8" 50 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
6F-F6L-50-EPR-B 3/8" 3/8" 50 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
6F-F6L-50-EPR-SS 3/8" 3/8" 50 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6F-F6L-50-KZ-B 3/8" 3/8" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6F-F6L-50-KZ-SS 3/8" 3/8" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6F-F6L-50-NE-B 3/8" 3/8" 50 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
6F-F6L-50-NE-SS 3/8" 3/8" 50 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
6F-F6L-50-SS 3/8" 3/8" 50 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-1-B 3/8" 3/8" 1 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
6M-F6L-1-BN-B 3/8" 3/8" 1 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
6M-F6L-1-BN-SS 3/8" 3/8" 1 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
6M-F6L-1-EPR-B 3/8" 3/8" 1 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
6M-F6L-1-EPR-SS 3/8" 3/8" 1 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6M-F6L-1-KZ-B 3/8" 3/8" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6M-F6L-1-KZ-SS 3/8" 3/8" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-1-NE-B 3/8" 3/8" 1 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
6M-F6L-1-NE-SS 3/8" 3/8" 1 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
6M-F6L-1-SS 3/8" 3/8" 1 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-10-B 3/8" 3/8" 10 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
6M-F6L-10-BN-B 3/8" 3/8" 10 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
6M-F6L-10-BN-SS 3/8" 3/8" 10 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
6M-F6L-10-EPR-B 3/8" 3/8" 10 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
6M-F6L-10-EPR-SS 3/8" 3/8" 10 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6M-F6L-10-KZ-B 3/8" 3/8" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6M-F6L-10-KZ-SS 3/8" 3/8" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-10-NE-B 3/8" 3/8" 10 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
6M-F6L-10-NE-SS 3/8" 3/8" 10 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
6M-F6L-10-SS 3/8" 3/8" 10 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-100-B 3/8" 3/8" 100 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
6M-F6L-100-BN-B 3/8" 3/8" 100 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
6M-F6L-100-BN-SS 3/8" 3/8" 100 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
6M-F6L-100-EPR-B 3/8" 3/8" 100 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
6M-F6L-100-EPR-SS 3/8" 3/8" 100 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6M-F6L-100-KZ-B 3/8" 3/8" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6M-F6L-100-KZ-SS 3/8" 3/8" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-100-NE-B 3/8" 3/8" 100 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
6M-F6L-100-NE-SS 3/8" 3/8" 100 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
6M-F6L-100-SS 3/8" 3/8" 100 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-5-B 3/8" 3/8" 5 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
6M-F6L-5-BN-B 3/8" 3/8" 5 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
6M-F6L-5-BN-SS 3/8" 3/8" 5 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
6M-F6L-5-EPR-B 3/8" 3/8" 5 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
6M-F6L-5-EPR-SS 3/8" 3/8" 5 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6M-F6L-5-KZ-B 3/8" 3/8" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6M-F6L-5-KZ-SS 3/8" 3/8" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-5-NE-B 3/8" 3/8" 5 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
6M-F6L-5-NE-SS 3/8" 3/8" 5 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
6M-F6L-5-SS 3/8" 3/8" 5 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-50-B 3/8" 3/8" 50 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
6M-F6L-50-BN-B 3/8" 3/8" 50 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
6M-F6L-50-BN-SS 3/8" 3/8" 50 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
6M-F6L-50-EPR-B 3/8" 3/8" 50 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
6M-F6L-50-EPR-SS 3/8" 3/8" 50 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6M-F6L-50-KZ-B 3/8" 3/8" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6M-F6L-50-KZ-SS 3/8" 3/8" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6M-F6L-50-NE-B 3/8" 3/8" 50 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
6M-F6L-50-NE-SS 3/8" 3/8" 50 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
6M-F6L-50-SS 3/8" 3/8" 50 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-1-B 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-1-BN-B 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
6Z-F6L-1-BN-SS 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6Z-F6L-1-EPR-B 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6Z-F6L-1-EPR-SS 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-1-KZ-B 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-1-KZ-SS 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-1-NE-B 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
6Z-F6L-1-NE-SS 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-1-SS 3/8" 3/8" 1 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-10-B 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-10-BN-B 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
6Z-F6L-10-BN-SS 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6Z-F6L-10-EPR-B 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6Z-F6L-10-EPR-SS 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-10-KZ-B 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-10-KZ-SS 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-10-NE-B 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
6Z-F6L-10-NE-SS 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-10-SS 3/8" 3/8" 10 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-100-B 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-100-BN-B 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
6Z-F6L-100-BN-SS 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6Z-F6L-100-EPR-B 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6Z-F6L-100-EPR-SS 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-100-KZ-B 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-100-KZ-SS 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-100-NE-B 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
6Z-F6L-100-NE-SS 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-100-SS 3/8" 3/8" 100 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-5-B 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-5-BN-B 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
6Z-F6L-5-BN-SS 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6Z-F6L-5-EPR-B 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6Z-F6L-5-EPR-SS 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-5-KZ-B 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-5-KZ-SS 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-5-NE-B 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
6Z-F6L-5-NE-SS 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-5-SS 3/8" 3/8" 5 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-50-B 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-50-BN-B 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
6Z-F6L-50-BN-SS 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
6Z-F6L-50-EPR-B 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
6Z-F6L-50-EPR-SS 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-50-KZ-B 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
6Z-F6L-50-KZ-SS 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
6Z-F6L-50-NE-B 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
6Z-F6L-50-NE-SS 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
6Z-F6L-50-SS 3/8" 3/8" 50 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-1-B 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8A-F8L-1-BN-B 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
8A-F8L-1-BN-SS 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8A-F8L-1-EPR-B 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8A-F8L-1-EPR-SS 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8A-F8L-1-KZ-B 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8A-F8L-1-KZ-SS 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-1-NE-B 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
8A-F8L-1-NE-SS 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8A-F8L-1-SS 1/2" 1/2" 1 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-10-B 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8A-F8L-10-BN-B 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
8A-F8L-10-BN-SS 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8A-F8L-10-EPR-B 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8A-F8L-10-EPR-SS 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8A-F8L-10-KZ-B 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8A-F8L-10-KZ-SS 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-10-NE-B 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
8A-F8L-10-NE-SS 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8A-F8L-10-SS 1/2" 1/2" 10 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-100-B 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8A-F8L-100-BN-B 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
8A-F8L-100-BN-SS 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8A-F8L-100-EPR-B 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8A-F8L-100-EPR-SS 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8A-F8L-100-KZ-B 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8A-F8L-100-KZ-SS 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-100-NE-B 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
8A-F8L-100-NE-SS 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8A-F8L-100-SS 1/2" 1/2" 100 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-5-B 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8A-F8L-5-BN-B 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
8A-F8L-5-BN-SS 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8A-F8L-5-EPR-B 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8A-F8L-5-EPR-SS 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8A-F8L-5-KZ-B 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8A-F8L-5-KZ-SS 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-5-NE-B 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
8A-F8L-5-NE-SS 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8A-F8L-5-SS 1/2" 1/2" 5 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-50-B 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8A-F8L-50-BN-B 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber Brass 3,000 207
8A-F8L-50-BN-SS 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8A-F8L-50-EPR-B 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8A-F8L-50-EPR-SS 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8A-F8L-50-KZ-B 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8A-F8L-50-KZ-SS 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8A-F8L-50-NE-B 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber Brass 3,000 207
8A-F8L-50-NE-SS 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8A-F8L-50-SS 1/2" 1/2" 50 Micron Two Ferrule Compression Two Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-1-B 1/2" 1/2" 1 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
8F-F8L-1-BN-B 1/2" 1/2" 1 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
8F-F8L-1-BN-SS 1/2" 1/2" 1 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
8F-F8L-1-EPR-B 1/2" 1/2" 1 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
8F-F8L-1-EPR-SS 1/2" 1/2" 1 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8F-F8L-1-KZ-B 1/2" 1/2" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8F-F8L-1-KZ-SS 1/2" 1/2" 1 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-1-NE-B 1/2" 1/2" 1 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
8F-F8L-1-NE-SS 1/2" 1/2" 1 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
8F-F8L-1-SS 1/2" 1/2" 1 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-10-B 1/2" 1/2" 10 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
8F-F8L-10-BN-B 1/2" 1/2" 10 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
8F-F8L-10-BN-SS 1/2" 1/2" 10 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
8F-F8L-10-EPR-B 1/2" 1/2" 10 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
8F-F8L-10-EPR-SS 1/2" 1/2" 10 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8F-F8L-10-KZ-B 1/2" 1/2" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8F-F8L-10-KZ-SS 1/2" 1/2" 10 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-10-NE-B 1/2" 1/2" 10 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
8F-F8L-10-NE-SS 1/2" 1/2" 10 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
8F-F8L-10-SS 1/2" 1/2" 10 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-100-B 1/2" 1/2" 100 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
8F-F8L-100-BN-B 1/2" 1/2" 100 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
8F-F8L-100-BN-SS 1/2" 1/2" 100 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
8F-F8L-100-EPR-B 1/2" 1/2" 100 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
8F-F8L-100-EPR-SS 1/2" 1/2" 100 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8F-F8L-100-KZ-B 1/2" 1/2" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8F-F8L-100-KZ-SS 1/2" 1/2" 100 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-100-NE-B 1/2" 1/2" 100 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
8F-F8L-100-NE-SS 1/2" 1/2" 100 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
8F-F8L-100-SS 1/2" 1/2" 100 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-5-B 1/2" 1/2" 5 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
8F-F8L-5-BN-B 1/2" 1/2" 5 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
8F-F8L-5-BN-SS 1/2" 1/2" 5 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
8F-F8L-5-EPR-B 1/2" 1/2" 5 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
8F-F8L-5-EPR-SS 1/2" 1/2" 5 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8F-F8L-5-KZ-B 1/2" 1/2" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8F-F8L-5-KZ-SS 1/2" 1/2" 5 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-5-NE-B 1/2" 1/2" 5 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
8F-F8L-5-NE-SS 1/2" 1/2" 5 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
8F-F8L-5-SS 1/2" 1/2" 5 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-50-B 1/2" 1/2" 50 Micron NPT F NPT F Fluorocarbon Rubber Brass 3,000 207
8F-F8L-50-BN-B 1/2" 1/2" 50 Micron NPT F NPT F Nitrile Rubber Brass 3,000 207
8F-F8L-50-BN-SS 1/2" 1/2" 50 Micron NPT F NPT F Nitrile Rubber 316 Stainless Steel 6,000 414
8F-F8L-50-EPR-B 1/2" 1/2" 50 Micron NPT F NPT F Ethylene Propylene Rubber Brass 3,000 207
8F-F8L-50-EPR-SS 1/2" 1/2" 50 Micron NPT F NPT F Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8F-F8L-50-KZ-B 1/2" 1/2" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8F-F8L-50-KZ-SS 1/2" 1/2" 50 Micron NPT F NPT F Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8F-F8L-50-NE-B 1/2" 1/2" 50 Micron NPT F NPT F Neoprene Rubber Brass 3,000 207
8F-F8L-50-NE-SS 1/2" 1/2" 50 Micron NPT F NPT F Neoprene Rubber 316 Stainless Steel 6,000 414
8F-F8L-50-SS 1/2" 1/2" 50 Micron NPT F NPT F Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-1-B 1/2" 1/2" 1 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
8M-F8L-1-BN-B 1/2" 1/2" 1 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
8M-F8L-1-BN-SS 1/2" 1/2" 1 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
8M-F8L-1-EPR-B 1/2" 1/2" 1 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
8M-F8L-1-EPR-SS 1/2" 1/2" 1 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8M-F8L-1-KZ-B 1/2" 1/2" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8M-F8L-1-KZ-SS 1/2" 1/2" 1 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-1-NE-B 1/2" 1/2" 1 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
8M-F8L-1-NE-SS 1/2" 1/2" 1 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
8M-F8L-1-SS 1/2" 1/2" 1 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-10-B 1/2" 1/2" 10 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
8M-F8L-10-BN-B 1/2" 1/2" 10 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
8M-F8L-10-BN-SS 1/2" 1/2" 10 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
8M-F8L-10-EPR-B 1/2" 1/2" 10 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
8M-F8L-10-EPR-SS 1/2" 1/2" 10 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8M-F8L-10-KZ-B 1/2" 1/2" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8M-F8L-10-KZ-SS 1/2" 1/2" 10 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-10-NE-B 1/2" 1/2" 10 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
8M-F8L-10-NE-SS 1/2" 1/2" 10 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
8M-F8L-10-SS 1/2" 1/2" 10 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-100-B 1/2" 1/2" 100 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
8M-F8L-100-BN-B 1/2" 1/2" 100 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
8M-F8L-100-BN-SS 1/2" 1/2" 100 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
8M-F8L-100-EPR-B 1/2" 1/2" 100 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
8M-F8L-100-EPR-SS 1/2" 1/2" 100 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8M-F8L-100-KZ-B 1/2" 1/2" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8M-F8L-100-KZ-SS 1/2" 1/2" 100 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-100-NE-B 1/2" 1/2" 100 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
8M-F8L-100-NE-SS 1/2" 1/2" 100 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
8M-F8L-100-SS 1/2" 1/2" 100 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-5-B 1/2" 1/2" 5 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
8M-F8L-5-BN-B 1/2" 1/2" 5 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
8M-F8L-5-BN-SS 1/2" 1/2" 5 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
8M-F8L-5-EPR-B 1/2" 1/2" 5 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
8M-F8L-5-EPR-SS 1/2" 1/2" 5 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8M-F8L-5-KZ-B 1/2" 1/2" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8M-F8L-5-KZ-SS 1/2" 1/2" 5 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-5-NE-B 1/2" 1/2" 5 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
8M-F8L-5-NE-SS 1/2" 1/2" 5 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
8M-F8L-5-SS 1/2" 1/2" 5 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-50-B 1/2" 1/2" 50 Micron NPT M NPT M Fluorocarbon Rubber Brass 3,000 207
8M-F8L-50-BN-B 1/2" 1/2" 50 Micron NPT M NPT M Nitrile Rubber Brass 3,000 207
8M-F8L-50-BN-SS 1/2" 1/2" 50 Micron NPT M NPT M Nitrile Rubber 316 Stainless Steel 6,000 414
8M-F8L-50-EPR-B 1/2" 1/2" 50 Micron NPT M NPT M Ethylene Propylene Rubber Brass 3,000 207
8M-F8L-50-EPR-SS 1/2" 1/2" 50 Micron NPT M NPT M Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8M-F8L-50-KZ-B 1/2" 1/2" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8M-F8L-50-KZ-SS 1/2" 1/2" 50 Micron NPT M NPT M Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8M-F8L-50-NE-B 1/2" 1/2" 50 Micron NPT M NPT M Neoprene Rubber Brass 3,000 207
8M-F8L-50-NE-SS 1/2" 1/2" 50 Micron NPT M NPT M Neoprene Rubber 316 Stainless Steel 6,000 414
8M-F8L-50-SS 1/2" 1/2" 50 Micron NPT M NPT M Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-1-B 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-1-BN-B 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
8Z-F8L-1-BN-SS 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8Z-F8L-1-EPR-B 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8Z-F8L-1-EPR-SS 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-1-KZ-B 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-1-KZ-SS 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-1-NE-B 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
8Z-F8L-1-NE-SS 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-1-SS 1/2" 1/2" 1 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-10-B 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-10-BN-B 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
8Z-F8L-10-BN-SS 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8Z-F8L-10-EPR-B 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8Z-F8L-10-EPR-SS 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-10-KZ-B 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-10-KZ-SS 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-10-NE-B 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
8Z-F8L-10-NE-SS 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-10-SS 1/2" 1/2" 10 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-100-B 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-100-BN-B 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
8Z-F8L-100-BN-SS 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8Z-F8L-100-EPR-B 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8Z-F8L-100-EPR-SS 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-100-KZ-B 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-100-KZ-SS 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-100-NE-B 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
8Z-F8L-100-NE-SS 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-100-SS 1/2" 1/2" 100 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-5-B 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-5-BN-B 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
8Z-F8L-5-BN-SS 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8Z-F8L-5-EPR-B 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8Z-F8L-5-EPR-SS 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-5-KZ-B 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-5-KZ-SS 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-5-NE-B 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
8Z-F8L-5-NE-SS 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-5-SS 1/2" 1/2" 5 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-50-B 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-50-BN-B 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber Brass 3,000 207
8Z-F8L-50-BN-SS 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Nitrile Rubber 316 Stainless Steel 6,000 414
8Z-F8L-50-EPR-B 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber Brass 3,000 207
8Z-F8L-50-EPR-SS 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Ethylene Propylene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-50-KZ-B 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber Brass 3,000 207
8Z-F8L-50-KZ-SS 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Highly Flourinated Fluorocarbon Rubber 316 Stainless Steel 6,000 414
8Z-F8L-50-NE-B 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber Brass 3,000 207
8Z-F8L-50-NE-SS 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Neoprene Rubber 316 Stainless Steel 6,000 414
8Z-F8L-50-SS 1/2" 1/2" 50 Micron Single Ferrule Compression Single Ferrule Compression Fluorocarbon Rubber 316 Stainless Steel 6,000 414






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694 | 139 1096 2635
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
