Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

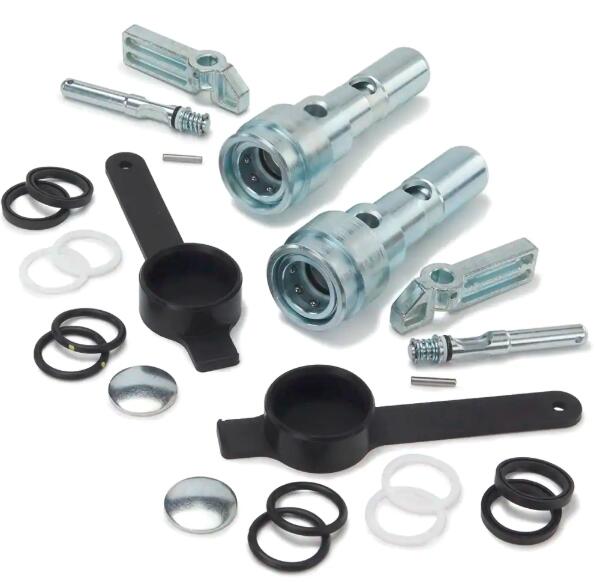

OEM Aftermarket Hydraulic Cartridge Coupling Kit (John Deere Replacement) Converts to Accept ISO 5675 Pioneer Tips - DR10010
DR10010系列 - OEM售后液压插装转换套件（约翰迪尔备件），可与ISO 5675 Pioneer阳接头相连

Pioneer系列液压插装转换套件，为约翰迪尔4000系列拖拉机提供了升级包，无需过渡接头进行连接。 Pioneer's Hydraulic Cartridge Coupling Conversion Kit provides an upgrade for John Deere 4000 series tractors to eliminate the need for adapters.

派克Pioneer DR10010系列液压插装转换套件承压（液压）可达3000 psi,该系列的设计是为约翰迪尔4000系列拖拉机上的ISO 5675 Pioneer系列阳接头提供了升级转换包。 The Pioneer DR10010 cartridge conversion kit (hydraulic), 3000 psi, is designed to convert John Deere 4000 Series tractors for use with ISO 5675 Pioneer style male tips.

使用该系列转换套件升级您的拖拉机配置连接能够减少过渡接头的使用。当你需要使用ISO阳接头去连接约翰迪尔的阴接头的时候，不再需要转换连接了。该系列转换套件的一些特点包括：简单地推动式连接操作，减少了压降损失，性能表现更好，简单快速地安装。碳钢部件都通过电镀处理，从而有优异的耐腐蚀性。每个套件都包括需要替换约翰迪尔OEM快换的零部件。 Upgrading your tractor with this conversion kit will eliminate the need for adapters. You will no longer need to adapt implements using the ISO male tips to the old style John Deere coupling interface. Some advantages of the conversion kit include: easy push/pull operation, reduced pressure drop for longer system life, simple and fast installation. All steel components are plated for excellent corrosion resistance. Each kit contains the parts needed to convert two original John Deere OEM couplings.

- Pioneer订货号: DR10010 Pioneer Part Number: DR10010
- 对应的约翰迪尔OEM型号: RE206778 Same as John Deere OEM Part Number: RE206778


市场Markets:
- 农业Agriculture

特点/优势Features/Benefits:
- Globally connects with Pioneer universal male tips (nipples) complying to ISO 5675 (not included in Kit)
- Easy push to connect /pull to disconnect operation
- Reduced pressure drop helps to prolong system life
- Simple and fast installation
- One kit converts two original John Deere OEM couplings
- 能与全球范围内符合ISO 5675 标准的Pioneer系列通用阳接头（不包含在套件内）进行连接
- 简单的推动式连接操作
- 较低的压降有助于延长系统寿命
- 简单快速的安装
- 一个套件包能够转换2种形式约翰迪尔快换接头

应用Applications:
- John Deere 4000 Series Tractors with original coupling interface
- 约翰迪尔4000 系列拖拉机上的原装快换连接

Technical Specifications

OEM Aftermarket Hydraulic Cartridge Coupling Kit (John Deere Replacement) Converts to Accept ISO 5675 Pioneer Tips - DR10010 型号
