Parker Quick Couplings快速接头
ISO 16028 and ISO 7241-A Quick Coupling Adapters (hydraulic) 3625 psi - EAS/SAE Adapters
EAS/SAE过渡接头 符合ISO 16028 以及 ISO 7241-A标准的快换过渡接头,承压(液压)可达3625 psi
派克无溢流型快换接头设计符合ISO 16028平齐端面以及ISO 7241-A锥阀快换标准,用于工程机械应用。
Parker's Non-Spill Quick Coupling Adapters are designed to accommodate the ISO 16028 flush face and the ISO 7241-A poppet coupling types in mobile equipment hydraulics.
EAS/SAE 快换过渡接头承压(液压)可达 3625 psi,适用于从 (ISO 16028) 无溢流型平齐端面至锥阀 (ISO 7241-A) 形式。这些快换接头可与符合ISO 16028 以及 ISO 7241-A 标准的快换进行互换。EAS/SAE 过渡接头目前可供尺寸:1/2" EAS/SAE Quick Coupling Adapters (hydraulic) 3625 psi, adapt (ISO 16028) flush style non spill valving to/from poppet style (ISO 7241-A). These adapters have global interchangeability with other ISO 16028 and ISO 7241-A compliant couplings. EAS/SAE adapters are available in 1/2" size.

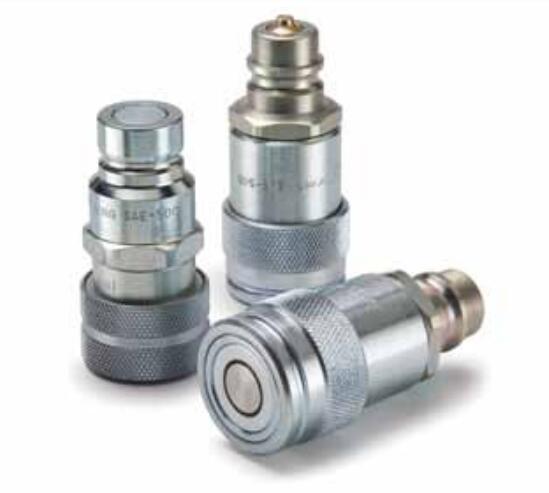

ISO 16028 and ISO 7241-A Quick Coupling Adapters (hydraulic) 3625 psi - EAS/SAE Adapters
技术参数Technical Characteristics:
- Size: 1/2"
- Material: Steel
- Seal: Nitrile
- 本体尺寸:1/2"
- 材料:碳钢
- 密封:丁腈橡胶
市场Markets:
- Industrial
- Construction
- Agriculture
- 工业
- 建筑
- 农业
特点/优势Features/Benefits:
- Adapts: ISO 16028 (non-spill valve) to/from ISO 7241-A (poppet valve)
- Global interchangeability with other ISO 16028 and ISO 7241-A compliant couplings
- 适用:ISO 16028 (无溢流阀芯)至 ISO 7241-A (锥阀)
- 可与符合 ISO 16028 以及 ISO 7241-A 标准的快换进行互换
应用Applications:
- Skid loader attachments
- Mobile equipment attachments
- 轮载机属具
- 工程机械属具
Technical Specifications
Maximum Operating Pressure: |
3625 psi, 250 bar |
Valve Type: |
Poppet, Non-spill, Poppet, Non-spill valve |
Application: |
Hydraulic, general purpose |
Brand: |
Parker |
Interchange Type: |
ISO 5675, ISO 7241-B |
Materials of Construction: |
Steel |
Maximum Operating Temperature: |
121 °C, 250 °F |
Vacuum Pressure Rating: |
No |
Body Size: |
1/2 inch |
Flow Rate: |
12 Gal/min |
Seal Material: |
Nitrile |
Media: |
Hydraulic |
Coupling Half: |
Adapter |
Minimum Operating Temperature: |
-40 °F |
Plating Type: |
Zinc with clear trivalent chromate |
Sleeve Type: |
Push to connect, Manual |
Lock Type: |
Locking balls |
ISO 16028 and ISO 7241-A Quick Coupling Adapters (hydraulic) 3625 psi - EAS/SAE Adapters 型号
Part |
Application |
EAS-500 |
Adapts ISO 16028 non-spill to ISO 7241-A |
SAE-500 |
Adapts ISO 7241-A poppet to ISO 16028 |
|
