Parker 快速接头和附件
Parker Quick Couplings and Accessories

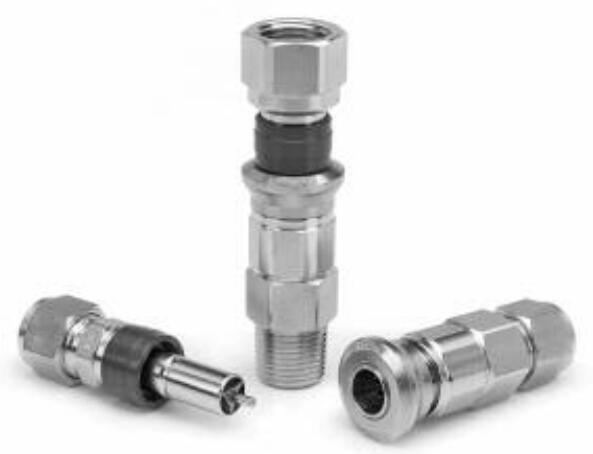

Parker Quick Couplings快速接头
Vacuum to Medium Pressure (Valved or Unvalved) - Brass, Stainless, Steel Quick Couplings (fluids, gas) - EA Series Nipples
EA 系列快换阳接头 - 真空至中压（带阀或者不带阀）- 黄铜，不锈钢，碳钢快换接头(流体，气体)

派克多用途快换阴接头和阳接头是真空以及中压应用下，当流体或者气体回路需要快速简便地连接或者断开时的选择。 Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

EA 系列阳接头承压（液压，水，气体）可从真空至 3,000 psi，与EA系列阴接头配合使用。 CPI Series Nipples (fluid or gas) vacuum to 3000 psi, connect with CPI Series Couplers.

派克EA 系列快换接头的阀芯结构有单截止型，双截止型，以及不带阀的直通型可以选择，是为真空以及中压应用开发的。真空可达 29.72" Hg。该系列快换阳接头以及阴接头可全尺寸供货，各种材料包括黄铜，碳钢，以及 316 不锈钢。 Parker's CPI Series are stainless steel, push to connect quick couplings designed for use in process, power, and instrumentation applications. CPI Series nipples are available valved or unvalved. Valved nipples are color coded red for easy identification. Port ends include A-Lok and CPI tube fitting configurations.

Vacuum to Medium Pressure (Valved or Unvalved) - Brass, Stainless, Steel Quick Couplings (fluids, gas) - EA Series Nipples

技术特点Technical Characteristics:
- Sizes: 1/4” - 3/4”
- Materials: Steel, Brass, 316 Stainless Steel
- Port Ends: Female NPTF, Male NPT
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
- Other coupler options include: aluminum material, sizes up to 4", and additional port end configuration options
- 尺寸：1/4” - 3/4”
- 材料可选：黄铜，碳钢，以及316L 不锈钢
- 接口螺纹：内螺纹 NPTF，外螺纹 NPT
- 密封可选：丁腈橡胶，氟橡胶，三元乙丙橡胶
- 其他阴接头可选项包括：铝材质，尺寸高达4英寸，和其他接口连接选项。

市场Markets:
- Industrial
- Construction
- Molding
- Testing
- 工业
- 建筑
- 模具行业
- 测试

特点/优势Features/Benefits:
- Multi-purpose coupling with vacuum capability
- Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
- Male and female port options
- 多功能快换接头在真空中应用的能力
- 带阀及不带阀的结构形式可以用于各种形式的连接，如直通型，双截止，以及单截止连接等。
- 外螺纹及内螺纹可选

应用Applications:
- Test lab equipment
- Autoclave applications
- Aircraft fabrication
- Plastic molding
- Horizontal boring and dewatering
- 实验室测试设备
- 高压灭菌应用
- 飞机制造
- 塑料成型
- 卧式镗脱水

Technical Specifications

Gas or Fluid, Vacuum and Pressure, Stainless Steel Quick Couplings with A-Lok and CPI Ends, up to 3000 psi - CPI Series Nipples 型号
