Parker Quick Couplings快速接头
Off Shore Connect Under Pressure, Stainless Thread to Connect, High Pressure Quick Couplings, 10,000 psi - 1141 Series Nipples
1141系列快换阴接头 - 高压型快换，不锈钢材料，螺纹连接形式，用于海工应用，承压可达10,000 psi

派克高压型快换，1/4" 阴接头以及阳接头，能在压力下进行连接，是用于需要经常连接或者断开的液压管路的选择。 Parker's high pressure, connect under pressure 1/4" quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

1141 系列快换阳接头，承压（液压）可达 10,000 psi, 能与1141 系列阴接头配合连接。 1141 Series Nipples (hydraulic) 10,000 psi, connect with 1141 Series Couplers.

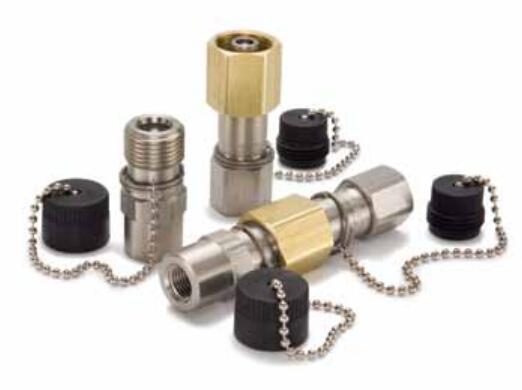

派克1141 系列使用不锈钢材料本体，黄铜套筒，能够承受高压，是一款螺纹连接式快换，使用聚乙烯密封材料，能够抗挤出以及磨损。该系列快换阴接头以及阳接头目前可供尺寸：1/4"，并且包含了防尘帽以及阳接头。 Parker's 1141 Series have stainless steel bodies and brass sleeves. They are high pressure, thread to connect quick couplings with polyethylene seals that resist extrusion and abrasion. Couplers and nipples are available in 1/4" size and have dust caps and plugs included.

Off Shore Connect Under Pressure, Stainless Thread to Connect, High Pressure Quick Couplings, 10,000 psi - 1141 Series Nipples

技术特点Technical Characteristics:
- Size: 1/4”
- Material: 303 Stainless Steel
- Port Ends: Female NPTF
- Seal Material: Polyurethane
- 本体尺寸：1/4”
- 材料：303 不锈钢
- 尾端连接：NPTF 内螺纹
- 密封材料：聚氨酯

市场Markets:
- Oil and Gas
- 石油及天然气

特点/优势Features/Benefits:
- Rated pressure up to 10,000 psi and 17,000 psi intermittent pressure
- Small diameter mating seal keeps separation forces to a minimum, allowing easier threaded connection and disconnection at pressures up to 5000 psi
- Polyurethane seals resist extrusion and abrasion
- Threaded connection guards against accidental disconnection
- When fully coupled, sleeve covers the mating thread to visually confirm a complete connection
- Attached protective caps are included
- 额定压力高达10,000 psi，瞬间压力可达17,000 psi
- 直径小，配合密封圈，可以将分离力保持在很小，即使在压力高达5000 psi 的应用下，也能方便地使用螺纹连接和断开
- 聚氨酯密封件可抵抗挤压和磨损
- 螺纹连接保护意外断开
- 当完全连接时，套筒能够完全覆盖连接螺纹，从而提供了很好视觉上的连接完成指示
- 附带防护帽

应用Applications:
- Off shore oil equipment
- Pilot lines
- Test port access
- Hydraulic lines in corrosive environments
- 海工设备
- 先导回路
- 测试口
- 腐蚀环境下的液压管路

Technical Specifications

Off Shore Connect Under Pressure, Stainless Thread to Connect, High Pressure Quick Couplings, 10,000 psi - 1141 Series Nipples 型号
