Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

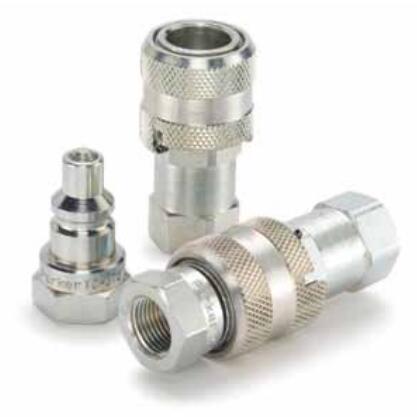

High Pressure, Steel Quick Couplings with Sleeve Lock, Female NPSF Ports (hydraulic) 10,000 psi - TC Series Nipples
TC系列快换阳接头 - 高压型碳钢快换接头，带套筒锁，尾端连接为NPSF内螺纹，承压(液压) 10,000 psi

派克高压型快换阴接头以及阳接头适用于液压设备，能够实现高压管路需要经常快速简单地进行连接以及断开。 Parker's high pressure quick couplers and nipples are ideal for use with hydraulic equipment where high pressure fluid lines require fast and easy connection and disconnection.

TC 系列快换阳接头，承压（液压）可达10,000 psi 能与 TC 系列阴接头配合连接。 TC Series Nipples (hydraulic) up to 10,000 psi connect with TC Series Couplers.

派克TC系列是一款双截止类型，高压快换接头，用于液压及机械冲击的应用。该系列阴接头有套筒锁功能，减少意外断开情况发生。该系列快换阴接头以及阳接头目前可提供的尺寸为：3/8" ，压力可达10,000 psi 。 Parker's TC Series are double shut-off, high pressure quick couplings designed for applications with hydraulic and mechanical shock. Couplers have a sleeve lock function to guard against accidental disconnection. Couplers and nipples are available in 3/8" size with a pressure rating of 10,000 psi.

High Pressure, Steel Quick Couplings with Sleeve Lock, Female NPSF Ports (hydraulic) 10,000 psi - TC Series Nipples

技术特点Technical Characteristics:
- Size: 3/8”
- Material: Steel
- Port Ends: Female NPSF
- Seal: Fluorocarbon
- 尺寸范围：3/8"
- 材料：碳钢
- 尾端连接：NPSF内螺纹
- 密封可选：氟橡胶

市场Markets:
- Railway
- Construction
- Building relocation
- Structure lifting
- 铁路
- 建筑机械
- 房屋拆迁
- 结构吊装

特点/优势Features/Benefits:
- Sleeve lock guards against accidental disconnection
- Positive valve stop prevents flow checking for reliable performance under hydraulic shock
- Durable Fluorocarbon seals
- 套筒锁功能，减少意外断开
- 止动阀设计防止逆流，从而保证液压冲击下的性能稳定
- 耐久性好的氟橡胶密封

应用Applications:
- Any application with hydraulic and mechanical shock
- Hydraulic jacking and house moving equipment
- Construction equipment
- Railway maintenance
- 液压及冲击下的应用
- 液压千斤顶及房屋搬迁
- 建筑机械
- 铁路养护

Technical Specifications

High Pressure, Steel Quick Couplings with Sleeve Lock, Female NPSF Ports (hydraulic) 10,000 psi - TC Series Nipples 型号
