Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings快速接头

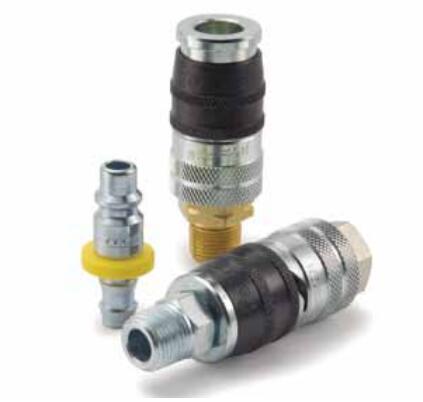

Twist On - Off Air Flow, ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) Industrial Interchange - E-z-mate Series Couplers
E-z-mate 系列快换阴接头，扭转开关空气流通，符合 ISO 4414 排气要求

派克的压力排气型气动，空气快换阴接头是适用于低压空气管路，需要对系统可控性地排气，并且满足快速简单地连接或者断开要求的选择。 Parker's pressure venting pneumatic, air quick couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

E-z-mate 系列快换阴接头，承压（气动，空气）高达 300 psi，可与工业互换型的阳接头配合连接。派克的E-z-mate 系列是压力排气型，推拉式连接形式阴接头，通过简单的扭转打开和关闭气流。该系列带排气功能的快换阴接头能够实现零压力下断开，以减少软管因排气而甩动的危险。E-z-mate 系列符合ISO 4414 要求下的在受控压力下释放的相关要求。 E-z-mate Series Couplers (pneumatic, air) up to 300 psi, connect with Industrial Interchange Nipples. Parker's E-z-mate Series are pressure venting style, push to connect couplers that turn the air flow on and off with a simple twist. These pressure venting style couplers allow disconnection at zero pressure to avoid dangerous hose whip. E-z-mate Series meets ISO 4414 requirements for a controlled pressure release system.

Twist On - Off Air Flow, ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) Industrial Interchange - E-z-mate Series Couplers

技术参数Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2", 3/4”
- Materials: Steel
- Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
- Seal Options: Nitrile
- 尺寸：1/4”, 3/8", 1/2", 3/4”
- 材料：碳钢
- 尾端连接形式：NPTF 内螺纹，NPTF 外螺纹，标准的宝塔软管接头，Push-Lok 宝塔式软管接头
- 密封可选：丁腈橡胶

市场Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation
- 工业
- 建筑
- 汽车服务和维修
- 工厂自动化

特点/优势Features/Benefits:
- Twist to open air flow then twist to close air flow and vent trapped pressure. Relieves air pressure prior to disconnection, eliminating the risk of hose whip
- Meets ISO 4414 requirements for a controlled pressure release system
- Easy push to connect operation
- Self locking valve sleeve guards against accidental disconnection
- Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B)
- 扭转打开空气流通，以及扭转以关闭空气流通和可将空气背压进行排放。在断开之前释放空气压力，减少软管甩动的风险
- 符合 ISO 4414 要求下的在受控压力下释放的相关要求
- 轻松连接操作
- 自锁阀套防意外断开
- 与派克的工业互换接头和其他制造商的符合 A-A-59439 (MIL-C-4109F, ISO 6150-B) 标准的接头进行配合连接使用

应用Applications:
- Air compressors
- Pneumatic air tools and hoses
- Drop-down air lines
- Blow guns
- 空气压缩机
- 气动工具和软管
- 下拉式空气管路
- 气枪

Technical Specifications

Twist On - Off Air Flow, ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) Industrial Interchange - E-z-mate Series Couplers 型号
