Parker Quick Couplings快速接头

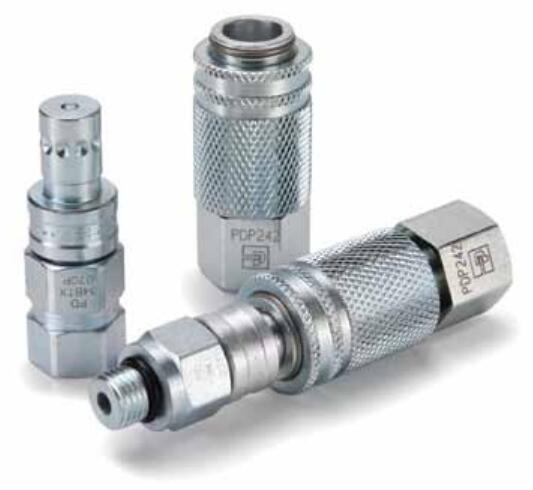

Test Port and Diagnostic Equipment Quick Couplings, Push to Connect under Full System Pressure - PDP Series Couplers
PDP系列快换阴接头 - 测试点接头，用于测试点以及诊断设备快换接头

派克的诊断快换接头阴接头和测试点快换阳接头可轻松连接机械仪表或诊断设备，如派克SensoControl仪表和附件。 Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

PDP系列快换阴接头（诊断测试设备油口连接接头）承压可达6000 psi，与PDP系列阳接头配合连接。这些快换阳接头可为包括派克SensoControl仪表和附件在内的机械仪表或专用诊断设备，提供简便的管路连接。PDP系列快换阴接头可以允许测试仪表，压力表，变送器以及流量传感器能够快速地连接到系统的测试点，操作压力可达6000 psi。 PDP Series Couplers (diagnostic test port connectors) 6,000 psi, connect with PDP Series Nipples. These push to connect quick couplings provide easy connection for mechanical gauges or specialized diagnostic equipment including SensoControl meters and accessories. PDP Couplers allow test instruments, gauges, transducers, and flow sensors to be quickly and easily connected to system test points under full operating pressures up to 6000 psi.

PDP 系列阴接头与阳接头使用推拉式连接，当需要连接时，使用手动转动阴接头的底座以打开阳接头的阀芯，并且完成整个的连接。当连接完成后，阴接头底座限制套筒缩回，从而阻止了意外断开的发生。PDP 阳接头安装在设备或者关键的测试点，如螺纹油口，钢管或软管总成等。阴接头以及阳接头目前可供货尺寸为1/8"，压力可达6000 psi PDP couplers and nipples push to connect, and then the coupler base is manually turned to open the nipple valve and complete the connection. When fully connected, the coupler base blocks the retracted sleeve to prevent accidental disconnects. PDP Nipples can be permanently mounted on equipment at critical test point locations, at threaded test ports, in rigid tubing or in hose assemblies. Couplers and nipples are available in 1/8"" size with a rated pressure of 6,000 psi.

Test Port and Diagnostic Equipment Quick Couplings, Push to Connect under Full System Pressure - PDP Series Couplers

技术特点Technical Characteristics:
- Sizes: 1/8""
- Material: Steel
- Port Ends: Female NPTF
- Seal Options: Nitrile, Ethylene Propylene, Fluorcarbon, Neoprene
- 本体尺寸：1/8"
- 材质：碳钢
- 尾端连接形式：NPTF 内螺纹
- 密封可选：丁腈橡胶，三元乙丙橡胶，氟橡胶，氯丁橡胶

市场Markets:
- Industrial
- Construction
- Molding
- Testing
- Maintenance and Repair, MRO
- 工业液压
- 建筑机械
- 注塑机
- 测试设备
- 维护和修理，MRO

特点/优势Features/Benefits:
- Easy push to connect operation, with a force of six pounds to connect at full system pressures up to 6000 psi
- Coupler is unvalved to allow gauges and transducers to return to zero when disconnected
- When fully connected, the sleeve is unable to be retracted, thus preventing accidental disconnection
- Compatible with Parker's SensoControl diagnostic equipment
- Suitable for use with hydraulic or pneumatic systems
- 简单的推拉式连接，使用6磅的推力即可在6000 psi的工作压力下进行带压连接
- 阴接头不带阀，因此允许断开连接后，压力表以及变送器归零
- 当连接后，套筒无法回缩，减少意外断开的情况发生
- 与派克SensoControl 诊断测试设备的接头兼容
- 可以适用于液压或者气动系统

应用Applications:
- Mobile equipment
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization
- System validation
- 工程机械设备
- 冷却系统
- 工业液压系统
- 流体或空气管路系统维护和故障排除
- 系统性能优化
- 系统调试

Technical Specifications

Test Port and Diagnostic Equipment Quick Couplings, Push to Connect under Full System Pressure - PDP Series Couplers 型号
