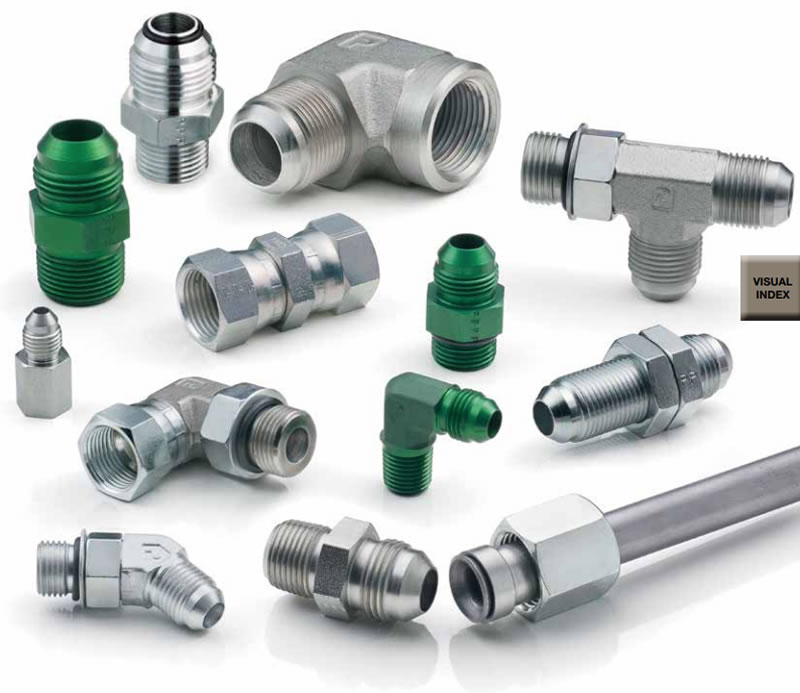

Triple-Lok JIC系列37°扩口硬管及过渡接头
Triple-Lok 37° Flare JIC Tube Fittings and Adapters



派克的Triple-Lok 37°扩口式JIC硬管接头和过渡接头密封方式是金属对金属形式,为高压应用提供了可靠的零泄漏连接的解决方案。派克的Triple-Lok 37°扩口式JIC硬管接头和过渡接头, Triple-Lok 接头符合SAE J514 和 ISO 8434-2标准并能提供多种油口连接端。这种很小面积的金属对金属密封设计使得产品更紧凑,装配扭矩也小,更适用于高温和高压应用。



Triple-Lok JIC系列37°扩口硬管及过渡接头
Triple-Lok 37° Flare JIC Tube Fittings and Adapters





市场:

- 建筑工程
- 地面军用系统
- 升降机
- 农业
- 物料搬运
- 军事海工
- 发动机传输





特征/优势:

- 可与英制尺寸和公制尺寸硬管配合使用
- 多种油口端可选,包括SAE直螺纹O形圈密封(ORB), NPTF, BSPP-ED, BSPP带O形圈和平面垫圈(ORR), BSPP, BSPT, ISO 6149,公制螺纹带O形圈和平面垫圈(ORR),以及公制-ED密封
- 派克的油口堵头由一个较长的锁紧螺母加工而成,有效减少垫片的损坏和可能的泄漏影响, 降低装配出错的可能。
- 碳钢接头通过SAE标准耐腐蚀性试验,超过72小时无红锈。甚至可以到达超过1000小时的要求(由第三方测试机构提供)。
- 不锈钢螺母带有防咬死涂层
- 可供材料:碳钢,不锈钢及黄铜,尺寸范围: 1/8” - 2 ?”,耐压高到7500 psi.



应用:

- 液压和气体连接



Triple-Lok 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.Parker's 37° Flare JIC tube fittings and adapters, Triple-Lok, meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.

Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Engine Transmission

Features/Benefits:
- Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
- Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED
- Parker’s Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
- Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
- Stainless Steel nuts have a coating to prevent galling.
- Available in steel, stainless steel, and brass in sizes 1/8” - 2 ?” with working pressures up to 7500 psi.

Applications:
- Hydraulic fluid and gas handling connections
