PFA Gripper (Compression) Tube Fittings (sizes up to 3/4 inch) – Pargrip Series
PFA 夹持器压缩 管接头(尺寸最大为 3/4 英寸)- PARGRIP 系列管接头

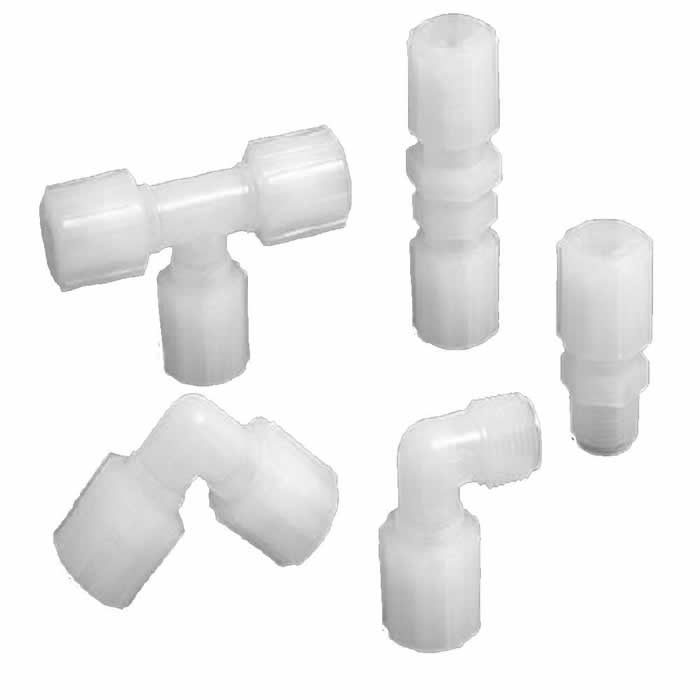

Pargrip PFA Tube Fittings 管接头

Pargrip PFA 管接头提供密封连接,使其成为高腐蚀性化学管系统的理想选择。接头采用双套圈设计,有多种尺寸(1/8 到 3/4 英寸)和配置可供选择。Pargrip 系列 PFA 卡套管接头非常适合用于高腐蚀性环境和化学处理应用,包括过程分析设备和半导体/晶圆厂管道运行。配件的套圈和 ETFE 夹具设计产生密封连接,从而最大限度地减少颗粒截留和高清洁度。

Pargrip 系列管接头不需要任何特殊工具进行组装。只需将管子插入接头组件并拧紧螺母即可实现连接,这大大减少了安装时间和成本。此外,配件不需要任何刻痕,与传统的压缩配件相比,这使得改造更容易。

PFA 管接头有多种尺寸(1/8 英寸到 3/4 英寸)和配置(异径管、弯头和三通),以满足客户系统的独特要求。许多配置都配有 Redi-flare 端接,可节省空间,非常适合在狭窄区域使用,包括阀组箱 (VMB)。

Pargrip 系列接头的精确设计,加上极其坚固的接液(PFA、PTFE 套圈)和非接液(PFA 螺母、ETFE 夹具)材料,使其在高达 125 psig 的工作压力下具有高性能和可靠性。

PFA Gripper (Compression) Tube Fittings (sizes up to 3/4 inch) – Pargrip Series
PFA 夹持器压缩 管接头(尺寸最大为 3/4 英寸)- PARGRIP 系列管接头
Pargrip PFA Tube Fittings 管接头








市场:
- 半导体
- 分析实验室
- 制药
- 生物制药
- 航空航天
- 工业

特点/优势:
- 非常适合在高腐蚀性环境和化学品处理应用中使用
- 接头产生防漏密封,无需特殊工具
- 双套圈设计通过紧紧抓住管子周围而不损坏管壁来确保高泄漏完整性
- 提供各种尺寸(1/8 英寸至 3/4 英寸)和配置(弯头、三通、异径管)
- Redi-flare 端接可节省空间并减少组装时间和成本
- 精确的设计确保在高达 125 的工作压力下的性能和可靠性psig

应用:
- 腐蚀性和特殊化学品、酸、碱和浆液
- 半导体工具
- 工具连接件
- 阀歧管箱 (VMB)
- CMP/浆料系统

性能参数:

FITTING TYPE:Flared
BODY MATERIAL:PFA
FERRULE MATERIAL:PTFE
NUT MATERIAL:PFA
GRIPPER MATERIAL:Titanate Filled ETFE
MAXIMUM OPERATING PRESSURE:125 psi 8.6 bar



Pargrip PFA Tube Fittings provide a leak tight connection, making them ideal for use in highly corrosive chemical tubing systems. The fittings feature a double ferrule design and are available in a variety of sizes (1/8 to 3/4 inch) and configurations.Pargrip Series PFA Tube Fittings are ideally suited for use in highly corrosive environments and chemical handling applications, including process analytical equipment and semiconductor/fab tubing runs. The fittings’ ferrule and ETFE gripper design yields a leak-tight connection, resulting in minimal particle entrapment and high cleanliness.

Pargrip Series tube fittings do not require any special tools for assembly. The connection is achieved by merely inserting the tubing into the fitting assembly and tightening the nut, which significantly reduces installation time and costs. Additionally, the fittings do not require any scoring, which allows for easier remakes than traditional compression fittings.

The PFA tube fittings are available in a variety of sizes (1/8 inch to 3/4 inch) and configurations (reducers, elbows, and tees) to meet the unique requirements of customers’ systems. Many configurations are fitted with Redi-flare end connections, which save space and are ideally suited for use in tight areas, including valve manifold boxes (VMBs).

The exacting design of Pargrip Series fittings, coupled with extremely rugged wetted (PFA, PTFE Ferrule) and non-wetted (PFA nut, ETFE gripper) materials of construction, afford it high performance and reliability at working pressures up to 125 psig.

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Ideally suited for use in highly corrosive environments and chemical handling applications
- Fittings yield a leak-tight seal without the need for special tools
- Double ferrule design ensures high leak integrity by grasping tightly around the tube without damaging the tube wall
- Available in a variety of sizes (1/8 inch to 3/4 inch) and configurations (elbows, tees, reducers)
- Redi-flare end connections save space and reduce assembly time and cost
- Exacting design ensures performance and reliability at working pressure up to 125 psig

Applications:
- Corrosive and specialty chemicals, acids, bases, and slurries
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMB)
- CMP/Slurry systems
