Parker派克快换接头Parker Quick Couplings

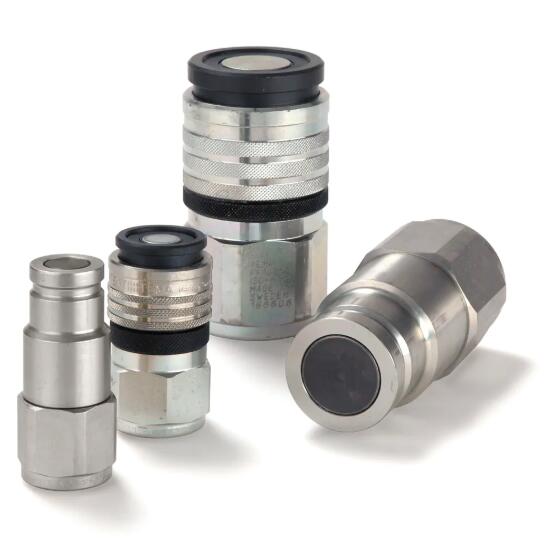

Parker Hydraulic Flat Face Quick Coupling with Parker Profile, Series FF
Parker派克FF系列液压平面快速接头
Parker派克流体连接件Parker fluid connectors
平齐端面快速连接系统，阀体尺寸为1/4“至1”，适用于压力高达800 bar的中压应用。Flat Face quick coupling system with body sizes 1/4" up to 1" for medium pressure applications up to 800 bar.
Parker派克FF系列液压平面快速接头
温度范围： |
-40°C ~ +120°C |
本体材料： |
碳钢 |
密封材料： |
丁腈橡胶 |
优势与优点： |
- 符合Parker标准要求
- 平齐端面阀芯，无溢流
- 快插式连接
- 标配套筒锁
- 阳接头可选背压释放器设计 |
派克平齐端面系列快换FF系列，使用洁净断开技术，符合派克内部设计结构。使用平齐端面阀芯，因此断开时不会有油溢流损失，当连接时，也不会有额外的空气侵入系统。该快换接头还可以带背压释放器，如此可以在静压/残压下进行管路连接。该系列快换标配套筒锁，可预防意外断开。FF系列可使用单手操作。
市场：
- 农用机械
- 汽车自动化
- 石油以及天然气
- 过程控制
- 发电
- 轨道交通
- 市政设施
- 安防
- 工业液压
- 机械工具
- 物料搬运
- 建筑机械
特征/优势：
- 洁净断开技术，断开时没有油溢流，只有较小的压降损失
- 单手操作系统，连接时简单快速
- 带套筒锁，可保护其不发生意外断开
- 公头有双重密封保护，使连接更加安全
- 可带背压释放器
应用：
洁净断开/连接技术，适用于工业液压以及行走机械液压系统
- 拖拉机
- 卡车
- 装载机
- 军用设备
- 液压工具
- 高压液压工具
- 压铸机
- 注塑机
性能特点：
min.运行温度：-25, -30 °C
连接类型：内螺纹
应用：Medium Pressure
主体尺寸：1/4 - 1 inch
品牌：Tema
配件连接类型：Female Thread
交换式：Tema Profile
max.运行压力：5070, 5800, 6520, 7250, 11600 psi /350, 400, 450, 500, 800 bar
max.运行温度：212, 392 °F /100, 200 °C
介质：Chemical Fluids, Hydraulic Fluids, Steam, Water
密封材料：NBR
阀门类型：Non-Spill / FlatFace
长度：65 至 175 mm
六角螺母尺寸：25 至 65 mm
外径：28 至 70 mm
结构材料：黄铜/碳钢

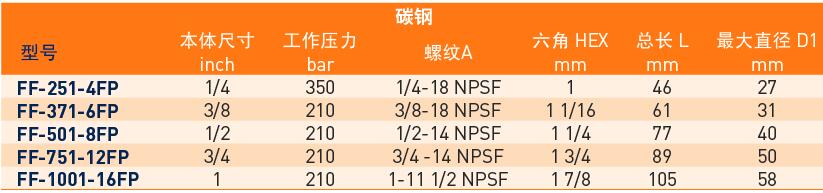

FF系列 - 阴接头
碳钢 |
| 型号 |
本体尺寸
inch |
工作压力
bar |
螺纹A |
六角 HEX
inch |
总长 L
mm |
MAX.直径 D
mm |
| FF-251-4FP |
1/4 |
350 |
1/4-18 NPSF |
1 |
46 |
27 |
| FF-371-6FP |
3/8 |
210 |
3/8-18 NPSF |
1 1/16 |
61 |
31 |
| FF-501-8FP |
1/2 |
210 |
1/2-14 NPSF |
1 1/4 |
77 |
40 |
| FF-751-12FP |
3/4 |
210 |
3/4 -14 NPSF |
1 3/4 |
89 |
50 |
| FF-1001-16FP |
1 |
210 |
1-11 1/2 NPSF |
1 7/8 |
105 |
58 |

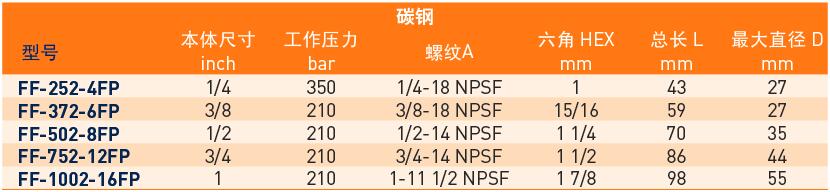

FF系列 - 阳接头
碳钢 |
| 型号 |
本体尺寸
inch |
工作压力
bar |
螺纹A |
六角 HEX
inch |
总长 L
mm |
MAX.直径 D
mm |
| FF-252-4FP |
1/4 |
350 |
1/4-18 NPSF |
1 |
43 |
27 |
| FF-372-6FP |
3/8 |
210 |
3/8-18 NPSF |
15/16 |
59 |
27 |
| FF-502-8FP |
1/2 |
210 |
1/2-14 NPSF |
1 1/4 |
70 |
35 |
| FF-752-12FP |
3/4 |
210 |
3/4-14 NPSF |
1 1/2 |
86 |
44 |
| FF-1002-16FP |
1 |
210 |
1-11 1/2 NPSF |
1 7/8 |
98 |
55 |
Hydraulic Flat Face Quick Coupling with Parker Profile, Series FF型号
| Part |
Body Size (inch) |
Type |
Version |
Connection Thread Size (inch) |
Seal Material |
| FF10010 C |
1 |
Coupling |
Standard |
1 |
NBR |
| FF10010 CV |
1 |
Coupling |
Standard |
1 |
FKM |
| FF10010-125 C |
1 |
Coupling |
Standard |
1 1/4 |
NBR |
| FF10010-125 CV |
1 |
Coupling |
Standard |
1 1/4 |
FKM |
| FF10010-150 C |
1 |
Coupling |
Standard |
1 1/2 |
NBR |
| FF10010-150 CV |
1 |
Coupling |
Standard |
1 1/2 |
FKM |
| FF10020 C |
1 |
Plug |
Standard |
1 |
NBR/PUR |
| FF10020 CV |
1 |
Plug |
Standard |
1 |
FKM |
| FF10020-125 C |
1 |
Plug |
Standard |
1 1/4 |
NBR/PUR |
| FF10020-125 CV |
1 |
Plug |
Standard |
1 1/4 |
FKM |
| FF10020-150 C |
1 |
Plug |
Standard |
1 1/2 |
NBR/PUR |
| FF10020-150 CV |
1 |
Plug |
Standard |
1 1/2 |
FKM |
| FF10021 C |
1 |
Plug |
Pressure Eliminator |
1 |
NBR/PUR |
| FF2510 |
1/4 |
Coupling |
Standard |
1/4 |
NBR/PUR |
| FF2520 |
1/4 |
Plug |
Standard |
1/4 |
NBR/PUR |
| FF2521 |
1/4 |
Plug |
Pressure Eliminator |
1/4 |
NBR/PUR |
| FF3810 |
3/8 |
Coupling |
Standard |
3/8 |
NBR/PUR |
| FF3820 |
3/8 |
Plug |
Standard |
3/4 |
NBR/PUR |
| FF3821 |
3/8 |
Plug |
Pressure Eliminator |
3/8 |
NBR/PUR |
| FF5010 C |
1/2 |
Coupling |
Standard |
1/2 |
NBR/PUR |
| FF5010 CE |
1/2 |
Coupling |
for Muliplate |
1/2 |
NBR |
| FF5010 CEV |
1/2 |
Coupling |
for Muliplate |
1/2 |
FKM |
| FF5010 CV |
1/2 |
Coupling |
Standard |
1/2 |
FKM |
| FF5010-75 C |
1/2 |
Coupling |
Standard |
3/4 |
NBR/PUR |
| FF5010-75 CV |
1/2 |
Coupling |
Standard |
3/4 |
FKM |
| FF5020 C |
1/2 |
Plug |
Standard |
1/2 |
NBR/PUR |
| FF5020 CV |
1/2 |
Plug |
Standard |
1/2 |
FKM |
| FF5020-75 C |
1/2 |
Plug |
Standard |
3/4 |
NBR/PUR |
| FF5020-75 CV |
1/2 |
Plug |
Standard |
3/4 |
FKM |
| FF5021 C |
1/2 |
Plug |
Pressure Eliminator |
1/2 |
NBR/PUR |
| FF5021 CE |
1/2 |
Plug |
Pressure Eliminator for Multiplate |
1/2 |
NBR/PUR |
| FF5021 CV |
1/2 |
Plug |
Pressure Eliminator |
1/2 |
FKM |
| FF7510 C |
3/4 |
Coupling |
Standard |
3/4 |
NBR |
| FF7510 CE |
3/4 |
Coupling |
for Muliplate |
3/4 |
NBR |
| FF7510 CEV |
3/4 |
Coupling |
for Muliplate |
3/4 |
FKM |
| FF7510 CV |
3/4 |
Coupling |
Standard |
3/4 |
FKM |
| FF7510-100 C |
3/4 |
Coupling |
Standard |
1 |
NBR |
| FF7510-100 CV |
3/4 |
Coupling |
Standard |
1 |
FKM |
| FF7520 C |
3/4 |
Plug |
Standard |
3/4 |
NBR/PUR |
| FF7520 CV |
3/4 |
Plug |
Standard |
3/4 |
FKM |
| FF7520-100 C |
3/4 |
Plug |
Standard |
1 |
NBR/PUR |
| FF7520-100 CV |
3/4 |
Plug |
Standard |
1 |
FKM |
| FF7521 C |
3/4 |
Plug |
Pressure Eliminator |
3/4 |
NBR/PUR |
| FF7521 CE |
3/4 |
Plug |
Pressure Eliminator for Multiplate |
3/4 |
NBR/PUR |
|
