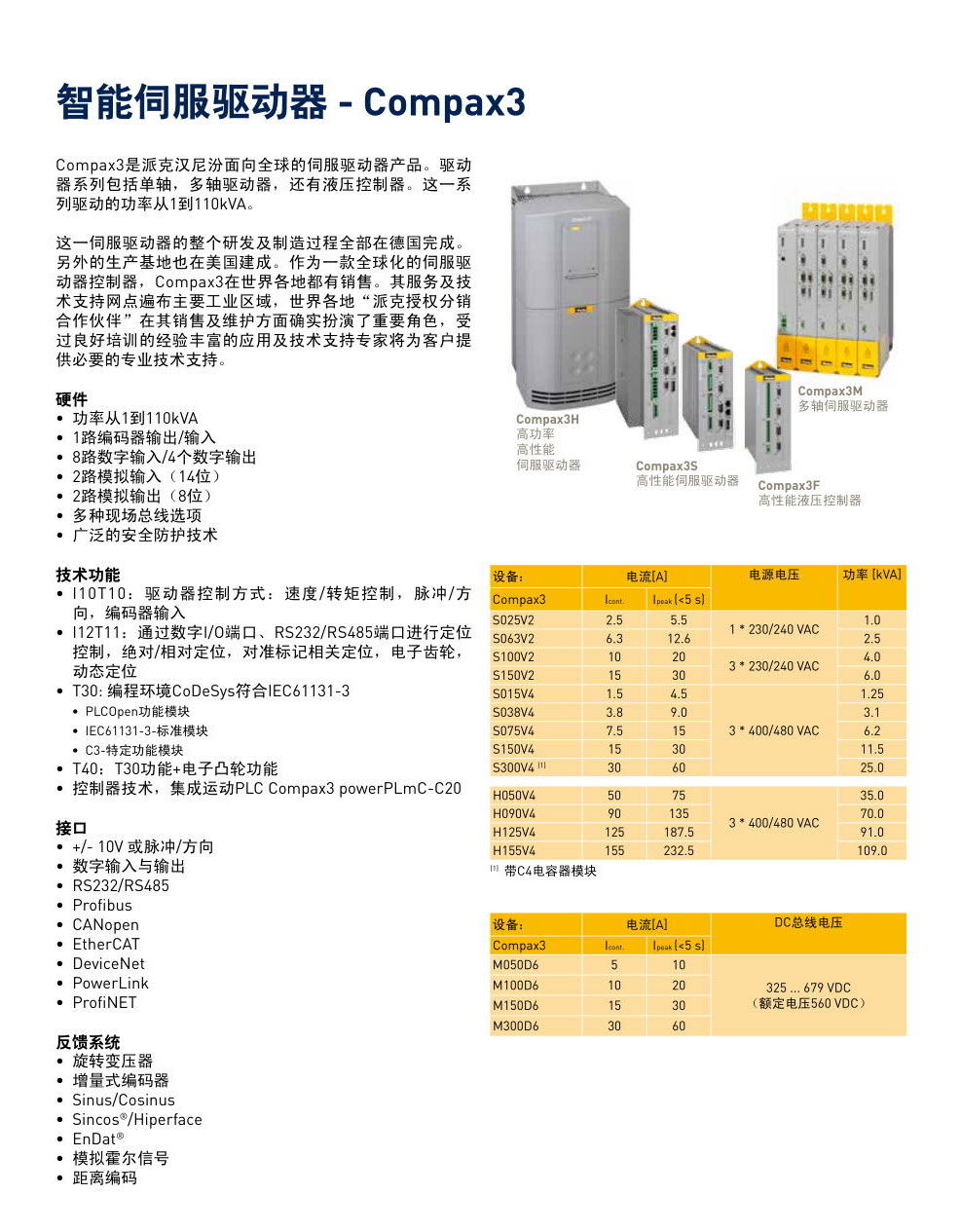

Compax3伺服驱动器 Compax3 Servo Drive

驱动器系列包括单轴多轴驱动器，还有液压控制器。这一系列驱动的功率从1到110kVA。

Available in both 120/240 VAC and 480 VAC input versions
Current output from 2.5A RMS continuous to 155A RMS continuous
Available with ETHERNET Powerlink
Certified Category 3 Safety (EN954-1 Cat. 3)
Programs in all five IEC61131-3 International programming standard
Scalable control technology: preset indexer to fully programmable
Advanced following and camming support
Support for SSI feedback for additional load control
Resolver, Encoder, Sine-Cosine or Stegmann feedback
Multiple fieldbus options, including DeviceNet
Internal regeneration circuitry with external resistor connections
Easy-to-use wizards-based configuration via C3 ServoManager(TM)
Full diagnostic, tuning and 4-channel oscilloscope features provided in the standard C3 ServoManager(TM) software
CE (EMC & LVD)
提供120/240 VAC和480 VAC输入版本
电流输出从2.5A RMS连续到155A RMS连续
随ETHERNET Powerlink提供
通过3类安全认证（EN954-1 Cat.3）
所有五项IEC61131-3国际编程标准中的程序
可扩展的控制技术：预设分度器可完全编程
先进的跟踪和凸轮支持
支持SSI反馈以进行额外的负载控制
旋转变压器，编码器，正弦余弦或Stegmann反馈
多种现场总线选项，包括DeviceNet
内部再生电路，带有外部电阻器连接
通过C3 ServoManager（TM）易于使用的基于向导的配置
标准C3 ServoManager（TM）软件提供了完整的诊断，调谐和4通道示波器功能
CE（EMC和LVD）

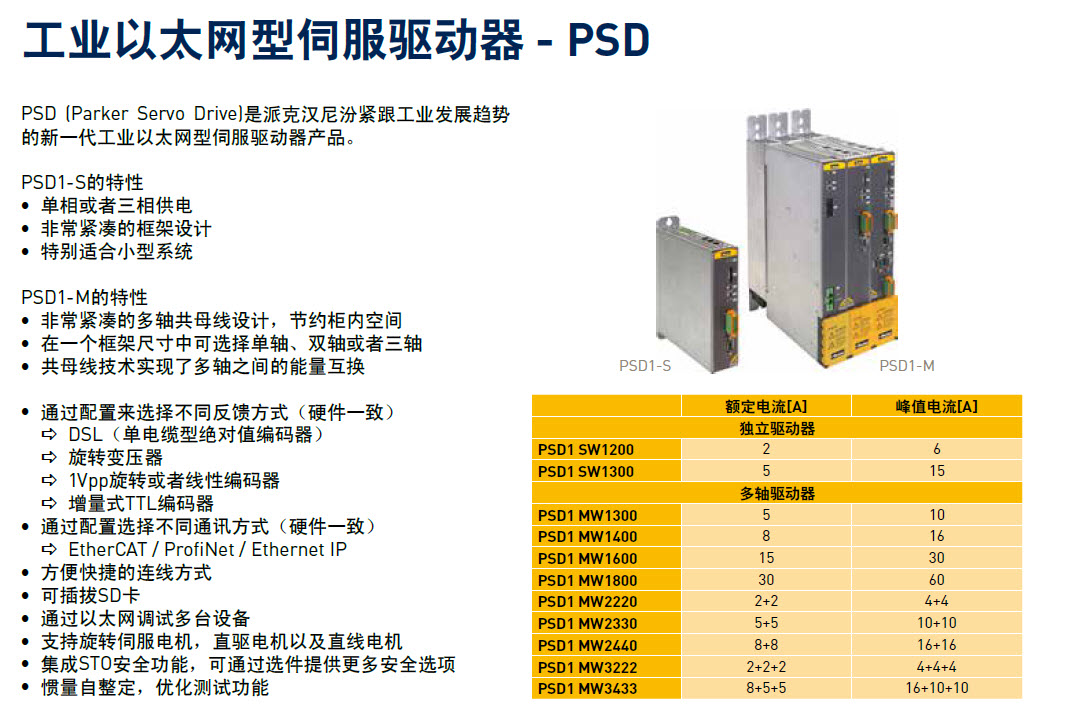

PSD系列高性能伺服驱动器

Parker伺服驱动器系列或PSD1结合了新的高性能伺服技术，并具有为OEM和机械制造商提供独特价值的功能。Hiperface DSL反馈仅通过驱动器和电动机之间的一根电缆连接就大大降低了复杂性。可移动SD卡可实现快速的驱动器交换和软件更新。PSD1-M是市场上紧凑的多轴伺服系统，可提供一轴，两轴或三轴版本的模块。The Parker Servo Drive family, or PSD1, combines the latest in high performance servo technology with features that provide unique value to OEMs and machine builders. Hiperface DSL feedback greatly reduces complexity with only one cable connection between drive and motor. A removable SD card enables rapid drive exchange and software updates. The PSD1-M is the most compact multi-axis servo system on the market and is available with modules as one, two or three axis versions.

EtherCAT, PROFINET and EtherNet/IP
Ethernet TCP/IP communications for convenient set-up
Removable SD card for rapid commissioning
Single cable Hiperface DSL feedback
4 digital inputs/ 2 outputs per axis
Safe Torque Off
CE , UL/cUL Listed
EtherCAT，PROFINET和EtherNet / IP
以太网TCP / IP通信，方便设置
可移动SD卡，可快速调试
单电缆Hiperface DSL反馈
每个轴4个数字输入/ 2个输出
安全扭矩关闭
CE，UL / cUL认证
