Parker Industrial Ball Valves are intended for general purpose use. Ball valves may be used in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
不锈钢502SS系列工业球阀具有以下样式Stainless Steel Series 502SS Industrial Ball Valves are available in the following styles:
V阀V-Valve
VP阀，挂锁VP-Valve, Padlocking
Stainless Steel Series 502SS Features：
CF-8M不锈钢阀体CF - 8M Stainless Steel body
不锈钢球Stainless Steel ball
PTFE阀座/密封PTFE seats/seals
不锈钢拉手Stainless Steel handle
不含硅Silicone Free
502面板安装母头/母头NPT端口502-Panel Mount Female/Female NPT Ports
工作压力Working Pressure: 2000 psi for 1/4" - 1"; 1500 psi for 1-1/4" - 2"
真空服务至28英寸汞柱Vacuum service to 28 inches Hg
温度范围Temperature Range: 0F to 400F
符合NACE MR-01-75的材料要求Meets material requirements of NACE MR-01-75
可用配置Available Configurations |
|
|
Female Pipe Ends, Panel Mount
V502SS |
Short Handle, Female Pipe Ends, Panel Mount
V502SS -X-20 |
|
|
Locking Handle, Female Pipe Ends, Panel Mount
VP502SS |
Oval Handle, Female Pipe Ends, Panel Mount
V502SS-X-21 |
Parker V502SS | Female Pipe Ends, Panel Mount | Ball Valves - Stainless Steel Series 502SS |
|
Ball Valve - Female Pipe Ends, Panel Mount
Part #: V502SS
Manufacturer: Parker
|
| PART # |
PIPE THD (NPT) |
B/C HEX |
F |
G |
H |
I THREAD |
L |
M |
N |
PANEL FLOW DIA. D |
HOLE DIA. |
| V502SS-4 |
1/4 |
15/16 |
.500 |
1.125 |
4.00 |
10-24 UNC |
5.03 |
2.07 |
2.52 |
.380 |
1.125 |
| V502SS-6 |
3/8 |
15/16 |
.500 |
1.125 |
4.00 |
10-24 UNC |
5.03 |
2.07 |
2.52 |
.380 |
1.125 |
| V502SS-8 |
1/2 |
1-1/16 |
.500 |
1.125 |
4.00 |
10-24 UNC |
5.13 |
2.27 |
2.65 |
.500 |
1.125 |
| V502SS-12 |
3/4 |
1-3/8 |
.875 |
1.375 |
5.00 |
10-24 UNC |
6.67 |
3.35 |
3.46 |
.790 |
1.500 |
| V502SS-16 |
1 |
1-5/8 |
.875 |
1.375 |
5.00 |
10-24 UNC |
6.77 |
3.54 |
3.74 |
1.000 |
1.500 |
| V502SS-20 |
1-1/4 |
2 |
1.000 |
1.500 |
7.00 |
1/4-20 UNC |
9.00 |
4.00 |
4.55 |
1.250 |
2.000 |
| V502SS-24 |
1-1/2 |
2-3/8 |
1.000 |
1.500 |
7.00 |
1/4-20 UNC |
7.19 |
4.38 |
5.42 |
1.500 |
2.000 |
| V502SS-32 |
2 |
3 |
1.000 |
1.500 |
7.00 |
1/4-20 UNC |
9.75 |
5.50 |
5.68 |
2.000 |
2.000 |
Parker V502SS-X-20 | Short Handle, Female Pipe Ends, Panel Mount | Ball Valves - Stainless Steel Series 502SS |
|
Ball Valve -Short Handle, Female Pipe Ends, Panel Mount
Part #: V502SS-X-20
Manufacturer: Parker
|
| PART # |
PIPE THD (NPT) |
B/C HEX |
G |
H |
L |
M |
N |
FLOW DIA. D |
| V502SS-4-20 |
1/4 |
15/16 |
1.12 |
2.28 |
3.32 |
2.07 |
2.53 |
.375 |
| V502SS-6-20 |
3/8 |
15/16 |
1.12 |
2.28 |
3.32 |
2.07 |
2.53 |
.375 |
| V502SS-8-20 |
1/2 |
1-1/16 |
1.12 |
2.22 |
3.37 |
2.25 |
2.63 |
.500 |
Parker VP502SS | Locking Handle, Female Pipe Ends, Panel Mount | Ball Valves - Stainless Steel Series 502SS |
|
Ball Valve - Locking Handle, Female Pipe Ends, Panel Mount
Part #: VP502SS
Manufacturer: Parker
|
| PART # |
PIPE THD (NPT) |
B/C HEX |
F |
G |
H |
I THREAD |
L |
M |
N |
PANEL FLOW DIA. D |
HOLE DIA. |
| VP502SS-4 |
1/4 |
15/16 |
.500 |
1.125 |
4.00 |
10-24 UNC |
5.03 |
2.07 |
2.52 |
.380 |
1.125 |
| VP502SS-6 |
3/8 |
15/16 |
.500 |
1.125 |
4.00 |
10-24 UNC |
5.03 |
2.07 |
2.52 |
.380 |
1.125 |
| VP502SS-8 |
1/2 |
1-1/16 |
.500 |
1.125 |
4.00 |
10-24 UNC |
5.13 |
2.27 |
2.65 |
.500 |
1.125 |
| VP502SS-12 |
3/4 |
1-3/8 |
.875 |
1.375 |
5.00 |
10-24 UNC |
6.67 |
3.35 |
3.46 |
.790 |
1.500 |
| VP502SS-16 |
1 |
1-5/8 |
.875 |
1.375 |
5.00 |
10-24 UNC |
6.77 |
3.54 |
3.74 |
1.000 |
1.500 |
| VP502SS-20 |
1-1/4 |
2 |
1.000 |
1.500 |
7.00 |
1/4-20 UNC |
9.00 |
4.00 |
4.55 |
1.250 |
2.000 |
| VP502SS-24 |
1-1/2 |
2-3/8 |
1.000 |
1.500 |
7.00 |
1/4-20 UNC |
7.19 |
4.38 |
5.42 |
1.500 |
2.000 |
| VP502SS-32 |
2 |
3 |
1.000 |
1.500 |
7.00 |
1/4-20 UNC |
9.75 |
5.50 |
5.68 |
2.000 |
2.000 |

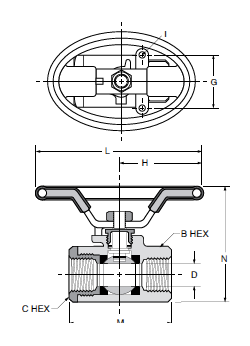

Parker V502SS-X-21 | Oval Handle, Female Pipe Ends, Panel Mount | Ball Valves - Stainless Steel Series 502SS |
|
Ball Valve - Oval Handle, Female Pipe Ends, Panel Mount
Part #: V502SS-X-21
Manufacturer: Parker
|
| PART # |
PIPE THD (NPT) |
B/C HEX |
G |
H |
L |
I THREAD |
M |
N |
PANEL FLOW DIA. D |
HOLE DIA. |
| V502SS-4-21 |
1/4 |
15/16 |
1.125 |
1.74 |
3.48 |
10-24 UNC |
2.07 |
2.43 |
.380 |
1.125 |
| V502SS-6-21 |
3/8 |
15/16 |
1.125 |
1.74 |
3.48 |
10-24 UNC |
2.07 |
2.43 |
.380 |
1.125 |
| V502SS-8-21 |
1/2 |
1-1/16 |
1.125 |
1.74 |
3.48 |
10-24 UNC |
2.27 |
2.54 |
.500 |
1.125 |
| V502SS-12-21 |
3/4 |
1-3/8 |
1.375 |
2.68 |
5.36 |
10-24 UNC |
3.35 |
3.45 |
.790 |
1.500 |
| V502SS-16-21 |
1 |
1-5/8 |
1.375 |
2.68 |
5.36 |
10-24 UNC |
3.54 |
3.74 |
1.000 |
1.500 |
| V502SS-20-21 |
1-1/4 |
2 |
1.500 |
3.27 |
5.36 |
1/4-20 UNC |
4.00 |
4.55 |
1.250 |
2.000 |
| V502SS-24-21 |
1-1/2 |
2-3/8 |
1.500 |
3.27 |
6.53 |
1/4-20 UNC |
4.38 |
4.93 |
1.500 |
2.000 |
| V502SS-32-21 |
2 |
3 |
1.500 |
3.27 |
6.53 |
1/4-20 UNC |
5.50 |
5.67 |
2.000 |
2.000 |
|
