Parker 针阀
Parker Needle Valves

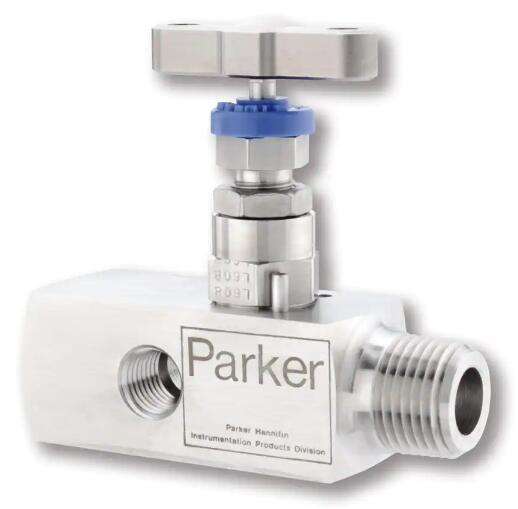

6,000 PSI Needle Valve - Single Port HVG Series

派克带通气孔单口计量阀设计用于可达6,000 psi（414 bar）额定流量的任何流体。Parker's single port gauge valves with vent are purpose designed valves for operation with any fluid up to 6,000 psi (414 bar) rating.

派克的HVG系列单孔压力表阀的额定压力为6000 PSI（414 bar），并提供一个1/4“NPT端口，用于可选地安装外加排气/排气阀或堵头。Parker's HVG series single-port gauge valves are rated at 6,000 PSI (414 bar) and provide a single 1/4" NPT port for the optional fitting of a captive bleed/vent valve or blanking plug.

所有HVG系列阀门都有一个自定心、非旋转的轴头，以确保100%的气密性关闭，并为气体应用提供了一个轴头材料选择以及PCTFE或PEEK阀座替代金属对金属。作为标准配置，阀门采用聚四氟乙烯密封填料。可选择符合BS 6755第2部分和API 607要求的防火石墨填料。主轴配有防喷止回阀，压盖可外部调节All HVG series valves have a self centering, non-rotating spindle tip to ensure 100% bubble-tight shut-off and offer a choice of tip materials as well as PCTFE or PEEK seating alternatives to metal-to-metal, for gas applications. As standard, the valves feature PTFE gland packing. Fire-safe graphite packing to meet BS 6755 Part 2 and API 607 is available as an option. The spindle is equipped with a backstop for blowout prevention and the gland is externally adjustable.

派克的HVG系列阀门标准采用316不锈钢制造。还提供氧气清洁、符合NACE标准和其他类型的材料。根据阀头和填料材料的不同，阀门的工作温度范围为-54至538C（-65至1000F）。Parker's HVG series valves are manufactured from 316 stainless steel as standard. Oxygen clean, NACE compliant and other types of materials are also available. Depending on the valve tip and packing materials, the valves have a maximum operating temperature range of -54 to 538C (-65 to 1000F).
