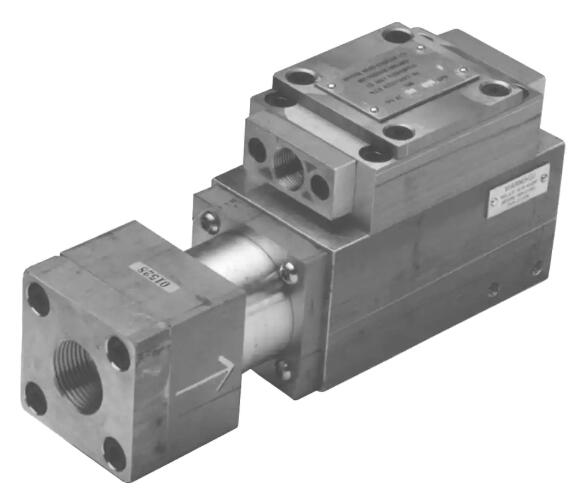

流量开关 Flow Switch - Code 240

派克的Conflow 240系列是一种流量开关，用于在地下采矿和采石场中选择或切断电路的流量开关。它具有本质安全型（IS）和隔爆安全型（FPA）装置开关，，能提供更多合理使用益处。 Parker Conflow's 240 is an Intrinsically Safe flow switch used to make or break an electrical circuit at selected flow levels in underground mining and quarrying applications.

派克的Conflow 240系列是一种流量开关，用于在地下采矿和采石场中选择或切断电路的流量开关。它是具有本质安全型（IS）和隔爆安全型（FPA）装置开关，该开关遵从许多安全规范和法规，以致可以提供更多合理使用益处。 Parker Conflow's 240 is a flow switch used to make or break an electrical circuit at selected flow levels in underground mining and quarrying applications. It is Intrinsically Safe (IS) and Flameproof Apparatus (FPA) offering many safety and regulatory compliance benefits.

流量开关是基于Conflow 452系列流量计的设计。它的工作原理是移动磁铁接近一个簧片开关，簧片开关是在磁铁的作用下关闭其触点的。这个簧片开关的位置设置为对应一个相符的流量值，从而关闭或打开在该流量水平上的电触点。该装置可用于实际流量值符合小或大流量范围条件的任何情况。 The flow switch is based on the Code 452 Flowmeter. It works by the moving magnet coming into close proximity with an electrical reed switch, which closes its contacts in the presence of a magnet. The position of this reed switch is set to coincide with a given flow, thus closing or opening the electrical contacts at this flow level. The unit can be used for any situation where a minimum, or maximum, flow condition needs to be satisfied.

派克的Conflow 240系列可提供的尺寸为 1/2和 1，工作压力上限207 bar。该流量开关具有很宽范的流量范围从9 LPM到90 LPM。Code 240 is available in 1/2" and 1" sizes and operates at a maximum working pressure of 207 bar. It has a wide flow Switching range from 9 LPM - 90 LPM.

流量开关 Flow Switch - Code 240

市场Markets:

- Quarrying
- Mining
- 采石厂
- 采矿业

特点/优势Features/Benefits:

- Large flow switching range.
- Designed to monitor a minimum or maximum flow condition.
- Can be used any minimum or maximum flow level.
- Protects equipment, prolongs lifespan.
- 大流量开关范围。
- 设计用于监测小流量或大流量状态。
- 可用于范围内任何低或大流量级别。
- 保护设备，延长寿命。

应用Applications:

- To prevent an electric motor on a conveyor drive running if sufficient water is not circulating through the motor cooling jacket, prevents overheating.
- To make a circuit on booster pumps.
- To break the circuit for fire fighting on conveyors.
- 如果没有充足的水通过电机环式冷却水循环系统，则可阻止输送机上的电动机运转，免于过热。
- 在增压泵上做电路。
- 切断传送带上的灭火电路。

Technical Specifications

Flow Switch - Code 240 型号
