Parker 传感器
Parker Sensors

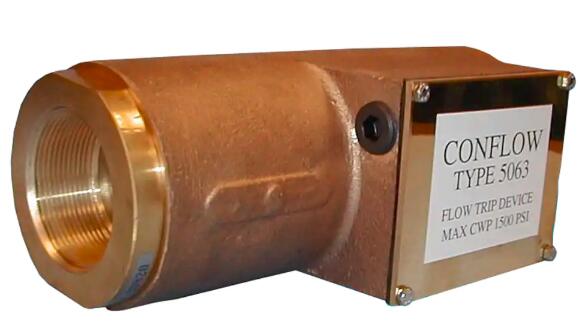

流量安全保护装置-5063系列 Flow Trip Device - Code 5063

派克Conflow的5063系列是用于矿井和采石场发生火灾时隔离泵、马达和机械的错误流量安全保护装置。当流量停止或压力下降时，它发出一个信号来隔离设备或触发警报，从而保护设备和人员。 Parker Conflow's Code 5063 is a flow trip safety device used for the isolation of pumps, motors and machinery when fire fighting is taking place in mines and quarries, protecting equipment and people.

作为仪器仪表流体控制系统技术的行业先行者，派克汉尼汾旗下品牌Conflow设计和制造的5063系列安全装置，以符合采矿和采石工业的严格要求。

派克Conflow的5063系列是用于矿井和采石场发生火灾时隔离泵、马达和机械的错误流量安全保护装置。当流量停止或压力下降时，它发出一个信号来隔离设备或触发警报，从而保护设备和人员。 Parker Conflow's Code 5063 is a flow trip safety device used for the isolation of pumps, motors and machinery when fire fighting is taking place in mines and quarries. When flow stops or there is a fall in pressure, it sends a signal to isolate equipment or trigger an alarm, therefore protecting equipment and people.

一旦设备开关接收到流量信号，那么设备将提供整个管路满流量运行。可以通过改变开关相对于校准刻度的位置来便于选择开关设备的流量需求点。 Once the switch has been triggered with a token flow, then the device will deliver the full flow of the pipeline. The tripping flow point can be selected easily by altering the position of the switch against a calibration scale.

派克Conflow的5063系列的应用应作为消防行动计划的一部分，以减少在地下矿山发生火灾时的风险。一旦恢复流量，派克Conflow的5063系列将提供自动重置和恢复功能。 Code 5063 should be used as part of a fire action plan, in order to reduce risks in the event of fire in underground mines. Once flow is restored, Code 5063 provides automatic reset and resume.

可选择的尺寸为2英寸NPT或BSP接口形式。它可以适应的流量高达350 GPM。 Available as 2" NPT or BSP versions. It caters for flows up to 350 GPM.
派克Conflow的5063系列带有常开（N.O）和常闭（N.C.）选项可选用。 Code 5063 comes with Normally Open (N.O.) and Normally Closed (N.C.) wiring options.
客户可以选择设置流量保护值，选项为5、10、15、20和25 GPM。 Customer can set flow trip options of 5,10,15,20 & 25 GPM.

流量安全保护装置-5063系列 Flow Trip Device - Code 5063

市场Markets:

- Quarrying
- Mining
- 采石业
- 采矿厂
- 工业应用

特点/优势Features/Benefits:

- Protects equipment and people
- Easy selection of tripping flow point.
- Robust
- Low maintenance
- 保护设备和人员
- 轻松选择跳闸流量点。
- 设计稳固
- 低维护率

应用Applications:

- Machinery isolation when fire fighting is taking place.
- 灭火时可以发生机械隔离。

Technical Specifications

Flow Trip Device - Code 5063 型号

CODE-5063-1
