Parker 流量控制阀
Parker Flow Control Valves

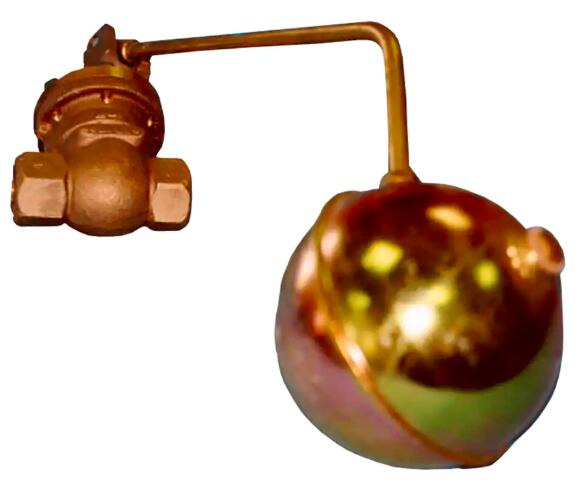

浮动式流量控制球阀--派克的Conflow 53系列Fluid Control Ball Float Valve - Code 53

派克的Conflow 53系列是一个浮动式球阀可以满足在地下采矿业和采石厂的应用中高输入压力和需要快速充装储罐的需求。 Parker Conflow's Code 53 is a ball float valve that can cater for high incoming pressures and tanks that need to be filled rapidly in underground mining and quarrying applications.

派克的Conflow 53系列是一个浮动式球阀可以符合在地下采矿业和采石厂的应用中高输入压力和需要快速充装储罐的需求。 Parker Conflow's Code 53 is a ball float valve that can cater for high incoming pressures and tanks that need to be filled rapidly in underground mining and quarrying applications.

派克的Conflow 53系列可使水和乳化液箱中流体保持理想的流动水平，该阀门的开启和关闭是通过杠杆实现，该杠杆的动作使一个柱塞阀杆去推锥阀头离开阀座。该杠杆后带有一个漂浮物，它的上升和下降，与水箱中的流体液面保持水平，从而打开和关闭阀门。 Code 53 maintains a desired level of fluid in a water and emulsion tank. The opening and closing of the valve is achieved by a lever, which operates a plunger to push a poppet valve off its seat. The lever has a float attached, which rises and falls with the fluid in the tank, thus opening and closing the valve to maintain the level.

在这个范围内较大尺寸的阀门尺寸是需要“先导操作”的，它利用所提供的水的能量，仅通过浮子杠杆的少量力来开启和关闭阀门。这意味着可以用大流量和高压力快速地对储罐系统进行灌装。 The larger valve sizes in this range are "pilot operated", which uses the energy in the supplied water to open and close the valve with only a small amount of force from the float lever. This means large flows and large pressures can be handled for rapid filling of tank systems.

派克的Conflow 53系列可提供的尺寸在1/2，1和2英寸的大小，其工作压力可高达105bar。 Code 53 is available in 1/2", 1" and 2" sizes and operates as a maximum working pressure of 105 bar.

市场Markets:

- Quarrying
- Mining
- 采石厂
- 采矿业

特点/优势Features/Benefits:

- Suitable for use with high inlet pressures.
- Maintains the correct water level in tanks, as set for application.
- Gunmetal cast bodies – extremely robust.
- Unit available with Flat Float, ball, plastic or metal.
- Rapid filling of tank.
- 适用于高进口压力应用。
- 在储罐内保持正确的水位，以供应用。
- 青铜铸体–非常稳固。
- 该模块可选用平面浮子、球型浮子、塑料或金属材质可选。
- 储罐的快速灌装。

应用Applications:

- Used on water and emulsion oil dispensing tanks supplying coal face equipment where the incoming water pressures are high and where tanks need to be filled rapidly.
- 用于水和乳化油分配槽，用于提供面对进水压力高且需要迅速填充罐体的采煤工作面版式设备。

Technical Specifications

Flow Control Valves 型号

CODE-53A-A-V1
