Parker 流量控制器
Parker Flow Controllers
流量控制阀 - 多路式派克的Conflow 7系列 Fluid Control Valves - Maxway Valves Code 7

派克的Conflow 7系列是便于用户使用的直线式截止阀，用于调节和隔离采矿和采石应用管道和系统中的流体，派克的Conflow 7系列可以实现有效的减压、调节或隔离压力的功能。 Parker Conflow's Code 7 is a user-friendly inline stop valve that regulates and isolates fluid in pipelines and systems for mining and quarrying applications, with handwheel and key fitting options.

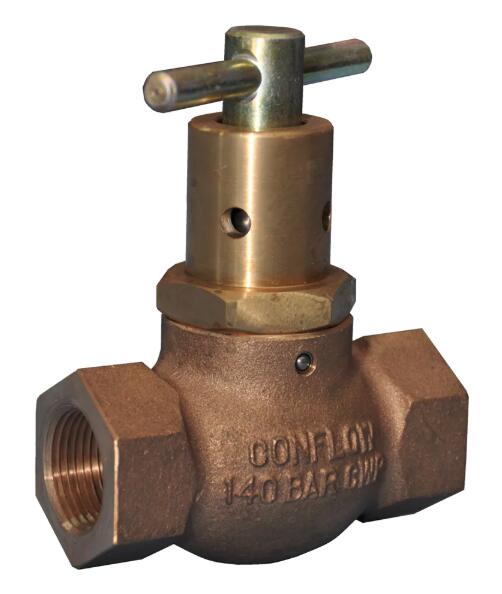

派克的Conflow 7系列是一个便于用户使用的直线式截止阀，该阀门用于调节和隔离采矿和采石应用管道和系统中的流体。为了增强安全性，无论是手轮还是带锁定操作，派克的Conflow 7系列可以实现有效的减压、调节或隔离压力的功能。 Parker Conflow's Code 7 is a user-friendly inline stop valve that regulates and isolates fluid in pipelines and systems for mining and quarrying applications. Either hand wheel or key operated for enhanced security, Code 7 allows for the reduction, adjustment or isolation of pressure.

全开位置阀门提供全流量流通能力，从而在管路中产生很少的阻力。调节手轮从关闭到全开，可以调节流体的流量。锁定配置选项取代手轮，使阀门设置得以维持。这样的设置有效降低了未经授权的操作可能增加的安全风险，因为当钥匙被移除时，设置就不能被改变。 The fully open position gives full flow capability thus creating little resistance in the pipeline. Adjusting the handwheel from closed to fully open regulates the flow of fluid. The key fitting option replaces the handwheel and enables valve settings to be maintained. It also offers added security by eliminating unauthorised interference, as when the key is removed the setting cannot be altered.

派克的Conflow 7系列可提供的尺寸有 1/2”, 3/4”, 1” 和 1 1/4” 的大小，工作压力上限为140bar（对于尺寸为 1”的产品）。 Code 7 is available in 1/2”, 3/4”, 1” and 1 1/4” sizes with a maximum working pressure of 140 bar (for sizes up to 1”).

流量控制阀 - 多路式派克的Conflow 7系列 Fluid Control Valves - Maxway Valves Code 7

市场Markets:

- Quarrying
- Mining
- 采石厂
- 采矿业

特点/优势Features/Benefits:

- Heavy duty and robust, ideal for mineral processing.
- In-line regulation and control of fluids, low maintenance.
- Hand wheel or key operation options.
- Key is zinc plated, for corrosion resistance.
- Designed to avoid accidental interference, a ball on indent stops key being wound out, for added safety.
- Can regulate flow or shut off.
- 重型和坚固的阀门，理想应用于矿物加工。
- 在线调节和控制流体，低维护。
- 手轮或带锁定操作选项可选。
- 锁柄是镀锌，耐腐蚀。
- 为了有效降低未经授权的操作可能增加的安全风险，当钥匙被移除时，设置就不能被改变
- 可调节流量以及开关功能。

应用Applications:

- Regulating the amount of water feeding a dust suppression system at conveyor points in a mine or quarry
- Regulating the distribution of all the water services on coal cutting machines
- 调节矿井或采石场输送点的抑尘系统供水量
- 规范采煤机上供水服务的分配情况

Technical Specifications

Fluid Control Valves - Maxway Valves Code 7 型号

CODE-7F-A-NPT
