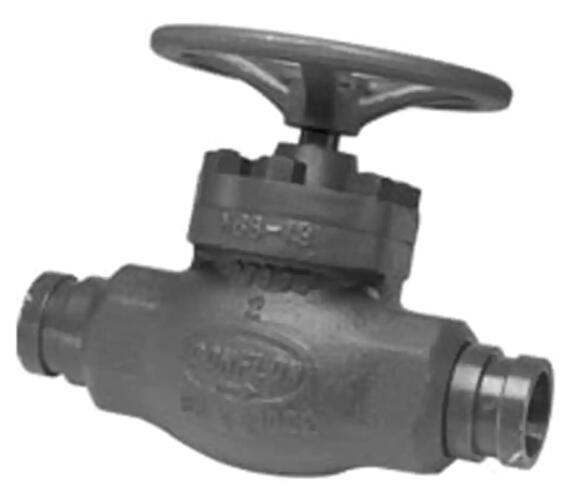

重型截止阀--派克的Conflow 18/19系列 Heavy Duty Stop Valves - Code 18/19

派克的Conflow 18/19系列是一种用于井下管线安全排水的重型截止阀, 用于维护和扩展的区域的隔离。 Parker Conflow's Code 18/19 is a heavy duty stop valve that is used to shut off flow of water safely and securely in underground pipelines in underground mining, to isolate areas for maintenance and extension.

派克的Conflow 18/19系列是一种用于井下管线安全排水的重型截止阀, 用于维护和扩展的区域的隔离。 Parker Conflow's Code 18/19 is a heavy duty stop valve that is used to shut off flow of water safely and securely in pipelines in underground mining, to isolate areas for maintenance and extension.

这个螺纹式旋转关断阀使流通能力较大的大直径管道能被逐渐关断隔离。这个阀门关断形式有效降低了系统产生的液压冲击波或水击作用，可能对钢管或管接件产生的损伤。派克的Conflow 18/19系列也可以用于消防栓的直列止回阀，大幅降低对下游设备的损坏。它也可以用来隔离阀门进行维护。 This screwdown valve enables large flows in large diameter pipes to be isolated by the gradual shut off of the valve. This eliminates hydraulic shock waves or water hammer being created which would damage the steel pipes and fittings. Used as an inline stop valve for a fire hydrant, Code 18/19 prevents damage to downstream equipment. It can also be used to isolate valves for maintenance.
该阀门在全开位置提供了真正的全流量能力，从而在管道中产生更小阻力。4英寸产品采用了平衡压力特性，使阀门能够在高压工况下以更小力矩开启和关闭。 The fully open position gives a true full flow capability thus creating minimal resistance in the pipeline. The 4" unit incorporates a balanced pressure feature, which enables the valve to be opened and closed at high pressure with the minimum of effort.

派克的Conflow 18/19系列可提供的尺寸有2，2-1/2，3和4英寸的大小和符合工作压力上限为105bar（Conflow 18系列），125bar（Conflow 19系列）。 Code 18/19 is available in 2", 2 1/2", 3" and 4" sizes and operates at a maximum working pressure of 105 bar (Code 18), 125 bar (Code 19).

重型截止阀--派克的Conflow 18/19系列 Heavy Duty Stop Valves - Code 18/19

市场Markets:

- Quarrying
- Mining
- 采石厂
- 采矿业

特点/优势Features/Benefits:

- Flexible - flanged or screwed ends
- Inline design, for less risk of accidental damage.
- Robust, compact and full bore
- Screw down type allows for gradual shut-off, with less risk of damage.
- User friendly
- Safety.
- 灵活性的接口-可选择法兰或螺纹端口
- 直线式设计，减少意外损坏的风险
- 坚固，紧凑，全口径流通能力
- 螺纹拧紧式，可实现逐渐关闭阀门，减少损坏的风险
- 用户使用效果佳
- 安全，稳定

应用Applications:

- Isolating areas for maintenance and extension on water mains in underground mines.
- 用于隔离和维护地下矿井供水干线的区域。

Technical Specifications

Heavy Duty Stop Valves - Code 18/19 型号

CODE-18-D-V1
