Parker 止回阀
Parker Check Valves

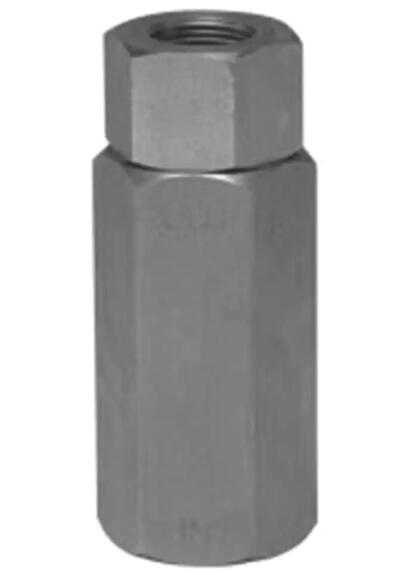

直通式单向阀-1431系列 Inline Check Valves - Code 1431
派克汉尼汾旗下品牌Conflow设计和制造的1431系列直通式单向阀,使流体只在一个方向上流动,保持整个管道处于“充”水状态.它有助于防止流体介质回流,并与空气、水和油一起协调工作.
Parker Conflow's Code 1431 is an inline check value that permits movement of flow media, oil, water or air in one direction only in water dust suppression systems on mining cutting machines.
作为仪器仪表流体控制系统技术的行业先行者,派克汉尼汾旗下品牌Conflow设计和制造的1431系列直通式单向阀,以符合采矿和采石工业的严格要求。它应用在采煤机水抑尘系统上,1431系列直通式单向阀使流体只在一个方向上流动,保持整个管道处于“充”水状态。它有助于阻止流体介质回流,并与空气、水和油一起协调工作。
Parker Conflow's Code 1431 is an inline check valve, which permits movement of flow media in one direction only in water dust suppression systems on mining cutting machines to keep the pipelines "charged" with water. It helps to prevent backflow of fluid media and operates with air, water and oil.
一个轻质弹簧安装在该阀门内,以协助阀门在低压差工况下有效关闭。该直通式单向阀能很好地安装在管路中,具有更小化的安装空间。可水平或垂直安装使用。
A light spring is fitted to assist with closure at low pressure differentials across the valve. This in-line valve fits neatly into a pipeline with minimum obstruction. It may be used horizontally or vertically.
1431系列直通式单向阀可适用于3/8“,1/2”,3/4“和1”的尺寸大小,工作压力上限为275bar。
Code 1431 is available in 3/8", 1/2", 3/4" and 1" sizes and with maximum working pressure of 275 bar.
直通式单向阀-1431系列 Inline Check Valves - Code 1431
市场Markets:
- Quarrying
- Mining
- 采石业
- 采矿厂
特点/优势Features/Benefits:
- Spring assisted closure
- Stainless Steel Construction
- Low Pressure units available
- For use with oil, water and air.
- Extremely compact as in-line valve
- Reduces risk of damage.
- Robust and low maintenance.
- 弹簧辅助闭合设计
- 不锈钢结构
- 低压系统可以选用
- 可用于油、水和空气系统。
- 非常紧凑的阀门
- 减少损害的风险。
- 稳固和低维护率。
应用Applications:
- Water dust suppression systems on cutting machines for mining and quarrying.
- 采矿和采石切割机上的水抑尘系统。
Technical Specifications
Connection Size: |
3/8", 1/2", 3/4", 1" |
Maximum Operating Pressure: |
3,989 psi, 275 bar |
Weight: |
0.33-2.80 kg |
Application: |
Dust Supression |
Industry: |
Mining |
Inline Check Valves - Code 1431 型号
CODE-1431-1
|
