Parker 止回阀
Parker Check Valves
压力单向阀-103系列 Pressure Check Valves - Code 103

派克Conflow设计和制造的103系列地下开采用压力单向阀.允许监测采煤工作面的动力顶板支撑架和撞击装置的液压压力,能将其拧紧到每个平台支撑架中.三种不同的连接类型适用于单个应用程序. Parker Conflow's Code 103 is a pressure check valve range that enables individual checks of hydraulic pressure on each leg and ram on powered roof supports of coal faces.

作为仪器仪表流体控制系统技术的行业先行者，派克汉尼汾旗下品牌Conflow设计和制造的103系列地下开采用压力单向阀，以符合采矿和采石工业的严格要求。派克汉尼汾Conflow的103系列压力单向阀，是应用于地下开采装置，它是安全的且结构为封闭式，这可能在需要定期检查时预防对仪表的损坏。 Parker Conflow's Code 103 range are pressure check valves for use in underground mining that is safe and without open-end, which potentially prevents damage to gauges when regular checking is required.

103系列压力单向阀应用范围允许监测采煤工作面的动力顶板支撑架和撞击装置的液压压力，并能够直接将其拧紧到每个平台支撑架中。三种不同的连接类型适用于单个应用程序，以增加灵活性。 Code 103 range enables the monitoring of hydraulic pressure on the leg and ram on powered roof supports of coal faces with the ability to screw it directly into each roof support leg. Three different connection types are available to suit individual applications, for added flexibility.

将转接头拧紧到103系列压力单向阀中，使探头将阀芯推离阀座，并允许系统流体进入压力表，以记录压力读数。 The action of screwing the adaptor into the Code 103M pressure check valve, causes a probe to push the valve ball off its seat and allows system fluid to enter the pressure gauge to register a pressure reading.

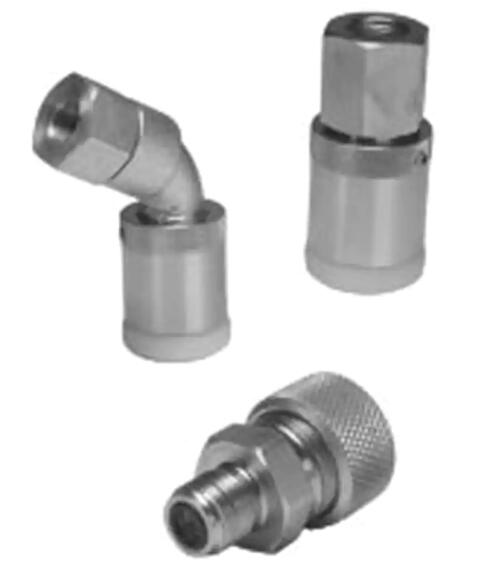

Conflow的103系列NS和NSA压力单向阀上的活动装换接头与压力表一起连接使用，以便在分接点处进行读数。 The Conflow Code 103NS and NSA Pressure Check Valve swivel adaptors are used in conjunction with a pressure gauge to enable readings to be taken at the tapping point.

拧开装换接头使球芯重新定位，从而再次将系统与仪表隔开。一个直通式，103系列压力单向阀使得流体不能反向回流，以增加安全性。 Unscrewing the adaptor allows the ball to reseat, thus isolating the system from the gauge again. A one-way valve, Code 103 ensures that fluid cannot run back, for added safety.

103系列压力单向阀有一个3/8英寸BSP的接口形式，并可以运行到690bar的工作压力上限。 Code 103 has a 3/8" BSP fitting and operates to a maximum working pressure of 690 bar.

压力单向阀-103系列 Pressure Check Valves - Code 103

市场Markets:

- Mining
- 采石业
- 采矿厂
- 工业应用

特点/优势Features/Benefits:

- Safe and secure method of pressure checking.
- Enables periodical checks of on-line pressure without the need for fixed gauges.
- No interruption of the normal circuit.
- Cost efficient method.
- Direct, quick connection to check pressure.
- Enables periodical checks without interruption to normal services.
- 安全稳定的压力检测方法。
- 能够定期检查在线压力，而不需要固定量规。
- 正常电路不中断。
- 成本效益高的方法。
- 直接、快速连接检查压力。
- 定期检查不中断正常生产服务。

应用Applications:

- Checking hydraulic pressure on each leg and ram on powered roof supports on coal faces
- Invaluable on applications where permanent gauges could be damaged.
- 检查采煤工作面上的支架和液压支架上的液压力
- 对仪表可能损坏的应用具有非常有价值的替代应用。

Technical Specifications

Pressure Check Valves - Code 103 型号

CODE-103M
