Parker 减压阀
Parker Pressure Relief Valves

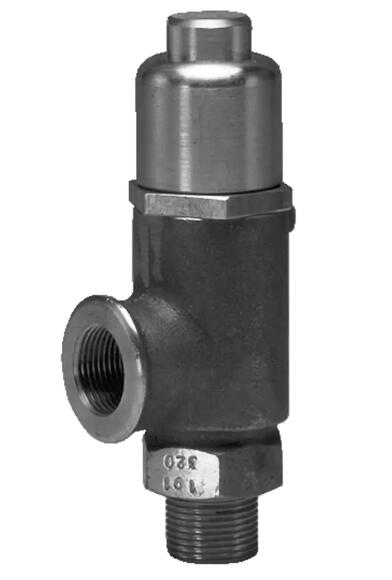

安全阀-63系列 Relief Valves - Code 63

派克汉尼汾旗下品牌Conflow设计和制造的63系列安全阀,以满足采矿和采石工业的严格要求.63系列安全阀为设备提供了优越的保护,如矿用电机冷却套,因超压会遭到损坏. The Parker Conflow Code 63 relief valve provides superior protection for equipment, such as motor cooling jackets in mines, from damage due to over pressure.

作为仪器仪表流体控制系统技术的行业先行者，派克汉尼汾旗下品牌Conflow设计和制造的63系列安全阀，以符合采矿和采石工业的严格要求。63系列安全阀为设备提供了优越的保护，如矿用电机冷却套，因超压会遭到损坏。这种新型的63系列安全阀结构简单，但使用有效，并具有侧向排放功能，如果需要的话，可以将软管安装在阀门上泄压排出到安全的位置。63系列安全阀泄压压力通过转动弹簧调节器来设定。一系列不同压力等级的弹簧提供了广泛的压力设定选项。
The Parker Conflow Code 63 relief valve provides superior protection for equipment, such as motor cooling jackets in mines, from damage due to over pressure. This innovative relief valve is simple, but effective, and features a side discharge, which can be hosed away to safety, if necessary. The relief pressure is set by turning a spring adjuster. A range of different springs provides a wide range of pressure setting options.

63系列安全阀可选用1/2“，3/4”和1英寸的尺寸，其工作压力上限为40bar。 Code 63 is available in 1/2", 3/4" and 1" sizes and a maximum working pressure of 40 bar.

安全阀-63系列 Relief Valves - Code 63

市场Markets:

- Quarrying
- Mining
- Power stations
- Steel industry
- 采石业
- 采矿厂
- 发电站
- 钢铁工业

特点/优势Features/Benefits:

- Brass construction, robust and reliable
- Low maintenance
- Adjustable to different pressures within the range
- 黄铜结构，坚固稳定
- 低维护率
- 可调节不同范围内的压力等级

应用Applications:

- To protect systems from reducing valve failure due to the ingress of debris.
- To protect motor cooling jackets from over pressure.
- 保护系统，减少因杂物侵入而导致的阀门故障。
- 保护马达冷却套免受过大压力。

Technical Specifications

Relief Valves - Code 63 型号

CODE-63-1
