Thermoplastic Push-In Fittings for Water & Beverage Applications | Parker TrueSealTM
用于水和饮料应用的热塑性推入式接头 | Parker TrueSealTM
派克的TrueSeal接头轻巧,可现场连接,无需使用工具即可连接到油管。这些所有的塑料按动连接配件均使用符合FDA的材料制造。Parker's TrueSeal fittings are lightweight, field attachable and connect to tubing without the use of tools. These all plastic push-to-connect fittings are manufactured with FDA compliant materials.

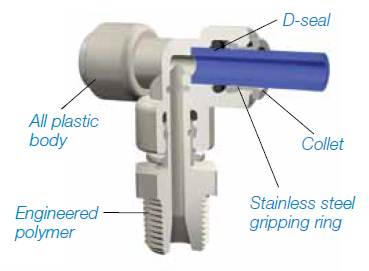

特征Features:
EPDM,丁腈或碳氟O型圈EPDM, Nitrile or Fluorocarbon O-ring
乙缩醛,聚丙烯或Kynarbody Acetal, Polypropylene or Kynar body
可用不锈钢或带有工程热塑性咬边的夹齿Gripping teeth available in Stainless Steel or with an engineered thermoplastic bite edge
乙缩醛,Kynar或工程热塑性夹头Acetal, Kynar or engineered thermoplastic collet
FDA compliant
所有配件均已列出NSF-51,灰色乙缩醛配件也已列出NSF-61All fittings are NSF-51 listed and gray acetal fittings are also NSF-61 listed
市场Markets:
餐饮Food
饮用水Potable Water
化学制品Chemical
过滤Filtration
TrueSeal Connector Selection
|
|
|
|
MC - Male Connector
Tube-to-Pipe
|
FC - Female Connector
Tube-to-Pipe
|
FE - Female Elbow
Tube-to-Pipe
|
|
|
|
UC - Union Connector
Tube-to-Tube
|
TU - Tee Union
Tube-to-Tube |
ME - Male Elbow
Tube-to-Pipe
|
|
|
|
FA - Faucet Adapter
Tube-to-Faucet
|
EU - Elbow Union
Tube-to-Tube |
WY - Y Union
Tube-to-Tube
|
|
|
|
BU - Bulkhead Union
Tube-to-Tube |
TEU - Tube Elbow Union
Tube-to-Stem |
TPL - Plug |
|
|
|
TEB - Tube Elbow Barb Connector
Tube-to-Barb |
MES - Male Elbow Swivel
Tube-to-Pipe |
MTS - Male Tee Swivel
Tube-to-Pipe |
|
|
|
RD - Tube Reducer
Tube-to-Tube Stem |
CAP - Tube Cap |
TCB - Tube-to-Barb Connector
Tube-to-Barb |
|
|
|
CU - Cross Union
Tube-to-Tube |
TMC - Tube Stem Adapter
Tube Stem-to-Pipe |
MRS - Male Run Swivel
Tube-to-Pipe |
|
|
|
FF - 45° Female Flare
Tube-to-Flare |
TFA - Tube Faucet Adapter
Female Thread |
TAF - Tube Faucet Adapter
Male Thread |
|
|
|
ST - Straight Thread
Tube-to-Male O-Ring Boss |
|
|
MC - Thermoplastic Male Connector | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White Polypropylene EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
NPTF
Thread Size |
C Hex |
L |
D |
A4MC2-MG |
PP4MC2 |
F4MC2 |
1/4 |
1/8 |
11/16 |
1.28 |
.175 |
A4MC4-MG |
PP4MC4 |
F4MC4 |
1/4 |
1/4 |
11/16 |
1.14 |
.175 |
A4MC6-MG |
PP4MC6 |
F4MC6 |
1/4 |
3/8 |
11/16 |
1.18 |
.175 |
A5MC2-MG |
|
F5MC2 |
5/16 |
1/8 |
13/16 |
1.46 |
.175 |
A5MC4-MG |
|
F5MC4 |
5/16 |
1/4 |
13/16 |
1.41 |
.188 |
A5MC6-MG |
|
|
5/16 |
3/8 |
13/16 |
1.27 |
.188 |
A6MC2-MG |
|
F6MC2 |
3/8 |
1/8 |
13/16 |
1.46 |
.175 |
A6MC4-MG |
PP6MC4 |
F6MC4 |
3/8 |
1/4 |
13/16 |
1.41 |
.250 |
A6MC6-MG |
PP6MC6 |
F6MC6 |
3/8 |
3/8 |
13/16 |
1.27 |
.250 |
A6MC8-MG |
|
F6MC8 |
3/8 |
1/2 |
15/16 |
1.45 |
.250 |
A8MC6-MG |
PP8MC6 |
F8MC6 |
1/2 |
3/8 |
15/16 |
1.65 |
.360 |
A8MC8-MG |
PP8MC8 |
F8MC8 |
1/2 |
1/2 |
15/16 |
1.46 |
.375 |
For non-standard plastic collet, remove -MG suffix.
FC - Thermoplastic Female Connector | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White Polypropylene EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
NPTF
Thread Size |
C Hex |
L |
D |
A4FC2-MG |
PP4FC2 |
F4FC2 |
1/4 |
1/8 |
11/16 |
1.20 |
.175 |
A4FC4-MG |
PP4FC4 |
F4FC4 |
1/4 |
1/4 |
23/32 |
1.32 |
.175 |
A5FC4-MG |
|
F5FC4 |
5/16 |
1/4 |
13/16 |
1.41 |
.188 |
A5FC6-MG |
|
|
5/16 |
3/8 |
1 |
1.50 |
.188 |
A6FC4-MG |
PP6FC4 |
F6FC4 |
3/8 |
1/4 |
13/16 |
1.41 |
.250 |
A6FC6-MG |
PP6FC6 |
F6FC6 |
3/8 |
3/8 |
1 |
1.50 |
.250 |
A6FC8-MG |
|
|
3/8 |
1/2 |
1-1/8 |
1.52 |
.250 |
A8FC6-MG |
PP8FC6 |
F8FC6 |
1/2 |
3/8 |
1-1/8 |
1.60 |
.375 |
A8FC8-MG |
PP8FC8 |
F8FC8 |
1/2 |
1/2 |
1-1/8 |
1.75 |
.375 |
For non-standard plastic collet, remove -MG suffix.
FE - Thermoplastic Female Elbow | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White Polypropylene EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
NPTF
Thread Size |
M |
N |
D |
A4FE4-MG |
|
|
1/4 |
1/4 |
23/32 |
1.32 |
.175 |
A6FE4-MG |
|
|
3/8 |
1/4 |
13/16 |
1.41 |
.250 |
A6FE6-MG |
|
|
3/8 |
3/8 |
1 |
1.50 |
.250 |
For non-standard plastic collet, remove -MG suffix.
UC - Thermoplastic Union Connector | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
L |
D |
A4UC4-MG |
PP4UC4 |
F4UC4 |
1/4 |
1.49 |
.175 |
A5UC4-MG |
- |
- |
5/16-1/4 |
1.70 |
.175 |
A5UC5-MG |
- |
F5UC5 |
5/16 |
1.70 |
.188 |
A6UC4-MG |
PP6UC4 |
F6UC4 |
3/8-1/4 |
1.70 |
.175 |
A6UC5-MG |
- |
- |
3/8-5/16 |
1.70 |
.188 |
A6UC6-MG |
PP6UC6 |
F6UC6 |
3/8 |
1.70 |
.250 |
A8UC5-MG |
- |
- |
1/20-5/16 |
1.90 |
.188 |
A8UC6-MG |
PP8UC6 |
- |
1/2-3/8 |
1.90 |
.250 |
A8UC8-MG |
PP8UC8 |
F8UC8 |
1/2 |
1.91 |
.375 |
For non-standard plastic collet, remove -MG suffix.
TU - Thermoplastic Tee Unions | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. (Tube A) |
Nom Tube O.D. (Tube B) |
M |
N |
D |
A4TU4-MG |
PP4TU4 |
F4TU4 |
1/4 |
1/4 |
.81 |
0.85 |
.175 |
A5TU5-MG |
- |
F5TU5 |
5/16 |
5/16 |
1.02 |
1.02 |
.188 |
A6TU4-MG |
PP6TU4 |
F6TU4 |
3/8 |
1/4 |
1.02 |
1.03 |
.175 |
A6TU6-MG |
PP6TU6 |
F6TU6 |
3/8 |
3/8 |
1.02 |
1.02 |
.290 |
A8TU8-MG |
PP8TU8 |
F8TU8 |
1/2 |
1/2 |
1.20 |
1.20 |
.375 |
For non-standard plastic collet, remove -MG suffix.
ME - Thermoplastic Male Elbow | Parker TrueSeal |
|
Tube-to-Pipe |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar FCB Seal |
Nom Tube O.D. |
NPTF THD SIZE |
M |
N |
D |
A4ME2-MG |
PP4ME2 |
F4ME2 |
1/4 |
1/8 |
.84 |
.94 |
.175 |
A4ME4-MG |
PP4ME4 |
F4ME4 |
1/4 |
1/4 |
.84 |
.94 |
.175 |
A4ME6-MG |
PP4ME6 |
F4ME6 |
1/4 |
3/8 |
.84 |
1.04 |
.175 |
A5ME4-MG |
- |
F5ME4 |
5/16 |
1/4 |
1.03 |
1.08 |
.175 |
A5ME6-MG |
- |
- |
5/16 |
3/8 |
1.03 |
1.06 |
.188 |
A6ME4-MG |
PP6ME4 |
F6ME4 |
3/8 |
1/4 |
1.03 |
1.08 |
.250 |
A6ME6-MG |
PP6ME6 |
F6ME6 |
3/8 |
3/8 |
1.03 |
1.06 |
.250 |
For non-standard plastic collet, remove -MG suffix.
FA - Thermoplastic Faucet Adapter | Parker TrueSeal |
|
Tube-to-Faucet |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar FCB Seal |
Nom Tube O.D. |
UNS-2B THD SIZE |
C Hex |
L |
D |
A4FA7-MG |
PP4FA7 |
F4FA7 |
1/4 |
7/16-24 |
23/32 |
1.32 |
.190 |
A45A7-MG |
- |
- |
5/16 |
7/16-24 |
13/16 |
1.41 |
.190 |
A6FA7-MG |
PP6FA7 |
F6FA7 |
3/8 |
7/16-24 |
13/16 |
1.41 |
.190 |
For non-standard plastic collet, remove -MG suffix.
EU - Thermoplastic Elbow Union | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
M |
N |
D |
A4EU4-MG |
PP4EU4 |
F4EU4 |
1/4 |
0.87 |
.87 |
.175 |
A5EU4-MG |
- |
- |
5/16-1/4 |
1.052 |
.90 |
.175 |
A5EU5-MG |
- |
F5EU5 |
5/16 |
1.02 |
1.02 |
.188 |
A6EU4-MG |
PP6EU4 |
F6EU4 |
3/8-1/4 |
1.02 |
.90 |
.212 |
A6EU5-MG |
- |
- |
3/8-5/16 |
1.02 |
1.02 |
.175 |
A6EU6-MG |
PP6EU6 |
F6EU6 |
3/8 |
1.02 |
1.02 |
.250 |
A8EU6-MG |
- |
- |
1/2-3/8 |
1.20 |
1.20 |
.250 |
A8EU8-MG |
PP8EU8 |
F8EU8 |
1/2 |
1.20 |
1.20 |
.375 |
For non-standard plastic collet, remove -MG suffix.
WY - Thermoplastic Y Union | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar FCB Seal |
Inlet Tube A Run |
Inlet Tube B Stem |
L |
W |
D |
A5WY5-MG |
- |
- |
5/16 |
5/16 |
2.250 |
1.75 |
.190 |
A6WY4-MG |
- |
- |
3/8 |
1/4 |
2.100 |
1.43 |
0.190 |
A6WY5-MG |
- |
- |
3/8 |
5/16 |
2.200 |
1.75 |
0.250 |
A6WY6-MG |
- |
- |
3/8 |
3/8 |
2.175 |
1.75 |
0.250 |
For non-standard plastic collet, remove -MG suffix.
BU - Bulkhead Union | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
C1 Hex |
C2 Hex |
L |
P |
D |
BKHD Drill Size |
A4BU4-MG |
PP4BU4 |
F4BU4 |
1/4 |
15/16 |
15/16 |
1.50 |
.50 |
.175 |
7/8 |
A5BU5-MG |
- |
F5BU5 |
5/16 |
1-1/16 |
1-1/16 |
1.75 |
.62 |
.188 |
1 |
A6BU4-MG |
PP6BU4 |
- |
3/8-1/4 |
1-1/16 |
1-1/16 |
1.75 |
.62 |
.175 |
1 |
A6BU6-MG |
PP6BU6 |
F6BU6 |
3/8 |
1-1/16 |
1-1/16 |
1.75 |
.62 |
.250 |
1 |
A8BU8-MG |
- |
F8BU8 |
1/2 |
1-1/4 |
1-1/4 |
2.04 |
.70 |
.375 |
1-1/8 |
For non-standard plastic collet, remove -MG suffix.
TPL - Thermoplastic Plug | Parker TrueSeal |
|
Tube-to-Tube Stem |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar FCB Seal |
Nom Tube O.D. |
Tube Stem O.D |
M |
N |
D |
A4TEU4-MG |
PP4TEU4 |
F4TEU4 |
1/4 |
1/4 |
.84 |
1.21 |
.125 |
A4TEU6-MG |
- |
F4TEU6 |
1/4 |
3/8 |
.84 |
1.35 |
.125 |
A5TEU5-MG |
- |
F5TEU5 |
5/16 |
5/16 |
1.03 |
1.40 |
.188 |
A6TEU4-MG |
- |
F6TEU4 |
3/8 |
1/4 |
1.03 |
1.29 |
.125 |
A6TEU6-MG |
PP6TEU6 |
F6TEU6 |
3/8 |
3/8 |
1.03 |
1.64 |
.250 |
A8TEU8-MG |
PP8TEU8 |
F8TEU8 |
1/2 |
1/2 |
1.21 |
1.64 |
.380 |
For non-standard plastic collet, remove -MG suffix.
TEU - Thermoplastic Tube Elbow Unions | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal |
White PPL |
Natural Kynar |
Fitting Size |
L |
A4TPL |
PP4TPL |
F4TPL |
1/4 |
0.88 |
A6TPL |
PP6TPL |
F4TPL |
3/8 |
1.45 |
A8TPL |
PP8TPL |
- |
1/2 |
1.50 |
TEB - Thermoplastic Tube Elbow Barb Connectors | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal |
White PPL |
Natural Kynar |
Tube Stem O.D |
Tube I.D. |
M |
N |
D |
A4TEB4 |
PP4TEB4 |
F4TEB4 |
1/4 |
1/4 |
.89 |
1.00 |
.140 |
A6TEB4 |
PP6TEB4 |
F6TEB4 |
3/8 |
1/4 |
1.335 |
1.055 |
.375 |
A6TEB6 |
PP6TEB6 |
F6TEB6 |
3/8 |
3/8 |
1.34 |
1.21 |
.250 |
A8TEB8 |
- |
- |
1/2 |
1/2 |
1.30 |
1.39 |
.390 |
MES - Thermoplastic Male Elbow Swivel | Parker TrueSeal |
|
Tube-to-Pipe |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
NPTF THD SIZE |
C HEX |
M |
N |
D |
A4MES2-MG |
PP4MES2 |
F4MES2 |
1/4 |
1/8 |
9/16 |
.87 |
1.60 |
.175 |
A4MES4-MG |
PP4MES4 |
F4MES4 |
1/4 |
1/4 |
11/16 |
.87 |
1.71 |
.175 |
A4MES6-MG |
PP4MES6 |
F4MES6 |
1/4 |
3/8 |
13/16 |
.90 |
1.91 |
.212 |
A5MES2-MG |
- |
- |
5/16 |
1/8 |
9/16 |
1.02 |
1.78 |
.188 |
A5MES4-MG |
- |
- |
5/16 |
1/4 |
11/16 |
1.02 |
1.90 |
.188 |
A5MES6-MG |
- |
- |
5/16 |
3/8 |
13/16 |
1.02 |
1.90 |
.188 |
A6MES2-MG |
- |
F6MES2 |
3/8 |
1/8 |
9/16 |
1.02 |
1.65 |
.175 |
A6MES4-MG |
PP6MES4 |
F6MES4 |
3/8 |
1/4 |
13/16 |
1.02 |
1.90 |
.250 |
A6MES6-MG |
PP6MES6 |
F6MES6 |
3/8 |
3/8 |
13/16 |
1.02 |
1.90 |
.250 |
A8MES4-MG |
- |
- |
1/2 |
1/4 |
13/16/td> |
1.02 |
2.10 |
.240 |
A8MES6-MG |
PP8MES6 |
- |
1/2 |
3/8 |
13/16 |
1.20 |
2.10 |
.375 |
A8MES8-MG |
PP8MES8 |
- |
1/2 |
1/2 |
1 |
1.20 |
2.32 |
.375 |
For non-standard plastic collet, remove -MG suffix.
MTS - Thermoplastic Male Tee Swivel | Parker TrueSeal |
|
Tube-to-Pipe |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
NPTF THD SIZE |
C HEX |
M |
N |
D |
A4MTS2-MG |
PP4MTS2 |
F4MTS2 |
1/4 |
1/8 |
9/16 |
.81 |
1.60 |
.175 |
A4MTS4-MG |
PP4MTS4 |
F4MTS4 |
1/4 |
1/4 |
11/16 |
.81 |
1.71 |
.175 |
A5MTS2-MG |
- |
- |
5/16 |
1/8 |
9/16 |
1.02 |
1.78 |
.188 |
A5MTS4-MG |
- |
- |
5/16 |
1/4 |
11/16 |
1.02 |
1.90 |
.188 |
A5MTS6-MG |
- |
- |
5/16 |
3/8 |
13/16 |
1.02 |
1.90 |
.188 |
A6MTS2-MG |
- |
F6MTS2 |
3/8 |
1/8 |
9/16 |
1.02 |
1.75 |
.175 |
A6MTS4-MG |
PP6MTS4 |
F6MTS4 |
3/8 |
1/4 |
13/16 |
1.02 |
1.90 |
.250 |
A6MTS6-MG |
PP6MTS6 |
F6MTS6 |
3/8 |
3/8 |
13/16 |
1.02 |
1.90 |
.250 |
A8MTS4-MG |
- |
- |
1/2 |
1/4 |
13/16 |
1.20 |
2.10 |
.240 |
A8MTS6-MG |
PP8MTS6 |
- |
1/2 |
3/8 |
13/16 |
1.20 |
2.10 |
.375 |
A8MTS8-MG |
PP8MTS8 |
- |
1/2 |
1/2 |
1 |
1.20 |
2.32 |
.375 |
*Part consists of tee union and tube stem adapter.
Note: Assemblies with metal gripper collets are permanent. Assemblies with plastic collets can be taken apart.
RD - Thermoplastic Tube Reducer | Parker TrueSeal |
|
Tube-to-Tube Stem |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar FCB Seal |
Nom. Tube O.D. |
Tube Stem O.D. |
L |
D |
A4RD5-MG |
PP4RD5 |
- |
1/4 |
5/16 |
1.62 |
.18 |
A4RD6-MG |
PP4RD6 |
- |
1/4 |
3/8 |
1.62 |
.18 |
A5RD6-MG |
- |
- |
5/16 |
3/8 |
1.62 |
.18 |
A5RD8-MG |
- |
- |
5/16 |
3/8 |
1.78 |
.25 |
A6RD8-MG |
- |
- |
3/8 |
1/2 |
1.90 |
.25 |
For nonstandard plastic collet, remove -MG suffix.
CAP - Thermoplastic Tube Cap | Parker TrueSeal |
|
Gray Acetal |
White PPL |
Natural Kynar |
Nom. Tube O.D |
L |
A4CAP-MG |
PP4CAP |
F4CAP |
1/4 |
0.77 |
A6CAP-MG |
PP6CAP |
- |
3/8 |
0.88 |
For non-standard plastic collet, remove -MG suffix.
TCB - Thermoplastic Tube-to-Barb Connectors | Parker TrueSeal |
|
Tube-to-Barb |
Gray Acetal |
White PPL |
Natural Kynar |
Tube Stem O.D |
Tube I.D. |
L |
D |
A4TCB4 |
PP4TCB4 |
F4TCB4 |
1/4 |
1/4 |
1.67 |
.140 |
A6TCB4 |
- |
F6TCB4 |
3/8 |
1/4 |
1.82 |
.140 |
A6TCB6 |
PP6TCB6 |
F6TCB6 |
3/8 |
3/8 |
1.98 |
.250 |
A8TCB6 |
- |
- |
1/2 |
3/8 |
2.10 |
.250 |
A8TCB8 |
- |
F8TCB8 |
1/2 |
1/2 |
2.10 |
.375 |
CU - Thermoplastic Cross Union | Parker TrueSeal |
|
Tube-to-Tube |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar FCB Seal |
Nom. Tube O.D. |
M |
L |
A4CU4-MG |
- |
- |
1/4 |
.91 |
.175 |
A6CU6-MG |
- |
- |
3/8 |
1.08 |
.250 |
For nonstandard plastic collet, remove -MG suffix.
TMC - Thermoplastic Tube Stem Adapter | Parker TrueSeal |
|
Tube Stem-to-Pipe |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar FCB Seal |
Nom Tube O.D. |
NPTF THD Size |
C Hex |
L |
D |
A4TMC2 |
PP4TMC2 |
F4TMC2 |
1/4 |
1/8 |
9/16 |
1.44 |
.175 |
A4TMC4 |
PP4TMC4 |
F4TMC4 |
1/4 |
1/4 |
11/16 |
1.56 |
.175 |
A5TMC2 |
- |
- |
5/16 |
1/8 |
9/16 |
1.50 |
.188 |
A5TMC4 |
- |
F5TMC4 |
5/16 |
1/4 |
11/16 |
1.67 |
.188 |
A5TMC6 |
- |
- |
5/16 |
3/8 |
13/16 |
1.67 |
.188 |
A6TMC4 |
PP6TMC4 |
F6TMC4 |
3/8 |
1/4 |
13/16 |
1.70 |
.250 |
A6TMC6 |
PP6TMC6 |
F6TMC6 |
3/8 |
3/8 |
13/16 |
1.70 |
.250 |
A8TMC4 |
- |
- |
1/2 |
1/4 |
13/16 |
1.82 |
.240 |
A8TMC6 |
PP8TMC6 |
- |
1/2 |
3/8 |
13/16 |
1.82 |
.375 |
A8TMC8 |
PP8TMC8 |
- |
1/2 |
1/2 |
1 |
2.04 |
.375 |
MRS - Thermoplastic Male Run Tee Swivel | Parker TrueSeal |
|
Tube-to-Pipe |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
NPTF THD SIZE |
C HEX |
L |
M |
N |
D |
A4MRS2-MG |
PP4MRS2 |
F4MRS2 |
1/4 |
1/8 |
9/16 |
1.55 |
0.81 |
0.85 |
.175 |
A4MRS4-MG |
PP4MRS4 |
F4MRS4 |
1/4 |
1/4 |
11/16 |
1.67 |
0.81 |
0.85 |
.175 |
A5MRS2-MG |
- |
- |
5/16 |
1/8 |
9/16 |
1.78 |
1.02 |
1.02 |
.188 |
A5MRS4-MG |
- |
- |
5/16 |
1/4 |
11/16 |
1.90 |
1.02 |
1.02 |
.188 |
A5MRS6-MG |
- |
- |
5/16 |
3/8 |
13/16 |
1.90 |
1.02 |
1.02 |
.188 |
A6MRS4-MG |
PP6MRS4 |
F6MRS4 |
3/8 |
1/4 |
13/16 |
1.90 |
1.02 |
1.02 |
.250 |
A6MRS6-MG |
PP6MRS6 |
F6MRS6 |
3/8 |
3/8 |
13/16 |
2.10 |
1.02 |
1.02 |
.250 |
A8MRS4-MG |
- |
- |
1/2 |
1/4 |
13/16 |
2.10 |
1.20 |
1.20 |
.240 |
A8MRS6-MG |
PP8MRS6 |
- |
1/2 |
3/8 |
13/16 |
2.10 |
1.20 |
1.20 |
.375 |
A8MRS8-MG |
PP8MRS8 |
- |
1/2 |
1/2 |
1 |
2.32 |
1.20 |
1.20 |
.375 |
*Part consists of tee union and tube stem adapter.
Note: Assemblies with metal gripper collets are permanent. Assemblies with plastic collets can be taken apart.
FF - Thermoplastic 45° Female Flare | Parker TrueSeal |
|
Tube-to-Flare |
Gray Acetal EPDM Seal |
White Polypropylene EPDM Seal |
Natural Kynar Fluorocarbon Seal |
Nom Tube O.D. |
UNF-28 Thread Size |
C Hex |
L |
D |
A4FF4-MG |
PP4FF4 |
F4FF4 |
1/4 |
7/16-20 |
23/32 |
1.32 |
.190 |
A6FF4-MG |
- |
F6FF4 |
3/8 |
7/16-20 |
13/16 |
1.41 |
.190 |
A6FF6-MG |
PP6FF6 |
F6FF6 |
3/8 |
5/8-18 |
1 |
1.50 |
.250 |
For non-standard plastic collet, remove -MG suffix.
TFA - Thermoplastic Tube Faucet Adapter | Parker TrueSeal |
|
Tube-to-Faucet |
White Acetal |
Tube Stem O.D. |
Thread Size |
A |
C Hex |
D Min. |
AW6TFA7-MG |
3/8 |
7/16-24 |
1.25 |
.69 |
.17 |
AW6TFA8-MG |
3/8 |
1/2-14 NPSM |
1.45 |
1.06 |
.22 |
AW6TFA9-MG |
3/8 |
9/16-24 |
1.25 |
.75 |
.22 |
For non-standard plastic collet, remove -MG suffix.
TAF - Thermoplastic Tube Faucet Adapter | Parker TrueSeal |
|
Tube-to-Faucet |
White Acetal |
Tube Stem O.D. |
Thread Size |
A |
C Hex |
D Min. |
AW6TAF7-MG |
3/8 |
7/16-24 |
1.41 |
.50 |
.22 |
AW6TAF8-MG |
3/8 |
1/2-14 NPSM |
1.65 |
.88 |
.22 |
AW6TAF9-MG |
3/8 |
9/16-24 |
1.45 |
.63 |
.22 |
ST - Thermoplastic Straight Thread | Parker TrueSeal |
|
Tube-to-Faucet |
Gray Acetal EPDM Seal |
White PPL EPDM Seal |
Natural Kynar FCB Seal |
Nom Tube O.D. |
UNF-2B THD SIZE |
C Hex |
L |
D |
A6ST9-MG |
- |
F6ST9 (+) |
3/8 |
9/16-18 |
13/16 |
1.39 |
.250 |
For non-standard plastic collet, remove -MG suffix.
|
