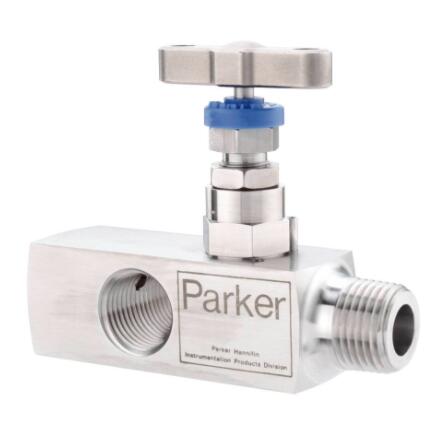

Parker派克 10,000 PSI Needle Valve - HGV Multi Port Series
Parker派克 10,000 PSI针阀-HGV多通口系列
Parker派克 10,000 PSI针阀-HGV多通口系列 10,000 PSI Needle Valve - HGV Multi Port Series

派克的多通量表阀是专门设计的阀，可在6,000 psig（414 bar）和10,000 psig（689 bar）的压力下运行。 Parker's multi-port gauge valves are purpose designed valves for operation up to 6,000 psig (414 bar) and 10,000 psig (689 bar).

Parker派克 10,000 PSI针阀-HGV多通口系列 资料下载

派克阀的设计工作压力为6000巴（419磅/平方英寸）。配有标准聚四氟乙烯填料压盖和自动定心无旋转端头，用户可确保气密阀座关闭。对于气体应用，可提供软头可选阀座。

各种各样的连接器端头可用于各种类型的安装。NACE合规性和氧气清洁，以及大量的材料清单。每个阀门有3个内螺纹出口，为用户提供仪表定位和定位的选择。Parker’s Multi-port gauge valves are purpose designed valves for operation up to 6000 psig (414 bar) and 10000 psi (689 bar). Complete with standard PTFE gland packing and self centering none rotational tip gives the user assurance of bubble tight seat shut off. For gaseous application soft tipped optional seating is available.
A wide variety of connector ends are offered for all types of installations. NACE compliance and oxygen clean are also available along with an extensive list of materials. Each valve has 3 female outlets giving the user optimum selection for instrument positioning and location.

派克的多接口计量阀是为在可达6000 PSI(414 bar)和10,000 PSI(689 bar)压力的条件下使用而设计。

派克的多接口计量阀工作压力可达6000psig(414bar)和
10000psi(689bar)提供PTFE（聚四氟乙烯）调料密封及自定式非旋转阀杆给
10000psi(689bar)使用者提供安全的气密密封关闭阀座。对于气体应用可选择软座阀尖。
对于不同安装方式提供多形式连接方式。在多种材料清单中，符合NACE标准及氧清洁材质可供选择。每个阀门拥有3个内螺纹出口，使用者可在仪表安装中选择理想安装方式

特征:
- 主轴螺纹压制
- 不锈钢材质
为标准
- PTFE填料为标准
石墨可选
- 可替换阀尖，
材质可选
- 自定式非旋转阀杆
气密密封
- 彩色编码识别功能
- 定位杆
预防泄漏及微小程度漏气

- T型低扭矩手柄
- 外部可调节阀盖
- 穿板及底座选项
- 多种形式连接包括
整体压缩一片式
阀体
- 防尘帽
可保护螺纹不受外部污染
- 锁紧阀盖为标准选项

特征Features:
- 滚压主轴工作螺纹Rolled spindle operating threads
- 标准不锈钢结构Stainless steel construction as standard
- PTFE填料标准，可选石墨PTFE packing standard, optional graphite
- 可用的替代桩头和施工材料Alternative tip and materials of construction available
- 自动定心非旋转主轴头，用于气密关闭Self centering non rotating spindle tip for bubble tight shut off
- 彩色编码功能标识Colour coded functional identification
- 防止井喷和减少大气泄漏的止回阀轴Back stop spindle for blowout prevention and minimal atmospheric leakage
- 低扭矩操作T形杆手柄Low torque operating T bar handle.
- 外部可调压盖Externally adjustable gland
- 底座安装选件Base mount option
- 各种端部连接，包括整体压缩一体式阀体Variety of end connections including integral compression one piece bodies
- 防尘盖，防止污染进入操作螺纹Dust cap to prevent ingress of contamination to operating thread
- 标准配置的阀盖锁销Bonnet locking pin fitted as standard

性能特点：

INLET CONNECTION SIZE：1/2 (NPT), 3/4 (NPT) inch Male
OUTLET CONNECTION SIZE：3x 1/2 (NPT) inch Female x 3
MATERIALS OF CONSTRUCTION：Stainless Steel, Monel, Duplex, Super Duplex, Hasteloy, Carbon Steel, 6Mo, Titanium, Incoloy 825, Incoloy 625
FLOW COEFFICIENT 10.35 standard Cv
MAXIMUM OPERATING PRESSURE：6000, 10000 psi 414, 689 bar
MINIMUM OPERATING TEMPERATURE：-54 °C -65 °F
MAXIMUM OPERATING TEMPERATURE：+538 °C +1000 °F
SEAT MATERIAL：Metal/metal seated
PACKING MATERIAL：PTFE as standard, graphite optional
VALVE OPTION：To order individual bleed valves and plugs contact factory
PRODUCT SERIES：HGV

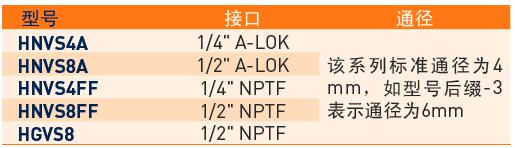

10,000 PSI Needle Valve - HGV Multi Port Series 型号
