Parker派克 仪表级球阀

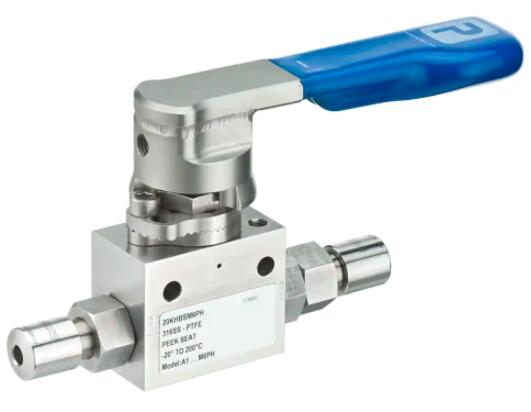

Parker派克 20,000 PSI Ball Valve - Hi-Pro Series
Parker派克 HI-PRO系列-承压20,000PSI球阀

派克Hi-Pro系列产品为两片式阀体设计，双向手动球阀，应用于3,600 PSI (247 bar) 至20,000 PSI (1379 bar) 冷工作压力下，可持续反复工作。Parker's Hi-Pro ball valve is a two piece bi-directional manual ball valve designed for cold working pressure process control applications from 3,600 PSI (247 bar) up to 20,000 PSI (1379 bar) rating, giving continuous repeatable performance.

Parker派克 HI-PRO系列-承压20,000PSI球阀 资料下载

派克的20,000 PSI Hi-Pro系列球阀应用广泛 如：石油，天然气和过程控制行业，冷工作压力范围：
3600 PSI (247 bar) 至20,000 PSI (1379 bar).派克可提供多种耐腐蚀合金材料球阀，使其适用于不同环境。这些球阀已经在世界上许多大型项目中被指定使用，依照派克质量标准生产的球阀在现场得到验证。Parker’s 20,000 PSI Hi-Pro series ball valves are suitable for a wide range of applications in the oil, gas and process control industries, with cold working operating pressures from 3600 PSI (247 bar) up to 20,000 PSI (1379 bar). Parker can offer these ball valves in a range of corrosion resistant alloy, which makes them suitable for a range of environments. Already specified on many of the large projects around the world, these ball valves are field proven and manufactured to Parker quality standards.

20,000 PSI Hi-Pro系列球阀均保证可重复气密关闭，具有Tru-Loc 压盖调节器,可选择 Graphoil（石墨）或者 PTFE（聚四氟乙烯）填料。还有PTFE 或者 PEEK 阀座材料可选。All 20,000 PSI Hi-Pro series ball valves are designed to ensure 100% repeatable bubble-tight shut-off and feature a Tru-Loc? gland adjuster, with a choice of Graphoil or PTFE packing. They also offer a choice of PTFE or PEEK seat material.

支架或面板安装可选。Optional bracket and panel mounting versions are available.

市场Markets：
- 海上石油或天然气Oil and Gas Offshore
- 内陆石油天然气Oil and Gas Onshore
- 石化Petrochemical
- 化学药品Chemical

特点/优势Features/Benefits：
- 压盖调节器的Tru-Loc? 抗振锁定系统可保障安全。Tru-Loc? anti-vibration locking system on gland adjuster for 100% security
- 热代码追踪和NACE兼容材料Heat code traceable and NACE compatible materials
- 派克的接口范围（双卡套，单卡套，Phastite,锥管螺纹)Range of Parker end connections (double ferrule, single ferrule, Phastite, Cone and Thread)
- 耐腐蚀合金Corrosion resistant alloys

应用Applications：
- 仪表管线Instrumentation lines
- 液压动力站Hydraulic power units
- 顶部脐带终端单元Topside umbilical termination units

性能特点：

max.运行压力：20000 psi，1379 barg
max.运行温度：200 °C，392 °F
min.运行温度：-20 °C，-4 °F
连接尺寸：1/4", 3/8", 1/2", 9/16", 6 mm, 8 mm, 10 mm, 12 mm, 14 mm
连接 2 尺寸：1/4", 3/8", 1/2", 9/16", 6 mm, 8 mm, 10 mm, 12 mm, 14 mm，Cone and Thread接头，无卡套稳固连接接头
连接 1 尺寸：Cone and Thread接头，无卡套稳固连接接头
孔径：2.8 , 3.7 , 4.7 , 5 , 6 mm
阀座材料：聚醚醚酮树脂
包装材料：聚四氟乙烯
结构材料：316 Stainless Steel
符合规格：N/A, NACE(美国腐蚀工程师协会)认证，可追溯性热代码

Hi-Pro球阀

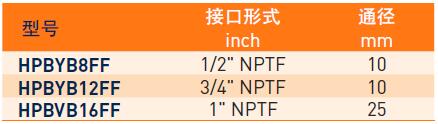

20,000 PSI Ball Valve - Hi-Pro Series 型号
