Parker派克仪表级针阀

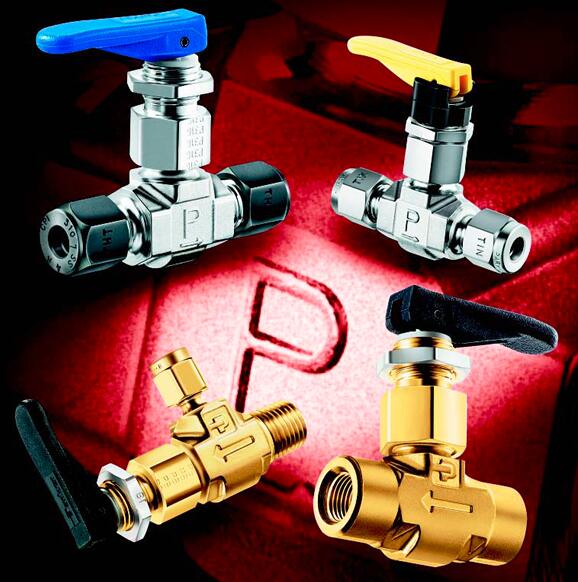

Parker派克 Needle Valve, Toggle Valve - VQ Series
Parker派克 VQ 系列针阀，切换阀
Parker派克 VQ系列针阀 VQ Series Needle Valve

派克 VQ 系列切换阀对于低压（300 PSI)、简单开闭系统来说，是一种能够快速作用的阀门。Parker's VQ Series toggle valves are quick acting valves for simple open or close systems with low pressure (300 PSI) requirements.

Parker派克 VQ 系列针阀，切换阀资料下载

派克的 VQ 系列切换阀在手动就及气动开关以控制适宜的压力及温度上有较高性价比。手动阀形式切换手柄可使压力迅速达到300 psig(21 bar)。紧凑型双作用常开，常闭气动型阀门可以将压力控制在600 psig(41 bar).Parker’s VQ Series Toggle Valves are the right combination of performance and value for manual or pneumatic on-off control in moderate pressure and temperature applications. The manual version employs a toggle handle for quick action at pressures up to 300 psig (21 bar). Compact double acting, normally closed, and normally open pneumatically actuated versions of this valve are ideal for automatic control at pressures up to 600 psig (41 bar).

市场Markets:
- 工业分析Research
- 石油天然气Oil and Gas
- 化工业Chemical
- 石化行业Petrochemical

特征/优势Features/Benefits:
- 快速作用Quick acting
- 直通型和角型Inline and angle patterns
- 可用CPI,A-LOK,NPT外螺纹和内螺纹连接Available with CPI, A-LOK, male and female NPT end connections
- 面板安装Panel mountable
- 彩色标识手柄Color-coded handles
- 316不锈钢和铜阀体结构316 stainless steel and brass body construction
- 阀杆密封材质Stem seal materials:
氟橡胶Fluorocarbon Rubber
丁腈橡胶Nitrile Rubber
乙丙橡胶Ethylene Propylene Rubber
- 高氟氟碳橡胶Highly Fluorinated Fluorocarbon Rubber
- 可选手柄方位及防锁手柄Optional handle positioners and anti-lock handles
- 每个产品都经过出厂检测100% factory tested
- 可采用常开，常闭，双作用模式。Available in normally open, normally closed, and double acting models
- 驱动型安装支架Mounting bracket standard for actuated models

应用Applications:
- 测试面板Test Panels
- 吹扫系统Purge Systems
- 灌装系统Rapid Fill Systems

性能特点：

连接 1 尺寸：1/4" - 1/2"，双卡套接头，单卡套接头，NPT外螺纹，NPT内螺纹
连接 2 尺寸：1/4" - 1/2"，双卡套接头，单卡套接头，NPT外螺纹，NPT内螺纹
配件类型：在线的
阀杆材料：PTFE
max.运行温度：200 °F，93 °C
min.运行温度：-20 °F，-29 °C
max.运行压力：300 psi，21 bar
阀体材料：不锈钢

Needle Valve, Toggle Valve - VQ Series 型号

部件号	连接尺寸	连接器类型	阀体形状	阀杆材料	温度等级（F)	工作温度（F)	工作压力（psi)	阀体材料	主体尺寸	密封材料
2A-V4AQ-BN-BP	1/8"	Two Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
2A-V4AQ-BN-SSP	1/8"	Two Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
2A-V4AQ-BP	1/8"	Two Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
2A-V4AQ-EPR-BP	1/8"	Two Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
2A-V4AQ-EPR-SSP	1/8"	Two Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
2A-V4AQ-KZ-BP	1/8"	Two Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
2A-V4AQ-KZ-SSP	1/8"	Two Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
2A-V4AQ-SSP	1/8"	Two Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
2A-V4LQ-BN-BP	1/8"	Two Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
2A-V4LQ-BN-SSP	1/8"	Two Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
2A-V4LQ-BP	1/8"	Two Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
2A-V4LQ-EPR-BP	1/8"	Two Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
2A-V4LQ-EPR-SSP	1/8"	Two Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
2A-V4LQ-KZ-BP	1/8"	Two Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
2A-V4LQ-KZ-SSP	1/8"	Two Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
2A-V4LQ-SSP	1/8"	Two Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
2F-V4AQ-BN-BP	1/8"	NPT F	Angle	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
2F-V4AQ-BN-SSP	1/8"	NPT F	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
2F-V4AQ-BP	1/8"	NPT F	Angle	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
2F-V4AQ-EPR-BP	1/8"	NPT F	Angle	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
2F-V4AQ-EPR-SSP	1/8"	NPT F	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
2F-V4AQ-KZ-BP	1/8"	NPT F	Angle	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
2F-V4AQ-KZ-SSP	1/8"	NPT F	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
2F-V4AQ-SSP	1/8"	NPT F	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
2F-V4LQ-BN-BP	1/8"	NPT F	Inline	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
2F-V4LQ-BN-SSP	1/8"	NPT F	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
2F-V4LQ-BP	1/8"	NPT F	Inline	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
2F-V4LQ-EPR-BP	1/8"	NPT F	Inline	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
2F-V4LQ-EPR-SSP	1/8"	NPT F	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
2F-V4LQ-KZ-BP	1/8"	NPT F	Inline	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
2F-V4LQ-KZ-SSP	1/8"	NPT F	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
2F-V4LQ-SSP	1/8"	NPT F	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
2M-V4AQ-BN-BP	1/8"	NPT M	Angle	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
2M-V4AQ-BN-SSP	1/8"	NPT M	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
2M-V4AQ-BP	1/8"	NPT M	Angle	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
2M-V4AQ-EPR-BP	1/8"	NPT M	Angle	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
2M-V4AQ-EPR-SSP	1/8"	NPT M	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
2M-V4AQ-KZ-BP	1/8"	NPT M	Angle	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
2M-V4AQ-KZ-SSP	1/8"	NPT M	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
2M-V4AQ-SSP	1/8"	NPT M	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
2M-V4LQ-BN-BP	1/8"	NPT M	Inline	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
2M-V4LQ-BN-SSP	1/8"	NPT M	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
2M-V4LQ-BP	1/8"	NPT M	Inline	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
2M-V4LQ-EPR-BP	1/8"	NPT M	Inline	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
2M-V4LQ-EPR-SSP	1/8"	NPT M	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
2M-V4LQ-KZ-BP	1/8"	NPT M	Inline	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
2M-V4LQ-KZ-SSP	1/8"	NPT M	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
2M-V4LQ-SSP	1/8"	NPT M	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
2Z-V4AQ-BN-BP	1/8"	Single Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
2Z-V4AQ-BN-SSP	1/8"	Single Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
2Z-V4AQ-BP	1/8"	Single Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
2Z-V4AQ-EPR-BP	1/8"	Single Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
2Z-V4AQ-EPR-SSP	1/8"	Single Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
2Z-V4AQ-KZ-BP	1/8"	Single Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
2Z-V4AQ-KZ-SSP	1/8"	Single Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
2Z-V4AQ-SSP	1/8"	Single Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
2Z-V4LQ-BN-BP	1/8"	Single Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
2Z-V4LQ-BN-SSP	1/8"	Single Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
2Z-V4LQ-BP	1/8"	Single Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
2Z-V4LQ-EPR-BP	1/8"	Single Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
2Z-V4LQ-EPR-SSP	1/8"	Single Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
2Z-V4LQ-KZ-BP	1/8"	Single Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
2Z-V4LQ-KZ-SSP	1/8"	Single Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
2Z-V4LQ-SSP	1/8"	Single Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
4A-V4AQ-BN-BP	1/4"	Two Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
4A-V4AQ-BN-SSP	1/4"	Two Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
4A-V4AQ-BP	1/4"	Two Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
4A-V4AQ-EPR-BP	1/4"	Two Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
4A-V4AQ-EPR-SSP	1/4"	Two Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
4A-V4AQ-KZ-BP	1/4"	Two Ferrule Compression	Angle	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
4A-V4AQ-KZ-SSP	1/4"	Two Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
4A-V4AQ-SSP	1/4"	Two Ferrule Compression	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
4A-V4LQ-BN-BP	1/4"	Two Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
4A-V4LQ-BN-SSP	1/4"	Two Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
4A-V4LQ-BP	1/4"	Two Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
4A-V4LQ-EPR-BP	1/4"	Two Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber
4A-V4LQ-EPR-SSP	1/4"	Two Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Ethylene Propylene Rubber
4A-V4LQ-KZ-BP	1/4"	Two Ferrule Compression	Inline	PTFE	200	-20	300	Brass	1/4"	Highly Flourinated Fluorocarbon Rubber
4A-V4LQ-KZ-SSP	1/4"	Two Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Highly Flourinated Fluorocarbon Rubber
4A-V4LQ-SSP	1/4"	Two Ferrule Compression	Inline	PTFE	200	-20	300	316 Stainless Steel	1/4"	Fluorocarbon Rubber
4F-V6AQ-BN-BP	1/4"	NPT F	Angle	PTFE	200	-20	300	Brass	3/8"	Nitrile Rubber
4F-V6AQ-BN-SSP	1/4"	NPT F	Angle	PTFE	200	-20	300	316 Stainless Steel	3/8"	Nitrile Rubber
4F-V6AQ-BP	1/4"	NPT F	Angle	PTFE	200	-20	300	Brass	3/8"	Fluorocarbon Rubber
4F-V6AQ-EPR-BP	1/4"	NPT F	Angle	PTFE	200	-20	300	Brass	3/8"	Ethylene Propylene Rubber
4F-V6AQ-EPR-SSP	1/4"	NPT F	Angle	PTFE	200	-20	300	316 Stainless Steel	3/8"	Ethylene Propylene Rubber
4F-V6AQ-KZ-BP	1/4"	NPT F	Angle	PTFE	200	-20	300	Brass	3/8"	Highly Flourinated Fluorocarbon Rubber
4F-V6AQ-KZ-SSP	1/4"	NPT F	Angle	PTFE	200	-20	300	316 Stainless Steel	3/8"	Highly Flourinated Fluorocarbon Rubber
4F-V6AQ-SSP	1/4"	NPT F	Angle	PTFE	200	-20	300	316 Stainless Steel	3/8"	Fluorocarbon Rubber
4F-V6LQ-BN-BP	1/4"	NPT F	Inline	PTFE	200	-20	300	Brass	3/8"	Nitrile Rubber
4F-V6LQ-BN-SSP	1/4"	NPT F	Inline	PTFE	200	-20	300	316 Stainless Steel	3/8"	Nitrile Rubber
4F-V6LQ-BP	1/4"	NPT F	Inline	PTFE	200	-20	300	Brass	3/8"	Fluorocarbon Rubber
4F-V6LQ-EPR-BP	1/4"	NPT F	Inline	PTFE	200	-20	300	Brass	3/8"	Ethylene Propylene Rubber
4F-V6LQ-EPR-SSP	1/4"	NPT F	Inline	PTFE	200	-20	300	316 Stainless Steel	3/8"	Ethylene Propylene Rubber
4F-V6LQ-KZ-BP	1/4"	NPT F	Inline	PTFE	200	-20	300	Brass	3/8"	Highly Flourinated Fluorocarbon Rubber
4F-V6LQ-KZ-SSP	1/4"	NPT F	Inline	PTFE	200	-20	300	316 Stainless Steel	3/8"	Highly Flourinated Fluorocarbon Rubber
4F-V6LQ-SSP	1/4"	NPT F	Inline	PTFE	200	-20	300	316 Stainless Steel	3/8"	Fluorocarbon Rubber
4M-V4AQ-BN-BP	1/4"	NPT M	Angle	PTFE	200	-20	300	Brass	1/4"	Nitrile Rubber
4M-V4AQ-BN-SSP	1/4"	NPT M	Angle	PTFE	200	-20	300	316 Stainless Steel	1/4"	Nitrile Rubber
4M-V4AQ-BP	1/4"	NPT M	Angle	PTFE	200	-20	300	Brass	1/4"	Fluorocarbon Rubber
4M-V4AQ-EPR-BP	1/4"	NPT M	Angle	PTFE	200	-20	300	Brass	1/4"	Ethylene Propylene Rubber

Part Connection 1 Size Connection 2 Size Connection 1 Style Connection 2 Style Body Shape Stem Material Maximum Temperature Rating (F) Maximum Temperature Rating (C) Minimum Working Temperature (F) Minimum Working Temperature (C) Maximum Working Pressure (psi) Maximum Working Pressure (Bar) Body Material Body Size Seal Material
2A-V4AQ-BN-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2A-V4AQ-BN-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2A-V4AQ-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2A-V4AQ-EPR-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2A-V4AQ-EPR-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2A-V4AQ-KZ-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2A-V4AQ-KZ-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2A-V4AQ-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2A-V4LQ-BN-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2A-V4LQ-BN-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2A-V4LQ-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2A-V4LQ-EPR-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2A-V4LQ-EPR-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2A-V4LQ-KZ-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2A-V4LQ-KZ-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2A-V4LQ-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2F-V4AQ-BN-BP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2F-V4AQ-BN-SSP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2F-V4AQ-BP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2F-V4AQ-EPR-BP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2F-V4AQ-EPR-SSP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2F-V4AQ-KZ-BP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2F-V4AQ-KZ-SSP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2F-V4AQ-SSP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2F-V4LQ-BN-BP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2F-V4LQ-BN-SSP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2F-V4LQ-BP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2F-V4LQ-EPR-BP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2F-V4LQ-EPR-SSP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2F-V4LQ-KZ-BP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2F-V4LQ-KZ-SSP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2F-V4LQ-SSP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2M-V4AQ-BN-BP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2M-V4AQ-BN-SSP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2M-V4AQ-BP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2M-V4AQ-EPR-BP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2M-V4AQ-EPR-SSP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2M-V4AQ-KZ-BP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2M-V4AQ-KZ-SSP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2M-V4AQ-SSP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2M-V4LQ-BN-BP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2M-V4LQ-BN-SSP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2M-V4LQ-BP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2M-V4LQ-EPR-BP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2M-V4LQ-EPR-SSP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2M-V4LQ-KZ-BP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2M-V4LQ-KZ-SSP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2M-V4LQ-SSP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2Z-V4AQ-BN-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2Z-V4AQ-BN-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2Z-V4AQ-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2Z-V4AQ-EPR-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2Z-V4AQ-EPR-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2Z-V4AQ-KZ-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2Z-V4AQ-KZ-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2Z-V4AQ-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2Z-V4LQ-BN-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2Z-V4LQ-BN-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2Z-V4LQ-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2Z-V4LQ-EPR-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2Z-V4LQ-EPR-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2Z-V4LQ-KZ-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2Z-V4LQ-KZ-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2Z-V4LQ-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4A-V4AQ-BN-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4A-V4AQ-BN-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4A-V4AQ-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4A-V4AQ-EPR-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4A-V4AQ-EPR-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4A-V4AQ-KZ-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4A-V4AQ-KZ-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4A-V4AQ-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4A-V4LQ-BN-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4A-V4LQ-BN-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4A-V4LQ-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4A-V4LQ-EPR-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4A-V4LQ-EPR-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4A-V4LQ-KZ-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4A-V4LQ-KZ-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4A-V4LQ-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4F-V6AQ-BN-BP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
4F-V6AQ-BN-SSP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
4F-V6AQ-BP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
4F-V6AQ-EPR-BP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
4F-V6AQ-EPR-SSP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
4F-V6AQ-KZ-BP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
4F-V6AQ-KZ-SSP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
4F-V6AQ-SSP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
4F-V6LQ-BN-BP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
4F-V6LQ-BN-SSP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
4F-V6LQ-BP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
4F-V6LQ-EPR-BP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
4F-V6LQ-EPR-SSP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
4F-V6LQ-KZ-BP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
4F-V6LQ-KZ-SSP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
4F-V6LQ-SSP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
4M-V4AQ-BN-BP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4M-V4AQ-BN-SSP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4M-V4AQ-BP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4M-V4AQ-EPR-BP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4M-V4AQ-EPR-SSP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4M-V4AQ-KZ-BP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4M-V4AQ-KZ-SSP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4M-V4AQ-SSP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4M-V4LQ-BN-BP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4M-V4LQ-BN-SSP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4M-V4LQ-BP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4M-V4LQ-EPR-BP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4M-V4LQ-EPR-SSP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4M-V4LQ-KZ-BP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4M-V4LQ-KZ-SSP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4M-V4LQ-SSP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4Z-V4AQ-BN-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4Z-V4AQ-BN-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4Z-V4AQ-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4Z-V4AQ-EPR-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4Z-V4AQ-EPR-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4Z-V4AQ-KZ-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4Z-V4AQ-KZ-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4Z-V4AQ-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4Z-V4LQ-BN-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4Z-V4LQ-BN-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4Z-V4LQ-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4Z-V4LQ-EPR-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4Z-V4LQ-EPR-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4Z-V4LQ-KZ-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4Z-V4LQ-KZ-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4Z-V4LQ-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6A-V4AQ-BN-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
6A-V4AQ-BN-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
6A-V4AQ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
6A-V4AQ-EPR-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
6A-V4AQ-EPR-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
6A-V4AQ-KZ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
6A-V4AQ-KZ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
6A-V4AQ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6A-V4LQ-BN-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
6A-V4LQ-BN-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
6A-V4LQ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
6A-V4LQ-EPR-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
6A-V4LQ-EPR-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
6A-V4LQ-KZ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
6A-V4LQ-KZ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
6A-V4LQ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6A-V6AQ-BN-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
6A-V6AQ-BN-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
6A-V6AQ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
6A-V6AQ-EPR-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
6A-V6AQ-EPR-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
6A-V6AQ-KZ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
6A-V6AQ-KZ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
6A-V6AQ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
6A-V6LQ-BN-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
6A-V6LQ-BN-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
6A-V6LQ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
6A-V6LQ-EPR-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
6A-V6LQ-EPR-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
6A-V6LQ-KZ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
6A-V6LQ-KZ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
6A-V6LQ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
6Z-V4AQ-BN-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
6Z-V4AQ-BN-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
6Z-V4AQ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
6Z-V4AQ-EPR-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
6Z-V4AQ-EPR-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
6Z-V4AQ-KZ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
6Z-V4AQ-KZ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
6Z-V4AQ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6Z-V4LQ-BN-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
6Z-V4LQ-BN-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
6Z-V4LQ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
6Z-V4LQ-EPR-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
6Z-V4LQ-EPR-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
6Z-V4LQ-KZ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
6Z-V4LQ-KZ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
6Z-V4LQ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6Z-V6AQ-BN-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
6Z-V6AQ-BN-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
6Z-V6AQ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
6Z-V6AQ-EPR-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
6Z-V6AQ-EPR-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
6Z-V6AQ-KZ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
6Z-V6AQ-KZ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
6Z-V6AQ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
6Z-V6LQ-BN-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
6Z-V6LQ-BN-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
6Z-V6LQ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
6Z-V6LQ-EPR-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
6Z-V6LQ-EPR-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
6Z-V6LQ-KZ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
6Z-V6LQ-KZ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
6Z-V6LQ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
8A-V6AQ-BN-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
8A-V6AQ-BN-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
8A-V6AQ-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
8A-V6AQ-EPR-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
8A-V6AQ-EPR-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
8A-V6AQ-KZ-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
8A-V6AQ-KZ-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
8A-V6AQ-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
8A-V6LQ-BN-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
8A-V6LQ-BN-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
8A-V6LQ-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
8A-V6LQ-EPR-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
8A-V6LQ-EPR-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
8A-V6LQ-KZ-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
8A-V6LQ-KZ-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
8A-V6LQ-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
8Z-V6AQ-BN-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
8Z-V6AQ-BN-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
8Z-V6AQ-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
8Z-V6AQ-EPR-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
8Z-V6AQ-EPR-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
8Z-V6AQ-KZ-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
8Z-V6AQ-KZ-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
8Z-V6AQ-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
8Z-V6LQ-BN-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
8Z-V6LQ-BN-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
8Z-V6LQ-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
8Z-V6LQ-EPR-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
8Z-V6LQ-EPR-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
8Z-V6LQ-KZ-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
8Z-V6LQ-KZ-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
8Z-V6LQ-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber

美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz

fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694 | 139 1096 2635
Http：//www.cnmec.biz
传真：010-8428 8762

京ICP备08000876号-8
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships




E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
