Parker派克 仪表级球阀

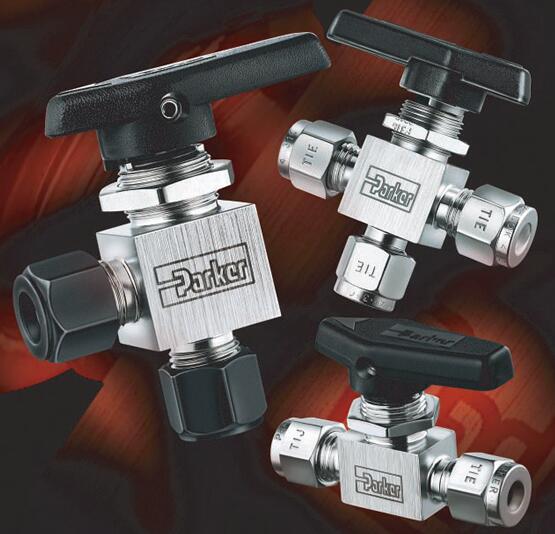

Parker派克 Ball Valve,3000 PSI - MB Series
Parker派克 MB系列球阀-承压3000 PSI

派克MB系列球阀一体式设计,结构紧凑,可做关闭或控制流体方向使用。阀门用于多种温压环境下,承压达3,000 PSI。Parker's MB Series ball valves, with barstock body and compact design, offer positive shut off or directional control of fluids. These ball valves work in a variety of pressure and temperature applications.up to 3,000 PSI.



Parker派克 MB系列球阀-承压3000 PSI 资料下载



派克的MB系列球阀,一体式设计,结构紧凑,可为过程控制,电力和仪表应用领域提供稳定的介质流通关闭或流体方向控制。一体式阀座/填料设计赋予其广泛的温度范围 (-65?F 到 300?F)和超长的循环使用寿命的同时,还提供优异的密封特性,承压可达3000 PSIG。Parker's MB Series ball valves, with their barstock, compact design, offer positive shut off or directional control of fluids in process, power and instrumentation applications. The unique one piece seat/packing design insures excellent sealing characteristics while accommodating a superior temperature range (-65?F to 300?F), up to 3000 PSIG and long cycle life.

这些阀门形式有二通和三通,阀体材料铜及不锈钢,并提供各种各样的端口连接形式。而且,端口均能承受全工作压力操作。These valves are available in two-way and three-way configurations, brass and stainless steel construction, with a wide variety of port connections. Also, all ports are suitable as inlets to full operating pressure of the valve.

市场Markets:

- 石油与天然气Oil and Gas
- 科研Research
- 化工Chemical
- 微电子Microelectronics

特点/优势Features/Benefits:

- 一体式阀座/填料设计One piece seat/packing design
- 广泛的温度范围Broad temperature range
- 带有涂层的金属嵌件Coated metal inserts
- 一体式阀杆/球体One piece stem/ball
- 多种US(美国)常用和SI标准接口Wide variety of US Customary and SI ports
- 面板安装厚度可达1/4""Panel mountable to 1/4"" thickness
- 可双向流通Bi-directional flow
- 手柄标识流通方向Handle indicates direction of flow
- 流路各处工作压力相等Full operating pressure at any port
- 手柄限位销Positive handle stops
- 彩色标识手柄Color coded handles
- 每个产品都经过出厂检测100% factory tested
- 排放口可选Vent option
- 手动,电动气动控制可选Manual, electric or pneumatic actuation
- 三通球阀中间位置时可起密封作用Leak-tight center-off position on three-way valves

应用Applications:

- 实验室中的样品提取/分配系统Sample Extraction/Dispensing Systems in Labs
- 控制盘Control Panels
- R&D 实验室R&D Labs
- 特种气体Specialty Gas
- 化学品输送Chemical delivery
- 试验厂Pilot Plants

性能特点:

阀座材料:含氟聚合物:全氟烷氧基
结构材料:316 Stainless Steel
max.运行压力:2500, 3000, 3000 psi,172, 207, 207 barg
max.运行温度:149 °C,300 °F
min.运行温度:-54 °C,-65 °F



Ball Valve,3000 PSI - MB Series型号

Part Connection Size Connection Size 2 Connection 1 Style Connection 2 Style Valve Type Flow Capacity (Cv)
12A-MB8A-PFA-SSP 3/4" 3/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 4.9
12A-MB8L-PFA-SSP 3/4" 3/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 6.4
12A-MB8X-PFA-SSP 3/4" 3/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 4.9
12Z-MB8A-PFA-SSP 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 4.9
12Z-MB8L-PFA-SSP 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 6.4
12Z-MB8X-PFA-SSP 3/4" 3/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 4.9
1A-MB2A-PFA-SSP 1/16" 1/16" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.02
1A-MB2L-PFA-SSP 1/16" 1/16" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 0.03
1A-MB2X-PFA-SSP 1/16" 1/16" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 0.02
1Z-MB2A-PFA-SSP 1/16" 1/16" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.02
1Z-MB2L-PFA-SSP 1/16" 1/16" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 0.03
1Z-MB2X-PFA-SSP 1/16" 1/16" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 0.02
2A-MB2A-PFA-SSP 1/8" 1/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.18
2A-MB2L-PFA-SSP 1/8" 1/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 0.2
2A-MB2X-PFA-SSP 1/8" 1/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 0.18
2A7-MB6X4-PFA-SSP 1/8" 1/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 4 Way 0.16
2A7-MB6X5-PFA-SSP 1/8" 1/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 5 Way 0.16
2F-MB6X4-PFA-SSP 1/8" 1/8" NPT F NPT F 4 Way 0.16
2F-MB6X5-PFA-SSP 1/8" 1/8" NPT F NPT F 5 Way 0.16
2Z-MB2A-PFA-SSP 1/8" 1/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.18
2Z-MB2L-PFA-SSP 1/8" 1/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 0.2
2Z-MB2X-PFA-SSP 1/8" 1/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 0.18
2Z7-MB6X4-PFA-SSP 1/8" 1/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 4 Way 0.16
2Z7-MB6X5-PFA-SSP 1/8" 1/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 5 Way 0.16
4A-MB4A-PFA-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.34
4A-MB4L-PFA-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 0.44
4A-MB4X-PFA-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 0.34
4A-MB6A-PFA-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.7
4A-MB6L-PFA-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 1.02
4A-MB6X-PFA-SSP 1/4" 1/4" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 0.7
4F-MB6A-PFA-SSP 1/4" 1/4" NPT F NPT F 2 Way Angle 0.7
4F-MB6L-PFA-SSP 1/4" 1/4" NPT F NPT F 2 Way 1.02
4F-MB6X-PFA-SSP 1/4" 1/4" NPT F NPT F 3 Way 0.7
4M-MB6A-PFA-SSP 1/4" 1/4" NPT M NPT M 2 Way Angle 0.7
4M-MB6L-PFA-SSP 1/4" 1/4" NPT M NPT M 2 Way 1.02
4M-MB6X-PFA-SSP 1/4" 1/4" NPT M NPT M 3 Way 0.7
4Z-MB4A-PFA-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.34
4Z-MB4L-PFA-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 0.44
4Z-MB4X-PFA-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 0.34
4Z-MB6A-PFA-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.7
4Z-MB6X-PFA-SSP 1/4" 1/4" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 0.7
6A-MB6A-PFA-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.7
6A-MB6L-PFA-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 1.02
6A-MB6X-PFA-SSP 3/8" 3/8" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 0.7
6Z-MB6A-PFA-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.7
6Z-MB6L-PFA-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 1.02
6Z-MB6X-PFA-SSP 3/8" 3/8" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 0.7
8A-MB8A-PFA-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 5.4
8A-MB8L-PFA-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 10.7
8A-MB8X-PFA-SSP 1/2" 1/2" Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 5.4
8F-MB8A-PFA-SSP 1/2" 1/2" NPT F NPT F 2 Way Angle 5
8F-MB8L-PFA-SSP 1/2" 1/2" NPT F NPT F 2 Way 6.1
8F-MB8X-PFA-SSP 1/2" 1/2" NPT F NPT F 3 Way 0.33
8Z-MB8A-PFA-SSP 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 5.4
8Z-MB8L-PFA-SSP 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 10.7
8Z-MB8X-PFA-SSP 1/2" 1/2" Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 5.4
M12A-MB8A-PFA-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 5.6
M12A-MB8L-PFA-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 10.7
M12A-MB8X-PFA-SSP 12 mm 12 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 5.6
M12Z-MB8A-PFA-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 5.6
M12Z-MB8L-PFA-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 10.7
M12Z-MB8X-PFA-SSP 12 mm 12 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 5.6
M3A-MB2A-PFA-SSP 3 mm 3 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.15
M3A-MB2L-PFA-SSP 3 mm 3 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 0.17
M3A-MB2X-PFA-SSP 3 mm 3 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 0.15
M3Z-MB2A-PFA-SSP 3 mm 3 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.15
M3Z-MB2L-PFA-SSP 3 mm 3 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 0.17
M3Z-MB2X-PFA-SSP 3 mm 3 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 0.15
M6A-MB4A-PFA-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.34
M6A-MB4L-PFA-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 0.44
M6A-MB6A-PFA-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.7
M6A-MB6L-PFA-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 1.02
M6A-MB6X-PFA-SSP 6 mm 6 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 0.7
M6Z-MB4A-PFA-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.34
M6Z-MB4L-PFA-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 0.44
M6Z-MB6A-PFA-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.7
M6Z-MB6X-PFA-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 0.7
M6ZMB4X-PFA-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 0.34
M6ZMB6L-PFA-SSP 6 mm 6 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 1.02
M8-MB6X-PFA-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 3 Way 0.7
M8A-MB6A-PFA-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way Angle 0.7
M8A-MB6L-PFA-SSP 8 mm 8 mm Two Ferrule Compression Fitting Two Ferrule Compression Fitting 2 Way 1.02
M8Z-MB6A-PFA-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way Angle 0.7
M8Z-MB6L-PFA-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 2 Way 1.02
M8Z-MB6X-PFA-SSP 8 mm 8 mm Single Ferrule Compression Fitting Single Ferrule Compression Fitting 3 Way 0.7
