Parker派克 Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series
Parker派克 NP6 系列针阀，螺纹阀盖 - 6,000 PSI

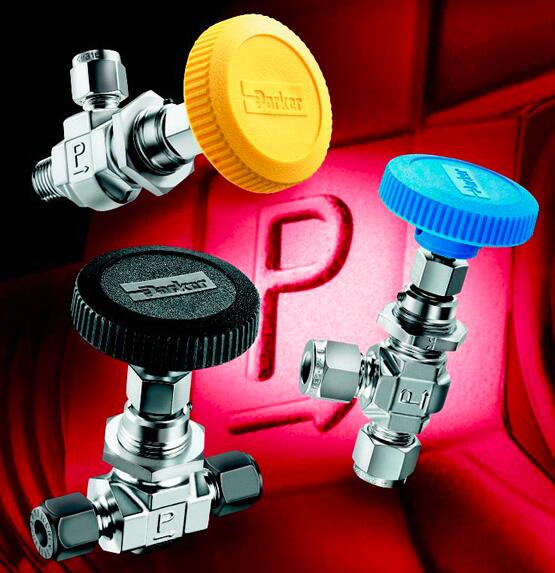

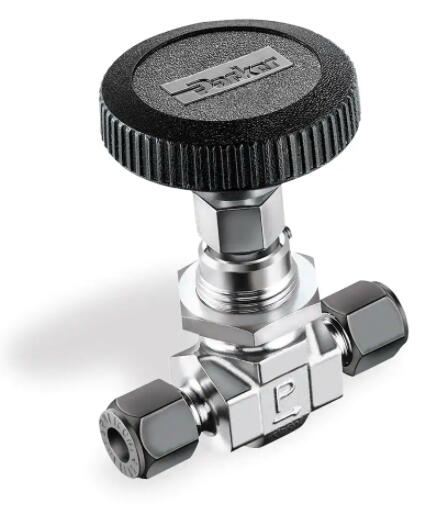

Parker派克 NP6系列针阀 NP6 Series Needle Valve

派克 NP6 系列针阀为阀杆螺纹下端填料，两件式阀杆可应用于60,000 PSI压力。Parker's NP6 needle valves are designed with packing below the stem threads and a two-piece stem for critical applications up to 6,000 PSI (414 BAR).

Parker派克 NP6 系列针阀，螺纹阀盖 - 6,000 PSI 资料下载

派克的 NP6 系列阀门为特种型针阀。此款设计为阀杆螺纹下端密封，两片式阀杆可在严苛条件下达到6,000 PSI(414 BAR).螺纹下端填料可保护流体免受螺纹润滑剂的污染或冲洗，也可保护阀杆潜在的损坏影响介质。双杆式采用非旋转低阀杆性能优越，可替换密封，并且减少填料磨损。Parker’s NP6 Needle Valves are severe service, needle valves. They are designed with the packing below the stem threads and a two-piece stem for critical systems up to 6,000 PSI (414 BAR). The packing below the threads protects the flow stream from thread lubricant contamination or washout and also protects the stem threads from potential damaging effects of the media. The two-piece stem produces a non-rotating lower stem for superior, repeatable sealing and reduced packing wear.

市场Markets:
- 化工业Chemical
- 石化行业Petrochemical
- 石油天然气Oil and Gas
- 电力行业Power

特征/优势Features/Benefits:
- 螺纹下端填料可保护螺纹润滑剂并且在特种工况下阻隔介质和螺纹润滑剂。Packing below power threads protects thread lubricants from media and isolates the media from the lubricant for severe service applications
- 阀盖中 O-ring 防尘密封保护阀杆螺纹免受外部污染O-ring dust seal in bonnet protects stem threads from external contamination
- 两种非旋转阀杆形式：R-Stem – 全金属，钝型阀尖，K-Stem – PCTFE阀尖Choice of two non-rotating stem types: R-Stem – All metal, blunt stem tip, K-Stem – PCTFE stem tip
- 非旋转低型阀杆延长了填料及阀门的使用寿命Non rotating lower stem extends packing and valve life
- 316不锈钢结构316 stainless steel construction
- 直型和角型Inline and angle patterns
- 各种美式常用及 SI 接口Wide variety of US Customary and SI ports
- 面板安装Panel mountable
- 每个产品都经过 出厂检测100% factory tested
- 彩色编码手柄可选Optional color coded handles

应用Applications:
- 溶剂系统Solvent Systems
- 临界关 – 闭系统Critical Shut – Off Systems

性能特点：

连接 1 尺寸：1/4", 3/8"；双卡套接头，NPT 内螺纹，NPT 外螺纹，单卡套接头
连接 2 尺寸：1/4", 3/8"。双卡套接头，NPT 内螺纹，NPT 外螺纹，单卡套接头
阀杆类型：钝的，聚三氟氯乙烯
主体类型：在线的
阀体材料：不锈钢

Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series 型号
