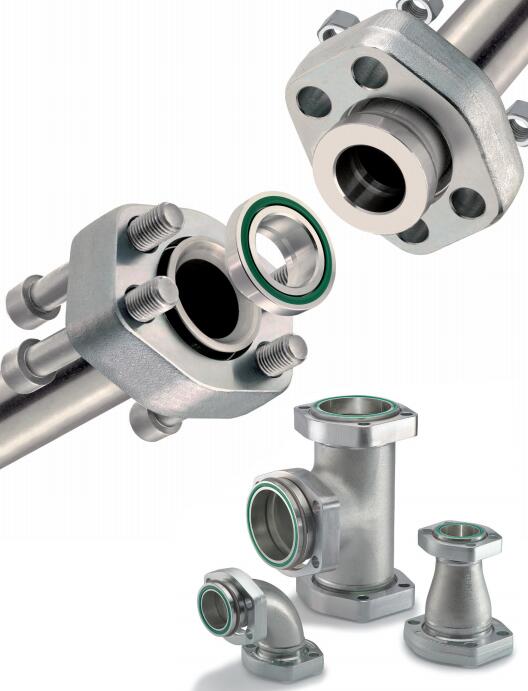

Parflange F37是一种适用于ISO 6162-1/2和ISO 6164法兰连接的非焊接管路系统。它结合了冷成型、非焊接管连接技术的节省成本和耗时的优点,以及法兰安装的便利性。Parflange F37法兰连接系统是利用钢管滚压成形技术,适用于外径从16至273 mm(1/2"至10"法兰)的钢管总成。它可用于高达9 mm的钢管壁厚,而且额定压力高达420 bar。对于无法预成形钢管的装配或制造受限的连接,派克可提供F37保持环系统。该系统采用保持环固定法兰,同时结合精心设计的组合密封垫来实现无泄漏性能。它有1 1/2"至10"的高压系列和新开发的SAE 1000(50-70 bar)系列可供选择。Parflange F37系列产品符合ISO 6162-1;SAE J518;3000(Code 61)、ISO 6162-2;SAE J518;6000(Code 62)以及ISO 6164的法兰标准。它已通过了DNV、ABS和其他主要船级社的型式认证。
与此相比,非焊管成形可节省时间和成本。可以立即让成本高昂的管路冲洗和X射线检查成为历史。与传统的焊接相比,管接头的制造时间可迅速缩短一半以上。派克法兰连接系统尤其适合于海工、造船业、重型机械和冲压制造、及采矿业、环保和工程机械等高要求工况;以及电力管道系统中的总体要求。
产品 |
端口类型 |
法兰尺寸 |
材料 |
管件尺寸 |
螺栓尺寸 |
组装包括 |
F37-1128-220X6.0TFCF |
Round Flange Design / 1000 PSI Range |
8" |
Steel Cr(VI)-free and NBR |
220x6,0 |
Standard |
Flange / Insert Flat |
F37-1128-220X6.0TFVCF |
Round Flange Design / 1000 PSI Range |
8" |
Steel Cr(VI)-free and NBR |
220x6,0 |
Standard |
Flange / Insert O-Ring |
F37-1160-273X6.0TFCF |
Round Flange Design / 1000 PSI Range |
10" |
Steel Cr(VI)-free and NBR |
273x6,0 |
Standard |
Flange / Insert Flat |
F37-1160-273X6.0TFVCF |
Round Flange Design / 1000 PSI Range |
10" |
Steel Cr(VI)-free and NBR |
273x6,0 |
Standard |
Flange / Insert O-Ring |
F37-124-50X3.0TFCF |
ISO 6162-1 / 1000 PSI Range |
1 1/2" |
Steel Cr(VI)-free and NBR |
50x3,0 |
Standard |
Flange / Insert Flat |
F37-124-50X3.0TFSS |
ISO 6162-1 / 1000 PSI Range |
1 1/2" |
Stainless Steel and NBR |
50x3,0 |
Standard |
Flange / Insert Flat |
F37-124-50X3.0TFVCF |
ISO 6162-1 / 1000 PSI Range |
1 1/2" |
Steel Cr(VI)-free, PUR and NBR |
50x3,0 |
Standard |
Flange / Insert F37 Seal |
F37-124-50X3.0TFVSS |
ISO 6162-1 / 1000 PSI Range |
1 1/2" |
Stainless Steel, PUR and NBR |
50x3,0 |
Standard |
Flange / Insert F37 Seal |
F37-124-50X3.0TTCF |
ISO 6162-1 / 1000 PSI Range |
1 1/2" |
Steel Cr(VI)-free and NBR |
50x3,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-124-50X3.0TTSS |
ISO 6162-1 / 1000 PSI Range |
1 1/2" |
Stainless Steel and NBR |
50x3,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-132-60X3.0TFCF |
ISO 6162-1 / 1000 PSI Range |
2" |
Steel Cr(VI)-free and NBR |
60x3,0 |
Standard |
Flange / Insert Flat |
F37-132-60X3.0TFSS |
ISO 6162-1 / 1000 PSI Range |
2" |
Stainless Steel and NBR |
60x3,0 |
Standard |
Flange / Insert Flat |
F37-132-60X3.0TFVCF |
ISO 6162-1 / 1000 PSI Range |
2" |
Steel Cr(VI)-free, PUR and NBR |
60x3,0 |
Standard |
Flange / Insert F37 Seal |
F37-132-60X3.0TFVSS |
ISO 6162-1 / 1000 PSI Range |
2" |
Stainless Steel, PUR and NBR |
60x3,0 |
Standard |
Flange / Insert F37 Seal |
F37-132-60X3.0TTCF |
ISO 6162-1 / 1000 PSI Range |
2" |
Steel Cr(VI)-free and NBR |
60x3,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-132-60X3.0TTSS |
ISO 6162-1 / 1000 PSI Range |
2" |
Stainless Steel and NBR |
60x3,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-140-75X3.0TFCF |
ISO 6162-1 / 1000 PSI Range |
2 1/2" |
Steel Cr(VI)-free and NBR |
75x3,0 |
Standard |
Flange / Insert Flat |
F37-140-75X3.0TFSS |
ISO 6162-1 / 1000 PSI Range |
2 1/2" |
Stainless Steel and NBR |
75x3,0 |
Standard |
Flange / Insert Flat |
F37-140-75X3.0TFVCF |
ISO 6162-1 / 1000 PSI Range |
2 1/2" |
Steel Cr(VI)-free, PUR and NBR |
75x3,0 |
Standard |
Flange / Insert F37 Seal |
F37-140-75X3.0TFVSS |
ISO 6162-1 / 1000 PSI Range |
2 1/2" |
Stainless Steel, PUR and NBR |
75x3,0 |
Standard |
Flange / Insert F37 Seal |
F37-140-75X3.0TTCF |
ISO 6162-1 / 1000 PSI Range |
2 1/2" |
Steel Cr(VI)-free and NBR |
75x3,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-140-75X3.0TTSS |
ISO 6162-1 / 1000 PSI Range |
2 1/2" |
Stainless Steel and NBR |
75x3,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-148-90X3.5TFCF |
ISO 6162-1 / 1000 PSI Range |
3" |
Steel Cr(VI)-free and NBR |
90x3,5 |
Standard |
Flange / Insert Flat |
F37-148-90X3.5TFVCF |
ISO 6162-1 / 1000 PSI Range |
3" |
Steel Cr(VI)-free, PUR and NBR |
90x3,5 |
Standard |
Flange / Insert F37 Seal |
F37-148-90X3.5TTCF |
ISO 6162-1 / 1000 PSI Range |
3" |
Steel Cr(VI)-free and NBR |
90x3,5 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-164-115X4.0TFCF |
ISO 6162-1 / 1000 PSI Range |
4" |
Steel Cr(VI)-free and NBR |
115x4,0 |
Standard |
Flange / Insert Flat |
F37-164-115X4.0TFVCF |
ISO 6162-1 / 1000 PSI Range |
4" |
Steel Cr(VI)-free, PUR and NBR |
115x4,0 |
Standard |
Flange / Insert O-Ring |
F37-164-115X4.0TTCF |
ISO 6162-1 / 1000 PSI Range |
4" |
Steel Cr(VI)-free and NBR |
115x4,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-180-140X4.5TFCF |
ISO 6162-1 / 1000 PSI Range |
5" |
Steel Cr(VI)-free and NBR |
140x4,5 |
Standard |
Flange / Insert Flat |
F37-180-140X4.5TFVCF |
ISO 6162-1 / 1000 PSI Range |
5" |
Steel Cr(VI)-free, PUR and NBR |
140x4,5 |
Standard |
Flange / Insert O-Ring |
F37-180-140X4.5TTCF |
ISO 6162-1 / 1000 PSI Range |
5" |
Steel Cr(VI)-free and NBR |
140x4,5 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-196-165X5.0TFCF |
Round Flange Design / 1000 PSI Range |
6" |
Steel Cr(VI)-free and NBR |
165x5,0 |
Standard |
Flange / Insert Flat |
F37-196-165X5.0TFVCF |
Round Flange Design / 1000 PSI Range |
6" |
Steel Cr(VI)-free and NBR |
165x5,0 |
Standard |
Flange / Insert O-Ring |
F37-308-16X2.0TFBCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
16x2,0 |
Standard |
Flange / Insert Bonded Seal |
F37-308-16X2.0TFBSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
16x2,0 |
Standard |
Flange / Insert Bonded Seal |
F37-308-16X2.0TFCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
16x2,0 |
Standard |
Flange / Insert Flat |
F37-308-16X2.0TFSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
16x2,0 |
Standard |
Flange / Insert Flat |
F37-308-16X2.0TFVCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free, PUR and NBR |
16x2,0 |
Standard |
Flange / Insert F37 Seal |
F37-308-16X2.0TFVSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel, PUR and NBR |
16x2,0 |
Standard |
Flange / Insert F37 Seal |
F37-308-16X2.0TTCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
16x2,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-16X2.0TTSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
16x2,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-18X2.0TFBCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
18x2,0 |
Standard |
Flange / Insert Bonded Seal |
F37-308-18X2.0TFBSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
18x2,0 |
Standard |
Flange / Insert Bonded Seal |
F37-308-18X2.0TFCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
18x2,0 |
Standard |
Flange / Insert Flat |
F37-308-18X2.0TFSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
18x2,0 |
Standard |
Flange / Insert Flat |
F37-308-18X2.0TFVCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free, PUR and NBR |
18x2,0 |
Standard |
Flange / Insert F37 Seal |
F37-308-18X2.0TFVSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel, PUR and NBR |
18x2,0 |
Standard |
Flange / Insert F37 Seal |
F37-308-18X2.0TTCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
18x2,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-18X2.0TTSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
18x2,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-20X2.0TFBCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
20x2,0 |
Standard |
Flange / Insert Bonded Seal |
F37-308-20X2.0TFBSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
20x2,0 |
Standard |
Flange / Insert Bonded Seal |
F37-308-20X2.0TFCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
20x2,0 |
Standard |
Flange / Insert Flat |
F37-308-20X2.0TFSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
20x2,0 |
Standard |
Flange / Insert Flat |
F37-308-20X2.0TFVCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free, PUR and NBR |
20x2,0 |
Standard |
Flange / Insert F37 Seal |
F37-308-20X2.0TFVSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel, PUR and NBR |
20x2,0 |
Standard |
Flange / Insert F37 Seal |
F37-308-20X2.0TTCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
20x2,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-20X2.0TTSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
20x2,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-20X2.5TFBCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
20x2,5 |
Standard |
Flange / Insert Bonded Seal |
F37-308-20X2.5TFBSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
20x2,5 |
Standard |
Flange / Insert Bonded Seal |
F37-308-20X2.5TFCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
20x2,5 |
Standard |
Flange / Insert Flat |
F37-308-20X2.5TFSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
20x2,5 |
Standard |
Flange / Insert Flat |
F37-308-20X2.5TFVCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free, PUR and NBR |
20x2,5 |
Standard |
Flange / Insert F37 Seal |
F37-308-20X2.5TFVSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel, PUR and NBR |
20x2,5 |
Standard |
Flange / Insert F37 Seal |
F37-308-20X2.5TTCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
20x2,5 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-20X2.5TTSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
20x2,5 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-25X2.5TFBCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
25x2,5 |
Standard |
Flange / Insert Bonded Seal |
F37-308-25X2.5TFBSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
25x2,5 |
Standard |
Flange / Insert Bonded Seal |
F37-308-25X2.5TFCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
25x2,5 |
Standard |
Flange / Insert Flat |
F37-308-25X2.5TFSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
25x2,5 |
Standard |
Flange / Insert Flat |
F37-308-25X2.5TFVCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free, PUR and NBR |
25x2,5 |
Standard |
Flange / Insert F37 Seal |
F37-308-25X2.5TFVSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel, PUR and NBR |
25x2,5 |
Standard |
Flange / Insert F37 Seal |
F37-308-25X2.5TTCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
25x2,5 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-25X2.5TTSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
25x2,5 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-25X3.0TFBCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
25x3,0 |
Standard |
Flange / Insert Bonded Seal |
F37-308-25X3.0TFBSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
25x3,0 |
Standard |
Flange / Insert Bonded Seal |
F37-308-25X3.0TFCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
25x3,0 |
Standard |
Flange / Insert Flat |
F37-308-25X3.0TFSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
25x3,0 |
Standard |
Flange / Insert Flat |
F37-308-25X3.0TFVCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free, PUR and NBR |
25x3,0 |
Standard |
Flange / Insert F37 Seal |
F37-308-25X3.0TFVSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel, PUR and NBR |
25x3,0 |
Standard |
Flange / Insert F37 Seal |
F37-308-25X3.0TTCF |
SAE 3000 / ISO 6162-1 |
1/2" |
Steel Cr(VI)-free and NBR |
25x3,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-308-25X3.0TTSS |
SAE 3000 / ISO 6162-1 |
1/2" |
Stainless Steel and NBR |
25x3,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-312-20X2.0TFBCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free and NBR |
20x2,0 |
Standard |
Flange / Insert Bonded Seal |
F37-312-20X2.0TFBSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel and NBR |
20x2,0 |
Standard |
Flange / Insert Bonded Seal |
F37-312-20X2.0TFCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free and NBR |
20x2,0 |
Standard |
Flange / Insert Flat |
F37-312-20X2.0TFSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel and NBR |
20x2,0 |
Standard |
Flange / Insert Flat |
F37-312-20X2.0TFVCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free, PUR and NBR |
20x2,0 |
Standard |
Flange / Insert F37 Seal |
F37-312-20X2.0TFVSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel, PUR and NBR |
20x2,0 |
Standard |
Flange / Insert F37 Seal |
F37-312-20X2.0TTCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free and NBR |
20x2,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-312-20X2.0TTSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel and NBR |
20x2,0 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-312-20X2.5TFBCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free and NBR |
20x2,5 |
Standard |
Flange / Insert Bonded Seal |
F37-312-20X2.5TFBSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel and NBR |
20x2,5 |
Standard |
Flange / Insert Bonded Seal |
F37-312-20X2.5TFCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free and NBR |
20x2,5 |
Standard |
Flange / Insert Flat |
F37-312-20X2.5TFSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel and NBR |
20x2,5 |
Standard |
Flange / Insert Flat |
F37-312-20X2.5TFVCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free, PUR and NBR |
20x2,5 |
Standard |
Flange / Insert F37 Seal |
F37-312-20X2.5TFVSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel, PUR and NBR |
20x2,5 |
Standard |
Flange / Insert F37 Seal |
F37-312-20X2.5TTCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free and NBR |
20x2,5 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-312-20X2.5TTSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel and NBR |
20x2,5 |
Standard |
Two Flanges / Insert Tube to Tube |
F37-312-25X2.5TFBCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free and NBR |
25x2,5 |
Standard |
Flange / Insert Bonded Seal |
F37-312-25X2.5TFBSS |
SAE 3000 / ISO 6162-1 |
3/4" |
Stainless Steel and NBR |
25x2,5 |
Standard |
Flange / Insert Bonded Seal |
F37-312-25X2.5TFCF |
SAE 3000 / ISO 6162-1 |
3/4" |
Steel Cr(VI)-free and NBR |
25x2,5 |
Standard |
Flange / Insert Flat |
