PARKER Tube Fitting, Weld Fitting - Weld-lok Series
派克 Weld-lok系列承插焊接头

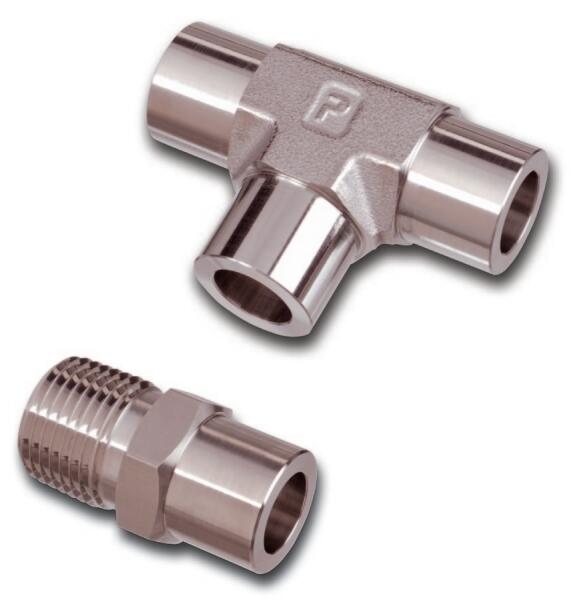

派克 Weld-lok系列接头是一种永久性承插焊接头,能够满足任何化学和核工业使用系统的严苛要求。派克的 Weld-lok 接头由含碳量低至0.04%-0.07%的 316系列不锈钢制成。这使焊接接头具有良好的抗腐蚀性能并且具有高强度系数。
派克 Weld-lok 不锈钢接头采用溶液处理,通过 ASTM-A-262 晶间腐蚀行为测试。在焊接 Weld-lok 接头时, 采用下列电弧极性可以获得更好的效果:
- IG - 直流, 正接
- IG - 直流, 反接
- TICK - 极性根据所用焊条来选择。
派克 Weld-lok系列承插焊接头 焊接接头 Tube Fitting, Weld Fitting - Weld-lok Series
派克 Weld-lok系列接头是一种永久性承插焊接头
技术规格:
- 连接4管件外径(英寸): N/A
- 连接 1 尺寸: 1/8"
- 连接 2 尺寸: 1/8"
- 连接器1类型: Socket Weld
- 连接4形式: N/A
- 连接器2类型: Socket Weld
- 最大工作压力(psi): 10, 200
- 连接3形式: N/A
- 主体类型: Union
- 连接3管件外径(英寸): N/A
- 阀体材料: 316 Stainless Steel
- 配件类型: 焊接
- 连接 1 尺寸: 1/4" 至 3/4", 承插焊,单卡套链接
- 连接 2 尺寸: 1/4" 至 3/4", 承插焊
- 连接 3 管道外径: 1/4 to 3/4 inch
- 连接 4 管道外径: 1/4 to 3/4 inch
- 主体类型: 直通联合接头、弯头、45° 弯头、三通、四通承插焊接头
- 最大运行压力: 9,600, 8,100, 7,300, 6,000 psi
- 连接 3 尺寸: 承插焊
- 连接 4 尺寸: 承插焊
- 结构材料: 不锈钢
产品 |
连接 1 尺寸 |
连接 2 尺寸 |
连接3管件外径(英寸) |
连接4管件外径(英寸) |
主体类型 |
最大工作压力(psi) |
连接器1类型 |
连接器2类型 |
连接
3形式 |
连接
4形式 |
阀体材料 |
2 HW-SS |
1/8" |
1/8" |
N/A |
N/A |
Union |
10,200 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
16 HW-SS |
1" |
1" |
N/A |
N/A |
Union |
4,900 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
20 HW-SS |
1 1/4" |
1 1/4" |
N/A |
N/A |
Union |
4,600 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
24 HW-SS |
1 1/2" |
1 1/2" |
N/A |
N/A |
Union |
3,700 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
32 HW-SS |
2" |
2" |
N/A |
N/A |
Union |
3,300 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
16 EW-SS |
1" |
1" |
N/A |
N/A |
Elbow |
4,400 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
20 EW-SS |
1 1/4" |
1 1/4" |
N/A |
N/A |
Elbow |
4,600 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
24 EW-SS |
1 1/2" |
1 1/2" |
N/A |
N/A |
Elbow |
3,700 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
32 EW-SS |
2" |
2" |
N/A |
N/A |
Elbow |
3,300 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
16 NW-SS |
1" |
1" |
N/A |
N/A |
45 Elbow |
4,400 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
20 NW-SS |
1 1/4" |
1 1/4" |
N/A |
N/A |
45 Elbow |
4,600 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
24 NW-SS |
1 1/2" |
1 1/2" |
N/A |
N/A |
45 Elbow |
3,700 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
32 NW-SS |
2" |
2" |
N/A |
N/A |
45 Elbow |
3,300 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
16 JW-SS |
1" |
1" |
1" |
N/A |
Tee |
4,400 |
Socket Weld |
Socket Weld |
Socket Weld |
N/A |
316 Stainless Steel |
20 JW-SS |
1 1/4" |
1 1/4" |
1 1/4" |
N/A |
Tee |
4,600 |
Socket Weld |
Socket Weld |
Socket Weld |
N/A |
316 Stainless Steel |
24 JW-SS |
1 1/2" |
1 1/2" |
1 1/2" |
N/A |
Tee |
3,700 |
Socket Weld |
Socket Weld |
Socket Weld |
N/A |
316 Stainless Steel |
32 JW-SS |
2" |
2" |
2" |
N/A |
Tee |
3,300 |
Socket Weld |
Socket Weld |
Socket Weld |
N/A |
316 Stainless Steel |
16 KW-SS |
1" |
1" |
1" |
1" |
Cross |
4,400 |
Socket Weld |
Socket Weld |
Socket Weld |
Socket Weld |
316 Stainless Steel |
20 KW-SS |
1 1/4" |
1 1/4" |
1 1/4" |
1 1/4" |
Cross |
4,600 |
Socket Weld |
Socket Weld |
Socket Weld |
Socket Weld |
316 Stainless Steel |
24 KW-SS |
1 1/2" |
1 1/2" |
1 1/2" |
1 1/2" |
Cross |
3,700 |
Socket Weld |
Socket Weld |
Socket Weld |
Socket Weld |
316 Stainless Steel |
32 KW-SS |
2" |
2" |
2" |
2" |
Cross |
3,300 |
Socket Weld |
Socket Weld |
Socket Weld |
Socket Weld |
316 Stainless Steel |
2 CW-SS |
1/8" |
1/8" |
N/A |
N/A |
Male Elbow |
9,100 |
Socket Weld |
NPT M |
N/A |
N/A |
316 Stainless Steel |
4 CW-SS |
1/4" |
1/4" |
N/A |
N/A |
Male Elbow |
9,100 |
Socket Weld |
NPT M |
N/A |
N/A |
316 Stainless Steel |
6 CW-SS |
3/8" |
3/8" |
N/A |
N/A |
Male Elbow |
7,500 |
Socket Weld |
NPT M |
N/A |
N/A |
316 Stainless Steel |
8 CW-SS |
1/2" |
1/2" |
N/A |
N/A |
Male Elbow |
7,200 |
Socket Weld |
NPT M |
N/A |
N/A |
316 Stainless Steel |
12 CW-SS |
3/4" |
3/4" |
N/A |
N/A |
Male Elbow |
6,000 |
Socket Weld |
NPT M |
N/A |
N/A |
316 Stainless Steel |
16 CW-SS |
1" |
1" |
N/A |
N/A |
Male Elbow |
4,400 |
Socket Weld |
NPT M |
N/A |
N/A |
316 Stainless Steel |
20 CW-SS |
1 1/4" |
1 1/4" |
N/A |
N/A |
Male Elbow |
3,500 |
Socket Weld |
NPT M |
N/A |
N/A |
316 Stainless Steel |
24 CW-SS |
1 1/2" |
1 1/2" |
N/A |
N/A |
Male Elbow |
2,900 |
Socket Weld |
NPT M |
N/A |
N/A |
316 Stainless Steel |
2 DW-SS |
1/8" |
1/8" |
N/A |
N/A |
Female Elbow |
5,500 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
4 DW-SS |
1/4" |
1/4" |
N/A |
N/A |
Female Elbow |
5,500 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
6 DW-SS |
3/8" |
3/8" |
N/A |
N/A |
Female Elbow |
5,600 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
8 DW-SS |
1/2" |
1/2" |
N/A |
N/A |
Female Elbow |
5,000 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
12 DW-SS |
3/4" |
3/4" |
N/A |
N/A |
Female Elbow |
3,500 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
16 DW-SS |
1" |
1" |
N/A |
N/A |
Female Elbow |
3,900 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
20 DW-SS |
1 1/4" |
1 1/4" |
N/A |
N/A |
Female Elbow |
3,100 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
24 DW-SS |
1 1/2" |
1 1/2" |
N/A |
N/A |
Female Elbow |
2,500 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
2 GW-SS |
1/8" |
1/8" |
N/A |
N/A |
Female Connector |
6,400 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
4 GW-SS |
1/4" |
1/4" |
N/A |
N/A |
Female Connector |
6,400 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
6 GW-SS |
3/8" |
3/8" |
N/A |
N/A |
Female Connector |
6,600 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
8 GW-SS |
1/2" |
1/2" |
N/A |
N/A |
Female Connector |
5,300 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
12 GW-SS |
3/4" |
3/4" |
N/A |
N/A |
Female Connector |
4,300 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
16 GW-SS |
1" |
1" |
N/A |
N/A |
Female Connector |
4,500 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
20 GW-SS |
1 1/4" |
1 1/4" |
N/A |
N/A |
Female Connector |
3,500 |
Socket Weld |
NPT F |
N/A |
N/A |
316 Stainless Steel |
4 RW-SS |
1/4" |
1/4" |
1/4" |
N/A |
Male Run Tee |
9,100 |
Socket Weld |
NPT M |
Socket Weld |
N/A |
316 Stainless Steel |
6 RW-SS |
3/8" |
3/8" |
3/8" |
N/A |
Male Run Tee |
9,100 |
Socket Weld |
NPT M |
Socket Weld |
N/A |
316 Stainless Steel |
8 RW-SS |
1/2" |
1/2" |
1/2" |
N/A |
Male Run Tee |
9,100 |
Socket Weld |
NPT M |
Socket Weld |
N/A |
316 Stainless Steel |
12 RW-SS |
3/4" |
3/4" |
3/4" |
N/A |
Male Run Tee |
6,000 |
Socket Weld |
NPT M |
Socket Weld |
N/A |
316 Stainless Steel |
16 RW-SS |
1" |
1" |
1" |
N/A |
Male Run Tee |
4,400 |
Socket Weld |
NPT M |
Socket Weld |
N/A |
316 Stainless Steel |
20 RW-SS |
1 1/4" |
1 1/4" |
1 1/4" |
N/A |
Male Run Tee |
3,500 |
Socket Weld |
NPT M |
Socket Weld |
N/A |
316 Stainless Steel |
24 RW-SS |
1 1/2" |
1 1/2" |
1 1/2" |
N/A |
Male Run Tee |
2,900 |
Socket Weld |
NPT M |
Socket Weld |
N/A |
316 Stainless Steel |
32 RW-SS |
2" |
2" |
2" |
N/A |
Male Run Tee |
2,600 |
Socket Weld |
NPT M |
Socket Weld |
N/A |
316 Stainless Steel |
4 SW-SS |
1/4" |
1/4" |
1/4" |
N/A |
Male Branch Tee |
9,100 |
Socket Weld |
Socket Weld |
NPT M |
N/A |
316 Stainless Steel |
6 SW-SS |
3/8" |
3/8" |
3/8" |
N/A |
Male Branch Tee |
9,100 |
Socket Weld |
Socket Weld |
NPT M |
N/A |
316 Stainless Steel |
8 SW-SS |
1/2" |
1/2" |
1/2" |
N/A |
Male Branch Tee |
9,100 |
Socket Weld |
Socket Weld |
NPT M |
N/A |
316 Stainless Steel |
12 SW-SS |
3/4" |
3/4" |
3/4" |
N/A |
Male Branch Tee |
6,000 |
Socket Weld |
Socket Weld |
NPT M |
N/A |
316 Stainless Steel |
16 SW-SS |
1" |
1" |
1" |
N/A |
Male Branch Tee |
4,400 |
Socket Weld |
Socket Weld |
NPT M |
N/A |
316 Stainless Steel |
20 SW-SS |
1 1/4" |
1 1/4" |
1 1/4" |
N/A |
Male Branch Tee |
3,500 |
Socket Weld |
Socket Weld |
NPT M |
N/A |
316 Stainless Steel |
24 SW-SS |
1 1/2" |
1 1/2" |
1 1/2" |
N/A |
Male Branch Tee |
2,900 |
Socket Weld |
Socket Weld |
NPT M |
N/A |
316 Stainless Steel |
32 SW-SS |
2" |
2" |
2" |
N/A |
Male Branch Tee |
2,600 |
Socket Weld |
Socket Weld |
NPT M |
N/A |
316 Stainless Steel |
4 HW-SS |
1/4" |
1/4" |
N/A |
N/A |
Union |
9,600 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
6 HW-SS |
3/8" |
3/8" |
N/A |
N/A |
Union |
8,100 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
8 HW-SS |
1/2" |
1/2" |
N/A |
N/A |
Union |
7,300 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
12 HW-SS |
3/4" |
3/4" |
N/A |
N/A |
Union |
6,000 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
4 EW-SS |
1/4" |
1/4" |
N/A |
N/A |
Elbow |
9,600 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
6 EW-SS |
3/8" |
3/8" |
N/A |
N/A |
Elbow |
8,100 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
8 EW-SS |
1/2" |
1/2" |
N/A |
N/A |
Elbow |
7,300 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
12 EW-SS |
3/4" |
3/4" |
N/A |
N/A |
Elbow |
6,000 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
4 NW-SS |
1/4" |
1/4" |
N/A |
N/A |
45 Elbow |
9,600 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
6 NW-SS |
3/8" |
3/8" |
N/A |
N/A |
45 Elbow |
8,100 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
8 NW-SS |
1/2" |
1/2" |
N/A |
N/A |
45 Elbow |
7,300 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
12 NW-SS |
3/4" |
3/4" |
N/A |
N/A |
45 Elbow |
6,000 |
Socket Weld |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
4 JW-SS |
1/4" |
1/4" |
1/4" |
N/A |
Tee |
9,600 |
Socket Weld |
Socket Weld |
Socket Weld |
N/A |
316 Stainless Steel |
6 JW-SS |
3/8" |
3/8" |
3/8" |
N/A |
Tee |
8,100 |
Socket Weld |
Socket Weld |
Socket Weld |
N/A |
316 Stainless Steel |
8 JW-SS |
1/2" |
1/2" |
1/2" |
N/A |
Tee |
7,300 |
Socket Weld |
Socket Weld |
Socket Weld |
N/A |
316 Stainless Steel |
12 JW-SS |
3/4" |
3/4" |
3/4" |
N/A |
Tee |
6,000 |
Socket Weld |
Socket Weld |
Socket Weld |
N/A |
316 Stainless Steel |
4 KW-SS |
1/4" |
1/4" |
1/4" |
1/4" |
Cross |
9,600 |
Socket Weld |
Socket Weld |
Socket Weld |
Socket Weld |
316 Stainless Steel |
6 KW-SS |
3/8" |
3/8" |
3/8" |
3/8" |
Cross |
8,100 |
Socket Weld |
Socket Weld |
Socket Weld |
Socket Weld |
316 Stainless Steel |
8 KW-SS |
1/2" |
1/2" |
1/2" |
1/2" |
Cross |
7,300 |
Socket Weld |
Socket Weld |
Socket Weld |
Socket Weld |
316 Stainless Steel |
12 KW-SS |
3/4" |
3/4" |
3/4" |
3/4" |
Cross |
6,000 |
Socket Weld |
Socket Weld |
Socket Weld |
Socket Weld |
316 Stainless Steel |
4-4 ZHBW-SS |
1/4" |
1/4" |
N/A |
N/A |
Socket Weld Connector |
N/A |
Single Ferrule Compression |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
6-6 ZHBW-SS |
3/8" |
3/8" |
N/A |
N/A |
Socket Weld Connector |
N/A |
Single Ferrule Compression |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
8-8 ZHBW-SS |
1/2" |
1/2" |
N/A |
N/A |
Socket Weld Connector |
N/A |
Single Ferrule Compression |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
12-12 ZHBW-SS |
3/4" |
3/4" |
N/A |
N/A |
Socket Weld Connector |
N/A |
Single Ferrule Compression |
Socket Weld |
N/A |
N/A |
316 Stainless Steel |
|
