Parker派克 2/3/5阀组-经济款
Parker派克 2/3/5阀组-经济款 AP Manifold
AP集成块已设计用于高达6,000psi(414 bar)的压力和高达1,000°F(538℃)的温度。执行各种任务和功能,同时降低安装成本并提高安全性能。AP Manifold have been engineered for use at pressure up to 6,000psi(414 bar) and temperature as high as 1,000°F (538 ℃). Perform various tasks and functions while reduce installation costs and improve safety performance.
Parker派克 2/3/5阀组-经济款 AP Manifold 资料下载

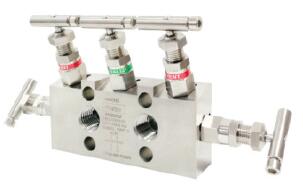

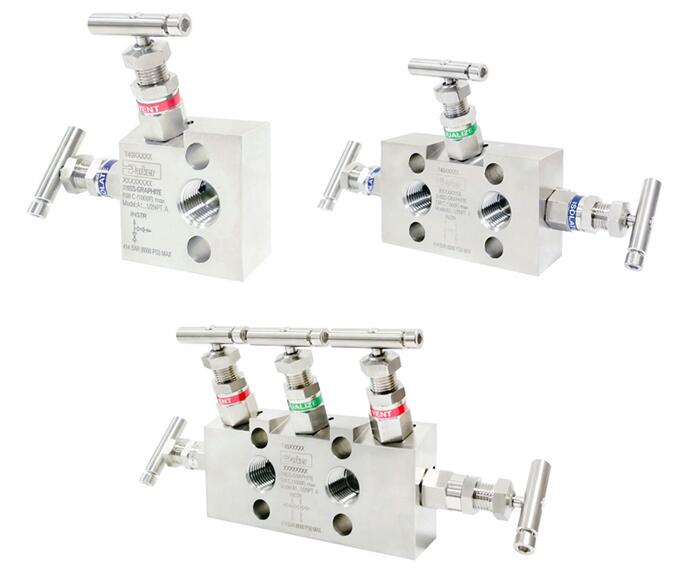

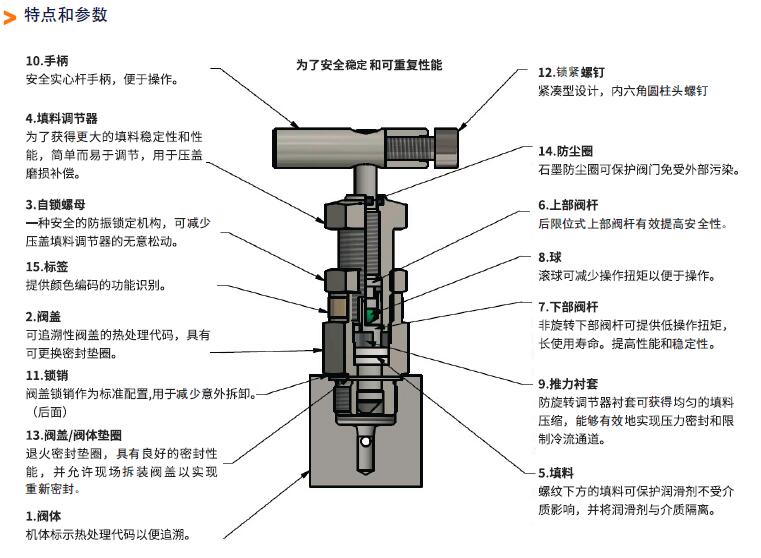

派克AP阀组将单个阀门整合到一个阀块中,在降低安装成本并提高安全性能的同时使工程师能够灵活地执行各种任务和功能。它设计用于高达6,000 PSI (414bar)的压力和高达1,000°F(538℃)的温度。非旋转的下阀杆有助于通过从填料区减少旋转来延长填料的使用寿命。螺纹下方的阀杆填料将螺纹润滑剂与流体隔离,保护螺纹不受介质的侵扰。

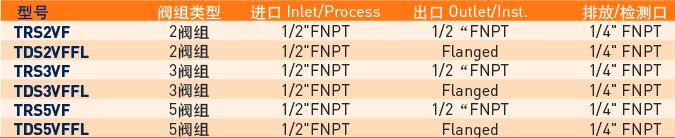

2/3/5阀组-经济款
型号 |
阀组类型 |
进口Inlet/Process |
出口Outlet/Inst. |
排放/检测口 |
TRS2VF |
2阀组 |
1/2"FNPT |
1/2“FNPT |
1/4"FNPT |
TDS2VFFL |
2阀组 |
1/2"FNPT |
Flanged |
1/4"FNPT |
TRS3VF |
3阀组 |
1/2"FNPT |
1/2“FNPT |
1/4"FNPT |
TDS3VFFL |
3阀组 |
1/2"FNPT |
Flanged |
1/4"FNPT |
TRS5VF |
3阀组 |
1/2"FNPT |
1/2“FNPT |
1/4"FNPT |
TDS5VFFL |
5阀组 |
1/2"FNPT |
Flanged |
1/4"FNPT |
Parker派克 2/3/5阀组-经济款 AP Manifold 型号:
Part |
Configuration |
Connection |
Working Temperature (C) Maximum |
TDS2VFFL |
2 Valve Manifold |
1/2 NPT Female Inlet X Flange Outlet,1/4 NPT Vent |
232 |
TDS2VFFLG |
2 Valve Manifold |
1/2 NPT Female Inlet X Flange Outlet,1/4 NPT Vent |
538 |
TDS3VFFL |
3 Valve Manifold |
1/2 NPT Female Inlet X Flange Outlet |
232 |
TDS3VFFLG |
3 Valve Manifold |
1/2 NPT Female Inlet X Flange Outlet |
538 |
TDS5VFFL |
5 Valve Manifold |
1/2 NPT Female Inlet X Flange Outlet,1/4 NPT Vent |
232 |
TDS5VFFLG |
5 Valve Manifold |
1/2 NPT Female Inlet X Flange Outlet,1/4 NPT Vent |
538 |
TRS2VF |
2 Valve Manifold |
1/2 NPT Female Inlet/Outlet,1/4 NPT Vent |
232 |
TRS2VFG |
2 Valve Manifold |
1/2 NPT Female Inlet/Outlet,1/4 NPT Vent |
538 |
TRS3VF |
3 Valve Manifold |
1/2 NPT Female Inlet/Outlet |
232 |
TRS3VFG |
3 Valve Manifold |
1/2 NPT Female Inlet/Outlet |
538 |
TRS5VF |
5 Valve Manifold |
1/2 NPT Female Inlet/Outlet,1/4 NPT Vent |
232 |
TRS5VFG |
5 Valve Manifold |
1/2 NPT Female Inlet/Outlet,1/4 NPT Vent |
538 |
|
