Parker派克快换接头Parker Quick Couplings
Parker WELLHEAD GREASE FITTINGS, BODY VENT (BLEEDER) SERIES
派克井口油脂配件，阀体排气（放气）系列
Parker派克流体连接件Parker fluid connectors

派克PGI的标准六角头和内六角头型阀体通气接头用于从使用中的阀体中释放压力，可达10,000 PSI。Parker PGI's Standard Hex Head and Hex Socket Head Style Body Vent Fittings are used to bleed pressure from valve bodies in service up to 10,000 PSI.

WELLHEAD GREASE FITTINGS, BODY VENT (BLEEDER) SERIES井口配件和阀门组件

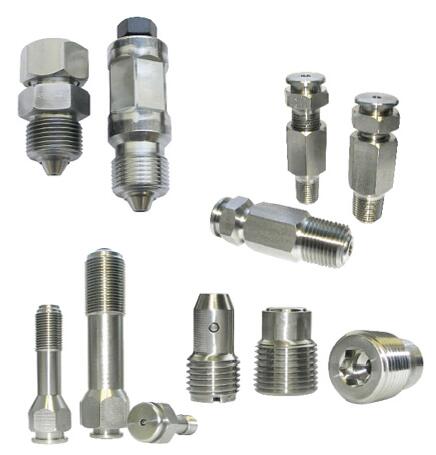

派克PGI的身体排气管接头配件有两种类型的身体排气（管接头）井口油脂配件，即标准六角头型和六角凹头型。两者都用于将使用中的阀体的压力释放到10,000 PSI。Parker PGI’s Body Vent Bleeder Fittings are offered in two styles of Body Vent (Bleeder) Wellhead Grease Fittings, the Standard Hex Head Style and the Hex Socket Head Style. Both are used to bleed pressure from valve bodies in service to 10,000 PSI.

两种类型的身体排气管接头都标配有止动销，以防止毒刺完全从管接头中脱出。另外，这两种样式在配件的侧面都具有排气口，而不是从顶部排气，这在某些应用中可能是安全问题。Both styles of Body Vent Fittings come standard with a stop pin to prevent the stinger from backing all of the way out of the fitting. In addition, both styles have the vent port on the side of the fitting instead of venting from the top which could be a safety issue in certain applications.

市场Markets:
- 化工Chemical
- 石化Petrochemical
- 油气Oil and Gas

特性/优势Features/Benefits:
- 服务高达10,000 PSIService up to 10,000 PSI
- O形密封圈可防止从阀杆腔泄漏O’ring seal to prevent leakage through stem cavity
- 紧凑设计Compact Designs
- ?“至1” NPT尺寸?” to 1” NPT sizes

应用Applications:
- 井口设备维护Wellhead Equipment maintenance
- 阀体泄压Valve Body pressure relief

产品款式：标准六角头| 内六角头
连接螺纹尺寸：1/4至1-1 / 2（NPT）英寸
主体材质：1215 | 316不锈钢| 4140 | 向工厂咨询其他材料
螺母六角尺寸：2至7/8英寸
长度：2-5 / 8英寸至1-5 / 8英寸
电镀类型：锌| 不适用
热处理：退火（NACE）| Rc 22 Max（NACE）| 不适用
球材质：440不锈钢| 硬质合金| 向工厂咨询其他材料

Parker WELLHEAD GREASE FITTINGS, BODY VENT (BLEEDER) SERIES型号
