Parker In-Line Diagnostic Fittings and Adapters
Parker 在线诊断连接及过渡接头
Parker DIN标准接头

派克诊断产品无需移除油口接头，可以直接与软管总成或者硬管回路进行连接，同时可以直接安装电子传感器或者机械式压力表以及温度传感器。Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Parker 在线诊断连接及过渡接头

派克的在线诊断三通接头的设计使用了常用的两种接口形式：O形圈端面密封（ORFS），Seal-Lok，以及JIC 37°扩口，Triple-Lok。该系列的产品主要用于连接派克快换接头事业部的电子传感器产品，以及其他的机械压力表和温度传感器等设备。连接非常便捷，无需移除油口过渡接头，可以直接与软管总成或者硬管回路进行连接。

市场：
- 建筑机械
- 工程机械
- 农机设备
- 物料搬运
- 机械工具
- 油&气
- MRO

特征/优势：
- ORFS及37°扩口带旋转螺母的连接形式，可以调整所需的安装位置，无需移除油口接头。
- 加大并加长本体六角尺寸，使诊断油口能够提供全螺纹连接且符合压力要求。
- 三通诊断接头产品包括：测试点接头（EMA3以及PD系列），转换接头，以及压力表接头
- 供货范围：材料，碳钢；尺寸：?”至1 ?”，或者 6mm至38mm，工作压力可达10,000psi

应用：
- 压力及温度在线监测
- 在线油品取样
- 现场测量，无需移除油口过渡接头

性能特点：

MAX.运行压力：6000 (Dynamic Pressure) psi，41 (Dynamic Pressure) MPa，414 (Dynamic Pressure) bar
结构材料：Steel, Zinc Plated
应用：Various
形状：Tee
连接类型：在线三通压力表油口接头，BSPP压力表过渡接头，三通连接接头带M16测试点螺纹，EO带旋转螺母的诊断接头
MAX.静态压力：1400 至 10100 psi

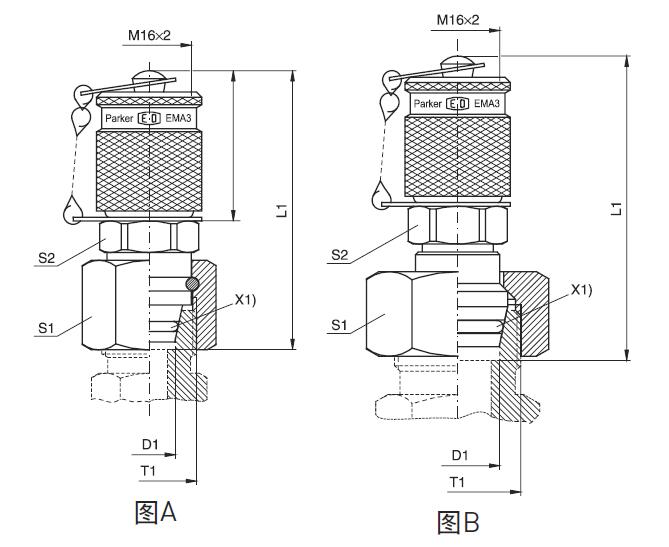

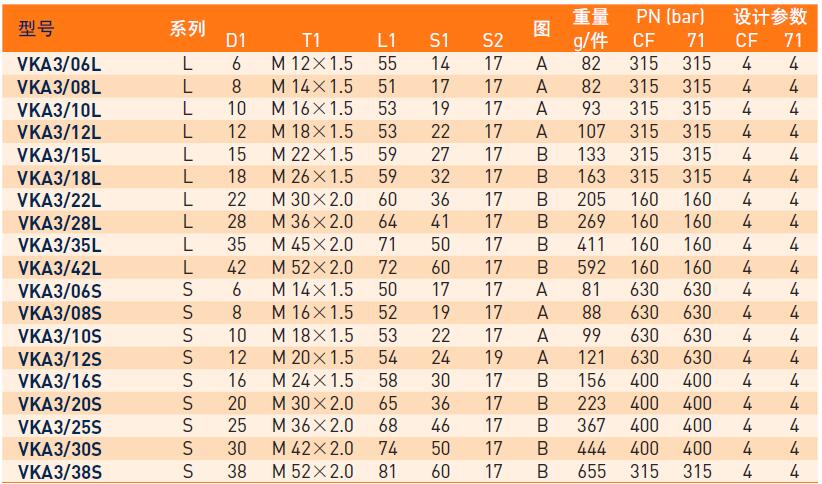

VKA3 压力表连接测试点接头 - 连接螺纹M16x2 - 24°锥旋转螺母

订货示例：
碳钢，无六价铬镀锌：VKA3/12LCF
316Ti不锈钢：VKA3/12L71

In-Line Diagnostic Fittings and Adapters 型号

Part Connection 1 Style Connection 1 Tube O.D. (inch) Connection 1 Tube O.D. (mm) Connection 2 Style Connection 2 Tube O.D. (inch) Connection 2 Tube O.D. (mm) Connection 2 Thread Size (inch) Connection 2 Thread Size (mm) Connection 3 Style Connection 3 Thread Size (inch) Connection 3 Thread Size (mm) O-Ring Material Body Material
10-4 LOHL6G5TP-S Male O-ring Face Seal 5/8 na Female O-ring Face Seal Swivel 5/8 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Nitrile Steel, Chromium 6 Free
10-4 LOHL6G5TP-S FKM Male O-ring Face Seal 5/8 na Female O-ring Face Seal Swivel 5/8 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Fluorocarbon Steel, Chromium 6 Free
10-4 XHX6G5TP-S Male 37° Flare 5/8 na Female 37° Flare Swivel 5/8 na na na Female SAE-ORB Port 7/16-20 na na Steel, Chromium 6 Free
12-4 LOHL6G5TP-S Male O-ring Face Seal 3/4 na Female O-ring Face Seal Swivel 3/4 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Nitrile Steel, Chromium 6 Free
12-4 LOHL6G5TP-S FKM Male O-ring Face Seal 3/4 na Female O-ring Face Seal Swivel 3/4 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Fluorocarbon Steel, Chromium 6 Free
12-4 XHX6G5TP-S Male 37° Flare 3/4 na Female 37° Flare Swivel 3/4 na na na Female SAE-ORB Port 7/16-20 na na Steel, Chromium 6 Free
16-4 LOHL6G5TP-S Male O-ring Face Seal 1 na Female O-ring Face Seal Swivel 1 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Nitrile Steel, Chromium 6 Free
16-4 LOHL6G5TP-S FKM Male O-ring Face Seal 1 na Female O-ring Face Seal Swivel 1 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Fluorocarbon Steel, Chromium 6 Free
16-4 XHX6G5TP-S Male 37° Flare 1 na Female 37° Flare Swivel 1 na na na Female SAE-ORB Port 7/16-20 na na Steel, Chromium 6 Free
20-4 LOHL6G5TP-S Male O-ring Face Seal 1 1/4 na Female O-ring Face Seal Swivel 1 1/4 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Nitrile Steel, Chromium 6 Free
20-4 XHX6G5TP-S Male 37° Flare 1 1/4 na Female 37° Flare Swivel 1 1/4 na na na Female SAE-ORB Port 7/16-20 na na Steel, Chromium 6 Free
24-4 LOHL6G5TP-S Male O-ring Face Seal 1 1/2 na Female O-ring Face Seal Swivel 1 1/2 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Nitrile Steel, Chromium 6 Free
24-4 LOHL6G5TP-S FKM Male O-ring Face Seal 1 1/2 na Female O-ring Face Seal Swivel 1 1/2 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Fluorocarbon Steel, Chromium 6 Free
24-4 XHX6G5TP-S Male 37° Flare 1 1/2 na Female 37° Flare Swivel 1 1/2 na na na Female SAE-ORB Port 7/16-20 na na Steel, Chromium 6 Free
4-4 LOHL6G5TP-S Male O-ring Face Seal 1/4 na Female O-ring Face Seal Swivel 1/4 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Nitrile Steel, Chromium 6 Free
4-4 LOHL6G5TP-S FKM Male O-ring Face Seal 1/4 na Female O-ring Face Seal Swivel 1/4 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Fluorocarbon Steel, Chromium 6 Free
4-4 XHX6G5TP-S Male 37° Flare 1/4 na Female 37° Flare Swivel 1/4 na na na Female SAE-ORB Port 7/16-20 na na Steel, Chromium 6 Free
4-4G4MXSMO Male 37° Flare 1/4 na Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
6-4 LOHL6G5TP-S Male O-ring Face Seal 3/8 na Female O-ring Face Seal Swivel 3/8 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Nitrile Steel, Chromium 6 Free
6-4 LOHL6G5TP-S FKM Male O-ring Face Seal 3/8 na Female O-ring Face Seal Swivel 3/8 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Fluorocarbon Steel, Chromium 6 Free
6-4 XHX6G5TP-S Male 37° Flare 3/8 na Female 37° Flare Swivel 3/8 na na na Female SAE-ORB Port 7/16-20 na na Steel, Chromium 6 Free
8-4 LOHL6G5TP-S Male O-ring Face Seal 1/2 na Female O-ring Face Seal Swivel 1/2 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Nitrile Steel, Chromium 6 Free
8-4 LOHL6G5TP-S FKM Male O-ring Face Seal 1/2 na Female O-ring Face Seal Swivel 1/2 na na na Female SAE-ORB Port 7/16-20 na 90 Durometer Fluorocarbon Steel, Chromium 6 Free
8-4 XHX6G5TP-S Male 37° Flare 1/2 na Female 37° Flare Swivel 1/2 na na na Female SAE-ORB Port 7/16-20 na na Steel, Chromium 6 Free
8-4G4MXSMO Male 37° Flare 1/2 na Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
GMA3/06LCF Male 24° Metric Flareless with Nut and Ferrule na 6L Male 24° Metric Flareless with Nut and Ferrule na 6L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/06LOMDCF Male 24° Metric Flareless na 6L Male 24° Metric Flareless na 6L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/06SCF Male 24° Metric Flareless with Nut and Ferrule na 6S Male 24° Metric Flareless with Nut and Ferrule na 6S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/08LCF Male 24° Metric Flareless with Nut and Ferrule na 8L Male 24° Metric Flareless with Nut and Ferrule na 8L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/08LOMDCF Male 24° Metric Flareless na 8L Male 24° Metric Flareless na 8L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/08SCF Male 24° Metric Flareless with Nut and Ferrule na 8S Male 24° Metric Flareless with Nut and Ferrule na 8S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/08ZSCF Male 24° Soft Seal Metric Flareless with Functional Nut na 8S Male 24° Soft Seal Metric Flareless with Functional Nut na 8S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/10LCF Male 24° Metric Flareless with Nut and Ferrule na 10L Male 24° Metric Flareless with Nut and Ferrule na 10L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/10LOMDCF Male 24° Metric Flareless na 10L Male 24° Metric Flareless na 10L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/10SCF Male 24° Metric Flareless with Nut and Ferrule na 10S Male 24° Metric Flareless with Nut and Ferrule na 10S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/12LCF Male 24° Metric Flareless with Nut and Ferrule na 12L Male 24° Metric Flareless with Nut and Ferrule na 12L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/12LOMDCF Male 24° Metric Flareless na 12L Male 24° Metric Flareless na 12L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/12SCF Male 24° Metric Flareless with Nut and Ferrule na 12S Male 24° Metric Flareless with Nut and Ferrule na 12S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/12ZLCF Male 24° Soft Seal Metric Flareless with Functional Nut na 12S Male 24° Soft Seal Metric Flareless with Functional Nut na 12S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/14SCF Male 24° Metric Flareless with Nut and Ferrule na 14S Male 24° Metric Flareless with Nut and Ferrule na 14S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/15LCF Male 24° Metric Flareless with Nut and Ferrule na 15L Male 24° Metric Flareless with Nut and Ferrule na 15L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/15LOMDCF Male 24° Metric Flareless na 15L Male 24° Metric Flareless na 15L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/16SCF Male 24° Metric Flareless with Nut and Ferrule na 16S Male 24° Metric Flareless with Nut and Ferrule na 16S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/18LCF Male 24° Metric Flareless with Nut and Ferrule na 18L Male 24° Metric Flareless with Nut and Ferrule na 18L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/18LOMD71 Male 24° Metric Flareless na 18L Male 24° Metric Flareless na 18L na na M16 Test Point Connector na M16X2 na Stainless Steel
GMA3/18LOMDCF Male 24° Metric Flareless na 18L Male 24° Metric Flareless na 18L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/20S71 Male 24° Metric Flareless na 20S Male 24° Metric Flareless na 20S na na M16 Test Point Connector na M16X2 na Stainless Steel
GMA3/20SCF Male 24° Metric Flareless with Nut and Ferrule na 20S Male 24° Metric Flareless with Nut and Ferrule na 20S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/22LCF Male 24° Metric Flareless with Nut and Ferrule na 22L Male 24° Metric Flareless with Nut and Ferrule na 22L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/22LOMDCF Male 24° Metric Flareless na 22L Male 24° Metric Flareless na 22L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/22ZLCF Male 24° Soft Seal Metric Flareless with Functional Nut na 22L Male 24° Soft Seal Metric Flareless with Functional Nut na 22L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/25SCF Male 24° Metric Flareless with Nut and Ferrule na 25S Male 24° Metric Flareless with Nut and Ferrule na 25S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/28LCF Male 24° Metric Flareless with Nut and Ferrule na 28L Male 24° Metric Flareless with Nut and Ferrule na 28L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/28LOMDCF Male 24° Metric Flareless na 28L Male 24° Metric Flareless na 28L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/28ZLCF Male 24° Soft Seal Metric Flareless with Functional Nut na 28L Male 24° Soft Seal Metric Flareless with Functional Nut na 28L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/30SCF Male 24° Metric Flareless with Nut and Ferrule na 30S Male 24° Metric Flareless with Nut and Ferrule na 30S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/35LCF Male 24° Metric Flareless with Nut and Ferrule na 35L Male 24° Metric Flareless with Nut and Ferrule na 35L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/38S71 Male 24° Metric Flareless with Nut and Ferrule na 38S Male 24° Metric Flareless with Nut and Ferrule na 38S na na M16 Test Point Connector na M16X2 na Stainless Steel
GMA3/38SCF Male 24° Metric Flareless with Nut and Ferrule na 38S Male 24° Metric Flareless with Nut and Ferrule na 38S na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/42LCF Male 24° Metric Flareless with Nut and Ferrule na 42L Male 24° Metric Flareless with Nut and Ferrule na 42L na na M16 Test Point Connector na M16X2 na Steel, Chromium 6 Free
GMA3/42LOMD71 Male 24° Metric Flareless na 42L Male 24° Metric Flareless na 42L na na M16 Test Point Connector na M16X2 na Stainless Steel
MAV04LLRCF Male 24° Metric Flareless with Nut and Ferrule na 4LL Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV06LR71 Male 24° Metric Flareless with Nut and Ferrule na 6L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAV06LRCF Male 24° Metric Flareless with Nut and Ferrule na 6L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV06LROMDCF Male 24° Metric Flareless na 6L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV06SRCF Male 24° Metric Flareless with Nut and Ferrule na 6S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV06ZLR71 Male 24° Metric Flareless with Funtional Nut na 6L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAV06ZLRCF Male 24° Soft Seal Metric Flareless na 6L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV06ZSR71 Male 24° Metric Flareless with Nut and Ferrule na 6S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Stainless Steel
MAV08LR71 Male 24° Metric Flareless with Nut and Ferrule na 8L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAV08LRCF Male 24° Metric Flareless with Nut and Ferrule na 8L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV08LROMDCF Male 24° Metric Flareless na 8L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV08SRCF Male 24° Metric Flareless with Nut and Ferrule na 8S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV08SROMDCF Male 24° Metric Flareless na 8S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV08ZLRCF Male 24° Soft Seal Metric Flareless na 8L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV10LR71 Male 24° Metric Flareless na 10L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAV10LRCF Male 24° Metric Flareless with Nut and Ferrule na 10L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV10LROMDCF Male 24° Metric Flareless na 10L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV10SRCF Male 24° Metric Flareless with Nut and Ferrule na 10S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV10ZLR71 Male 24° Metric Flareless with Nut and Ferrule na 10L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAV10ZLRCF Male 24° Soft Seal Metric Flareless na 10L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV10ZSR71 Male 24° Metric Flareless with Nut and Ferrule na 10S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Stainless Steel
MAV10ZSRCF Male 24° Soft Seal Metric Flareless na 10S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV12LR71 Male 24° Metric Flareless na 12L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAV12LRCF Male 24° Metric Flareless with Nut and Ferrule na 12L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV12SR71 Male 24° Metric Flareless with Nut and Ferrule na 12S Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAV12SRCF Male 24° Metric Flareless with Nut and Ferrule na 12S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV12ZLRCF Male 24° Metric Flareless with Nut and Ferrule na 12L Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAV12ZSRCF Male 24° Soft Seal Metric Flareless na 12S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE06LRCF Male 24° Metric Flareless Swivel na 6L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE06SR1/4CF Male 24° Metric Flareless Swivel na 6S Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE06SRCF Male 24° Metric Flareless Swivel na 6S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE08LR71 Male 24° Metric Flareless Swivel na 8L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAVE08LRCF Male 24° Metric Flareless Swivel na 8L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE08SR1/471 Male 24° Metric Flareless Swivel na 8S Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAVE08SR1/4CF Male 24° Metric Flareless Swivel na 8S Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE08SRCF Male 24° Metric Flareless Swivel na 8S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE10LR71 Male 24° Metric Flareless Swivel na 10L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAVE10LRCF Male 24° Metric Flareless Swivel na 10L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE10SR1/4CF Male 24° Metric Flareless Swivel na 10S Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE10SRCF Male 24° Metric Flareless Swivel na 10S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE12LR71 Male 24° Metric Flareless Swivel na 12L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAVE12LRCF Male 24° Metric Flareless Swivel na 12L Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE12SR1/471 Male 24° Metric Flareless Swivel na 12S Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Stainless Steel
MAVE12SR1/4CF Male 24° Metric Flareless Swivel na 12S Female BSPP with Sealing Washer na na 1/4-19 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
MAVE12SR71 Male 24° Metric Flareless Swivel na 12S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Stainless Steel
MAVE12SRCF Male 24° Metric Flareless Swivel na 12S Female BSPP with Sealing Washer na na 1/2-14 na na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/06LCF Male 24° Metric Flareless Swivel na 6L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/06SCF Male 24° Metric Flareless Swivel na 6S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/08LCF Male 24° Metric Flareless Swivel na 8L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/08S71 Male 24° Metric Flareless Swivel na 8S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Stainless Steel
VKA3/08SCF Male 24° Metric Flareless Swivel na 8S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/10L71 Male 24° Metric Flareless Swivel na 10L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Stainless Steel
VKA3/10LCF Male 24° Metric Flareless Swivel na 10L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/10LVITCF Male 24° Metric Flareless Swivel na 10L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Fluorocarbon Steel, Chromium 6 Free
VKA3/10SCF Male 24° Metric Flareless Swivel na 10S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/12L71 Male 24° Metric Flareless Swivel na 12L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Stainless Steel
VKA3/12LCF Male 24° Metric Flareless Swivel na 12L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/12S71 Male 24° Metric Flareless Swivel na 12S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Stainless Steel
VKA3/12SCF Male 24° Metric Flareless Swivel na 12S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/14S71 Male 24° Metric Flareless Swivel na 14S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Stainless Steel
VKA3/14SCF Male 24° Metric Flareless Swivel na 14S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/15LCF Male 24° Metric Flareless Swivel na 15L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/16S71 Male 24° Metric Flareless Swivel na 16S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Stainless Steel
VKA3/16SCF Male 24° Metric Flareless Swivel na 16S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/18LCF Male 24° Metric Flareless Swivel na 18L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/20S71 Male 24° Metric Flareless Swivel na 20S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Stainless Steel
VKA3/20SCF Male 24° Metric Flareless Swivel na 20S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/22LCF Male 24° Metric Flareless Swivel na 22L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/25SCF Male 24° Metric Flareless Swivel na 25S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/28LCF Male 24° Metric Flareless Swivel na 28L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/30SCF Male 24° Metric Flareless Swivel na 30S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/35LCF Male 24° Metric Flareless Swivel na 35L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/38SCF Male 24° Metric Flareless Swivel na 38S M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
VKA3/42LCF Male 24° Metric Flareless Swivel na 42L M16 Test Point Connector na na na M16X2 na na na 90 Durometer Nitrile Steel, Chromium 6 Free
