Parker派克 仪器仪表-流体控制阀
Parker派克 EPP4 Proportional Air Pressure Regulators
Parker派克 EPP4电气比例阀
Parker派克 EPP4电气比例阀 EPP4 Proportional Air Pressure Regulators

EPP4系列是电动气压调节器。BASIC量程精度基于可靠的设计:脉冲宽度调制电磁阀与模拟输入信号成比例地控制输出压力。The EPP4 family is an electro pneumatic pressure regulator. The BASIC range precision is based on a reliable design: a pulsed width modulated solenoid valve controls the output pressure proportionally to an analog input signal.



Parker派克 EPP4电气比例阀 资料下载





EPP4系列是一个带有集成电子系统的电动气动压力调节器。基本量程精度基于可靠的设计:脉冲宽度调制电磁阀控制输出压力与模拟输入信号成比例。由于内置压力传感器提供的高精度闭环信号,保证了非常高的精度。The EPP4 family is an electro pneumatic pressure regulator with an integrated electronic system. The BASIC range precision is based on a reliable design: a pulsed width modulated solenoid valve controls the output pressure proportionally to an analog input signal. A very high accuracy is guaranteed thanks to a high precision closed loop signal provided by a built in pressure sensor.

市场Markets
- 工业设备Industrial Equipment

特点/优点Features/Benefits:
- 预期寿命长Long life expectancy
- 小巧轻便Compact and light
- 低功耗Low power
- 在压力调节技术方面具有久经考验的帕克专业知识Proven Parker expertise who is a pioneer in pressure regulation technology

应用Applications:
- 氧燃料/激光切割机Oxyfuel/laser cutting machines
- 点焊机器人Spot welding robots
- 喷砂/抛丸机Sand/shot blasting machines
- 涂布机Coating machines



主要参数: - 适用介质:空气,惰性气体及燃料气体等
- 功耗小:<3W;标准电压:24V DC
过程控制应用: - 焊接和切割、张力控制、高铁撒沙系统
- 湿度控制、刹车控制、碾压机、抛光设备、油漆设备
优势与优点: - 防爆规格适用于特殊介质及场合
- 输出压力曲线可通过免费软件通过PC调整
- 介质过滤精度50um

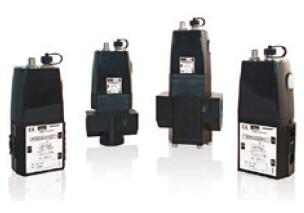

Lucifer EPP4电气比例控制阀-基础系列1/4", 1/2", 1" & 2" 型号



Port Size 1/4"
Thread Type BSP
Pressure Range (bar) 0-4
Control Method 4-20 mA
Oxygen Version No
Port Size 1/4"
Connection Type BSP
Pressure Rating 0-4 bar
Control Method 4-20 mA
Operating Temperature 0 - +50 °C
Maximum Fluid Temperature 50 °C
Minimum Fluid Temperature 0 °C
Inlet Pressure Rating 1 - 12 bar
Outlet Pressure Rating 0.05 - 10 bar
Hysteresis +/- 50 (factory set up) mbar
Input Voltage 24 VDC (+/- 15 %, max. ripple 1)
Power Consumption Max. 2.8 (at 24 VDC) W
Maximum Flow Rate 70 / 150 / 1000 / 2700 m3/hour
Safety Features In case of control signal failure or if it is less than 50mV, the regulated pressure drops automatically to 0 bar (atmospheric pressure). In case of voltage supply failure, the regulated pressure will be kept constant.
Electrical Connection M12 - 4 pin; 4 x 0.34 mm2
Operational Life > 50 Million changes of control signal steps
Mounting Type Any Position (recommended
Vibration Resistance 30g (in all directions)
Ingress Protection Rating IP65
Materials of Construction Silicone Free
Specifications Met EN 61000-6-1
For Fluid Type Lubricated & Non-Lubricated Air and Neutral Gases
Filter Efficiency Rating 50 microns
Air Consumption 0 (at constant control signal) SCFM
ATEX Specifications Met No
Options -
Configuration Non-Configurable



产品型号 接口 压力范围 控制信号
P4BG2001A002 G 1/4" 0~10 bar 0 - 10 V
P4BG2001A003 G 1/4" 0~10 bar 4 - 20 mA
P4BG4001A002 G 1/2" 0~10 bar 0 - 10 V
P4BG4001A003 G 1/2" 0~10 bar 4 - 20 mA
P4BG6101A002 G 1" 0~10 bar 0 - 10 V
P4BG6101A003 G 1" 0~10 bar 4 - 20 mA
P4BG9101A002 G 2" 0~10 bar 0 - 10 V
P4BG9101A003 G 2" 0~10 bar 4 - 20 mA



Part Port Size Thread Type Pressure Range (bar) Control Method Oxygen Version
P4BG2001A001 1/4" BSP 0-4 4-20 mA No
P4BG2001A002 1/4" BSP 0-10 0-10V No
P4BG2001A003 1/4" BSP 0-10 4-20 mA No
P4BG2001A004 1/4" BSP 0-6 0-10V No
P4BG2001A005 1/4" BSP 0-6 4-20 mA No
P4BG2001A006 1/4" BSP 0-5 0-10V No
P4BG2001A007 1/4" BSP 0-5 4-20 mA No
P4BG2001A008 1/4" BSP 0-7 0-10V No
P4BG2001A009 1/4" BSP 0-7 4-20 mA No
P4BG4001A002 1/2" BSP 0-10 0-10V No
P4BG4001A003 1/2" BSP 0-10 4-20 mA No
P4BG4001A004 1/2" BSP 0-6 0-10V No
P4BG4001A005 1/2" BSP 0-6 4-20 mA No
P4BG4001A006 1/2" BSP 0-5 0-10V No
P4BG4001A007 1/2" BSP 0-5 4-20 mA No
P4BG4001A008 1/2" BSP 0-7 0-10V No
P4BG4001A009 1/2" BSP 0-7 4-20 mA No
P4BG4004A010 1/2" BSP 0-4 0-10V No
P4BG4051A002 1/2" BSP 0-10 0-10V Yes
P4BG6101A002 1" BSP 0-10 0-10V No
P4BG6101A003 1" BSP 0-10 4-20 mA No
P4BG9101A002 2" BSP 0-10 0-10V No
P4BG9101A003 2" BSP 0-10 4-20 mA No
P4BN2001A002 1/4" NPT 0-10 0-10V No
P4BN2001A003 1/4" NPT 0-10 4-20 mA No
P4BN4001A002 1/2" NPT 0-10 0-10V No
P4BN4001A003 1/2" NPT 0-10 4-20 mA No

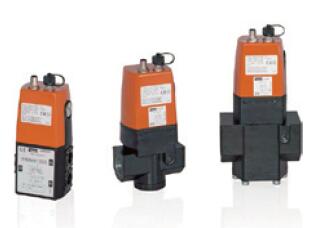

Lucifer EPP4电气比例控制阀-升级系列 1/2"HP, 1" & 2" 型号



Port Size 1/4"
Thread Type BSP
Pressure Range (bar) 0-10
Control Method 0-10V
Oxygen Version No
ATEX Rated No
Port Size 1/4"
Connection Type BSP
Pressure Rating 0-10 bar
Control Method 0-10V
Operating Temperature 0 - +50 °C
Maximum Fluid Temperature 50 °C
Minimum Fluid Temperature 0 °C
Inlet Pressure Rating 1 - 21 bar
Outlet Pressure Rating 0.05 - 20 bar
Hysteresis +/- 50 (factory set up) mbar
Input Voltage 24 VDC (+/- 15 %, max. ripple 1)
Power Consumption Max. 2.8 (at 24 VDC) W
Maximum Flow Rate 150 / 2700 m3/hour
Safety Features In case of control signal failure or if it is less than 50mV, the regulated pressure drops automatically to 0 bar (atmospheric pressure). In case of voltage supply failure, the regulated pressure will be kept constant.
Electrical Connection M12 - 8 pin; 4 x 0.34 mm2 for power supply / M12 - 5 pin; 5 x 0.34mm2 for communication control
Operational Life > 20 Million changes of control signal steps
Mounting Type any position (recommended
Vibration Resistance 30g
Ingress Protection Rating IP65
Materials of Construction Silicone free
Specifications Met EN 61000-6-1
For Fluid Type Lubricated & Non-Lubricated Air and Neutral Gases
Filter Efficiency Rating 50
Air Consumption 0 (at constant control signal) SCFM
ATEX Specifications Met No
Options -
Configuration Configurable



产品型号 接口 max.进口压力 bar 压力范围 控制信号
P4CG4101D001 G 1/2" 15 0~12 bar 0 - 10 V
P4CG4201D005 G 1/2" 21 0~16 bar 0 - 10 V
P4CG4201D003 G 1/2" 21 0~20 bar 0 - 10 V
P4CG4201D004 G 1/2" 21 0~20 bar 4 - 20 mA
P4CG6101C001 G 1" 12 0~10 bar 0 - 10 V
P4CG6101C002 G 1" 12 0~10 bar 4 - 20 mA
P4CG6201D001 G 1" 21 0~12 bar 0 - 10 V
P4CG6201D003 G 1" 21 0~20 bar 0 - 10 V
P4CG9101C001 G 2" 12 0~10 bar 0 - 10 V
P4CG9101C002 G 2" 12 0~10 bar 4 - 20 mA



Part Port Size Thread Type Pressure Range (bar) Control Method Oxygen Version ATEX Rated
P4CG2001C001 1/4" BSP 0-10 0-10V No No
P4CG2001C002 1/4" BSP 0-10 4-20 mA No No
P4CG2001C005 1/4" BSP 0-7 0-10V No No
P4CG2001C006 1/4" BSP 0-7 4-20 mA No No
P4CG2001C008 1/4" BSP 0-7 4-20 mA No No
P4CG2003C001 1/4" BSP 0-10 0-10V No No
P4CG2003C002 1/4" BSP 0-10 4-20 mA No No
P4CG4001C001 1/2" BSP 0-10 0-10V No No
P4CG4001C002 1/2" BSP 0-10 4-20 mA No No
P4CG4001C005 1/2" BSP 0-7 0-10V No No
P4CG4001C006 1/2" BSP 0-7 4-20 mA No No
P4CG4001C010 1/2" BSP 0-6 4-20 mA No No
P4CG4001C011 1/2" BSP 0-5 0-10V No No
P4CG4051C001 1/2" BSP 0-10 0-10V Yes No
P4CG4051C002 1/2" BSP 0-10 4-20 mA Yes No
P4CG4101D001 1/2" BSP 0-12 0-10V No No
P4CG4201D003 1/2" BSP 0-20 0-10V No No
P4CG4201D004 1/2" BSP 0-20 4-20 mA No No
P4CG4201D005 1/2" BSP 0-16 0-10V No No
P4CG4461C001 1/2" BSP 0-10 0-10V No Yes (Zone 2 G/D)
P4CG4461C002 1/2" BSP 0-10 4-20 mA No Yes (Zone 2 G/D)
P4CG4465C001 1/2" BSP 0-10 0-10V Yes Yes (Zone 2 G/D)
P4CG4465C002 1/2" BSP 0-10 4-20 mA Yes Yes (Zone 2 G/D)
P4CG6101C001 1" BSP 0-10 0-10V No No
P4CG6101C002 1" BSP 0-10 4-20 mA No No
P4CG6101C009 1" BSP 0-3.5 4-20 mA No No
P4CG6101C010 1" BSP 0-6 4-20 mA No No
P4CG6101C011 1" BSP 0-5 0-10V No No
P4CG6161C001 1" BSP 0-10 0-10V No Yes (Zone 2 G/D)
P4CG6161C002 1" BSP 0-10 0-10V No Yes (Zone 2 G/D)
P4CG6201D001 1" BSP 0-12 0-10V No No
P4CG6201D003 1" BSP 0-20 0-10V No No
P4CG9101C001 2" BSP 0-10 0-10V No No
P4CG9101C002 2" BSP 0-10 4-20 mA No No
P4CG9101C010 2" BSP 0-6 4-20 mA No No
P4CG9101C012 2" BSP 0-4 4-20 mA No No
P4CG9161C001 2" BSP 0-10 0-10V No Yes (Zone 2 G/D)
P4CG9161C002 2" BSP 0-10 4-20 mA No Yes (Zone 2 G/D)
P4CN2001C001 1/4" NPT 0-10 0-10V No No
P4CN2001C002 1/4" NPT 0-10 4-20 mA No No
P4CN4001C001 1/2" NPT 0-10 0-10V No No
P4CN4001C002 1/2" NPT 0-10 4-20 mA No No





Lucifer EPP4电气比例控制阀-升级系列(防爆)1/2", 1" & 2" ATEX型号





产品型号 接口 max.进口压力 bar 压力范围 控制信号
P4CG4461C001 G 1/2" 12 0~10 bar 0 - 10 V
P4CG4461C002 G 1/2" 12 0~10 bar 4 - 20 mA
P4CG4465C001 G 1/2" 12 0~10 bar 0 - 10 V
P4CG4465C002 G 1/2" 12 0~10 bar 4 - 20 mA
P4CG6161C001 G 1" 12 0~10 bar 0 - 10 V
P4CG6161C002 G 1" 12 0~10 bar 4 - 20 mA
P4CG9161C001 G 2" 12 0~10 bar 0 - 10 V
P4CG9161C002 G 2" 12 0~10 bar 4 - 20 mA
