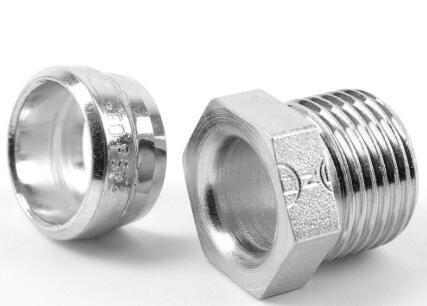

Parker Ermeto DIN fitting components for high pressure hydraulic tube fittings
Parker派克高压液压管接头的Ermeto DIN接头组件
Parker DIN标准接头
为了建立一个完整的接头系列（EO-PSR，EO-2，EO2-FORM），用于高压液压管接头的Ermeto DIN接头组件是必不可少的。Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).
Parker派克高压液压管接头的Ermeto DIN接头组件
为了建立一个完整的接头系列（EO-PSR，EO-2，EO2-FORM），用于高压液压管接头的Ermeto DIN接头组件是必不可少的。Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).
对于构建一套完整的管路系统 (包括EO-PSR，EO-2，EO2-FORM)，适用于高压液压管接头的EO DIN 标准连接接头附件是必不可少的。EO-2功能螺母弹性密封圈可选 NBR丁腈橡胶密封 或者FKM氟橡胶密封。
适用市场：
- 汽车行业
- 安防系统
- 能源行业
- 环境控制
- 工业领域
- 基础建设
- 机床
- 物料搬运
- 行走机械
- 石油和天然气
- 电力行业
- 过程控制
- 交通运输
- 水处理
应用领域：
- 适用于一般的液压系统领域。
特征/优势：
- 优良的耐腐蚀性能：一般而言，新一代无六价铬镀锌表面处理方式针对依照德国工业标准DIN50021/ISO9227 盐雾试验，提供产品超过500个小时而不产生白锈的耐腐蚀性能。这种特质大大地延长了管接头的使用寿命。
- 不锈钢材质表面：相比碳钢而言，针对腐蚀性介质和环境影响，不锈钢管接头有着优良的耐腐蚀性能，同时有着更好的高温耐腐蚀性能。这些产品特征大大地扩展了管接头的应用范围。
- 取决于具体的应用需求，EO-2功能螺母可选择NBR丁腈橡胶密封圈或者 FKM氟橡胶密封圈。这种产品特征大大地扩展了产品的应用范围。
性能特点：
产品序列：特轻系列，轻系列，重系列
尺寸：na, M 08x1.0 至 M42x2.0
结构材料：碳钢/丁腈橡胶，碳钢/氟橡胶，不锈钢/氟橡胶，不锈钢/丁腈橡胶，碳钢/不锈钢/丁腈橡胶，碳钢/不锈钢/氟橡胶，碳钢，不锈钢，SPH不锈钢
密封材料：na,丁腈橡胶，氟橡胶
管道外径：6-42 mm
形状：EO2-Functional nut, EO2-FORM Set for steel and stainless steel tubes, EO2-FORM Set for stainless steel tubes, Nut EO 24° Cone end, Cutting ring, Progressive stop ring, Progressive ring, Sleeve screw for threaded ports acc. to DIN 3854
MAX.运行温度：+250 Steel, +400 Stainless Steel °C，+482 Steel, +752 Stainless Steel °F
LOW.运行温度：-40 (Steel); -60 (Stainless Steel) °C-40 Steel, -76 Stainless Steel °F
应用：Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
符合规格：DIN ISO 8434

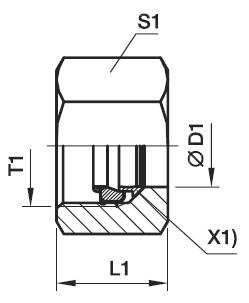

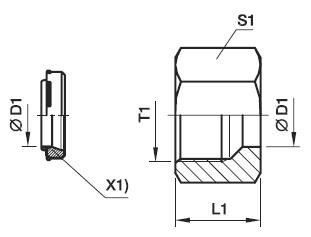

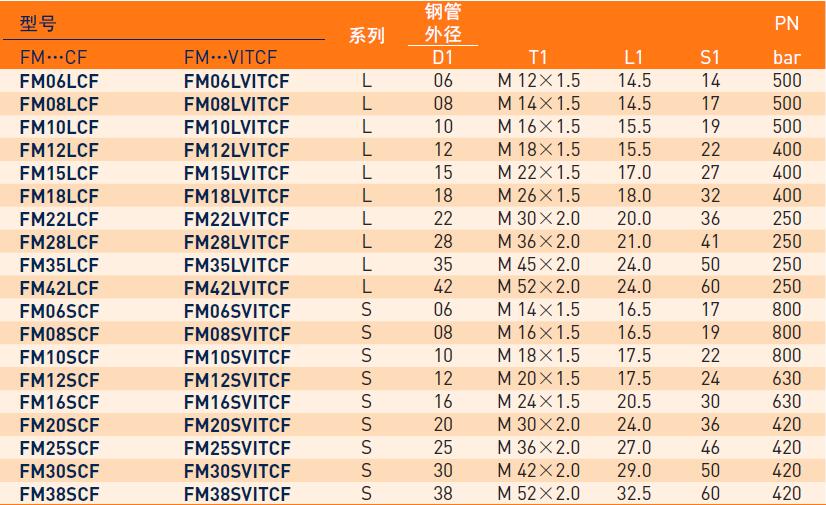

FM EO2功能螺母 - 用于碳钢管
型号
FM…CF |
型号
FM…VITCF |
系列 |
钢管外径
D1 |
T1 |
L1 |
S1 |
PN
bar |
| FM06LCF |
FM06LVITCF |
L |
06 |
M12×1.5 |
14.5 |
14 |
500 |
| FM08LCF |
FM08LVITCF |
L |
08 |
M14×1.5 |
14.5 |
17 |
500 |
| FM10LCF |
FM10LVITCF |
L |
10 |
M16×1.5 |
15.5 |
19 |
500 |
| FM12LCF |
FM12LVITCF |
L |
12 |
M18×1.5 |
15.5 |
22 |
400 |
| FM15LCF |
FM15LVITCF |
L |
15 |
M22×1.5 |
17.0 |
27 |
400 |
| FM18LCF |
FM18LVITCF |
L |
18 |
M26×1.5 |
18.0 |
32 |
400 |
| FM22LCF |
FM22LVITCF |
L |
22 |
M30×2.0 |
20.0 |
36 |
250 |
| FM28LCF |
FM28LVITCF |
L |
28 |
M36×2.0 |
21.0 |
41 |
250 |
| FM35LCF |
FM35LVITCF |
L |
35 |
M45×2.0 |
24.0 |
50 |
250 |
| FM42LCF |
FM42LVITCF |
L |
42 |
M52×2.0 |
24.0 |
60 |
250 |
| FM06SCF |
FM06SVITCF |
S |
06 |
M14×1.5 |
16.5 |
17 |
800 |
| FM08SCF |
FM08SVITCF |
S |
08 |
M16×1.5 |
16.5 |
19 |
800 |
| FM10SCF |
FM10SVITCF |
S |
10 |
M18×1.5 |
17.5 |
22 |
800 |
| FM12SCF |
FM12SVITCF |
S |
12 |
M20×1.5 |
17.5 |
24 |
630 |
| FM16SCF |
FM16SVITCF |
S |
16 |
M24×1.5 |
20.5 |
30 |
630 |
| FM20SCF |
FM20SVITCF |
S |
20 |
M30×2.0 |
24.0 |
36 |
420 |
| FM25SCF |
FM25SVITCF |
S |
25 |
M36×2.0 |
27.0 |
46 |
420 |
| FM30SCF |
FM30SVITCF |
S |
30 |
M42×2.0 |
29.0 |
50 |
420 |
| FM38SCF |
FM38SVITCF |
S |
38 |
M52×2.0 |
32.5 |
60 |
420 |
注：FM…CF：碳钢，无六价铬镀锌，NBR密封件
FM…VITCF：碳钢，无六价铬镀锌，FKM密封件

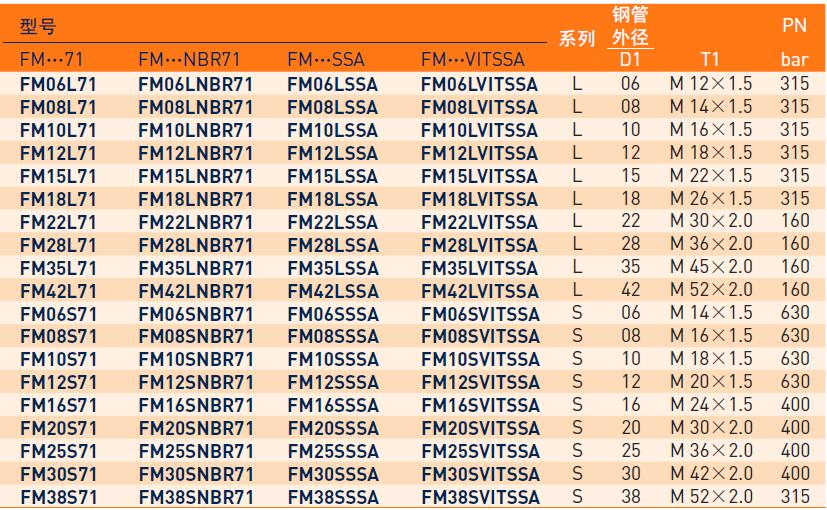

FM EO2功能螺母 - 用于不锈钢管
型号
FM…71 |
型号
FM…NBR71 |
型号
FM…SSA |
型号
FM…VITSSA |
系列 |
钢管外径
D1 |
T1 |
PN
bar |
| FM06L71 |
FM06LNBR71 |
FM06LSSA |
FM06LVITSSA |
L |
06 |
M12×1.5 |
315 |
| FM08L71 |
FM08LNBR71 |
FM08LSSA |
FM08LVITSSA |
L |
08 |
M14×1.5 |
315 |
| FM10L71 |
FM10LNBR71 |
FM10LSSA |
FM10LVITSSA |
L |
10 |
M16×1.5 |
315 |
| FM12L71 |
FM12LNBR71 |
FM12LSSA |
FM12LVITSSA |
L |
12 |
M18×1.5 |
315 |
| FM15L71 |
FM15LNBR71 |
FM15LSSA |
FM15LVITSSA |
L |
15 |
M22×1.5 |
315 |
| FM18L71 |
FM18LNBR71 |
FM18LSSA |
FM18LVITSSA |
L |
18 |
M26×1.5 |
315 |
| FM22L71 |
FM22LNBR71 |
FM22LSSA |
FM22LVITSSA |
L |
22 |
M30×2.0 |
160 |
| FM28L71 |
FM28LNBR71 |
FM28LSSA |
FM28LVITSSA |
L |
28 |
M36×2.0 |
160 |
| FM35L71 |
FM35LNBR71 |
FM35LSSA |
FM35LVITSSA |
L |
35 |
M45×2.0 |
160 |
| FM42L71 |
FM42LNBR71 |
FM42LSSA |
FM42LVITSSA |
L |
42 |
M52×2.0 |
160 |
| FM06S71 |
FM06SNBR71 |
FM06SSSA |
FM06SVITSSA |
S |
06 |
M14×1.5 |
630 |
| FM08S71 |
FM08SNBR71 |
FM08SSSA |
FM08SVITSSA |
S |
08 |
M16×1.5 |
630 |
| FM10S71 |
FM10SNBR71 |
FM10SSSA |
FM10SVITSSA |
S |
10 |
M18×1.5 |
630 |
| FM12S71 |
FM12SNBR71 |
FM12SSSA |
FM12SVITSSA |
S |
12 |
M20×1.5 |
630 |
| FM16S71 |
FM16SNBR71 |
FM16SSSA |
FM16SVITSSA |
S |
16 |
M24×1.5 |
400 |
| FM20S71 |
FM20SNBR71 |
FM20SSSA |
FM20SVITSSA |
S |
20 |
M30×2.0 |
400 |
| FM25S71 |
FM25SNBR71 |
FM25SSSA |
FM25SVITSSA |
S |
25 |
M36×2.0 |
400 |
| FM30S71 |
FM30SNBR71 |
FM30SSSA |
FM30SVITSSA |
S |
30 |
M42×2.0 |
400 |
| FM38S71 |
FM38SNBR71 |
FM38SSSA |
FM38SVITSSA |
S |
38 |
M52×2.0 |
315 |
注：
FM…71：不锈钢，FKM密封件
FM…NBR71：不锈钢，NBR密封件
FM…SSA：碳钢，无六价铬镀锌，不锈钢卡套，NBR密封件
FM…VITSSA：碳钢，无六价铬镀锌，不锈钢卡套，VIT密封件

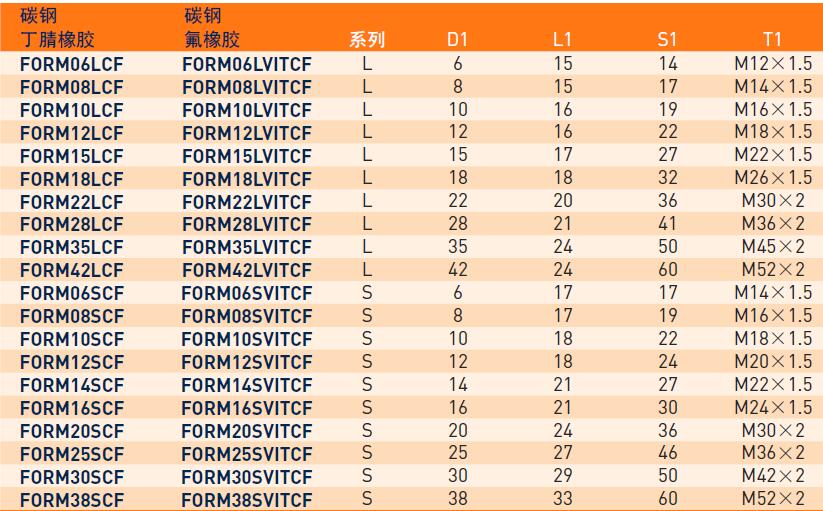

EO-2 FORM 功能螺母 - 用于碳钢管
碳钢
丁腈橡胶 |
碳钢
氟橡胶 |
系列 |
D1 |
L1 |
S1 |
T1 |
| FORM06LCF |
FORM06LVITCF |
L |
6 |
15 |
14 |
M12×1.5 |
| FORM08LCF |
FORM08LVITCF |
L |
8 |
15 |
17 |
M14×1.5 |
| FORM10LCF |
FORM10LVITCF |
L |
10 |
16 |
19 |
M16×1.5 |
| FORM12LCF |
FORM12LVITCF |
L |
12 |
16 |
22 |
M18×1.5 |
| FORM15LCF |
FORM15LVITCF |
L |
15 |
17 |
27 |
M22×1.5 |
| FORM18LCF |
FORM18LVITCF |
L |
18 |
18 |
32 |
M26×1.5 |
| FORM22LCF |
FORM22LVITCF |
L |
22 |
20 |
36 |
M30×2 |
| FORM28LCF |
FORM28LVITCF |
L |
28 |
21 |
41 |
M36×2 |
| FORM35LCF |
FORM35LVITCF |
L |
35 |
24 |
50 |
M45×2 |
| FORM42LCF |
FORM42LVITCF |
L |
42 |
24 |
60 |
M52×2 |
| FORM06SCF |
FORM06SVITCF |
S |
6 |
17 |
17 |
M14×1.5 |
| FORM08SCF |
FORM08SVITCF |
S |
8 |
17 |
19 |
M16×1.5 |
| FORM10SCF |
FORM10SVITCF |
S |
10 |
18 |
22 |
M18×1.5 |
| FORM12SCF |
FORM12SVITCF |
S |
12 |
18 |
24 |
M20×1.5 |
| FORM14SCF |
FORM14SVITCF |
S |
14 |
21 |
27 |
M22×1.5 |
| FORM16SCF |
FORM16SVITCF |
S |
16 |
21 |
30 |
M24×1.5 |
| FORM20SCF |
FORM20SVITCF |
S |
20 |
24 |
36 |
M30×2 |
| FORM25SCF |
FORM25SVITCF |
S |
25 |
27 |
46 |
M36×2 |
| FORM30SCF |
FORM30SVITCF |
S |
30 |
29 |
50 |
M42×2 |
| FORM38SCF |
FORM38SVITCF |
S |
38 |
33 |
60 |
M52×2 |

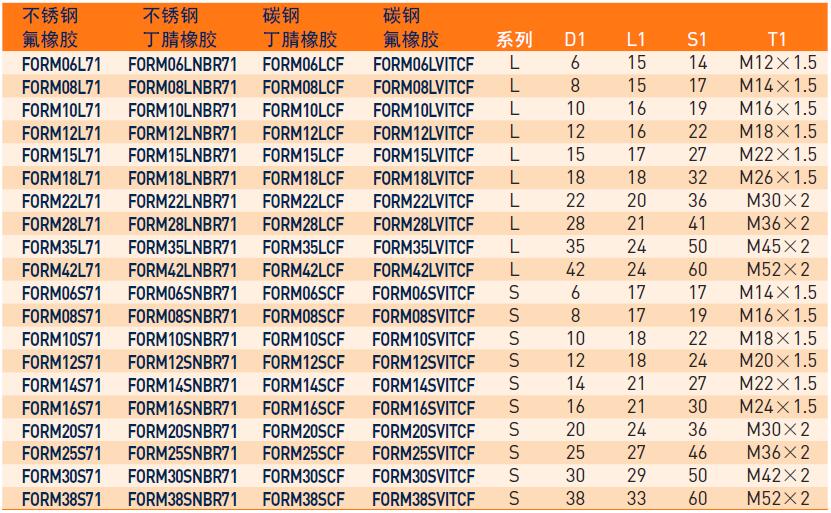

EO-2 FORM 功能螺母 - 用于不锈钢管
不锈钢
氟橡胶 |
不锈钢
丁腈橡胶 |
碳钢
丁腈橡胶 |
碳钢
氟橡胶 |
系列 |
D1 |
L1 |
S1 |
T1 |
| FORM06L71 |
FORM06LNBR71 |
FORM06LCF |
FORM06LVITCF |
L |
6 |
15 |
14 |
M12×1.5 |
| FORM08L71 |
FORM08LNBR71 |
FORM08LCF |
FORM08LVITCF |
L |
8 |
15 |
17 |
M14×1.5 |
| FORM10L71 |
FORM10LNBR71 |
FORM10LCF |
FORM10LVITCF |
L |
10 |
16 |
19 |
M16×1.5 |
| FORM12L71 |
FORM12LNBR71 |
FORM12LCF |
FORM12LVITCF |
L |
12 |
16 |
22 |
M18×1.5 |
| FORM15L71 |
FORM15LNBR71 |
FORM15LCF |
FORM15LVITCF |
L |
15 |
17 |
27 |
M22×1.5 |
| FORM18L71 |
FORM18LNBR71 |
FORM18LCF |
FORM18LVITCF |
L |
18 |
18 |
32 |
M26×1.5 |
| FORM22L71 |
FORM22LNBR71 |
FORM22LCF |
FORM22LVITCF |
L |
22 |
20 |
36 |
M30×2 |
| FORM28L71 |
FORM28LNBR71 |
FORM28LCF |
FORM28LVITCF |
L |
28 |
21 |
41 |
M36×2 |
| FORM35L71 |
FORM35LNBR71 |
FORM35LCF |
FORM35LVITCF |
L |
35 |
24 |
50 |
M45×2 |
| FORM42L71 |
FORM42LNBR71 |
FORM42LCF |
FORM42LVITCF |
L |
42 |
24 |
60 |
M52×2 |
| FORM06S71 |
FORM06SNBR71 |
FORM06SCF |
FORM06SVITCF |
S |
6 |
17 |
17 |
M14×1.5 |
| FORM08S71 |
FORM08SNBR71 |
FORM08SCF |
FORM08SVITCF |
S |
8 |
17 |
19 |
M16×1.5 |
| FORM10S71 |
FORM10SNBR71 |
FORM10SCF |
FORM10SVITCF |
S |
10 |
18 |
22 |
M18×1.5 |
| FORM12S71 |
FORM12SNBR71 |
FORM12SCF |
FORM12SVITCF |
S |
12 |
18 |
24 |
M20×1.5 |
| FORM14S71 |
FORM14SNBR71 |
FORM14SCF |
FORM14SVITCF |
S |
14 |
21 |
27 |
M22×1.5 |
| FORM16S71 |
FORM16SNBR71 |
FORM16SCF |
FORM16SVITCF |
S |
16 |
21 |
30 |
M24×1.5 |
| FORM20S71 |
FORM20SNBR71 |
FORM20SCF |
FORM20SVITCF |
S |
20 |
24 |
36 |
M30×2 |
| FORM25S71 |
FORM25SNBR71 |
FORM25SCF |
FORM25SVITCF |
S |
25 |
27 |
46 |
M36×2 |
| FORM30S71 |
FORM30SNBR71 |
FORM30SCF |
FORM30SVITCF |
S |
30 |
29 |
50 |
M42×2 |
| FORM38S71 |
FORM38SNBR71 |
FORM38SCF |
FORM38SVITCF |
S |
38 |
33 |
60 |
M52×2 |

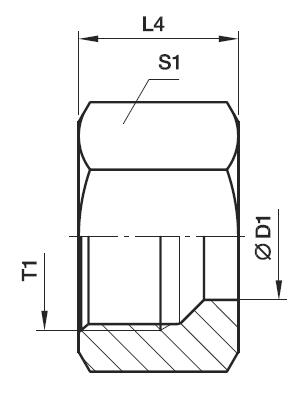

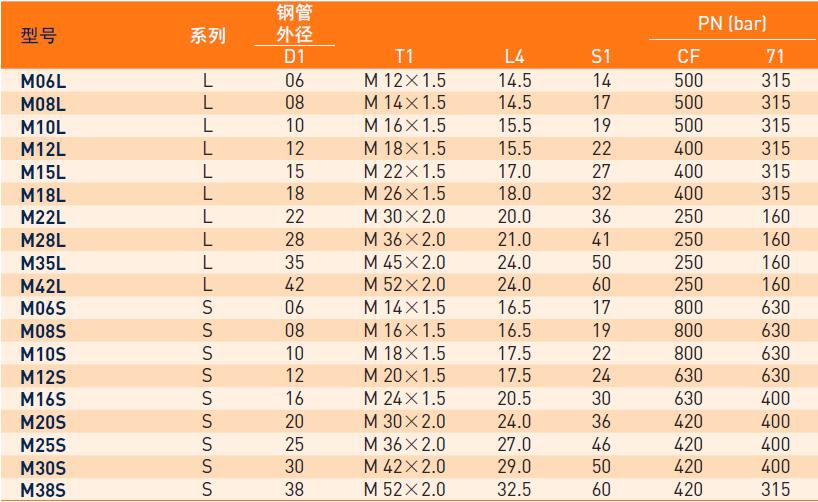

M 螺母 - EO 24°锥
| 型号 |
系列 |
钢管外径
D1 |
T1 |
L4 |
S1 |
PN(bar)
CF |
PN(bar)
71 |
| M06L |
L |
06 |
M12×1.5 |
14.5 |
14 |
500 |
315 |
| M08L |
L |
08 |
M14×1.5 |
14.5 |
17 |
500 |
315 |
| M10L |
L |
10 |
M16×1.5 |
15.5 |
19 |
500 |
315 |
| M12L |
L |
12 |
M18×1.5 |
15.5 |
22 |
400 |
315 |
| M15L |
L |
15 |
M22×1.5 |
17.0 |
27 |
400 |
315 |
| M18L |
L |
18 |
M26×1.5 |
18.0 |
32 |
400 |
315 |
| M22L |
L |
22 |
M30×2.0 |
20.0 |
36 |
250 |
160 |
| M28L |
L |
28 |
M36×2.0 |
21.0 |
41 |
250 |
160 |
| M35L |
L |
35 |
M45×2.0 |
24.0 |
50 |
250 |
160 |
| M42L |
L |
42 |
M52×2.0 |
24.0 |
60 |
250 |
160 |
| M06S |
S |
06 |
M14×1.5 |
16.5 |
17 |
800 |
630 |
| M08S |
S |
08 |
M16×1.5 |
16.5 |
19 |
800 |
630 |
| M10S |
S |
10 |
M18×1.5 |
17.5 |
22 |
800 |
630 |
| M12S |
S |
12 |
M20×1.5 |
17.5 |
24 |
630 |
630 |
| M16S |
S |
16 |
M24×1.5 |
20.5 |
30 |
630 |
400 |
| M20S |
S |
20 |
M30×2.0 |
24.0 |
36 |
420 |
400 |
| M25S |
S |
25 |
M36×2.0 |
27.0 |
46 |
420 |
400 |
| M30S |
S |
30 |
M42×2.0 |
29.0 |
50 |
420 |
400 |
| M38S |
S |
38 |
M52×2.0 |
32.5 |
60 |
420 |
315 |
订货示例：
碳钢螺母：M12LCFX
不锈钢螺母：M12LEODURX

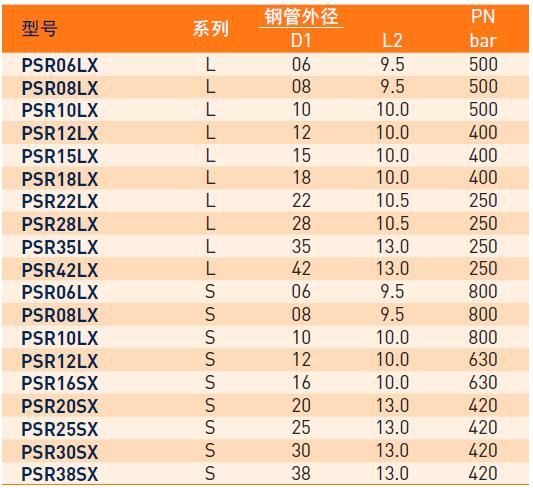

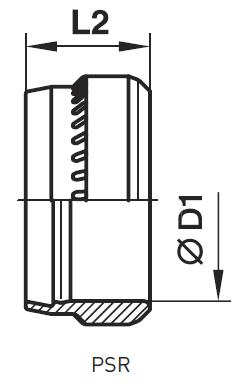

PSR碳钢卡套 - 用于EO 24°锥端口
| 型号 |
系列 |
钢管外径
D1 |
L2 |
PN
bar |
| PSR06LX |
L |
06 |
9.5 |
500 |
| PSR08LX |
L |
08 |
9.5 |
500 |
| PSR10LX |
L |
10 |
10.0 |
500 |
| PSR12LX |
L |
12 |
10.0 |
400 |
| PSR15LX |
L |
15 |
10.0 |
400 |
| PSR18LX |
L |
18 |
10.0 |
400 |
| PSR22LX |
L |
22 |
10.5 |
250 |
| PSR28LX |
L |
28 |
10.5 |
250 |
| PSR35LX |
L |
35 |
13.0 |
250 |
| PSR42LX |
L |
42 |
13.0 |
250 |
| PSR06LX |
S |
06 |
9.5 |
800 |
| PSR08LX |
S |
08 |
9.5 |
800 |
| PSR10LX |
S |
10 |
10.0 |
800 |
| PSR12LX |
S |
12 |
10.0 |
630 |
| PSR16SX |
S |
16 |
10.0 |
630 |
| PSR20SX |
S |
20 |
13.0 |
420 |
| PSR25SX |
S |
25 |
13.0 |
420 |
| PSR30SX |
S |
30 |
13.0 |
420 |
| PSR38SX |
S |
38 |
13.0 |
420 |

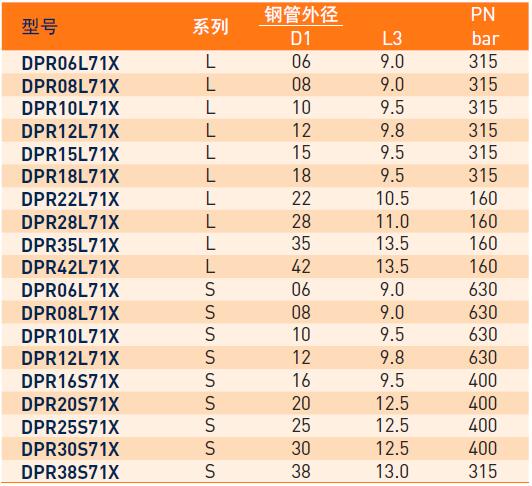

DPR不锈钢卡套 - 用于EO 24°锥端口
| 型号 |
系列 |
钢管外径
D1 |
L3 |
PN
bar |
| DPR06L71X |
L |
06 |
9.0 |
315 |
| DPR08L71X |
L |
08 |
9.0 |
315 |
| DPR10L71X |
L |
10 |
9.5 |
315 |
| DPR12L71X |
L |
12 |
9.8 |
315 |
| DPR15L71X |
L |
15 |
9.5 |
315 |
| DPR18L71X |
L |
18 |
9.5 |
315 |
| DPR22L71X |
L |
22 |
10.5 |
160 |
| DPR28L71X |
L |
28 |
11.0 |
160 |
| DPR35L71X |
L |
35 |
13.5 |
160 |
| DPR42L71X |
L |
42 |
13.5 |
160 |
| DPR06L71X |
S |
06 |
9.0 |
630 |
| DPR08L71X |
S |
08 |
9.0 |
630 |
| DPR10L71X |
S |
10 |
9.5 |
630 |
| DPR12L71X |
S |
12 |
9.8 |
630 |
| DPR16S71X |
S |
16 |
9.5 |
400 |
| DPR20S71X |
S |
20 |
12.5 |
400 |
| DPR25S71X |
S |
25 |
12.5 |
400 |
| DPR30S71X |
S |
30 |
12.5 |
400 |
| DPR38S71X |
S |
38 |
13.0 |
315 |
Ermeto DIN fitting components for high pressure hydraulic tube fittings型号
| Part |
Shape |
Series |
Seal Material |
Size |
Material |
Tube O.D. (mm) |
| D04LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
4 |
| D04LLX |
Cutting ring |
Very light |
na |
na |
Steel |
4 |
| D06LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
6 |
| D06LLX |
Cutting ring |
Very light |
na |
na |
Steel |
6 |
| D08LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
8 |
| D08LLX |
Cutting ring |
Very light |
na |
na |
Steel |
8 |
| D10LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
10 |
| D10LLX |
Cutting ring |
Very light |
na |
na |
Steel |
10 |
| D12LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
12 |
| D12LLX |
Cutting ring |
Very light |
na |
na |
Steel |
12 |
| DPR06L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
6 |
| DPR06LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
6 |
| DPR08L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
8 |
| DPR08LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
8 |
| DPR10L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
10 |
| DPR10LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
10 |
| DPR12L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
12 |
| DPR12LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
12 |
| DPR14S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
14 |
| DPR14SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
14 |
| DPR15L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
15 |
| DPR15LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
15 |
| DPR16S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
16 |
| DPR16SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
16 |
| DPR18L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
18 |
| DPR18LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
18 |
| DPR20S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
20 |
| DPR20SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
20 |
| DPR22L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
22 |
| DPR22LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
22 |
| DPR25S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
25 |
| DPR25SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
25 |
| DPR28L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
28 |
| DPR28LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
28 |
| DPR30S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
30 |
| DPR30SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
30 |
| DPR35L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
35 |
| DPR35LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
35 |
| DPR38S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
38 |
| DPR38SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
38 |
| DPR42L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
42 |
| DPR42LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
42 |
| FM04LLCF |
EO2-Functional nut |
Very light |
NBR |
M 08x1.0 |
Steel, Chromium-6 Free |
4 |
| FM04LLSSA |
EO2-Functional nut |
Very light |
NBR |
M 08x1.0 |
Steel/Stainless steel |
4 |
| FM06L71 |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Stainless steel |
6 |
| FM06LCF |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06LLSSA |
EO2-Functional nut |
Very light |
NBR |
M 10x1.0 |
Steel/Stainless steel |
6 |
| FM06LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Stainless steel |
6 |
| FM06LSSA |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Steel/Stainless steel |
6 |
| FM06LVITCF |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Steel/Stainless steel |
6 |
| FM06S71 |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Stainless steel |
6 |
| FM06SCF |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Stainless steel |
6 |
| FM06SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Steel/Stainless steel |
6 |
| FM06SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Steel/Stainless steel |
6 |
| FM08L71 |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Stainless steel |
8 |
| FM08LCF |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Stainless steel |
8 |
| FM08LSSA |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Steel/Stainless steel |
8 |
| FM08LVITCF |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Steel/Stainless steel |
8 |
| FM08S71 |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Stainless steel |
8 |
| FM08SCF |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Stainless steel |
8 |
| FM08SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Steel/Stainless steel |
8 |
| FM08SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Steel/Stainless steel |
8 |
| FM10L71 |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Stainless steel |
10 |
| FM10LCF |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Stainless steel |
10 |
| FM10LSSA |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Steel/Stainless steel |
10 |
| FM10LVITCF |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Steel/Stainless steel |
10 |
| FM10S71 |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Stainless steel |
10 |
| FM10SCF |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Stainless steel |
10 |
| FM10SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Steel/Stainless steel |
10 |
| FM10SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Steel/Stainless steel |
10 |
| FM12L71 |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Stainless steel |
12 |
| FM12LCF |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Stainless steel |
12 |
| FM12LSSA |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Steel/Stainless steel |
12 |
| FM12LVITCF |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Steel/Stainless steel |
12 |
| FM12S71 |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Stainless steel |
12 |
| FM12SCF |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Stainless steel |
12 |
| FM12SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Steel/Stainless steel |
12 |
| FM12SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Steel/Stainless steel |
12 |
| FM14S71 |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Stainless steel |
14 |
| FM14SCF |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FM14SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Stainless steel |
14 |
| FM14SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Steel/Stainless steel |
14 |
| FM14SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FM14SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Steel/Stainless steel |
14 |
| FM15L71 |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Stainless steel |
15 |
| FM15LCF |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FM15LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Stainless steel |
15 |
| FM15LSSA |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Steel/Stainless steel |
15 |
| FM15LVITCF |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FM15LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Steel/Stainless steel |
15 |
| FM16S71 |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Stainless steel |
16 |
| FM16SCF |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FM16SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Stainless steel |
16 |
| FM16SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Steel/Stainless steel |
16 |
| FM16SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FM16SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Steel/Stainless steel |
16 |
| FM18L71 |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Stainless steel |
18 |
| FM18LCF |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FM18LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Stainless steel |
18 |
| FM18LSSA |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Steel/Stainless steel |
18 |
| FM18LVITCF |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FM18LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Steel/Stainless steel |
18 |
| FM20S71 |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Stainless steel |
20 |
| FM20SCF |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FM20SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Stainless steel |
20 |
| FM20SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Steel/Stainless steel |
20 |
| FM20SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FM20SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Steel/Stainless steel |
20 |
| FM22L71 |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Stainless steel |
22 |
| FM22LCF |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FM22LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Stainless steel |
22 |
| FM22LSSA |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Steel/Stainless steel |
22 |
| FM22LVITCF |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FM22LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Steel/Stainless steel |
22 |
| FM25S71 |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Stainless steel |
25 |
| FM25SCF |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FM25SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Stainless steel |
25 |
| FM25SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Steel/Stainless steel |
25 |
| FM25SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FM25SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Steel/Stainless steel |
25 |
| FM28L71 |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Stainless steel |
28 |
| FM28LCF |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FM28LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Stainless steel |
28 |
| FM28LSSA |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Steel/Stainless steel |
28 |
| FM28LVITCF |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FM28LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Steel/Stainless steel |
28 |
| FM30S71 |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Stainless steel |
30 |
| FM30SCF |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FM30SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Stainless steel |
30 |
| FM30SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Steel/Stainless steel |
30 |
| FM30SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FM30SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Steel/Stainless steel |
30 |
| FM35L71 |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Stainless steel |
35 |
| FM35LCF |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FM35LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Stainless steel |
35 |
| FM35LSSA |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Steel/Stainless steel |
35 |
| FM35LVITCF |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FM35LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Steel/Stainless steel |
35 |
| FM38S71 |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Stainless steel |
38 |
| FM38SCF |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FM38SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Stainless steel |
38 |
| FM38SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Steel/Stainless steel |
38 |
| FM38SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FM38SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Steel/Stainless steel |
38 |
| FM42L71 |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Stainless steel |
42 |
| FM42LCF |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FM42LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Stainless steel |
42 |
| FM42LSSA |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Steel/Stainless steel |
42 |
| FM42LVITCF |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FM42LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Steel/Stainless steel |
42 |
| FORM06L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 12x1.5 |
Stainless steel |
6 |
| FORM06LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 12x1.5 |
Stainless steel |
6 |
| FORM06LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 14x1.5 |
Stainless steel |
6 |
| FORM06SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 14x1.5 |
Stainless steel |
6 |
| FORM06SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM08L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 14x1.5 |
Stainless steel |
8 |
| FORM08LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 14x1.5 |
Stainless steel |
8 |
| FORM08LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 16x1.5 |
Stainless steel |
8 |
| FORM08SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 16x1.5 |
Stainless steel |
8 |
| FORM08SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM10L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 16x1.5 |
Stainless steel |
10 |
| FORM10LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 16x1.5 |
Stainless steel |
10 |
| FORM10LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 18x1.5 |
Stainless steel |
10 |
| FORM10SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 18x1.5 |
Stainless steel |
10 |
| FORM10SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM12L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 18x1.5 |
Stainless steel |
12 |
| FORM12LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 18x1.5 |
Stainless steel |
12 |
| FORM12LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 20x1.5 |
Stainless steel |
12 |
| FORM12SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 20x1.5 |
Stainless steel |
12 |
| FORM12SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM14S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 22x1.5 |
Stainless steel |
14 |
| FORM14SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FORM14SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 22x1.5 |
Stainless steel |
14 |
| FORM14SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FORM15L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 22x1.5 |
Stainless steel |
15 |
| FORM15LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FORM15LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 22x1.5 |
Stainless steel |
15 |
| FORM15LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FORM16S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 24x1.5 |
Stainless steel |
16 |
| FORM16SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FORM16SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 24x1.5 |
Stainless steel |
16 |
| FORM16SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FORM18L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 26x1.5 |
Stainless steel |
18 |
| FORM18LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FORM18LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 26x1.5 |
Stainless steel |
18 |
| FORM18LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FORM20S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 30x2.0 |
Stainless steel |
20 |
| FORM20SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FORM20SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 30x2.0 |
Stainless steel |
20 |
| FORM20SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FORM22L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 30x2.0 |
Stainless steel |
22 |
| FORM22LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FORM22LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 30x2.0 |
Stainless steel |
22 |
| FORM22LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FORM25S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 36x2.0 |
Stainless steel |
25 |
| FORM25SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FORM25SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 36x2.0 |
Stainless steel |
25 |
| FORM25SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FORM28L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 36x2.0 |
Stainless steel |
28 |
| FORM28LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FORM28LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 36x2.0 |
Stainless steel |
28 |
| FORM28LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FORM30S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 42x2.0 |
Stainless steel |
30 |
| FORM30SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FORM30SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 42x2.0 |
Stainless steel |
30 |
| FORM30SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FORM35L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 45x2.0 |
Stainless steel |
35 |
| FORM35LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FORM35LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 45x2.0 |
Stainless steel |
35 |
| FORM35LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FORM38S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 52x2.0 |
Stainless steel |
38 |
| FORM38SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FORM38SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 52x2.0 |
Stainless steel |
38 |
| FORM38SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FORM42L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 52x2.0 |
Stainless steel |
42 |
| FORM42LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FORM42LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 52x2.0 |
Stainless steel |
42 |
| FORM42LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| M04LLCFX |
Nut 24° Cone end |
Very light |
na |
M 08x1.0 |
Steel, Chromium-6 Free |
4 |
| M04LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 08x1.0 |
Stainless steel |
4 |
| M06LCFX |
Nut 24° Cone end |
Light |
na |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| M06LEODURX |
Nut 24° Cone end |
Light |
na |
M 12x1.5 |
Stainless steel |
6 |
| M06LLCFX |
Nut 24° Cone end |
Very light |
na |
M 10x1.0 |
Steel, Chromium-6 Free |
6 |
| M06LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 10x1.0 |
Stainless steel |
6 |
| M06SCFX |
Nut 24° Cone end |
Heavy |
na |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| M06SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 14x1.5 |
Stainless steel |
6 |
| M08LCFX |
Nut 24° Cone end |
Light |
na |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| M08LEODURX |
Nut 24° Cone end |
Light |
na |
M 14x1.5 |
Stainless steel |
8 |
| M08LLCFX |
Nut 24° Cone end |
Very light |
na |
M 12x1.0 |
Steel, Chromium-6 Free |
8 |
| M08LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 12x1.0 |
Stainless steel |
8 |
| M08SCFX |
Nut 24° Cone end |
Heavy |
na |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| M08SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 16x1.5 |
Stainless steel |
8 |
| M10LCFX |
Nut 24° Cone end |
Light |
na |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| M10LEODURX |
Nut 24° Cone end |
Light |
na |
M 16x1.5 |
Stainless steel |
10 |
| M10LLCFX |
Nut 24° Cone end |
Very light |
na |
M 14x1.0 |
Steel, Chromium-6 Free |
10 |
| M10LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 14x1.0 |
Stainless steel |
10 |
| M10SCFX |
Nut 24° Cone end |
Heavy |
na |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| M10SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 18x1.5 |
Stainless steel |
10 |
| M12LCFX |
Nut 24° Cone end |
Light |
na |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| M12LEODURX |
Nut 24° Cone end |
Light |
na |
M 18x1.5 |
Stainless steel |
12 |
| M12LLCFX |
Nut 24° Cone end |
Very light |
na |
M 16x1.0 |
Steel, Chromium-6 Free |
12 |
| M12LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 16x1.0 |
Stainless steel |
12 |
| M12SCFX |
Nut 24° Cone end |
Heavy |
na |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| M12SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 20x1.5 |
Stainless steel |
12 |
| M14SCFX |
Nut 24° Cone end |
Heavy |
na |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| M14SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 22x1.5 |
Stainless steel |
14 |
| M15LCFX |
Nut 24° Cone end |
Light |
na |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| M15LEODURX |
Nut 24° Cone end |
Light |
na |
M 22x1.5 |
Stainless steel |
15 |
| M16SCFX |
Nut 24° Cone end |
Heavy |
na |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| M16SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 24x1.5 |
Stainless steel |
16 |
| M18LCFX |
Nut 24° Cone end |
Light |
na |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| M18LEODURX |
Nut 24° Cone end |
Light |
na |
M 26x1.5 |
Stainless steel |
18 |
| M20SCFX |
Nut 24° Cone end |
Heavy |
na |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| M20SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 30x2.0 |
Stainless steel |
20 |
| M22LCFX |
Nut 24° Cone end |
Light |
na |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| M22LEODURX |
Nut 24° Cone end |
Light |
na |
M 30x2.0 |
Stainless steel |
22 |
| M25SCFX |
Nut 24° Cone end |
Heavy |
na |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| M25SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 36x2.0 |
Stainless steel |
25 |
| M28LCFX |
Nut 24° Cone end |
Light |
na |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| M28LEODURX |
Nut 24° Cone end |
Light |
na |
M 36x2.0 |
Stainless steel |
28 |
| M30SCFX |
Nut 24° Cone end |
Heavy |
na |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| M30SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 42x2.0 |
Stainless steel |
30 |
| M35LCFX |
Nut 24° Cone end |
Light |
na |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| M35LEODURX |
Nut 24° Cone end |
Light |
na |
M 45x2.0 |
Stainless steel |
35 |
| M38SCFX |
Nut 24° Cone end |
Heavy |
na |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| M38SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 52x2.0 |
Stainless steel |
38 |
| M42LCFX |
Nut 24° Cone end |
Light |
na |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| M42LEODURX |
Nut 24° Cone end |
Light |
na |
M 52x2.0 |
Stainless steel |
42 |
| PSR06LX |
Progressive stop ring |
Light |
na |
na |
Steel |
6 |
| PSR08LX |
Progressive stop ring |
Light |
na |
na |
Steel |
8 |
| PSR10LX |
Progressive stop ring |
Light |
na |
na |
Steel |
10 |
| PSR12LX |
Progressive stop ring |
Light |
na |
na |
Steel |
12 |
| PSR14SX |
Progressive stop ring |
Light |
na |
na |
Steel |
14 |
| PSR15LX |
Progressive stop ring |
Light |
na |
na |
Steel |
15 |
| PSR16SX |
Progressive stop ring |
Light |
na |
na |
Steel |
16 |
| PSR18LX |
Progressive stop ring |
Light |
na |
na |
Steel |
18 |
| PSR20SX |
Progressive stop ring |
Light |
na |
na |
Steel |
20 |
| PSR22LX |
Progressive stop ring |
Light |
na |
na |
Steel |
22 |
| PSR25SX |
Progressive stop ring |
Light |
na |
na |
Steel |
25 |
| PSR28LX |
Progressive stop ring |
Light |
na |
na |
Steel |
28 |
| PSR30SX |
Progressive stop ring |
Light |
na |
na |
Steel |
30 |
| PSR35LX |
Progressive stop ring |
Light |
na |
na |
Steel |
35 |
| PSR38SX |
Progressive stop ring |
Light |
na |
na |
Steel |
38 |
| PSR42LX |
Progressive stop ring |
Light |
na |
na |
Steel |
42 |
| S04LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 08x1.0 |
Stainless steel |
4 |
| S04LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 08x1.0 |
Steel |
4 |
| S06L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 12x1.5 |
Stainless steel |
6 |
| S06LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 12x1.5 |
Steel |
6 |
| S06LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 10x1.0 |
Stainless steel |
6 |
| S06LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 10x1.0 |
Steel |
6 |
| S08L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 14x1.5 |
Stainless steel |
8 |
| S08LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 14x1.5 |
Steel |
8 |
| S08LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 12x1.0 |
Stainless steel |
8 |
| S08LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 12x1.0 |
Steel |
8 |
| S10L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 16x1.5 |
Stainless steel |
10 |
| S10LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 16x1.5 |
Steel |
10 |
| S12L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 18x1.5 |
Stainless steel |
12 |
| S12LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 18x1.5 |
Steel |
12 |
|
fcg.cnmec@parkerdistribution.com.cn
