Parker Ermeto DIN Non return valves
Parker Ermeto DIN单向阀
Parker DIN标准接头
Parker单向阀，公称压力PN 420 bar，有大量不同的类型可供货,使选用十分灵活。Parker non-return valves with nominal pressure ratings up to PN 420 bar offer a wide range of types, making them very flexible.
Parker 在线诊断连接及过渡接头

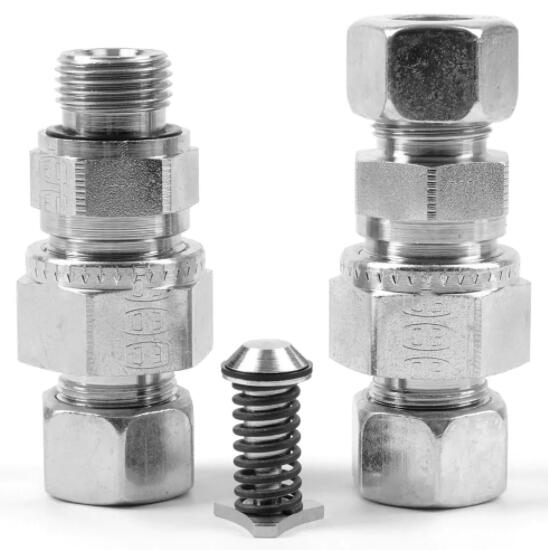

各种各样类型的派克Ermeto单向阀，从两端都带管接头的RHD系列直通单向阀开始，RHV/RHZ系列为端直通单向阀，即一端带管接头,另一端为外螺纹拧入端，而RHDI系列则两端均带内螺纹。RVP系列带含有阀内部零件的I-TL阀插件。该系列单向阀有钢制表面无六阶铬(Cr(VI))镀锌、不锈钢制及黄铜制可供货,密封材料为丁腈橡胶(NBR),或可应要求提供氟橡胶(FKM)密封件。
派克单向阀均采用防污染包装。派克单向阀可用于液压油、难燃液压液(HFC,HFD型液压液除外:需要使用氟橡胶(FKM)密封件),经气压测试,对水蒸气、可燃/易爆气体或氧气不适用。
适销市场：
- 汽车
- 国防
- 能源
- 环境
- 工业
- 基础设施
- 机床
- 材料处理
- 行走机械
- 油气
- 发电
- 加工行业
- 运输业
- 水利
应用领域: 适用于通用液压系统。
派克单向阀的特点/优势:
- 派克单向阀已被证实可正常运行超过100万次,其稳定性在同类产品中位列前茅。
- 结合了软密封及金属密封?由于阀芯锥体带软密封,并由阀座金属锥面给予密封支承,故无泄漏?扩展了该产品及整个液压系统的安全性。
- 由于具有众多的选项,派克单向阀的使用非常灵活。
- 对于更多的应用工况,还有不锈钢制内部零件及氟橡胶(FPM)密封件可供选用。
- 派克单向阀均采用防污染包装,由此可改善产品的质量和稳定性。
性能特点：
连接 1 管道外径：06 至 38 mm
连接 2 管道外径：G 1/8 A 至 G 1 1/2 A; G 1/8 至 G 1 1/2 mm
连接 2 尺寸:24锥端, BSPP 外螺纹 - ED-密封 (ISO 1179), 公制外螺纹 - ED-密封 (ISO 9974), BSPP 内螺纹 (ISO 1179-1) G 1/8 至 G 1 1/2
连接尺寸：G 1/8 A 至 G 1 1/2 A; G 1/8 至 G 1 1/2
连接 1 尺寸：24锥端, BSPP 内螺纹 (ISO 1179-1)
密封材料：无, NBR, FKM
流动方向：无, 油口至管子, 管子至油口
产品序列：轻载, 重载
配件材料：碳钢, 无 6 阶铬镀锌, 不锈钢
可选配件：无, 与螺母及 EO-PSR 卡套预装配, 与 EO-2 功能螺母预装配, 与螺母及 EO-DPR 卡套预装配
形状：na
直径：Nominal: 3.5 to 29 mm
开启压力：1 bar

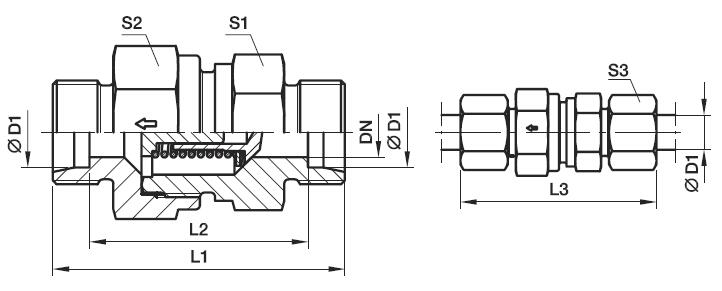

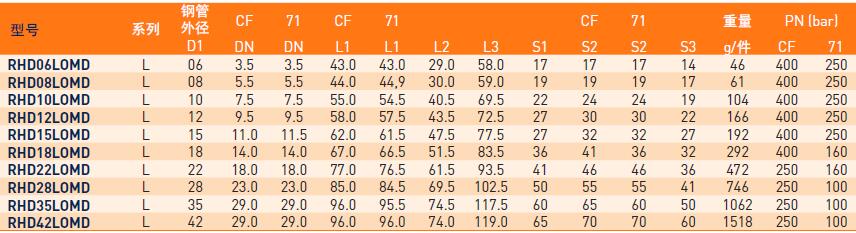

RHD 直通单向阀 - EO 24°锥 / EO 24°锥
| 型号 |
系列 |
钢管外径
D1 |
CF
DN |
71
DN |
CF
L1 |
71
L1 |
L2 |
L3 |
S1 |
CF
S2 |
71
S2 |
S3 |
重量
g/件 |
PN(bar)
CF |
PN(bar)
71 |
| RHD06LOMD |
L |
06 |
3.5 |
3.5 |
43.0 |
43.0 |
29.0 |
58.0 |
17 |
17 |
17 |
14 |
46 |
400 |
250 |
| RHD08LOMD |
L |
08 |
5.5 |
5.5 |
44.0 |
44,9 |
30.0 |
59.0 |
19 |
19 |
19 |
17 |
61 |
400 |
250 |
| RHD10LOMD |
L |
10 |
7.5 |
7.5 |
55.0 |
54.5 |
40.5 |
69.5 |
22 |
24 |
24 |
19 |
104 |
400 |
250 |
| RHD12LOMD |
L |
12 |
9.5 |
9.5 |
58.0 |
57.5 |
43.5 |
72.5 |
27 |
30 |
30 |
22 |
166 |
400 |
250 |
| RHD15LOMD |
L |
15 |
11.0 |
11.5 |
62.0 |
61.5 |
47.5 |
77.5 |
27 |
32 |
32 |
27 |
192 |
400 |
250 |
| RHD18LOMD |
L |
18 |
14.0 |
14.0 |
67.0 |
66.5 |
51.5 |
83.5 |
36 |
41 |
36 |
32 |
292 |
400 |
160 |
| RHD22LOMD |
L |
22 |
18.0 |
18.0 |
77.0 |
76.5 |
61.5 |
93.5 |
41 |
46 |
46 |
36 |
472 |
250 |
160 |
| RHD28LOMD |
L |
28 |
23.0 |
23.0 |
85.0 |
84.5 |
69.5 |
102.5 |
50 |
55 |
55 |
41 |
746 |
250 |
100 |
| RHD35LOMD |
L |
35 |
29.0 |
29.0 |
96.0 |
95.5 |
74.5 |
117.5 |
60 |
65 |
60 |
50 |
1062 |
250 |
100 |
| RHD42LOMD |
L |
42 |
29.0 |
29.0 |
96.0 |
96.0 |
74.0 |
119.0 |
65 |
70 |
70 |
60 |
1518 |
250 |
100 |
订货示例：碳钢，无六价铬镀锌：RHD12LOMDCF；316Ti不锈钢：RHD12LOMD71
注：型号不含螺母卡套

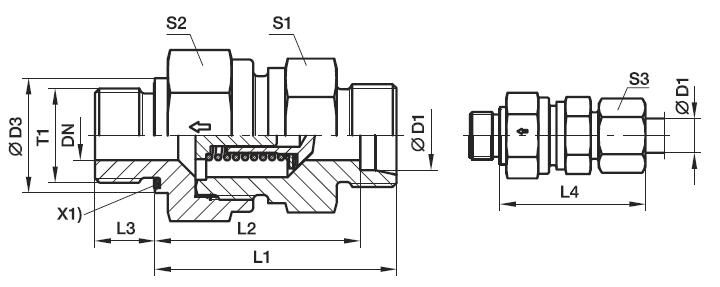

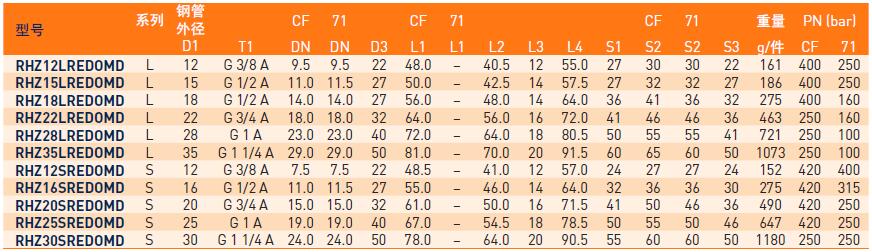

RHZ-R-ED 端直通单向阀 - BSPP外螺纹 – ED密封 (ISO 1179) / EO 24°锥
| 型号 |
系列 |
钢管外径
D1 |
T1 |
CF
DN |
71
DN |
D3 |
CF
L1 |
71
L1 |
L2 |
L3 |
L4 |
S1 |
CF
S2 |
71
S2 |
S3 |
重量
g/件 |
PN(bar)
CF |
PN(bar)
71 |
| RHZ12LREDOMD |
L |
12 |
G3/8A |
9.5 |
9.5 |
22 |
48.0 |
– |
40.5 |
12 |
55.0 |
27 |
30 |
30 |
22 |
161 |
400 |
250 |
| RHZ15LREDOMD |
L |
15 |
G1/2A |
11.0 |
11.5 |
27 |
50.0 |
– |
42.5 |
14 |
57.5 |
27 |
32 |
32 |
27 |
186 |
400 |
250 |
| RHZ18LREDOMD |
L |
18 |
G1/2A |
14.0 |
14.0 |
27 |
56.0 |
– |
48.0 |
14 |
64.0 |
36 |
41 |
36 |
32 |
275 |
400 |
160 |
| RHZ22LREDOMD |
L |
22 |
G3/4A |
18.0 |
18.0 |
32 |
64.0 |
– |
56.0 |
16 |
72.0 |
41 |
46 |
46 |
36 |
463 |
250 |
160 |
| RHZ28LREDOMD |
L |
28 |
G1A |
23.0 |
23.0 |
40 |
72.0 |
– |
64.0 |
18 |
80.5 |
50 |
55 |
55 |
41 |
721 |
250 |
100 |
| RHZ35LREDOMD |
L |
35 |
G1 1/4A |
29.0 |
29.0 |
50 |
81.0 |
– |
70.0 |
20 |
91.5 |
60 |
65 |
60 |
50 |
1073 |
250 |
100 |
| RHZ12SREDOMD |
S |
12 |
G3/8A |
7.5 |
7.5 |
22 |
48.5 |
– |
41.0 |
12 |
57.0 |
24 |
27 |
27 |
24 |
152 |
420 |
400 |
| RHZ16SREDOMD |
S |
16 |
G1/2A |
11.0 |
11.5 |
27 |
55.0 |
– |
46.0 |
14 |
64.0 |
32 |
36 |
36 |
30 |
275 |
420 |
315 |
| RHZ20SREDOMD |
S |
20 |
G3/4A |
15.0 |
15.0 |
32 |
61.0 |
– |
50.0 |
16 |
71.5 |
41 |
50 |
46 |
36 |
490 |
420 |
250 |
| RHZ25SREDOMD |
S |
25 |
G1A |
19.0 |
19.0 |
40 |
67.0 |
– |
54.5 |
18 |
78.5 |
50 |
55 |
50 |
46 |
647 |
420 |
250 |
| RHZ30SREDOMD |
S |
30 |
G1 1/4A |
24.0 |
24.0 |
50 |
78.0 |
– |
64.0 |
20 |
90.5 |
55 |
60 |
60 |
50 |
1180 |
250 |
250 |
订货示例：碳钢，无六价铬镀锌：RHZ12LREDOMDCF；316Ti不锈钢：RHZ12LREDOMD71
注：型号不含螺母卡套
Ermeto DIN Non return valves 型号
Part Series Shape Fitting Material Diameter Nominal (DN) Connection 1 Style Connection 2 Style Connection 1 Tube O.D. (mm) Connection 2 Tube O.D. (mm) Connection Size Connection Size 2 Pre-Installed Optional Accessories Flow Direction Seal Material
RHD06L71 Light na Stainless steel 3.5 24° Cone end 24° Cone end 6 6 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD06LCF Light na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 6 6 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD06LOMD71 Light na Stainless steel 3.5 24° Cone end 24° Cone end 6 6 na na na na na
RHD06LOMDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 6 6 na na na na na
RHD06S71 Heavy na Stainless steel 3.5 24° Cone end 24° Cone end 6 6 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD06SCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 6 6 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD06SOMD71 Heavy na Stainless steel 3.5 24° Cone end 24° Cone end 6 6 na na na na na
RHD06SOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 6 6 na na na na na
RHD06ZL71 Light na Stainless steel 3.5 24° Cone end 24° Cone end 6 6 na na Pre-assembled with EO-2 functional nut na na
RHD06ZLCF Light na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 6 6 na na Pre-assembled with EO-2 functional nut na na
RHD06ZS71 Heavy na Stainless steel 3.5 24° Cone end 24° Cone end 6 6 na na Pre-assembled with EO-2 functional nut na na
RHD06ZSCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 6 6 na na Pre-assembled with EO-2 functional nut na na
RHD08L71 Light na Stainless steel 5.5 24° Cone end 24° Cone end 8 8 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD08LCF Light na Steel, Chromium-6 Free 5.5 24° Cone end 24° Cone end 8 8 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD08LOMD71 Light na Stainless steel 5.5 24° Cone end 24° Cone end 8 8 na na na na na
RHD08LOMDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end 24° Cone end 8 8 na na na na na
RHD08S71 Heavy na Stainless steel 3.5 24° Cone end 24° Cone end 8 8 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD08SCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 8 8 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD08SOMD71 Heavy na Stainless steel 3.5 24° Cone end 24° Cone end 8 8 na na na na na
RHD08SOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 8 8 na na na na na
RHD08ZL71 Light na Stainless steel 5.5 24° Cone end 24° Cone end 8 8 na na Pre-assembled with EO-2 functional nut na na
RHD08ZLCF Light na Steel, Chromium-6 Free 5.5 24° Cone end 24° Cone end 8 8 na na Pre-assembled with EO-2 functional nut na na
RHD08ZS71 Heavy na Stainless steel 3.5 24° Cone end 24° Cone end 8 8 na na Pre-assembled with EO-2 functional nut na na
RHD08ZSCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end 24° Cone end 8 8 na na Pre-assembled with EO-2 functional nut na na
RHD10L71 Light na Stainless steel 7.5 24° Cone end 24° Cone end 10 10 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD10LCF Light na Steel, Chromium-6 Free 7.5 24° Cone end 24° Cone end 10 10 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD10LOMD71 Light na Stainless steel 7.5 24° Cone end 24° Cone end 10 10 na na na na na
RHD10LOMDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end 24° Cone end 10 10 na na na na na
RHD10S71 Heavy na Stainless steel 5.5 24° Cone end 24° Cone end 10 10 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD10SCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end 24° Cone end 10 10 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD10SOMD71 Heavy na Stainless steel 5.5 24° Cone end 24° Cone end 10 10 na na na na na
RHD10SOMDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end 24° Cone end 10 10 na na na na na
RHD10ZL71 Light na Stainless steel 7.5 24° Cone end 24° Cone end 10 10 na na Pre-assembled with EO-2 functional nut na na
RHD10ZLCF Light na Steel, Chromium-6 Free 7.5 24° Cone end 24° Cone end 10 10 na na Pre-assembled with EO-2 functional nut na na
RHD10ZS71 Heavy na Stainless steel 5.5 24° Cone end 24° Cone end 10 10 na na Pre-assembled with EO-2 functional nut na na
RHD10ZSCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end 24° Cone end 10 10 na na Pre-assembled with EO-2 functional nut na na
RHD12L71 Light na Stainless steel 9.5 24° Cone end 24° Cone end 12 12 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD12LCF Light na Steel, Chromium-6 Free 9.5 24° Cone end 24° Cone end 12 12 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD12LOMD71 Light na Stainless steel 9.5 24° Cone end 24° Cone end 12 12 na na na na na
RHD12LOMDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end 24° Cone end 12 12 na na na na na
RHD12S71 Heavy na Stainless steel 7.5 24° Cone end 24° Cone end 12 12 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD12SCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end 24° Cone end 12 12 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD12SOMD71 Heavy na Stainless steel 7.5 24° Cone end 24° Cone end 12 12 na na na na na
RHD12SOMDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end 24° Cone end 12 12 na na na na na
RHD12ZL71 Light na Stainless steel 9.5 24° Cone end 24° Cone end 12 12 na na Pre-assembled with EO-2 functional nut na na
RHD12ZLCF Light na Steel, Chromium-6 Free 9.5 24° Cone end 24° Cone end 12 12 na na Pre-assembled with EO-2 functional nut na na
RHD12ZS71 Heavy na Stainless steel 7.5 24° Cone end 24° Cone end 12 12 na na Pre-assembled with EO-2 functional nut na na
RHD12ZSCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end 24° Cone end 12 12 na na Pre-assembled with EO-2 functional nut na na
RHD14S71 Heavy na Stainless steel 9.5 24° Cone end 24° Cone end 14 14 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD14SCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end 24° Cone end 14 14 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD14SOMD71 Heavy na Stainless steel 9.5 24° Cone end 24° Cone end 14 14 na na na na na
RHD14SOMDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end 24° Cone end 14 14 na na na na na
RHD14ZS71 Heavy na Stainless steel 9.5 24° Cone end 24° Cone end 14 14 na na Pre-assembled with EO-2 functional nut na na
RHD14ZSCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end 24° Cone end 14 14 na na Pre-assembled with EO-2 functional nut na na
RHD15L71 Light na Stainless steel 11.5 24° Cone end 24° Cone end 15 15 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD15LCF Light na Steel, Chromium-6 Free 11 24° Cone end 24° Cone end 15 15 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD15LOMD71 Light na Stainless steel 11.5 24° Cone end 24° Cone end 15 15 na na na na na
RHD15LOMDCF Light na Steel, Chromium-6 Free 11 24° Cone end 24° Cone end 15 15 na na na na na
RHD15ZL71 Light na Stainless steel 11.5 24° Cone end 24° Cone end 15 15 na na Pre-assembled with EO-2 functional nut na na
RHD15ZLCF Light na Steel, Chromium-6 Free 11 24° Cone end 24° Cone end 15 15 na na Pre-assembled with EO-2 functional nut na na
RHD16S71 Heavy na Stainless steel 11.5 24° Cone end 24° Cone end 16 16 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD16SCF Heavy na Steel, Chromium-6 Free 11 24° Cone end 24° Cone end 16 16 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD16SOMD71 Heavy na Stainless steel 11.5 24° Cone end 24° Cone end 16 16 na na na na na
RHD16SOMDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end 24° Cone end 16 16 na na na na na
RHD16ZS71 Heavy na Stainless steel 11.5 24° Cone end 24° Cone end 16 16 na na Pre-assembled with EO-2 functional nut na na
RHD16ZSCF Heavy na Steel, Chromium-6 Free 11 24° Cone end 24° Cone end 16 16 na na Pre-assembled with EO-2 functional nut na na
RHD18L71 Light na Stainless steel 14 24° Cone end 24° Cone end 18 18 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD18LCF Light na Steel, Chromium-6 Free 14 24° Cone end 24° Cone end 18 18 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD18LOMD71 Light na Stainless steel 14 24° Cone end 24° Cone end 18 18 na na na na na
RHD18LOMDCF Light na Steel, Chromium-6 Free 14 24° Cone end 24° Cone end 18 18 na na na na na
RHD18ZL71 Light na Stainless steel 14 24° Cone end 24° Cone end 18 18 na na Pre-assembled with EO-2 functional nut na na
RHD18ZLCF Light na Steel, Chromium-6 Free 14 24° Cone end 24° Cone end 18 18 na na Pre-assembled with EO-2 functional nut na na
RHD20S71 Heavy na Stainless steel 15 24° Cone end 24° Cone end 20 20 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD20SCF Heavy na Steel, Chromium-6 Free 15 24° Cone end 24° Cone end 20 20 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD20SOMD71 Heavy na Stainless steel 15 24° Cone end 24° Cone end 20 20 na na na na na
RHD20SOMDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end 24° Cone end 20 20 na na na na na
RHD20ZS71 Heavy na Stainless steel 15 24° Cone end 24° Cone end 20 20 na na Pre-assembled with EO-2 functional nut na na
RHD20ZSCF Heavy na Steel, Chromium-6 Free 15 24° Cone end 24° Cone end 20 20 na na Pre-assembled with EO-2 functional nut na na
RHD22L71 Light na Stainless steel 18 24° Cone end 24° Cone end 22 22 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD22LCF Light na Steel, Chromium-6 Free 18 24° Cone end 24° Cone end 22 22 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD22LOMD71 Light na Stainless steel 18 24° Cone end 24° Cone end 22 22 na na na na na
RHD22LOMDCF Light na Steel, Chromium-6 Free 18 24° Cone end 24° Cone end 22 22 na na na na na
RHD22ZL71 Light na Stainless steel 18 24° Cone end 24° Cone end 22 22 na na Pre-assembled with EO-2 functional nut na na
RHD22ZLCF Light na Steel, Chromium-6 Free 18 24° Cone end 24° Cone end 22 22 na na Pre-assembled with EO-2 functional nut na na
RHD25S71 Heavy na Stainless steel 19 24° Cone end 24° Cone end 25 25 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD25SCF Heavy na Steel, Chromium-6 Free 19 24° Cone end 24° Cone end 25 25 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD25SOMD71 Heavy na Stainless steel 19 24° Cone end 24° Cone end 25 25 na na na na na
RHD25SOMDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end 24° Cone end 25 25 na na na na na
RHD25ZS71 Heavy na Stainless steel 19 24° Cone end 24° Cone end 25 25 na na Pre-assembled with EO-2 functional nut na na
RHD25ZSCF Heavy na Steel, Chromium-6 Free 19 24° Cone end 24° Cone end 25 25 na na Pre-assembled with EO-2 functional nut na na
RHD28L71 Light na Stainless steel 23 24° Cone end 24° Cone end 28 28 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD28LCF Light na Steel, Chromium-6 Free 23 24° Cone end 24° Cone end 28 28 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD28LOMD71 Light na Stainless steel 23 24° Cone end 24° Cone end 28 28 na na na na na
RHD28LOMDCF Light na Steel, Chromium-6 Free 23 24° Cone end 24° Cone end 28 28 na na na na na
RHD28ZL71 Light na Stainless steel 23 24° Cone end 24° Cone end 28 28 na na Pre-assembled with EO-2 functional nut na na
RHD28ZLCF Light na Steel, Chromium-6 Free 23 24° Cone end 24° Cone end 28 28 na na Pre-assembled with EO-2 functional nut na na
RHD30S71 Heavy na Stainless steel 24 24° Cone end 24° Cone end 30 30 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD30SCF Heavy na Steel, Chromium-6 Free 24 24° Cone end 24° Cone end 30 30 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD30SOMD71 Heavy na Stainless steel 24 24° Cone end 24° Cone end 30 30 na na na na na
RHD30SOMDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end 24° Cone end 30 30 na na na na na
RHD30ZS71 Heavy na Stainless steel 24 24° Cone end 24° Cone end 30 30 na na Pre-assembled with EO-2 functional nut na na
RHD30ZSCF Heavy na Steel, Chromium-6 Free 24 24° Cone end 24° Cone end 30 30 na na Pre-assembled with EO-2 functional nut na na
RHD35L71 Light na Stainless steel 29 24° Cone end 24° Cone end 35 35 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD35LCF Light na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 35 35 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD35LOMD71 Light na Stainless steel 29 24° Cone end 24° Cone end 35 35 na na na na na
RHD35LOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 35 35 na na na na na
RHD35ZL71 Light na Stainless steel 29 24° Cone end 24° Cone end 35 35 na na Pre-assembled with EO-2 functional nut na na
RHD35ZLCF Light na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 35 35 na na Pre-assembled with EO-2 functional nut na na
RHD38S71 Heavy na Stainless steel 29 24° Cone end 24° Cone end 38 38 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD38SCF Heavy na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 38 38 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD38SOMD71 Heavy na Stainless steel 29 24° Cone end 24° Cone end 38 38 na na na na na
RHD38SOMDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 38 38 na na na na na
RHD38ZS71 Heavy na Stainless steel 29 24° Cone end 24° Cone end 38 38 na na Pre-assembled with EO-2 functional nut na na
RHD38ZSCF Heavy na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 38 38 na na Pre-assembled with EO-2 functional nut na na
RHD42L71 Light na Stainless steel 29 24° Cone end 24° Cone end 42 42 na na Pre-assembled with nut and EO-DPR cutting ring na na
RHD42LCF Light na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 42 42 na na Pre-assembled with nut and EO-PSR cutting ring na na
RHD42LOMD71 Light na Stainless steel 29 24° Cone end 24° Cone end 42 42 na na na na na
RHD42LOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 42 42 na na na na na
RHD42ZL71 Light na Stainless steel 29 24° Cone end 24° Cone end 42 42 na na Pre-assembled with EO-2 functional nut na na
RHD42ZLCF Light na Steel, Chromium-6 Free 29 24° Cone end 24° Cone end 42 42 na na Pre-assembled with EO-2 functional nut na na
RHDI1/271 Light na Stainless steel 11.5 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/2 G 1/2 na na na
RHDI1/2CF Light na Steel, Chromium-6 Free 11.5 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/2 G 1/2 na na na
RHDI1/471 Light na Stainless steel 3.5 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/4 G 1/4 na na na
RHDI1/4CF Light na Steel, Chromium-6 Free 3.5 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/4 G 1/4 na na na
RHDI1/871 Light na Stainless steel 3.5 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/8 G 1/8 na na na
RHDI1/8CF Light na Steel, Chromium-6 Free 3.5 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1/8 G 1/8 na na na
RHDI11/271 Light na Stainless steel 29 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/2 G 1 1/2 na na na
RHDI11/2CF Light na Steel, Chromium-6 Free 29 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/2 G 1 1/2 na na na
RHDI11/471 Light na Stainless steel 24 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/4 G 1 1/4 na na na
RHDI11/4CF Light na Steel, Chromium-6 Free 24 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 1/4 G 1 1/4 na na na
RHDI171 Light na Stainless steel 19 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 G 1 na na na
RHDI1CF Light na Steel, Chromium-6 Free 19 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 1 G 1 na na na
RHDI3/471 Light na Stainless steel 15 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/4 G 3/4 na na na
RHDI3/4CF Light na Steel, Chromium-6 Free 15 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/4 G 3/4 na na na
RHDI3/871 Light na Stainless steel 7.5 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/8 G 3/8 na na na
RHDI3/8CF Light na Steel, Chromium-6 Free 7.5 Female BSPP thread (ISO 1179-1) Female BSPP thread (ISO 1179-1) na na G 3/8 G 3/8 na na na
RHV06LMED71 Light na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV06LMEDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV06LMEDOMD71 Light na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na na Port to Tube FKM
RHV06LMEDOMDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na na Port to Tube NBR
RHV06LRED71 Light na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV06LREDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV06LREDOMD71 Light na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na na Port to Tube FKM
RHV06LREDOMDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na na Port to Tube NBR
RHV06SMED71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV06SMEDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV06SMEDOMD71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na na Port to Tube FKM
RHV06SMEDOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na na Port to Tube NBR
RHV06SRED71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV06SREDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV06SREDOMD71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na na Port to Tube FKM
RHV06SREDOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na na Port to Tube NBR
RHV06ZLMED71 Light na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV06ZLMEDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV06ZLRED71 Light na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV06ZLREDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV06ZSMED71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV06ZSMEDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV06ZSRED71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV06ZSREDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV08LMED71 Light na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV08LMEDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV08LMEDOMD71 Light na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na na Port to Tube FKM
RHV08LMEDOMDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na na Port to Tube NBR
RHV08LRED71 Light na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV08LREDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV08LREDOMD71 Light na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na na Port to Tube FKM
RHV08LREDOMDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na na Port to Tube NBR
RHV08SMED71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV08SMEDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV08SMEDOMD71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na na Port to Tube FKM
RHV08SMEDOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na na Port to Tube NBR
RHV08SRED71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV08SREDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV08SREDOMD71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na na Port to Tube FKM
RHV08SREDOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na na Port to Tube NBR
RHV08ZLMED71 Light na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV08ZLMEDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV08ZLRED71 Light na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV08ZLREDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV08ZSMED71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV08ZSMEDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV08ZSRED71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV08ZSREDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV10LMED71 Light na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV10LMEDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV10LMEDOMD71 Light na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na na Port to Tube FKM
RHV10LMEDOMDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na na Port to Tube NBR
RHV10LRED71 Light na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV10LREDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV10LREDOMD71 Light na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na na Port to Tube FKM
RHV10LREDOMDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na na Port to Tube NBR
RHV10SMED71 Heavy na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV10SMEDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV10SMEDOMD71 Heavy na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na na Port to Tube FKM
RHV10SMEDOMDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na na Port to Tube NBR
RHV10SRED71 Heavy na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV10SREDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV10SREDOMD71 Heavy na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na na Port to Tube FKM
RHV10SREDOMDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na na Port to Tube NBR
RHV10ZLMED71 Light na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV10ZLMEDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV10ZLRED71 Light na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV10ZLREDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV10ZSMED71 Heavy na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV10ZSMEDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV10ZSRED71 Heavy na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV10ZSREDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV12LMED71 Light na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV12LMEDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV12LMEDOMD71 Light na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na na Port to Tube FKM
RHV12LMEDOMDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na na Port to Tube NBR
RHV12LRED71 Light na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV12LREDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV12LREDOMD71 Light na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na na Port to Tube FKM
RHV12LREDOMDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na na Port to Tube NBR
RHV12SMED71 Heavy na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV12SMEDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV12SMEDOMD71 Heavy na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na na Port to Tube FKM
RHV12SMEDOMDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na na Port to Tube NBR
RHV12SRED71 Heavy na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV12SREDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV12SREDOMD71 Heavy na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na na Port to Tube FKM
RHV12SREDOMDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na na Port to Tube NBR
RHV12ZLMED71 Light na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV12ZLMEDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV12ZLRED71 Light na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV12ZLREDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV12ZSMED71 Heavy na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV12ZSMEDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV12ZSRED71 Heavy na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV12ZSREDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV14SMED71 Heavy na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV14SMEDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV14SMEDOMD71 Heavy na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na na Port to Tube FKM
RHV14SMEDOMDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na na Port to Tube NBR
RHV14SRED71 Heavy na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV14SREDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV14SREDOMD71 Heavy na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na na Port to Tube FKM
RHV14SREDOMDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na na Port to Tube NBR
RHV14ZSMED71 Heavy na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV14ZSMEDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV14ZSRED71 Heavy na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV14ZSREDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV15LMED71 Light na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV15LMEDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV15LMEDOMD71 Light na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na na Port to Tube FKM
RHV15LMEDOMDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na na Port to Tube NBR
RHV15LRED71 Light na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV15LREDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV15LREDOMD71 Light na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na na Port to Tube FKM
RHV15LREDOMDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na na Port to Tube NBR
RHV15ZLMED71 Light na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV15ZLMEDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV15ZLRED71 Light na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV15ZLREDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV16SMED71 Heavy na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV16SMEDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV16SMEDOMD71 Heavy na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na na Port to Tube FKM
RHV16SMEDOMDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na na Port to Tube NBR
RHV16SRED71 Heavy na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV16SREDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV16SREDOMD71 Heavy na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na na Port to Tube FKM
RHV16SREDOMDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na na Port to Tube NBR
RHV16ZSMED71 Heavy na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV16ZSMEDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV16ZSRED71 Heavy na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV16ZSREDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV18LMED71 Light na Stainless steel 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV18LMEDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV18LMEDOMD71 Light na Stainless steel 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na na Port to Tube FKM
RHV18LMEDOMDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na na Port to Tube NBR
RHV18LRED71 Light na Stainless steel 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV18LREDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV18LREDOMD71 Light na Stainless steel 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na na Port to Tube FKM
RHV18LREDOMDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na na Port to Tube NBR
RHV18ZLMED71 Light na Stainless steel 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV18ZLMEDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV18ZLRED71 Light na Stainless steel 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV18ZLREDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV20SMED71 Heavy na Stainless steel 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV20SMEDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV20SMEDOMD71 Heavy na Stainless steel 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na na Port to Tube FKM
RHV20SMEDOMDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na na Port to Tube NBR
RHV20SRED71 Heavy na Stainless steel 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV20SREDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV20SREDOMD71 Heavy na Stainless steel 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na na Port to Tube FKM
RHV20SREDOMDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na na Port to Tube NBR
RHV20ZSMED71 Heavy na Stainless steel 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV20ZSMEDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV20ZSRED71 Heavy na Stainless steel 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV20ZSREDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV22LMED71 Light na Stainless steel 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV22LMEDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV22LMEDOMD71 Light na Stainless steel 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na na Port to Tube FKM
RHV22LMEDOMDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na na Port to Tube NBR
RHV22LRED71 Light na Stainless steel 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV22LREDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV22LREDOMD71 Light na Stainless steel 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na na Port to Tube FKM
RHV22LREDOMDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na na Port to Tube NBR
RHV22ZLMED71 Light na Stainless steel 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV22ZLMEDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV22ZLRED71 Light na Stainless steel 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV22ZLREDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV25SMED71 Heavy na Stainless steel 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV25SMEDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV25SMEDOMD71 Heavy na Stainless steel 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na na Port to Tube FKM
RHV25SMEDOMDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na na Port to Tube NBR
RHV25SRED71 Heavy na Stainless steel 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV25SREDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV25SREDOMD71 Heavy na Stainless steel 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na na Port to Tube FKM
RHV25SREDOMDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na na Port to Tube NBR
RHV25ZSMED71 Heavy na Stainless steel 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV25ZSMEDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV25ZSRED71 Heavy na Stainless steel 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV25ZSREDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV28LMED71 Light na Stainless steel 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV28LMEDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV28LMEDOMD71 Light na Stainless steel 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na na Port to Tube FKM
RHV28LMEDOMDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na na Port to Tube NBR
RHV28LRED71 Light na Stainless steel 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV28LREDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV28LREDOMD71 Light na Stainless steel 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na na Port to Tube FKM
RHV28LREDOMDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na na Port to Tube NBR
RHV28ZLMED71 Light na Stainless steel 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV28ZLMEDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV28ZLRED71 Light na Stainless steel 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV28ZLREDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV30SMED71 Heavy na Stainless steel 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV30SMEDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV30SMEDOMD71 Heavy na Stainless steel 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na na Port to Tube FKM
RHV30SMEDOMDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na na Port to Tube NBR
RHV30SRED71 Heavy na Stainless steel 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV30SREDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV30SREDOMD71 Heavy na Stainless steel 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na na Port to Tube FKM
RHV30SREDOMDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na na Port to Tube NBR
RHV30ZSMED71 Heavy na Stainless steel 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV30ZSMEDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV30ZSRED71 Heavy na Stainless steel 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV30ZSREDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV35LMED71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV35LMEDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV35LMEDOMD71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na na Port to Tube FKM
RHV35LMEDOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na na Port to Tube NBR
RHV35LRED71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV35LREDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV35LREDOMD71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na na Port to Tube FKM
RHV35LREDOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na na Port to Tube NBR
RHV35ZLMED71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV35ZLMEDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV35ZLRED71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV35ZLREDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV38SMED71 Heavy na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV38SMEDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV38SMEDOMD71 Heavy na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na na Port to Tube FKM
RHV38SMEDOMDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na na Port to Tube NBR
RHV38SRED71 Heavy na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV38SREDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV38SREDOMD71 Heavy na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na na Port to Tube FKM
RHV38SREDOMDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na na Port to Tube NBR
RHV38ZSMED71 Heavy na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV38ZSMEDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV38ZSRED71 Heavy na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV38ZSREDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV42LMED71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV42LMEDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV42LMEDOMD71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na na Port to Tube FKM
RHV42LMEDOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na na Port to Tube NBR
RHV42LRED71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Port to Tube FKM
RHV42LREDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Port to Tube NBR
RHV42LREDOMD71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na na Port to Tube FKM
RHV42LREDOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na na Port to Tube NBR
RHV42ZLMED71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV42ZLMEDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHV42ZLRED71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube FKM
RHV42ZLREDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na Pre-assembled with EO-2 functional nut Port to Tube NBR
RHZ06LMED71 Light na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ06LMEDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ06LMEDOMD71 Light na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na na Tube to Port FKM
RHZ06LMEDOMDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na na Tube to Port NBR
RHZ06LRED71 Light na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ06LREDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ06LREDOMD71 Light na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na na Tube to Port FKM
RHZ06LREDOMDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na na Tube to Port NBR
RHZ06SMED71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ06SMEDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ06SMEDOMD71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na na Tube to Port FKM
RHZ06SMEDOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na na Tube to Port NBR
RHZ06SRED71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ06SREDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ06SREDOMD71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na na Tube to Port FKM
RHZ06SREDOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na na Tube to Port NBR
RHZ06ZLMED71 Light na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ06ZLMEDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 10x1.0 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ06ZLRED71 Light na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ06ZLREDCF Light na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/8 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ06ZSMED71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ06ZSMEDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 6 na M 12x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ06ZSRED71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ06ZSREDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 6 na G 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ08LMED71 Light na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ08LMEDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ08LMEDOMD71 Light na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na na Tube to Port FKM
RHZ08LMEDOMDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na na Tube to Port NBR
RHZ08LRED71 Light na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ08LREDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ08LREDOMD71 Light na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na na Tube to Port FKM
RHZ08LREDOMDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na na Tube to Port NBR
RHZ08SMED71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ08SMEDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ08SMEDOMD71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na na Tube to Port FKM
RHZ08SMEDOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na na Tube to Port NBR
RHZ08SRED71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ08SREDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ08SREDOMD71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na na Tube to Port FKM
RHZ08SREDOMDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na na Tube to Port NBR
RHZ08ZLMED71 Light na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ08ZLMEDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 12x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ08ZLRED71 Light na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ08ZLREDCF Light na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ08ZSMED71 Heavy na Stainless steel 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ08ZSMEDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 8 na M 14x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ08ZSRED71 Heavy na Stainless steel 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ08ZSREDCF Heavy na Steel, Chromium-6 Free 3.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 8 na G 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ10LMED71 Light na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ10LMEDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ10LMEDOMD71 Light na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na na Tube to Port FKM
RHZ10LMEDOMDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na na Tube to Port NBR
RHZ10LRED71 Light na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ10LREDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ10LREDOMD71 Light na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na na Tube to Port FKM
RHZ10LREDOMDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na na Tube to Port NBR
RHZ10SMED71 Heavy na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ10SMEDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ10SMEDOMD71 Heavy na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na na Tube to Port FKM
RHZ10SMEDOMDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na na Tube to Port NBR
RHZ10SRED71 Heavy na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ10SREDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ10SREDOMD71 Heavy na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na na Tube to Port FKM
RHZ10SREDOMDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na na Tube to Port NBR
RHZ10ZLMED71 Light na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ10ZLMEDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 14x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ10ZLRED71 Light na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ10ZLREDCF Light na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ10ZSMED71 Heavy na Stainless steel 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ10ZSMEDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 10 na M 16x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ10ZSRED71 Heavy na Stainless steel 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ10ZSREDCF Heavy na Steel, Chromium-6 Free 5.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 10 na G 3/8 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ12LMED71 Light na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ12LMEDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ12LMEDOMD71 Light na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na na Tube to Port FKM
RHZ12LMEDOMDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na na Tube to Port NBR
RHZ12LRED71 Light na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ12LREDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ12LREDOMD71 Light na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na na Tube to Port FKM
RHZ12LREDOMDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na na Tube to Port NBR
RHZ12SMED71 Heavy na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ12SMEDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ12SMEDOMD71 Heavy na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na na Tube to Port FKM
RHZ12SMEDOMDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na na Tube to Port NBR
RHZ12SRED71 Heavy na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ12SREDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ12SREDOMD71 Heavy na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na na Tube to Port FKM
RHZ12SREDOMDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na na Tube to Port NBR
RHZ12ZLMED71 Light na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ12ZLMEDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 16x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ12ZLRED71 Light na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ12ZLREDCF Light na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ12ZSMED71 Heavy na Stainless steel 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ12ZSMEDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 12 na M 18x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ12ZSRED71 Heavy na Stainless steel 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ12ZSREDCF Heavy na Steel, Chromium-6 Free 7.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 12 na G 3/8 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ14SMED71 Heavy na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ14SMEDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ14SMEDOMD71 Heavy na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na na Tube to Port FKM
RHZ14SMEDOMDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na na Tube to Port NBR
RHZ14SRED71 Heavy na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ14SREDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ14SREDOMD71 Heavy na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na na Tube to Port FKM
RHZ14SREDOMDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na na Tube to Port NBR
RHZ14ZSMED71 Heavy na Stainless steel 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ14ZSMEDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 14 na M 20x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ14ZSRED71 Heavy na Stainless steel 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ14ZSREDCF Heavy na Steel, Chromium-6 Free 9.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 14 na G 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ15LMED71 Light na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ15LMEDCF Light na Steel, Chromium-6 Free 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ15LMEDOMD71 Light na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na na Tube to Port FKM
RHZ15LMEDOMDCF Light na Steel, Chromium-6 Free 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na na Tube to Port NBR
RHZ15LRED71 Light na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ15LREDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ15LREDOMD71 Light na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na na Tube to Port FKM
RHZ15LREDOMDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na na Tube to Port NBR
RHZ15ZLMED71 Light na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ15ZLMEDCF Light na Steel, Chromium-6 Free 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 15 na M 18x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ15ZLRED71 Light na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ15ZLREDCF Light na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 15 na G 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ16SMED71 Heavy na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ16SMEDCF Heavy na Steel, Chromium-6 Free 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ16SMEDOMD71 Heavy na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na na Tube to Port FKM
RHZ16SMEDOMDCF Heavy na Steel, Chromium-6 Free 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na na Tube to Port NBR
RHZ16SRED71 Heavy na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ16SREDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ16SREDOMD71 Heavy na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na na Tube to Port FKM
RHZ16SREDOMDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na na Tube to Port NBR
RHZ16ZSMED71 Heavy na Stainless steel 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ16ZSMEDCF Heavy na Steel, Chromium-6 Free 11.5 24° Cone end Male metric thread - ED-seal (ISO 9974) 16 na M 22x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ16ZSRED71 Heavy na Stainless steel 11.5 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ16ZSREDCF Heavy na Steel, Chromium-6 Free 11 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 16 na G 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ18LMED71 Light na Stainless steel 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ18LMEDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ18LMEDOMD71 Light na Stainless steel 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na na Tube to Port FKM
RHZ18LMEDOMDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na na Tube to Port NBR
RHZ18LRED71 Light na Stainless steel 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ18LREDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ18LREDOMD71 Light na Stainless steel 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na na Tube to Port FKM
RHZ18LREDOMDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na na Tube to Port NBR
RHZ18ZLMED71 Light na Stainless steel 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ18ZLMEDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male metric thread - ED-seal (ISO 9974) 18 na M 22x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ18ZLRED71 Light na Stainless steel 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ18ZLREDCF Light na Steel, Chromium-6 Free 14 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 18 na G 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ20SMED71 Heavy na Stainless steel 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ20SMEDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ20SMEDOMD71 Heavy na Stainless steel 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na na Tube to Port FKM
RHZ20SMEDOMDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na na Tube to Port NBR
RHZ20SRED71 Heavy na Stainless steel 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ20SREDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ20SREDOMD71 Heavy na Stainless steel 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na na Tube to Port FKM
RHZ20SREDOMDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na na Tube to Port NBR
RHZ20ZSMED71 Heavy na Stainless steel 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ20ZSMEDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male metric thread - ED-seal (ISO 9974) 20 na M 27x2.0 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ20ZSRED71 Heavy na Stainless steel 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ20ZSREDCF Heavy na Steel, Chromium-6 Free 15 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 20 na G 3/4 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ22LMED71 Light na Stainless steel 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ22LMEDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ22LMEDOMD71 Light na Stainless steel 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na na Tube to Port FKM
RHZ22LMEDOMDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na na Tube to Port NBR
RHZ22LRED71 Light na Stainless steel 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ22LREDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ22LREDOMD71 Light na Stainless steel 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na na Tube to Port FKM
RHZ22LREDOMDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na na Tube to Port NBR
RHZ22ZLMED71 Light na Stainless steel 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ22ZLMEDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male metric thread - ED-seal (ISO 9974) 22 na M 26x1.5 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ22ZLRED71 Light na Stainless steel 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ22ZLREDCF Light na Steel, Chromium-6 Free 18 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 22 na G 3/4 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ25SMED71 Heavy na Stainless steel 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ25SMEDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ25SMEDOMD71 Heavy na Stainless steel 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na na Tube to Port FKM
RHZ25SMEDOMDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na na Tube to Port NBR
RHZ25SRED71 Heavy na Stainless steel 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ25SREDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ25SREDOMD71 Heavy na Stainless steel 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na na Tube to Port FKM
RHZ25SREDOMDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na na Tube to Port NBR
RHZ25ZSMED71 Heavy na Stainless steel 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ25ZSMEDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male metric thread - ED-seal (ISO 9974) 25 na M 33x2.0 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ25ZSRED71 Heavy na Stainless steel 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ25ZSREDCF Heavy na Steel, Chromium-6 Free 19 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 25 na G 1 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ28LMED71 Light na Stainless steel 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ28LMEDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ28LMEDOMD71 Light na Stainless steel 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na na Tube to Port FKM
RHZ28LMEDOMDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na na Tube to Port NBR
RHZ28LRED71 Light na Stainless steel 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ28LREDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ28LREDOMD71 Light na Stainless steel 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na na Tube to Port FKM
RHZ28LREDOMDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na na Tube to Port NBR
RHZ28ZLMED71 Light na Stainless steel 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ28ZLMEDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male metric thread - ED-seal (ISO 9974) 28 na M 33x2.0 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ28ZLRED71 Light na Stainless steel 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ28ZLREDCF Light na Steel, Chromium-6 Free 23 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 28 na G 1 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ30SMED71 Heavy na Stainless steel 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ30SMEDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ30SMEDOMD71 Heavy na Stainless steel 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na na Tube to Port FKM
RHZ30SMEDOMDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na na Tube to Port NBR
RHZ30SRED71 Heavy na Stainless steel 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ30SREDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ30SREDOMD71 Heavy na Stainless steel 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na na Tube to Port FKM
RHZ30SREDOMDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na na Tube to Port NBR
RHZ30ZSMED71 Heavy na Stainless steel 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ30ZSMEDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male metric thread - ED-seal (ISO 9974) 30 na M 42x2.0 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ30ZSRED71 Heavy na Stainless steel 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ30ZSREDCF Heavy na Steel, Chromium-6 Free 24 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 30 na G 1 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ35LMED71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ35LMEDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ35LMEDOMD71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na na Tube to Port FKM
RHZ35LMEDOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na na Tube to Port NBR
RHZ35LRED71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ35LREDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ35LREDOMD71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na na Tube to Port FKM
RHZ35LREDOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na na Tube to Port NBR
RHZ35ZLMED71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ35ZLMEDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 35 na M 42x2.0 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ35ZLRED71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ35ZLREDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 35 na G 1 1/4 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ38SMED71 Heavy na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ38SMEDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ38SMEDOMD71 Heavy na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na na Tube to Port FKM
RHZ38SMEDOMDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na na Tube to Port NBR
RHZ38SRED71 Heavy na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ38SREDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ38SREDOMD71 Heavy na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na na Tube to Port FKM
RHZ38SREDOMDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na na Tube to Port NBR
RHZ38ZSMED71 Heavy na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ38ZSMEDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 38 na M 48x2.0 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ38ZSRED71 Heavy na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ38ZSREDCF Heavy na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 38 na G 1 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ42LMED71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ42LMEDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ42LMEDOMD71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na na Tube to Port FKM
RHZ42LMEDOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na na Tube to Port NBR
RHZ42LRED71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na Pre-assembled with nut and EO-DPR cutting ring Tube to Port FKM
RHZ42LREDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na Pre-assembled with nut and EO-PSR cutting ring Tube to Port NBR
RHZ42LREDOMD71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na na Tube to Port FKM
RHZ42LREDOMDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na na Tube to Port NBR
RHZ42ZLMED71 Light na Stainless steel 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ42ZLMEDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male metric thread - ED-seal (ISO 9974) 42 na M 48x2.0 na Pre-assembled with EO-2 functional nut Tube to Port NBR
RHZ42ZLRED71 Light na Stainless steel 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port FKM
RHZ42ZLREDCF Light na Steel, Chromium-6 Free 29 24° Cone end Male BSPP thread - ED-seal (ISO 1179) 42 na G 1 1/2 A na Pre-assembled with EO-2 functional nut Tube to Port NBR
|
fcg.cnmec@parkerdistribution.com.cn
