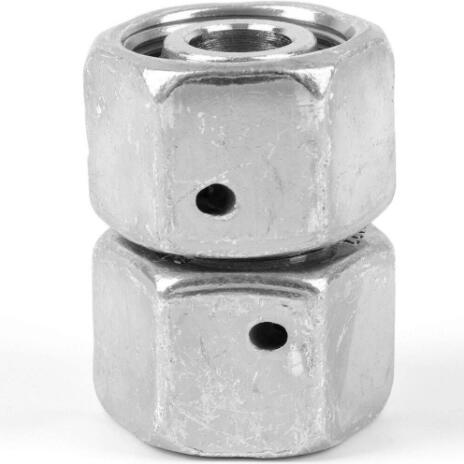

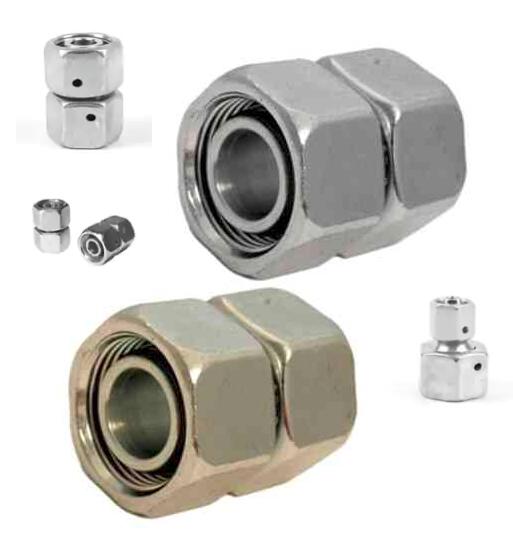

Parker Ermeto DIN swivel to swivel high pressure hydraulic tube fittings
Parker派克EO DIN 标准直通旋转螺母/旋转螺母组合连接高压液压管接头
Parker DIN标准接头
EO DIN 标准直通旋转螺母/旋转螺母组合连接高压液压管接头的主要功能是可以连接两根硬管或者软管。其广泛范围包括采用新一代无六价铬镀锌表面处理方式的碳钢和不锈钢材质可选。The main function of Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings is the connection of 2 tubes or hoses. This broad range of fittings is available in steel with Cr(VI)-free surfaces and in stainless steel.
Parker派克EO DIN 标准直通旋转螺母/旋转螺母组合连接高压液压管接头
EO DIN 标准直通旋转螺母/旋转螺母组合接头的主要功能是可以连接两根相同管径或者不同管径的硬管或者软管。EO DIN 标准直通旋转螺母/旋转螺母组合连接高压液压管接头的广泛范围，包括GZ 和 GZR，都可选择采用新一代无六价铬镀锌表面处理方式的碳钢和不锈钢材质。
适用市场：
- 汽车行业
- 安防系统
- 能源行业
- 环境控制
- 工业领域
- 基础建设
- 机床
- 物料搬运
- 行走机械
- 石油和天然气
- 电力行业
- 过程控制
- 交通运输
- 水处理
应用领域：
- 适用于一般的液压系统领域。
特征/优势：
- 优良的耐腐蚀性能：一般而言，新一代无六价铬镀锌表面处理方式针对依照德国工业标准DIN50021/ISO9227 盐雾试验，提供产品超过五百个小时而不产生白锈的耐腐蚀性能。这种特质大大地延长了管接头的使用寿命。
- 不锈钢材质表面：相比碳钢而言，针对腐蚀性介质和环境影响，不锈钢管接头有着优良的耐腐蚀性能，同时有着更好的高温耐腐蚀性能。这些产品特征大大地扩展了管接头的应用范围。
- 耐压性能：因为EO DIN 标准直通旋转螺母/旋转螺母组合连接高压液压管接头有着压力等级高达800 bar的重型 (S系列) 和压力等级高达500 bar的轻型 (L 系列) 可选，所以这种接头可以被应用于广泛的应用领域。
性能特点：
连接 1 管道外径：06-42 mm
连接 2 管道外径：06-42 mm
连接 1 尺寸：EO 24° 锥 DKO旋转螺母
连接 2 尺寸：EO 24° 锥 DKO旋转螺母
产品序列：轻系列，重系列，轻系列/重系列，重系列/轻系列
形状：旋转螺母直通接头，旋转螺母直通变径接头
管道外径：6-42 mm
MAX.运行温度：+250 Steel, +400 Stainless Steel °C，+482 Steel, +752 Stainless Steel °F
MAX.运行压力：160-800 bar，16-80 MPa，2321-11603 psi
MIN.运行温度：-40 (Steel); -60 (Stainless Steel) °C，-40 Steel, -76 Stainless Steel °F
应用：Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
连接类型：Bite Type, Soft Seal Bite Type
符合规格：DIN ISO 8434
结构材料：Steel zinc plated (CrVI-free), Stainless steel

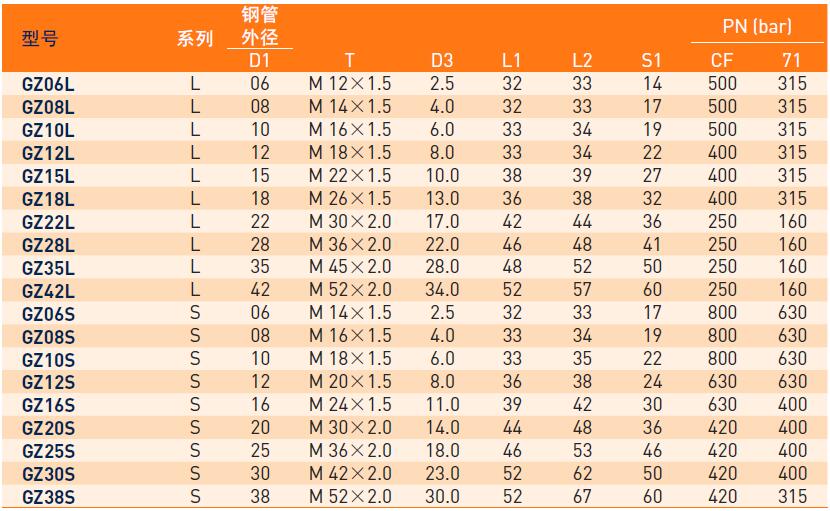

GZ 直通组合接头 - EO 24°DKO 旋转螺母
| 型号 |
系列 |
钢管外径
D1 |
T |
D3 |
L1 |
L2 |
S1 |
PN(bar)
CF |
PN(bar)
71 |
| GZ06L |
L |
06 |
M12×1.5 |
2.5 |
32 |
33 |
14 |
500 |
315 |
| GZ08L |
L |
08 |
M14×1.5 |
4.0 |
32 |
33 |
17 |
500 |
315 |
| GZ10L |
L |
10 |
M16×1.5 |
6.0 |
33 |
34 |
19 |
500 |
315 |
| GZ12L |
L |
12 |
M18×1.5 |
8.0 |
33 |
34 |
22 |
400 |
315 |
| GZ15L |
L |
15 |
M22×1.5 |
10.0 |
38 |
39 |
27 |
400 |
315 |
| GZ18L |
L |
18 |
M26×1.5 |
13.0 |
36 |
38 |
32 |
400 |
315 |
| GZ22L |
L |
22 |
M30×2.0 |
17.0 |
42 |
44 |
36 |
250 |
160 |
| GZ28L |
L |
28 |
M36×2.0 |
22.0 |
46 |
48 |
41 |
250 |
160 |
| GZ35L |
L |
35 |
M45×2.0 |
28.0 |
48 |
52 |
50 |
250 |
160 |
| GZ42L |
L |
42 |
M52×2.0 |
34.0 |
52 |
57 |
60 |
250 |
160 |
| GZ06S |
S |
06 |
M14×1.5 |
2.5 |
32 |
33 |
17 |
800 |
630 |
| GZ08S |
S |
08 |
M16×1.5 |
4.0 |
33 |
34 |
19 |
800 |
630 |
| GZ10S |
S |
10 |
M18×1.5 |
6.0 |
33 |
35 |
22 |
800 |
630 |
| GZ12S |
S |
12 |
M20×1.5 |
8.0 |
36 |
38 |
24 |
630 |
630 |
| GZ16S |
S |
16 |
M24×1.5 |
11.0 |
39 |
42 |
30 |
630 |
400 |
| GZ20S |
S |
20 |
M30×2.0 |
14.0 |
44 |
48 |
36 |
420 |
400 |
| GZ25S |
S |
25 |
M36×2.0 |
18.0 |
46 |
53 |
46 |
420 |
400 |
| GZ30S |
S |
30 |
M42×2.0 |
23.0 |
52 |
62 |
50 |
420 |
400 |
| GZ38S |
S |
38 |
M52×2.0 |
30.0 |
52 |
67 |
60 |
420 |
315 |
订货示例：
碳钢，无六价铬镀锌：GZ12LCF
316Ti不锈钢：GZ12L71
注：未标注压力等级产品订货请咨询派克销售

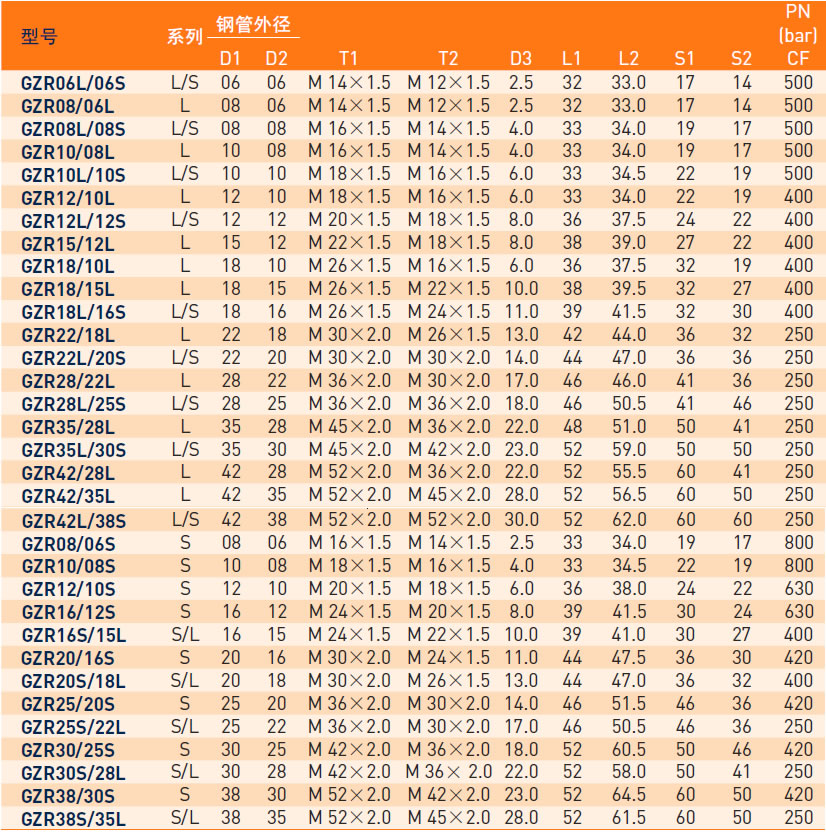

GZR 组合变径接头 - EO 24°DKO 旋转螺母
| 型号 |
系列 |
钢管外径
D1 |
钢管外径
D2 |
T1 |
T2 |
D3 |
L1 |
L2 |
S1 |
S2 |
PN(bar)
CF |
| GZR06L/06S |
L/S |
06 |
06 |
M14×1.5 |
M12×1.5 |
2.5 |
32 |
33.0 |
17 |
14 |
500 |
| GZR08/06L |
L |
08 |
06 |
M14×1.5 |
M12×1.5 |
2.5 |
32 |
33.0 |
17 |
14 |
500 |
| GZR08L/08S |
L/S |
08 |
08 |
M16×1.5 |
M14×1.5 |
4.0 |
33 |
34.0 |
19 |
17 |
500 |
| GZR10/08L |
L |
10 |
08 |
M16×1.5 |
M14×1.5 |
4.0 |
33 |
34.0 |
19 |
17 |
500 |
| GZR10L/10S |
L/S |
10 |
10 |
M18×1.5 |
M16×1.5 |
6.0 |
33 |
34.5 |
22 |
19 |
500 |
| GZR12/10L |
L |
12 |
10 |
M18×1.5 |
M16×1.5 |
6.0 |
33 |
34.0 |
22 |
19 |
400 |
| GZR12L/12S |
L/S |
12 |
12 |
M20×1.5 |
M18×1.5 |
8.0 |
36 |
37.5 |
24 |
22 |
400 |
| GZR15/12L |
L |
15 |
12 |
M22×1.5 |
M18×1.5 |
8.0 |
38 |
39.0 |
27 |
22 |
400 |
| GZR18/10L |
L |
18 |
10 |
M26×1.5 |
M16×1.5 |
6.0 |
36 |
37.5 |
32 |
19 |
400 |
| GZR18/15L |
L |
18 |
15 |
M26×1.5 |
M22×1.5 |
10.0 |
38 |
39.5 |
32 |
27 |
400 |
| GZR18L/16S |
L/S |
18 |
16 |
M26×1.5 |
M24×1.5 |
11.0 |
39 |
41.5 |
32 |
30 |
400 |
| GZR22/18L |
L |
22 |
18 |
M30×2.0 |
M26×1.5 |
13.0 |
42 |
44.0 |
36 |
32 |
250 |
| GZR22L/20S |
L/S |
22 |
20 |
M30×2.0 |
M30×2.0 |
14.0 |
44 |
47.0 |
36 |
36 |
250 |
| GZR28/22L |
L |
28 |
22 |
M36×2.0 |
M30×2.0 |
17.0 |
46 |
46.0 |
41 |
36 |
250 |
| GZR28L/25S |
L/S |
28 |
25 |
M36×2.0 |
M36×2.0 |
18.0 |
46 |
50.5 |
41 |
46 |
250 |
| GZR35/28L |
L |
35 |
28 |
M45×2.0 |
M36×2.0 |
22.0 |
48 |
51.0 |
50 |
41 |
250 |
| GZR35L/30S |
L/S |
35 |
30 |
M45×2.0 |
M42×2.0 |
23.0 |
52 |
59.0 |
50 |
50 |
250 |
| GZR42/28L |
L |
42 |
28 |
M52×2.0 |
M36×2.0 |
22.0 |
52 |
55.5 |
60 |
41 |
250 |
| GZR42/35L |
L |
42 |
35 |
M52×2.0 |
M45×2.0 |
28.0 |
52 |
56.5 |
60 |
50 |
250 |
| GZR42L/38S |
L/S |
42 |
38 |
M52×2.0 |
M52×2.0 |
30.0 |
52 |
62.0 |
60 |
60 |
250 |
| GZR08/06S |
S |
08 |
06 |
M16×1.5 |
M14×1.5 |
2.5 |
33 |
34.0 |
19 |
17 |
800 |
| GZR10/08S |
S |
10 |
08 |
M18×1.5 |
M16×1.5 |
4.0 |
33 |
34.5 |
22 |
19 |
800 |
| GZR12/10S |
S |
12 |
10 |
M20×1.5 |
M18×1.5 |
6.0 |
36 |
38.0 |
24 |
22 |
630 |
| GZR16/12S |
S |
16 |
12 |
M24×1.5 |
M20×1.5 |
8.0 |
39 |
41.5 |
30 |
24 |
630 |
| GZR16S/15L |
S/L |
16 |
15 |
M24×1.5 |
M22×1.5 |
10.0 |
39 |
41.0 |
30 |
27 |
400 |
| GZR20/16S |
S |
20 |
16 |
M30×2.0 |
M24×1.5 |
11.0 |
44 |
47.5 |
36 |
30 |
420 |
| GZR20S/18L |
S/L |
20 |
18 |
M30×2.0 |
M26×1.5 |
13.0 |
44 |
47.0 |
36 |
32 |
400 |
| GZR25/20S |
S |
25 |
20 |
M36×2.0 |
M30×2.0 |
14.0 |
46 |
51.5 |
46 |
36 |
420 |
| GZR25S/22L |
S/L |
25 |
22 |
M36×2.0 |
M30×2.0 |
17.0 |
46 |
50.5 |
46 |
36 |
250 |
| GZR30/25S |
S |
30 |
25 |
M42×2.0 |
M36×2.0 |
18.0 |
52 |
60.5 |
50 |
46 |
420 |
| GZR30S/28L |
S/L |
30 |
28 |
M42×2.0 |
M36×2.0 |
22.0 |
52 |
58.0 |
50 |
41 |
250 |
| GZR38/30S |
S |
38 |
30 |
M52×2.0 |
M42×2.0 |
23.0 |
52 |
64.5 |
60 |
50 |
420 |
| GZR38S/35L |
S/L |
38 |
35 |
M52×2.0 |
M45×2.0 |
28.0 |
52 |
61.5 |
60 |
50 |
250 |
订货示例
碳钢，无六价铬镀锌：GZR12/08LCF
Ermeto DIN swivel to swivel high pressure hydraulic tube fittings 型号
| Part |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
Shape |
Fitting Material |
| GZ06L71 |
Light |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight |
Stainless steel |
| GZ06LCF |
Light |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ06S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight |
Stainless steel |
| GZ06SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ08L71 |
Light |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight |
Stainless steel |
| GZ08LCF |
Light |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ08S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight |
Stainless steel |
| GZ08SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ10L71 |
Light |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight |
Stainless steel |
| GZ10LCF |
Light |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ10S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight |
Stainless steel |
| GZ10SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ12L71 |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight |
Stainless steel |
| GZ12LCF |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ12S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight |
Stainless steel |
| GZ12SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ14S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
14 |
14 |
Swivel nut straight |
Stainless steel |
| GZ14SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
14 |
14 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ15L71 |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
15 |
Swivel nut straight |
Stainless steel |
| GZ15LCF |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
15 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ16S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
16 |
16 |
Swivel nut straight |
Stainless steel |
| GZ16SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
16 |
16 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ18L71 |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
18 |
Swivel nut straight |
Stainless steel |
| GZ18LCF |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
18 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ20S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
20 |
20 |
Swivel nut straight |
Stainless steel |
| GZ20SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
20 |
20 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ22L71 |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
22 |
Swivel nut straight |
Stainless steel |
| GZ22LCF |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
22 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ25S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
25 |
25 |
Swivel nut straight |
Stainless steel |
| GZ25SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
25 |
25 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ28L71 |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
28 |
Swivel nut straight |
Stainless steel |
| GZ28LCF |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
28 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ30S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
30 |
Swivel nut straight |
Stainless steel |
| GZ30SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
30 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ35L71 |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
35 |
Swivel nut straight |
Stainless steel |
| GZ35LCF |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
35 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ38S71 |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
38 |
Swivel nut straight |
Stainless steel |
| GZ38SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
38 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZ42L71 |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
42 |
Swivel nut straight |
Stainless steel |
| GZ42LCF |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
42 |
Swivel nut straight |
Steel, Chromium-6 Free |
| GZR06L/06SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
6 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR08/06LCF |
Light |
24° DKO swivel |
24° DKO swivel |
8 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR08/06SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
8 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR08L/08SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
8 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR10/06SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR10/08LCF |
Light |
24° DKO swivel |
24° DKO swivel |
10 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR10/08SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR10/106LCF |
Light |
24° DKO swivel |
24° DKO swivel |
10 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR10L/10SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
10 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR12/06LCF |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR12/06SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
6 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR12/08LCF |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR12/08SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR12/10LCF |
Light |
24° DKO swivel |
24° DKO swivel |
12 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR12/10SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR12L/12S |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
12 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR15/08LCF |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
8 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR15/10LCF |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR15/12LCF |
Light |
24° DKO swivel |
24° DKO swivel |
15 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR16/10SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
16 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR16/12SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
16 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR16S/15LCF |
Heavy/Light |
24° DKO swivel |
24° DKO swivel |
16 |
15 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR18/10LCF |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
10 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR18/12LCF |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR18/15LCF |
Light |
24° DKO swivel |
24° DKO swivel |
18 |
15 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR18L/16SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
18 |
16 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR20/12SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
20 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR20/16SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
20 |
16 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR20S/18LCF |
Heavy/Light |
24° DKO swivel |
24° DKO swivel |
20 |
18 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR22/12LCF |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
12 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR22/15LCF |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
15 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR22/18LCF |
Light |
24° DKO swivel |
24° DKO swivel |
22 |
18 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR22L/20SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
22 |
20 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR25/16SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
25 |
16 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR25S/22LCF |
Heavy/Light |
24° DKO swivel |
24° DKO swivel |
25 |
22 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR28/15LCF |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
15 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR28/18LCF |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
18 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR28/22LCF |
Light |
24° DKO swivel |
24° DKO swivel |
28 |
22 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR28L/25SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
28 |
25 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR30/16SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
16 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR30/20SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
20 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR30/25SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
30 |
25 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR30S/28LCF |
Heavy/Light |
24° DKO swivel |
24° DKO swivel |
30 |
28 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR35/18LCF |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
18 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR35/22LCF |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
22 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR35/28LCF |
Light |
24° DKO swivel |
24° DKO swivel |
35 |
28 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR35L/30S |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
35 |
30 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR38/20SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
20 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR38/25SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
25 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR38/30SCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
30 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR38S/35LCF |
Heavy |
24° DKO swivel |
24° DKO swivel |
38 |
35 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR42/22LCF |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
22 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR42/28LCF |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
28 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR42/35LCF |
Light |
24° DKO swivel |
24° DKO swivel |
42 |
35 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
| GZR42L/38SCF |
Light/Heavy |
24° DKO swivel |
24° DKO swivel |
42 |
38 |
Swivel nut straight reducer |
Steel, Chromium-6 Free |
|
fcg.cnmec@parkerdistribution.com.cn
