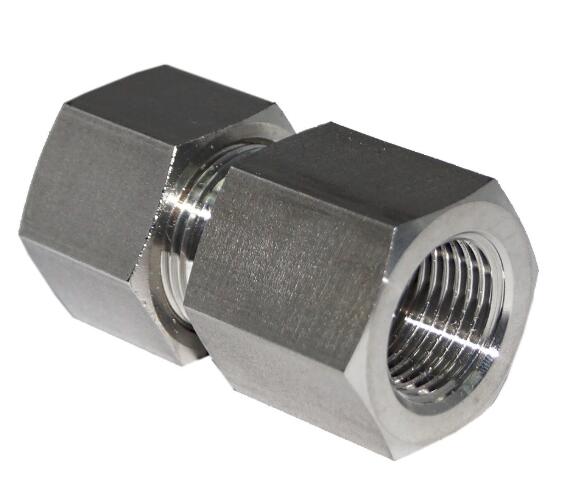

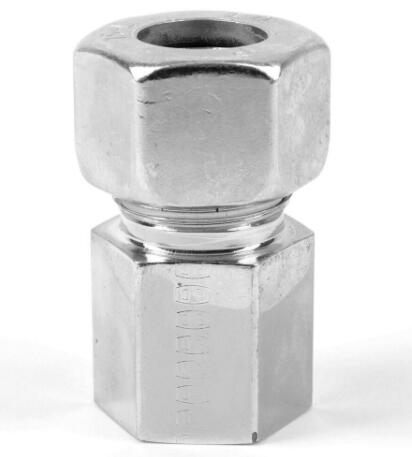

EO DIN 标准内螺纹连接高压液压管接头的主要功能是可以连接钢管和油口。EO DIN 标准管接头的广泛范围包括采用新一代无六价铬镀锌表面处理方式的碳钢和不锈钢材质可选。The main function of Ermeto tube-to-female high pressure hydraulic DIN tube fittings is to connect a tube with a port. The broad range of fittings is available in steel with Cr(VI)-free surfaces and stainless steel.
EO DIN标准内螺纹连接高压液压管接头的主要功能是提高钢管到油口之间的过渡连接。EO DIN标准管接头的广泛范围，包括GAI-M 和 GAI-NPT，都可选择采用新一代无六价铬镀锌表面处理方式的碳钢和不锈钢材质。这些管接头可以选择带渐进式卡套 (EO-PSR 或者 DPR )或者弹性密封卡套 (EO-2)，具体选择取决于应用。
| Part |
Series |
Connection 1 Style |
Connection 2 Style |
Connection 1 Tube O.D. (mm) |
Connection Size |
Shape |
Fitting Material |
Pre-Installed Optional Accessories |
| GAI06L1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06L1/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI06L1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06L1/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06L1/8NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06L1/8NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
na |
| GAI06L1/8NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06L1/8NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Stainless steel |
na |
| GAI06LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06LR1/471 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06LR1/471X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI06LR1/4CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06LR1/4CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Stainless steel |
na |
| GAI06LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06S1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06S1/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI06S1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06S1/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06S1/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06S1/8NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
na |
| GAI06S1/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06S1/8NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Stainless steel |
na |
| GAI06SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI06SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI06SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI06SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI06ZL1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZL1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZL1/8NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZL1/8NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 10x1.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZLR1/471 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZLR1/4CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZS1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZS1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZS1/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZS1/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
6 |
1/8-27 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
6 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI06ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI06ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
6 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08L1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08L1/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI08L1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08L1/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Stainless steel |
na |
| GAI08LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08LR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08LR1/271X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI08LR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08LR1/2CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08LR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08LR3/871X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI08LR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08LR3/8CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI08LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08S1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08S1/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI08S1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08S1/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Stainless steel |
na |
| GAI08SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI08SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI08SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI08SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI08ZL1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZL1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 12x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZS1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZS1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
8 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
8 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI08ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI08ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
8 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10L1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10L1/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI10L1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10L1/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Stainless steel |
na |
| GAI10LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10LR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10LR1/271X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI10LR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10LR1/2CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10LR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10LR3/871X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI10LR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10LR3/8CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Stainless steel |
na |
| GAI10LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10S3/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10S3/8NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Stainless steel |
na |
| GAI10S3/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10S3/8NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Stainless steel |
na |
| GAI10SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI10SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI10SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI10SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI10ZL1/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZL1/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
10 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 14x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZS3/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZS3/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
10 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
10 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI10ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI10ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
10 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12L1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12L1/2NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI12L1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12L1/2NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12L3/8NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12L3/8NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
na |
| GAI12L3/8NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12L3/8NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Stainless steel |
na |
| GAI12LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12LR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12LR1/271X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI12LR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12LR1/2CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI12LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12S1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12S1/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI12S1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12S1/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12S1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12S1/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Stainless steel |
na |
| GAI12S1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12S1/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12S3/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12S3/8NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
na |
| GAI12S3/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12S3/8NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Stainless steel |
na |
| GAI12SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12SR1/271 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12SR1/271X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI12SR1/2CF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12SR1/2CFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI12SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI12SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI12SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI12ZL1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZL1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZL3/8NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZL3/8NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 16x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZLR1/271 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZLR1/2CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZS1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZS1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZS1/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZS1/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
1/4-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZS3/8NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZS3/8NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
12 |
3/8-18 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
12 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZSR1/271 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZSR1/2CF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI12ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI12ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
12 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI14S1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI14S1/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI14S1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI14S1/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI14SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI14SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Stainless steel |
na |
| GAI14SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI14SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI14SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI14SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI14SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI14SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI14ZS1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI14ZS1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
14 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI14ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI14ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
14 |
M 20x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI14ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI14ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
14 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI15L1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI15L1/2NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI15L1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI15L1/2NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI15LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI15LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Stainless steel |
na |
| GAI15LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI15LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI15LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI15LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI15LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI15LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI15ZL1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI15ZL1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
15 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI15ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI15ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
15 |
M 18x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI15ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI15ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
15 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI16S1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI16S1/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI16S1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI16S1/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI16SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI16SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Stainless steel |
na |
| GAI16SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI16SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI16SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI16SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI16SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI16SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI16ZS1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI16ZS1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
16 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI16ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI16ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
16 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI16ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI16ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
16 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI18L1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI18L1/2NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI18L1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI18L1/2NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI18LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI18LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Stainless steel |
na |
| GAI18LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI18LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI18LR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI18LR3/871X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Stainless steel |
na |
| GAI18LR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI18LR3/8CFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI18LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI18LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Stainless steel |
na |
| GAI18LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI18LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI18ZL1/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI18ZL1/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
18 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI18ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI18ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
18 |
M 22x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI18ZLR3/871 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI18ZLR3/8CF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 3/8 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI18ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI18ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
18 |
G 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI20S1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI20S1/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Stainless steel |
na |
| GAI20S1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI20S1/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI20S3/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI20S3/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Stainless steel |
na |
| GAI20S3/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI20S3/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI20SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI20SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Stainless steel |
na |
| GAI20SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI20SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI20SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI20SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Stainless steel |
na |
| GAI20SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI20SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI20ZS1/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI20ZS1/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
1/2-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI20ZS3/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI20ZS3/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
20 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI20ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI20ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
20 |
M 27x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI20ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI20ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
20 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI22L3/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI22L3/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Stainless steel |
na |
| GAI22L3/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI22L3/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI22LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI22LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Stainless steel |
na |
| GAI22LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI22LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI22LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI22LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Stainless steel |
na |
| GAI22LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI22LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI22ZL3/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI22ZL3/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
22 |
3/4-14 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI22ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI22ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
22 |
M 26x1.5 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI22ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI22ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
22 |
G 3/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI25S1NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI25S1NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI25S1NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI25S1NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI25SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI25SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Stainless steel |
na |
| GAI25SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI25SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI25SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI25SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Stainless steel |
na |
| GAI25SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI25SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI25ZS1NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI25ZS1NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
25 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI25ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI25ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
25 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI25ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI25ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
25 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI28L1NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI28L1NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI28L1NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI28L1NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI28LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI28LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Stainless steel |
na |
| GAI28LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI28LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI28LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI28LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Stainless steel |
na |
| GAI28LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI28LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI28ZL1NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI28ZL1NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
28 |
1-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI28ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI28ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
28 |
M 33x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI28ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI28ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
28 |
G 1 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI30S11/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI30S11/4NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI30S11/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI30S11/4NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI30SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI30SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Stainless steel |
na |
| GAI30SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI30SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI30SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI30SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Stainless steel |
na |
| GAI30SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI30SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI30ZS11/4NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI30ZS11/4NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
30 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI30ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI30ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
30 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI30ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI30ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
30 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI35L11/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI35L11/4NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI35L11/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI35L11/4NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI35LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI35LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Stainless steel |
na |
| GAI35LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI35LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI35LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI35LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Stainless steel |
na |
| GAI35LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI35LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI35ZL11/4NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI35ZL11/4NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
35 |
1 1/4-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI35ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI35ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
35 |
M 42x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI35ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI35ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
35 |
G 1 1/4 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI38S11/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI38S11/2NPT71X |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI38S11/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI38S11/2NPTCFX |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI38SM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI38SM71X |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Stainless steel |
na |
| GAI38SMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI38SMCFX |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI38SR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI38SR71X |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Stainless steel |
na |
| GAI38SRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI38SRCFX |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI38ZS11/2NPT71 |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI38ZS11/2NPTCF |
Heavy |
24° cone end |
Female NPT thread (SAE 476) |
38 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI38ZSM71 |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI38ZSMCF |
Heavy |
24° cone end |
Female metric thread (ISO 9974-1) |
38 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI38ZSR71 |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI38ZSRCF |
Heavy |
24° cone end |
Female BSPP thread (ISO 1179-1) |
38 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI42L11/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI42L11/2NPT71X |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
na |
| GAI42L11/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI42L11/2NPTCFX |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI42LM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI42LM71X |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Stainless steel |
na |
| GAI42LMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI42LMCFX |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI42LR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Stainless steel |
Pre-assembled with nut and EO-DPR cutting ring |
| GAI42LR71X |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Stainless steel |
na |
| GAI42LRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with nut and EO-PSR cutting ring |
| GAI42LRCFX |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
na |
| GAI42ZL11/2NPT71 |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI42ZL11/2NPTCF |
Light |
24° cone end |
Female NPT thread (SAE 476) |
42 |
1 1/2-11.5 NPT |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI42ZLM71 |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI42ZLMCF |
Light |
24° cone end |
Female metric thread (ISO 9974-1) |
42 |
M 48x2.0 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
| GAI42ZLR71 |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Stainless steel |
Pre-assembled with EO-2 functional nut |
| GAI42ZLRCF |
Light |
24° cone end |
Female BSPP thread (ISO 1179-1) |
42 |
G 1 1/2 |
Female connector |
Steel, Chromium-6 Free |
Pre-assembled with EO-2 functional nut |
fcg.cnmec@parkerdistribution.com.cn
